Luckylight
5mm Round With Flange Type
Infrared LED
Technical Data Sheet
Part No.: LL-503IRC2E-2AC
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/18/2009
Drawn: Yao
Page: 1 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight
Features:
◇
Standard T-1 3/4 diameter package.
◇
Standard T-1 3/4 diameter package.
◇
Low forward voltage.
◇
Low forward voltage.
◇
Infrared Emitting Diode.
◇
Infrared Emitting Diode.
◇
Viewing angle =20°.
◇
Viewing angle =45°.
◇
Reliable and rugged
◇
Reliable and rugged
◇
The product itself will remain within RoHS compliant Version.
◇
The product itself will remain within RoHS compliant Version.
Descriptions:
◇
The device
is spectrally matched with silicon photodiode and phototransistor.
◇
The device
is spectrally matched with silicon photodiode and phototransistor.
◇
The LEDs
are available with different viewing angles.
◇
The LEDs
are available with different viewing angles.
Applications:
◇
Floppy disk
drive.
◇
Floppy disk
drive
◇
Optoelectronic
switch.
◇
Optoelectronic
switch
◇
Camera
◇
Camera.
◇
VCR
◇
VCR.
◇
Video
◇
Video.
◇
Smoke detector
◇
Smoke detector.
◇
Infrared applied
system.
◇
Infrared applied
system
◇
Free air transmission system
◇
Free air transmission system.
◇
Infrared remote
control units.
◇
Infrared remote
control units
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/18/2009
Drawn: Yao
Page: 2 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight

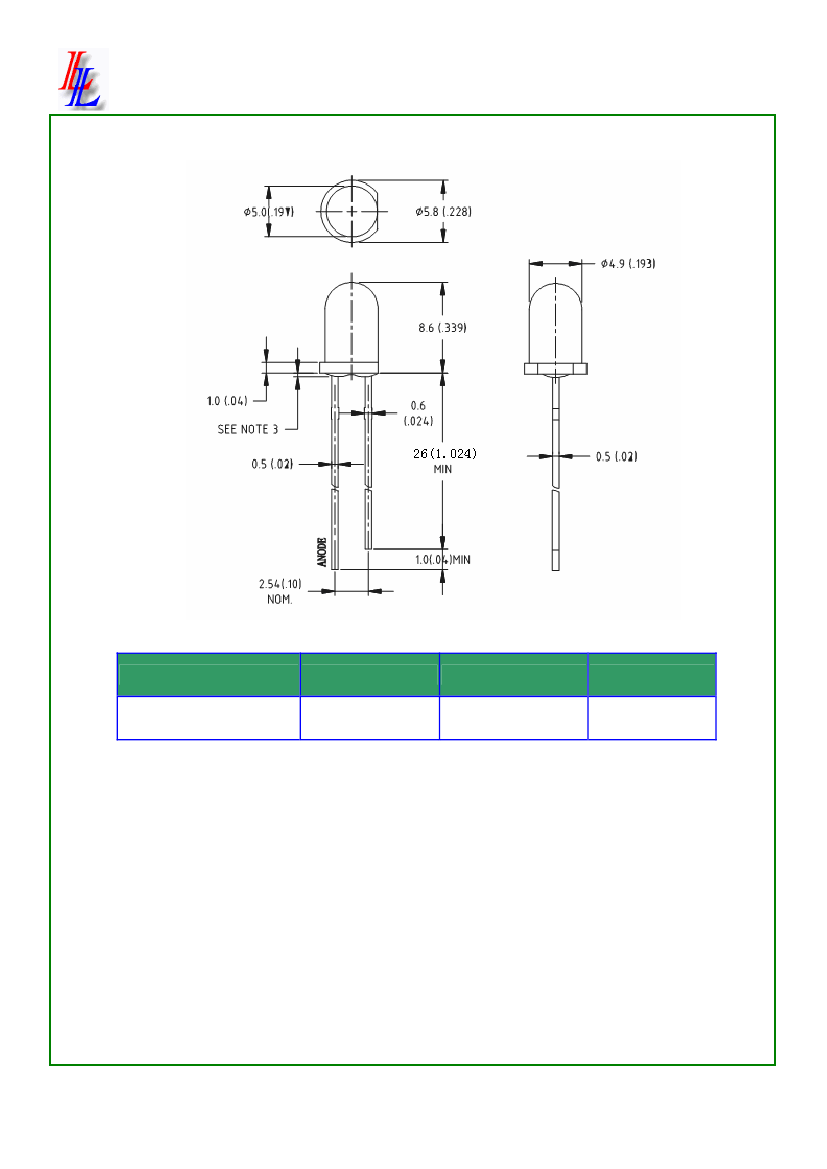

Package Dimension:
Part No.
LL-503IRC2E-2AC
Chip Material
GaAlAs
Lens Color
Water Clear
Source Color
Infrared
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25 (.01〞) mm unless otherwise specified.
3. Protruded resin under flange is 1.0 mm (.04〞) max.
4. Specifications are subject to change without notice.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/18/2009
Drawn: Yao
Page: 3 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight
Absolute Maximum Ratings at Ta=25℃
Parameters
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse
Width)
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
[4mm(.157〞) From Body]
Symbol
PD
IFP
Max.
100
1
Unit
mW
A
IF
VR
Topr
Tstg
Tsld
65
5
mA
V
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃
Parameters
Radiant Intensity
Viewing Angle*
Peak Emission
Wavelength
Spectral
Bandwidth
Forward Voltage
Reverse Current
Symbol
Ee
2θ1/2
λp
△λ
VF
IR
Min.
7.0
---
---
---
0.80
---
Typ.
12.0
20
940
50
1.20
---
Max.
---
---
---
---
1.50
10
Unit
mW/sr
Deg
nm
nm
V
µA
Test Condition
IF =20mA
(Note 1)
IF=20mA
IF=20mA
IF =20mA
VR=5V
Notes:
1.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/18/2009
Drawn: Yao
Page: 4 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight

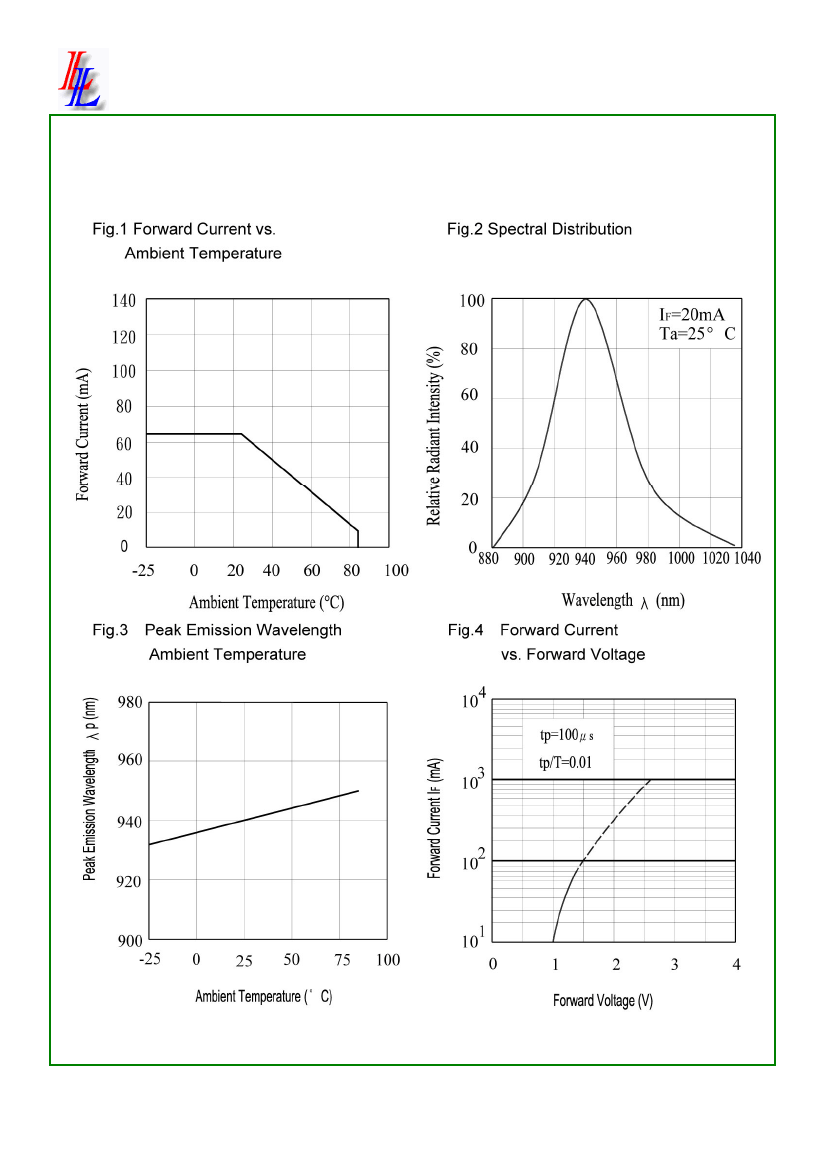

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Spec No: B508 X335
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/18/2009
Drawn: Yao
Page: 5 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
