LUCKY LIGHT
5mm Full Color Blinking Type LED
Technical Data Sheet
Part No: LL-F506RGBC2E-F1
Spec No: U5081AG1AB1A-F1
Approved: Liu
Lucky Light Electronics Co., Ltd
Rev No:V.1
Checked: Wu
Date: Jan/22/1998
Page: 1 OF 11
Drawn: Zhang
Http://www.luckylight.cn
LUCKY LIGHT
Features
◇
Single lamp with 3 original color (red ,green ,and blue ).
◇
Triple chips embedded
◇
Multiple color compose full spectrums
◇
Electricity control IC embedded
◇
Fancy, fun, hottest in the market.
◇
Lens size with 5mm / 8mm / 10mm options
◇
Viewing Angles 60°..
◇
Operating voltage range : 4.5V-10V DC.
◇
Blinking frequency : 0.25Hz
◇
Frequency tolerance :
±20%
◇
RoHS compliant
Benefits:
◇
◇
◇
◇
◇
New trend creations
Low energy consumptions
Low maintenance costs
High application design flexibility
High reliability
Applications
◇
Toys / sports utilities
◇
Miniature key chains
◇
Effect Lights.
◇
Display / decoration lights .
◇
Electronic displays and signals
◇
Interior decoration lights.
◇
Indicator lights.
◇
Solar energy lights / garden lights
Spec No: U5081AG1AB1A-F1
Approved: Liu
Lucky Light Electronics Co., Ltd
Rev No:V.1
Checked: Wu
Date: Jan/22/1998
Page: 2 OF 11
Drawn: Zhang
Http://www.luckylight.cn
LUCKY LIGHT

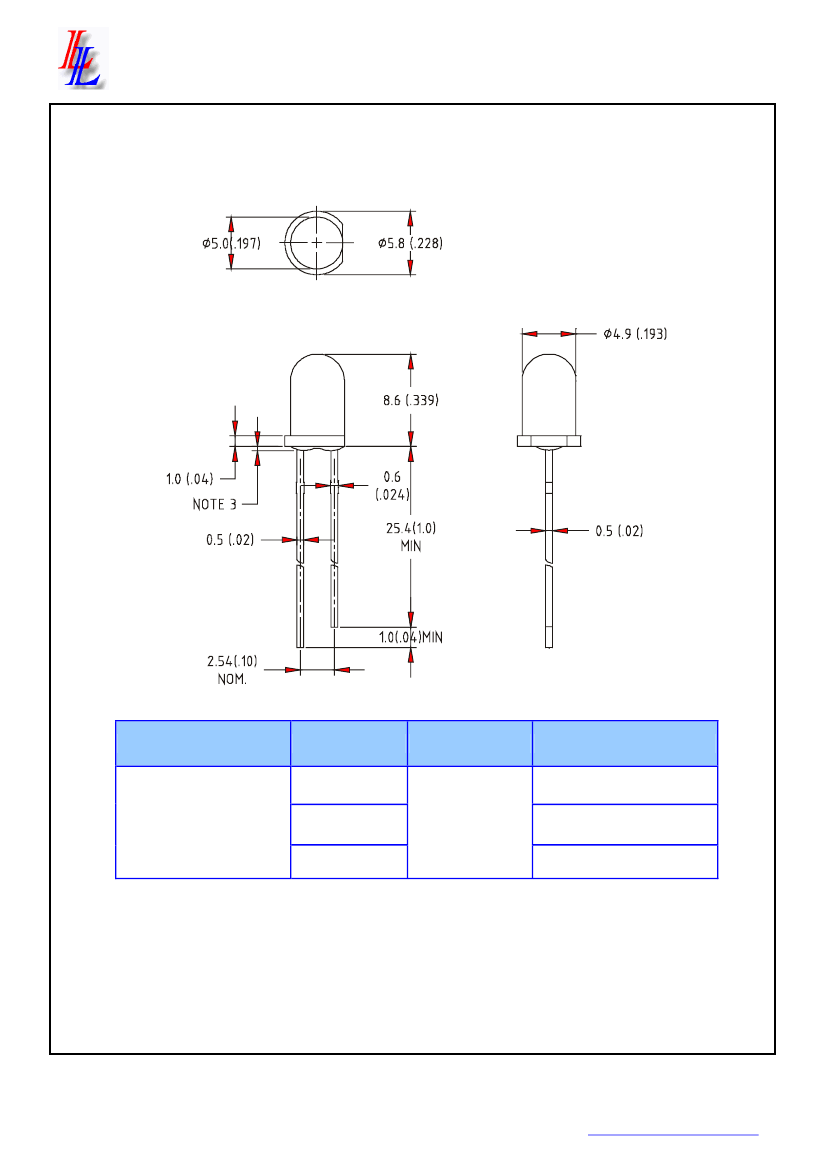

Package Dimension:
Part No.
Material
AlGaInP
Lens Color
Source Color
Hyper Red
LL-F506RGBC2E-F1
InGaN
InGaN
Water Clear
Pure Green
Blue
Notes:
1.
2.
3.
4.
All dimensions are in millimeters (inches).
Tolerance is
±0.25(.010”)mm
unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max
Specifications are subject to change without notice.
Rev No:V.1
Checked: Wu
Date: Jan/22/1998
Page: 3 OF 11
Drawn: Zhang
Http://www.luckylight.cn
Spec No: U5081AG1AB1A-F1
Approved: Liu
Lucky Light Electronics Co., Ltd
LUCKY LIGHT
Absolute Maximum Ratings at Ta=25℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm(.157”) From Body]
Symbol
PD
IFP
VR
Topr
Tstg
Tsld
Max
100
100
5
Unit
mW
mA
V
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Spec No: U5081AG1AB1A-F1
Approved: Liu
Lucky Light Electronics Co., Ltd
Rev No:V.1
Checked: Wu
Date: Jan/22/1998
Page: 4 OF 11
Drawn: Zhang
Http://www.luckylight.cn
LUCKY LIGHT
Electrical Optical Characteristics at Ta=25℃
Parameter
Viewing angle
Operating Voltage
Turn on time
Blinking Frequency
Frequency
tolerance
Symbol
2θ1/2
Vdd
Duty
Fled
Fled
Min.
﹍
---
---
---
---
Hyper
Red
Dominant
Wavelength
λd
Pure
Green
Blue
Hyper
Red
Luminous Intensity
(Note 1)*
IV
Pure
Green
Blue
Typ.
30
3.0
1/20
0.25
±20﹪
625
525
470
1000
2000
1000
---
---
---
Max.
﹍
15
---
---
---
---
Unit
Deg
V
ms
Hz
Hz
nm
nm
nm
mcd
mcd
mcd
V=4.5V
V=4.5V
V=4.5V
V=4.5V
Test Condition
V=4.5V
Notes:
1.Luminous Intensity Measurement allowance is±10%
2.θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity
Spec No: U5081AG1AB1A-F1
Approved: Liu
Lucky Light Electronics Co., Ltd
Rev No:V.1
Checked: Wu
Date: Jan/22/1998
Page: 5 OF 11
Drawn: Zhang
Http://www.luckylight.cn
