0 to 50 dB Dial Step Attenuator, SMA Female To SMA
Female With 1 dB Step Rated To 2 Watts Up To 2.7 GHz
TECHNICAL DATA SHEET
Configuration
Design
Connector 1
Connector 2
Step Attenuator
SMA Female
SMA Female
PE7398
Electrical Specifications *
Values at 25°C, sea level
Description
Frequency Range
Impedance
Attenuation Value
Step Size
Step Type
Accuracy Statement
Input Power
Peak Power
VSWR
.
Minimum
DC
Typical
50
0 to 50
1
Dial
Maximum
2.7
Units
GHz
Ohms
dB
dB
+ / - .5 dB or 3 % whichever is greater
2
1
1.8:1
Watts
KWatts
Mechanical Specifications
.
Connectors
Description
Type
.
Connector 1
SMA Female
Connector 2
SMA Female
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
• Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
0 to 50 dB Dial Step Attenuator, SMA Female To SMA Female With 1 dB Step Rated To
2 Watts Up To 2.7 GHz PE7398
PE7398 REV 1.0
1
0 to 50 dB Dial Step Attenuator, SMA Female To SMA
Female With 1 dB Step Rated To 2 Watts Up To 2.7 GHz
TECHNICAL DATA SHEET
PE7398
0 to 50 dB Dial Step Attenuator, SMA Female To SMA Female With 1 dB Step Rated To 2 Watts Up To 2.7 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
0 to 50 dB Dial Step Attenuator, SMA Female To SMA Female With 1 dB Step Rated To 2 Watts
Up To 2.7 GHz PE7398
URL:
http://www.pasternack.com/50db-step-sma-female-sma-female-2-watts-attenuator-pe7398-p.aspx
PE7398 REV 1.0
2
0 to 50 dB Dial Step Attenuator, SMA Female To SMA Female
With 1 dB Step Rated To 2 Watts Up To 2.7 GHz
PE7398

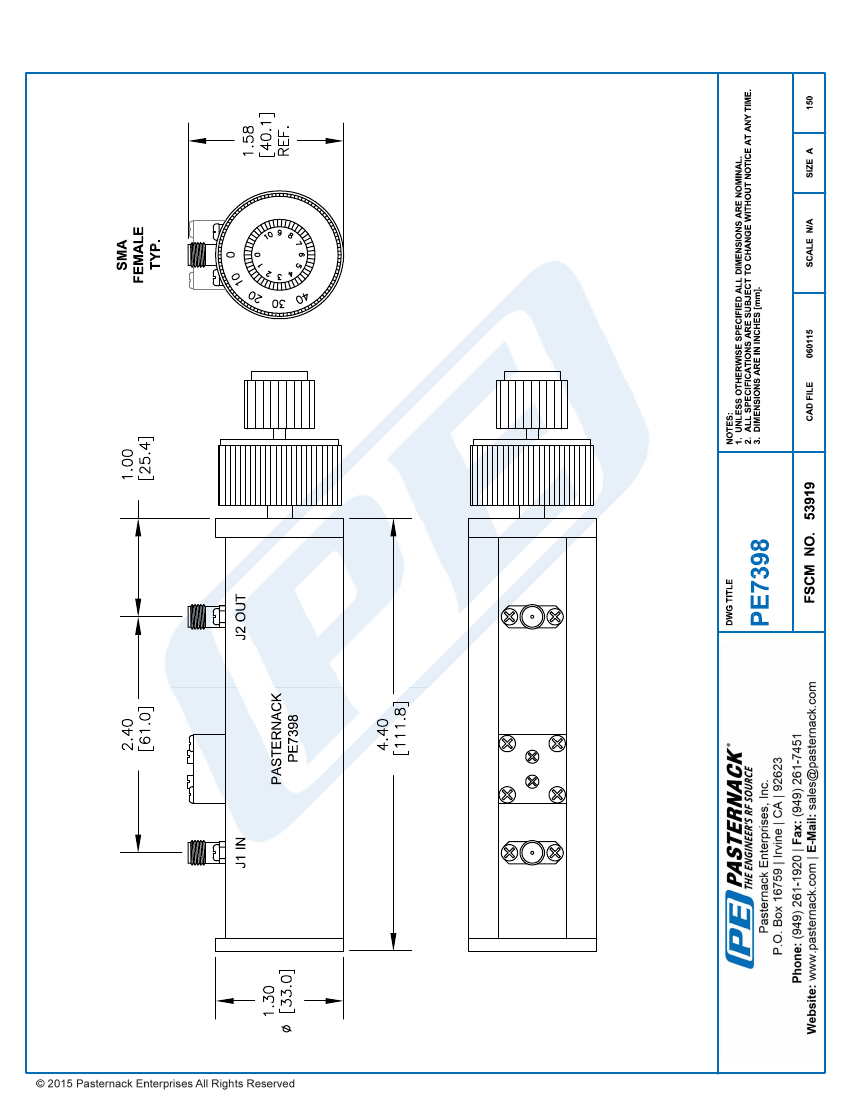

CAD Drawing
PE7398 REV 1.0
3
