CAT28F202T-12 datasheet, PDF - EEWORLD Datasheet

CAT28F202T-12: DescriptionFlash, 128KX16, 120ns, PDSO40, 10 X 20 MM, TSOP-40; Categorystorage storage; File Size468KB，14 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric View All

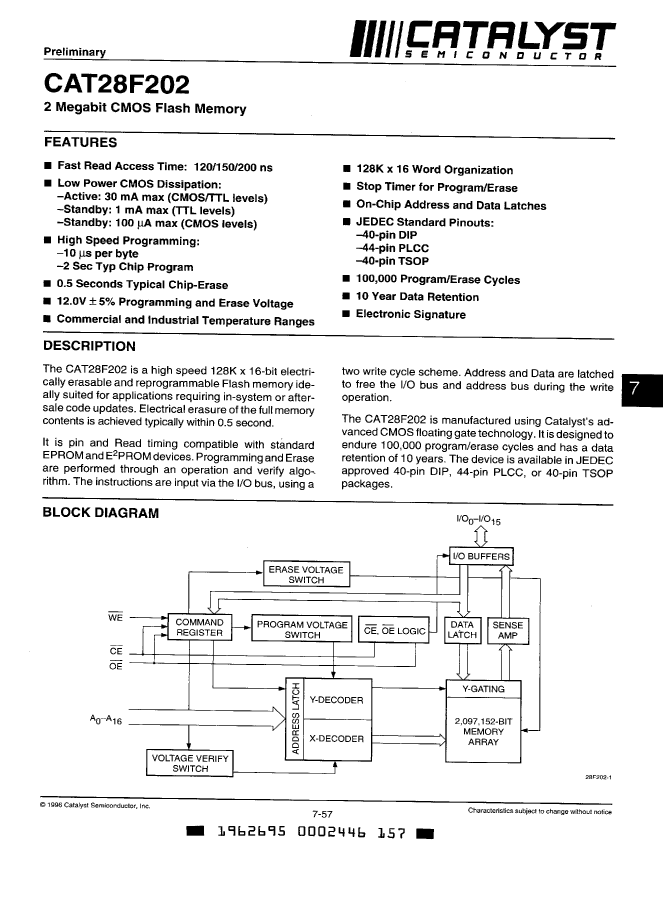

CAT28F202T-12 Overview

Flash, 128KX16, 120ns, PDSO40, 10 X 20 MM, TSOP-40

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Catalyst
Parts packaging code	TSOP
package instruction	TSOP1, TSSOP40,.8,20

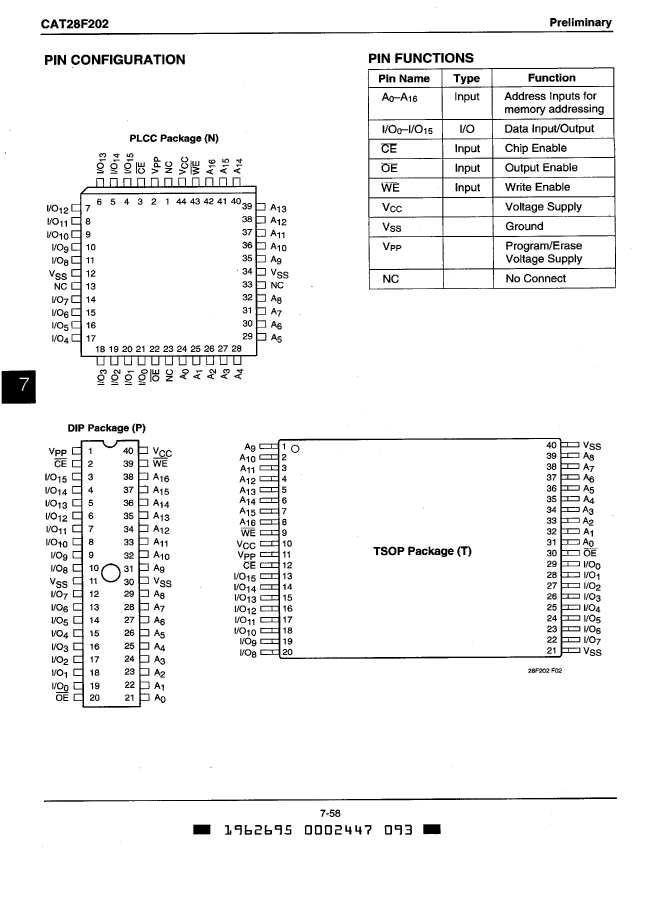

Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99

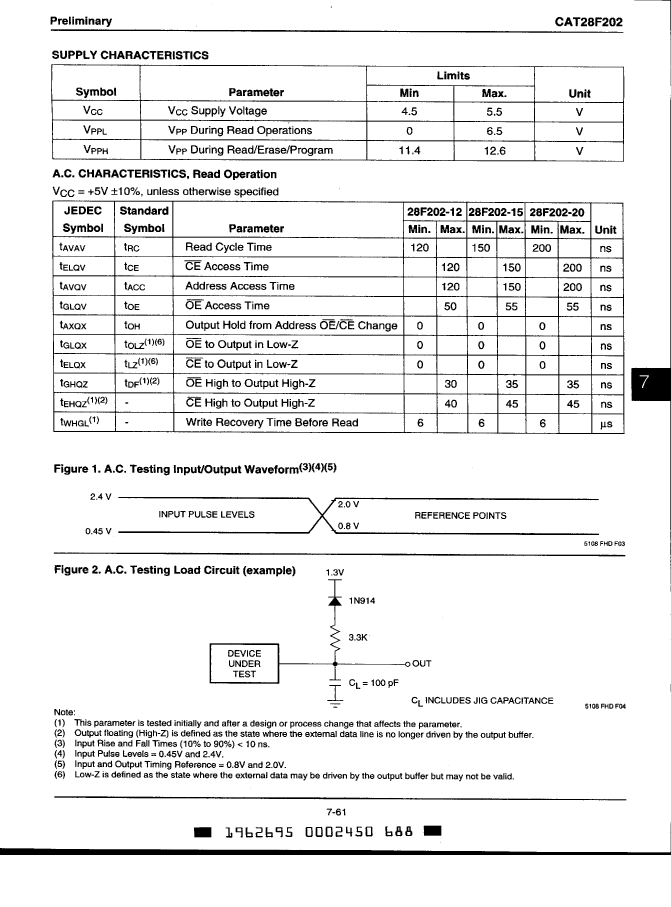

Maximum access time	120 ns
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	18.4 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	40
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS

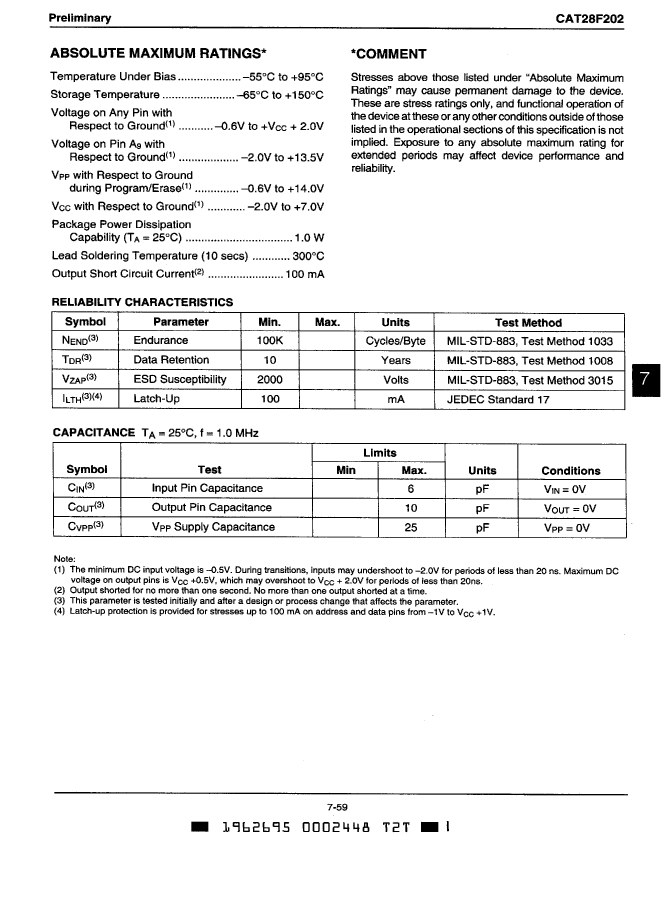

Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP40,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	1.2 mm

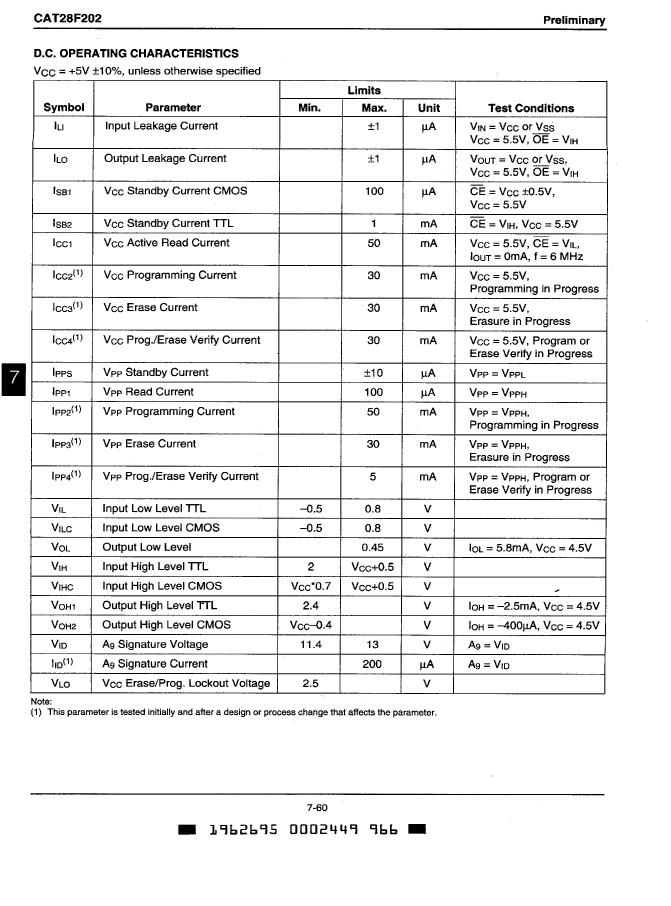

Maximum standby current	0.0001 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
type	NOR TYPE
width	10 mm

This Material Copyrighted By Its Respective Manufacturer
