DIP-050-308-164B datasheet, PDF

Datasheet> All Categories > The connector> socket> DIP-050-308-164B

DIP-050-308-164B: DescriptionIC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size267KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DIP-050-308-164B Overview

IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

DIP-050-308-164B Parametric

Parameter Name	Attribute value
Objectid	302526891
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.4 inch
subject depth	0.095 inch
body length	0.4 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP8
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
Insulation resistance	10000000000 Ω
Manufacturer's serial number	DIP
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	8
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

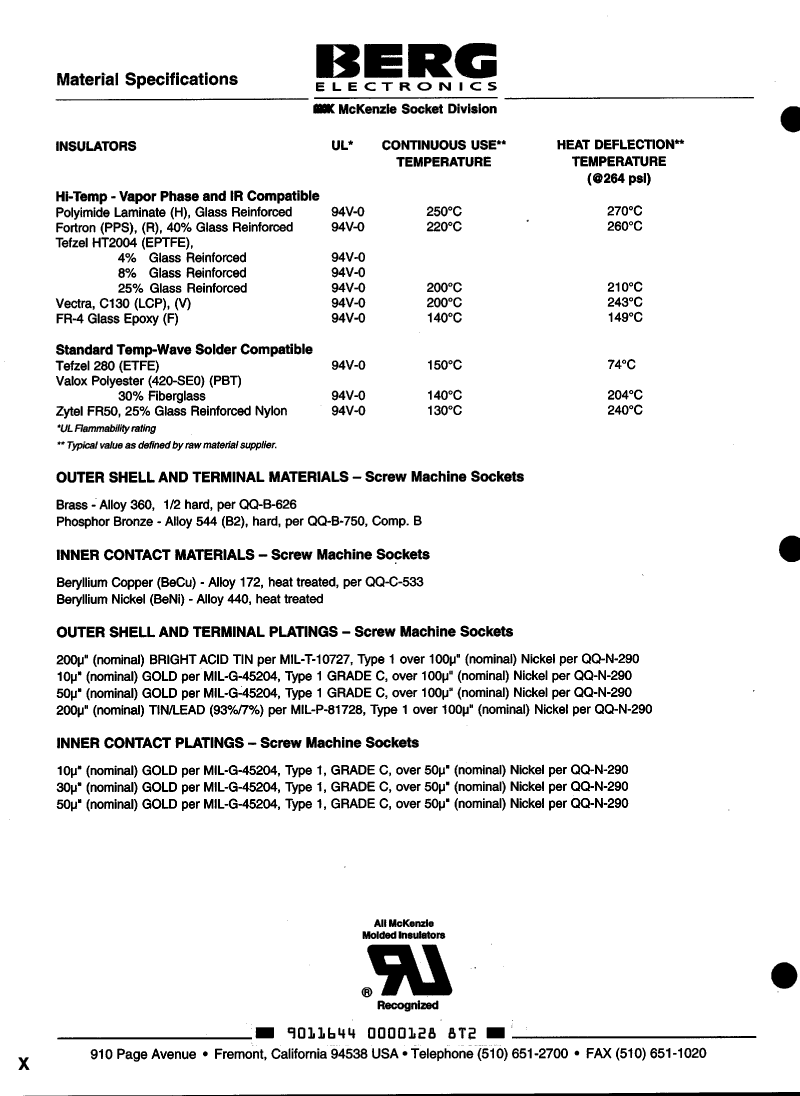

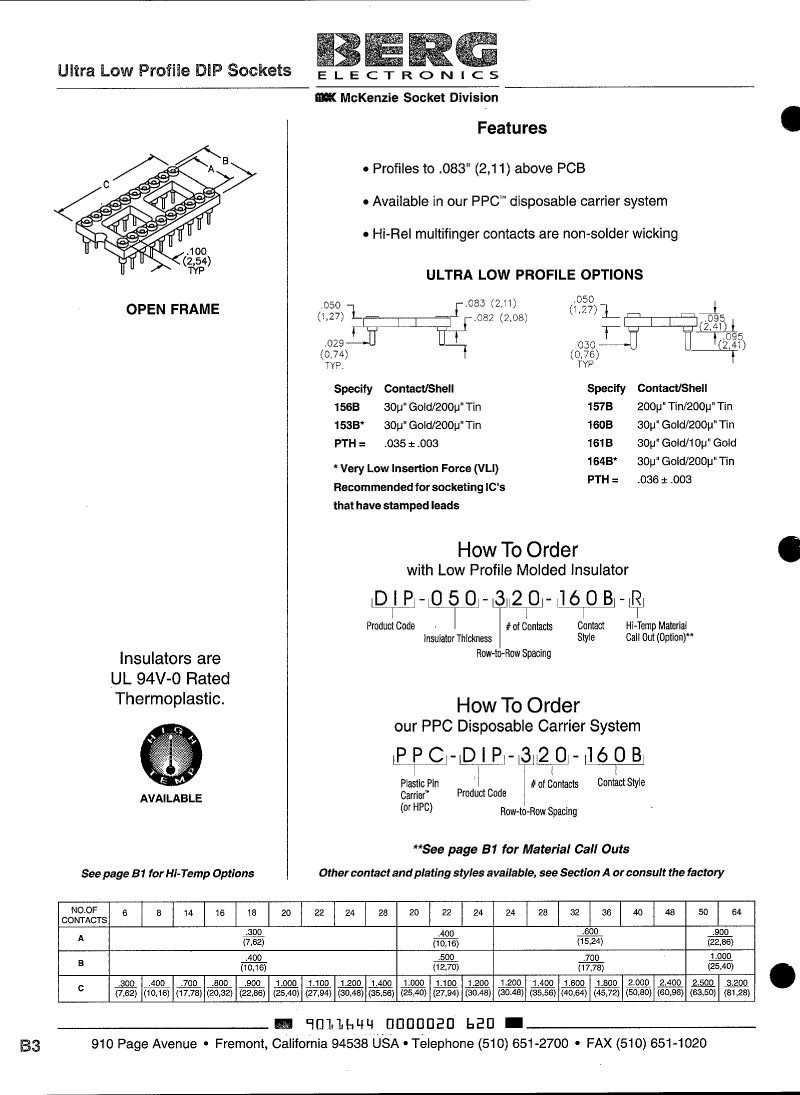

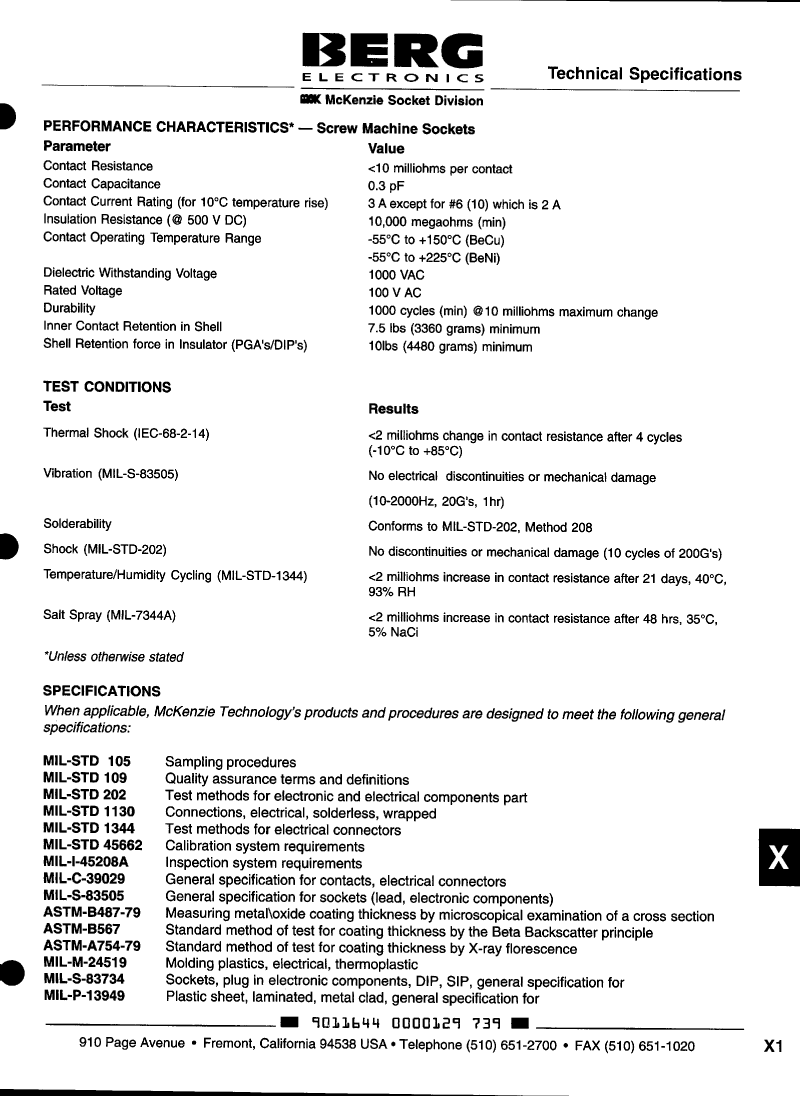

Preview

Download Datasheet

View All

DIP-050-308-164B Related Products

	DIP-050-308-164B	DIP-050-306-153B	DIP-050-306-156B	DIP-050-306-161B	DIP-050-306-164B	DIP-050-308-156B	DIP-050-308-161B	DIP-050-308-153B
Description	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch
subject depth	0.095 inch	0.083 inch	0.083 inch	0.095 inch	0.095 inch	0.083 inch	0.095 inch	0.083 inch
body length	0.4 inch	0.3 inch	0.3 inch	0.3 inch	0.3 inch	0.4 inch	0.4 inch	0.4 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	3 A	2 A	2 A	2 A	2 A	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP8	DIP6	DIP6	DIP6	DIP6	DIP8	DIP8	DIP8
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	8	6	6	6	6	8	8	8
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
