862-RF455.0M-B

Description
SAW Filter, 1 Function(s), 455MHz, ROHS COMPLIANT PACKAGE-8
CategoryAnalog mixed-signal IC    filter
File Size134KB,5 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

862-RF455.0M-B Overview

SAW Filter, 1 Function(s), 455MHz, ROHS COMPLIANT PACKAGE-8

862-RF455.0M-B Parametric

Parameter NameAttribute value
Objectid1343221445
Reach Compliance Codecompliant
Center frequency or cutoff frequency (fo/fc)455 MHz
filter typeSAW FILTER
high1.3 mm
input resistance100 OHM
Maximum insertion loss2.8 dB
length3 mm
Manufacturer's serial number862-RF455.0M-B
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
physical sizeL3.0XB3.0XH1.3 (mm)/L0.118XB0.118XH0.051 (inch)
Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
862-RF455.0M-B
CDMA 450 A-Band, RF/Tx SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

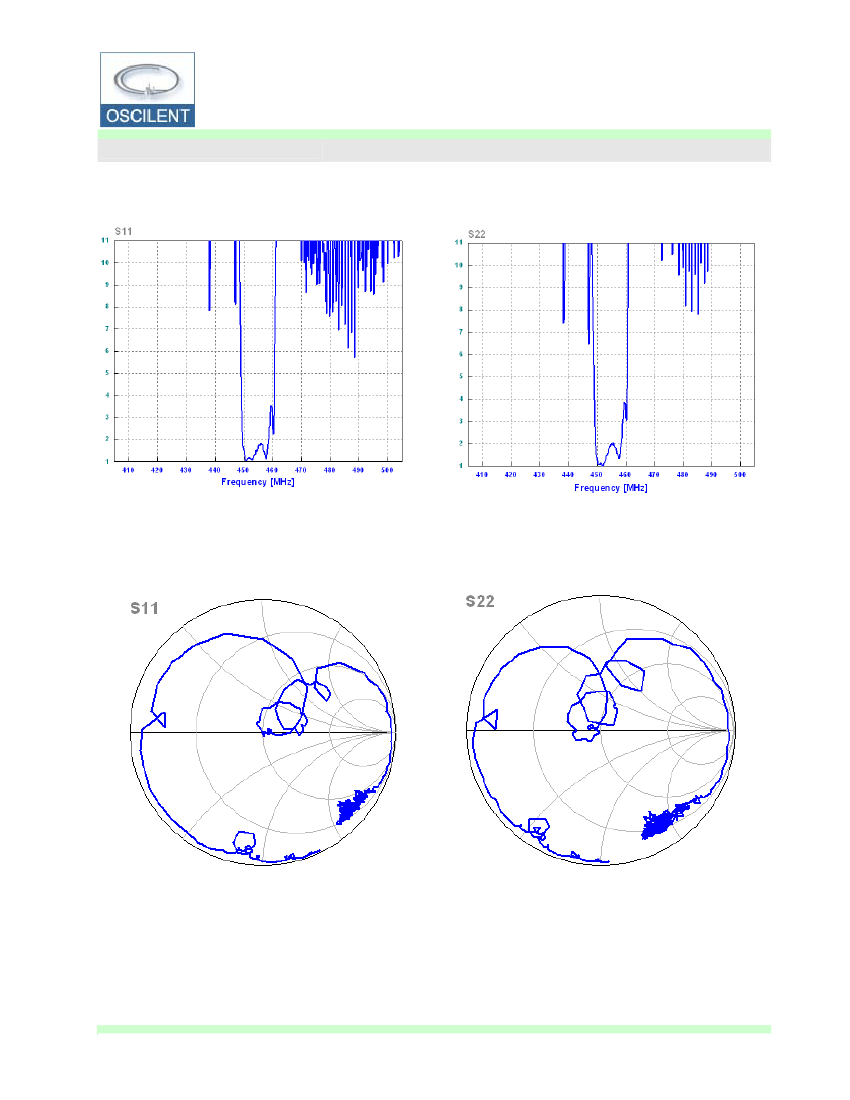

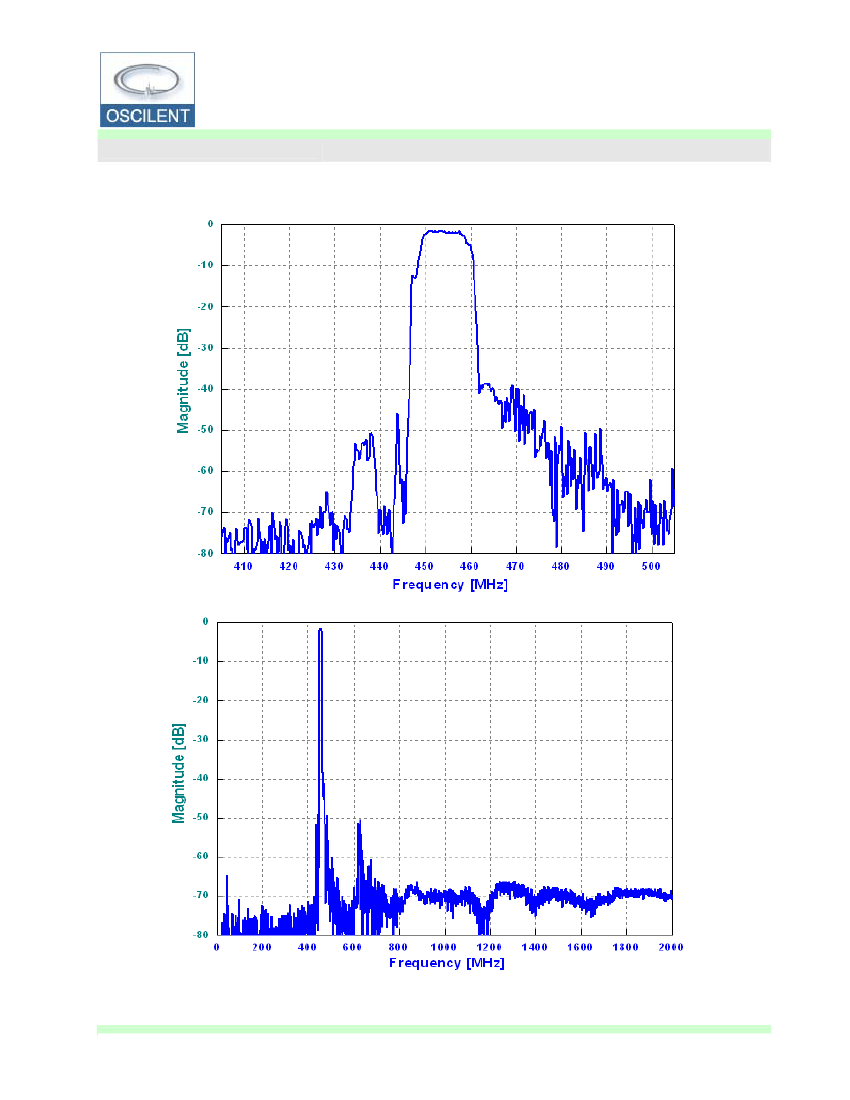

Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
