SMS
– Boardmount Qikmate
Qikmate
PC-boardmount
connectors

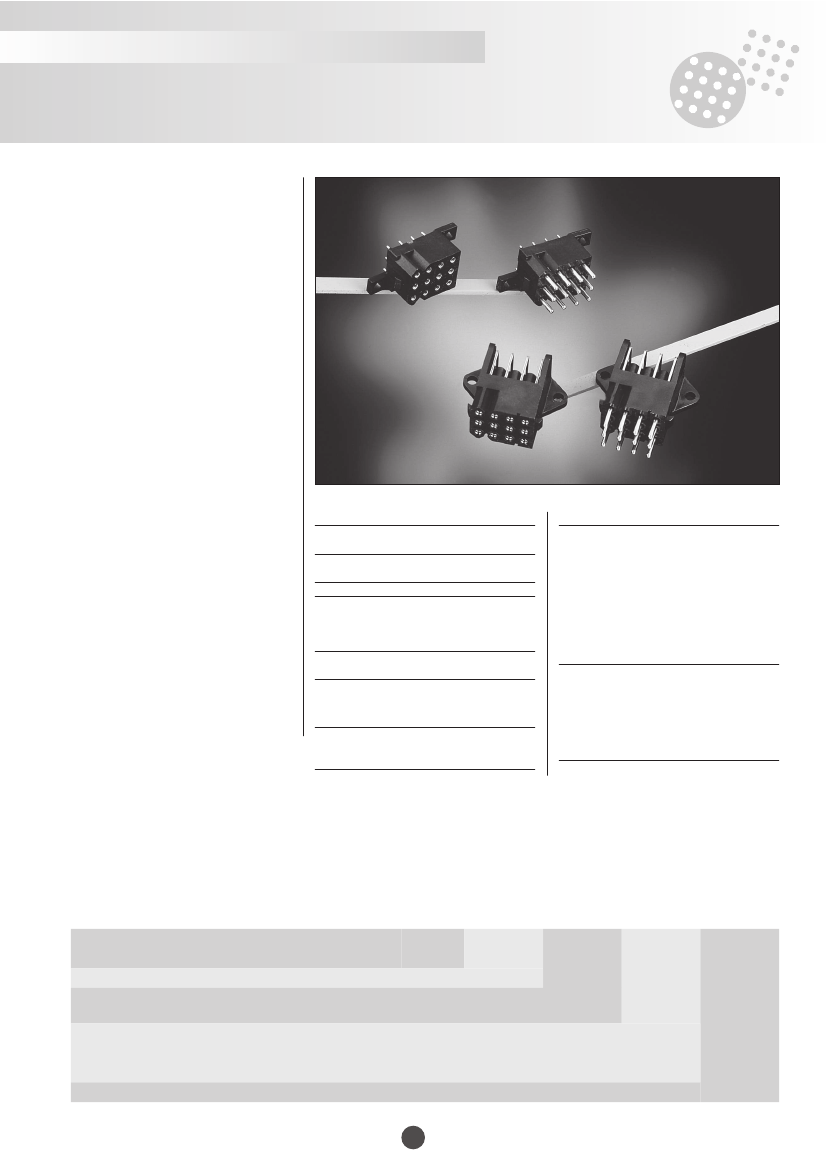

Description
These PC boardmount connectors enable
QIKMATE and preassembled TRIM TRIO
contacts to be PC board mounted, using
conventional solder production techniques.
They will then mate and latch with the
standard QIKMATE plugs.

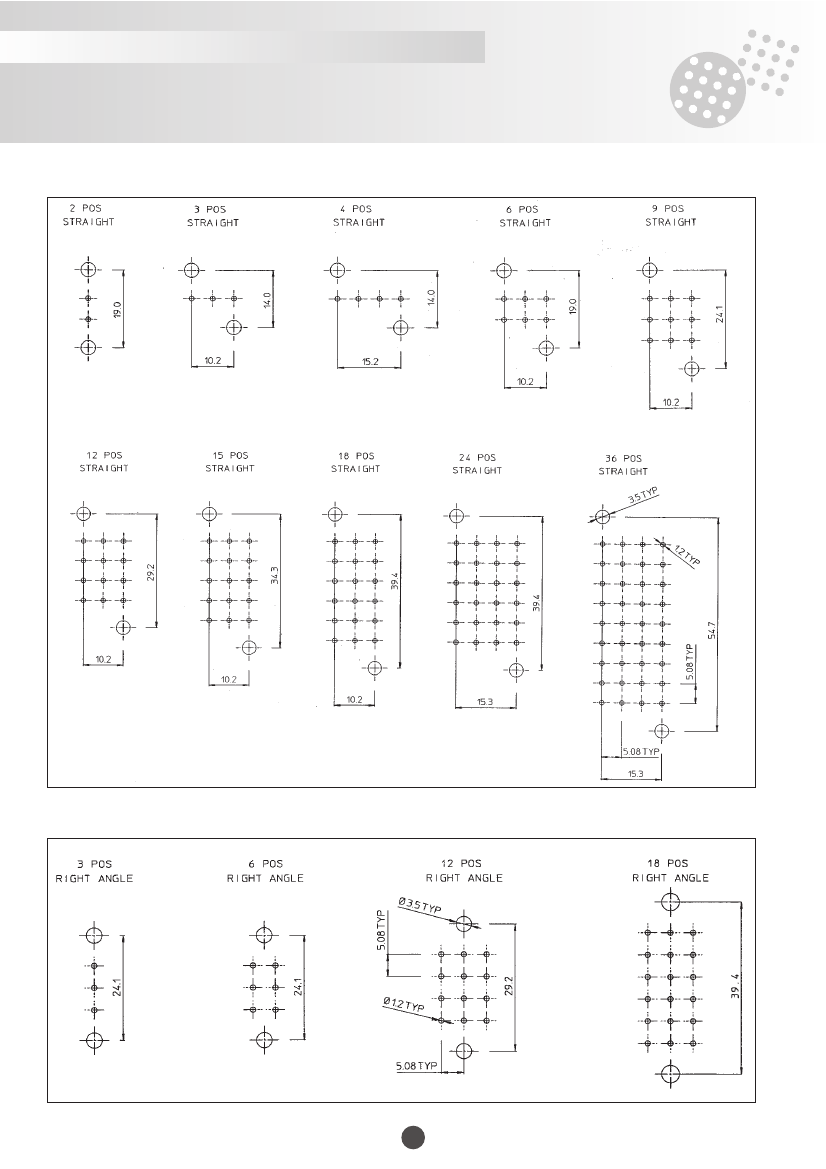

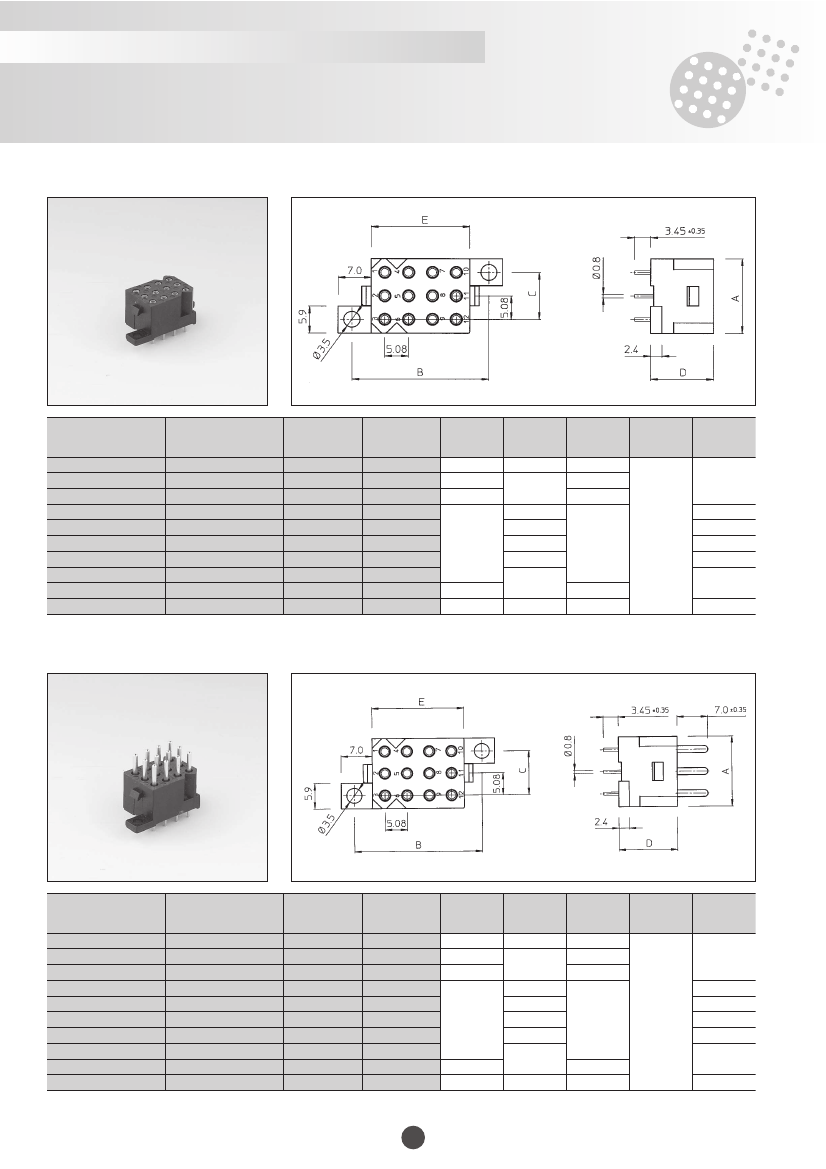

Straight boardmount QIKMATE is available
in 10 insert arrangements from 2 to 36
positions.

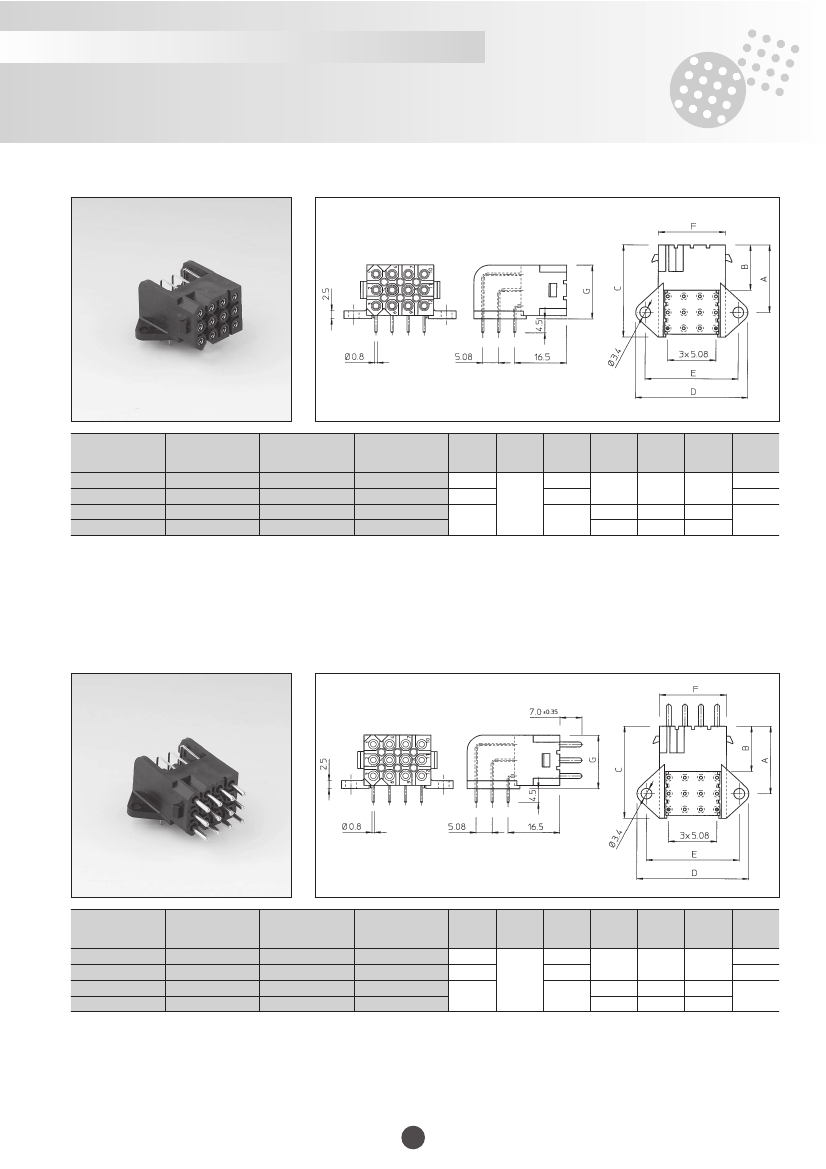

Right-angled boardmount QIKMATE is
available in 3, 6, 1 and 18 positions.
2
All boardmount connectors are supplied
fully loaded with pin or socket contacts,
either in solid machined or stamped and
formed contacts.
Stamped and formed contact have
selective tin plating on the solder tails, thus
eliminating flux operations.
Performance characteristics
Features and benefits
• Straight versions available in 10 contact
arrangements from 2 to 36 positions
• Right-angled versions available in 3, 6, 1
2
and 18 positions.
• All versions are available with:
- Pin or socket contacts
- Stamped and formed or solid machined
contacts.
• Some boardmount connectors have
discrimination cavities in between contact
cavities, thus offering discrimination
without contact loss.
• UL recognized File Nr.: E238675
Operating
temperature:
Insulation
resistance:
Test potential:
Current rating:
-55°C to +1
25°C
5000 M1 min.
2000 VAC
5 Amp for stamped
contacts
7.5 Amp for machined
contacts
500 matings and
Plating table
Plating for solid machined contacts:
No digit (std)
= Min. 0.4µ Gold all over,
over Nickel.
T = 3 - 5µ Tin all over
Plating for Stamped and formed contacts :
K9 (std)
= Min. 0.4µ Gold in contact
area, 3 - 5µ Tin on solder tail.
T = 3 - 5µ Tin all over
Durability:
unmatings.
Intermateability
• “SMS” Qikmate boardmount connectors
with preassembled TRIM TRIO size 16
boarmount contacts are intermateable
only with the “SMS” Qikmate cable plug
connectors equipped with TRIM TRIO
crimp type removable snap-lock contacts
(see contact section)
Construction
Glass filled thermoplast
UL94-V0
Contacts: High conductive copper alloy
Connector body:
How to order
Connector family
SMS
SMS
1
2
1
2
GE
SE
3
3
–
K9
Contact arrangement
Contact type:
Design variation:
GE:
Solid machined contacts
SE:
Stamped and formed contacts
3:
4:
5:
6:
Straight boardmount with female contacts
Straight boardmount with male contacts
Right angle boardmount with female contacts
Right angle boardmount with male contacts
Plating indication
