3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board, Tin, Normal
3-640470-4
MTA
|
MTA 100
ACTIVE

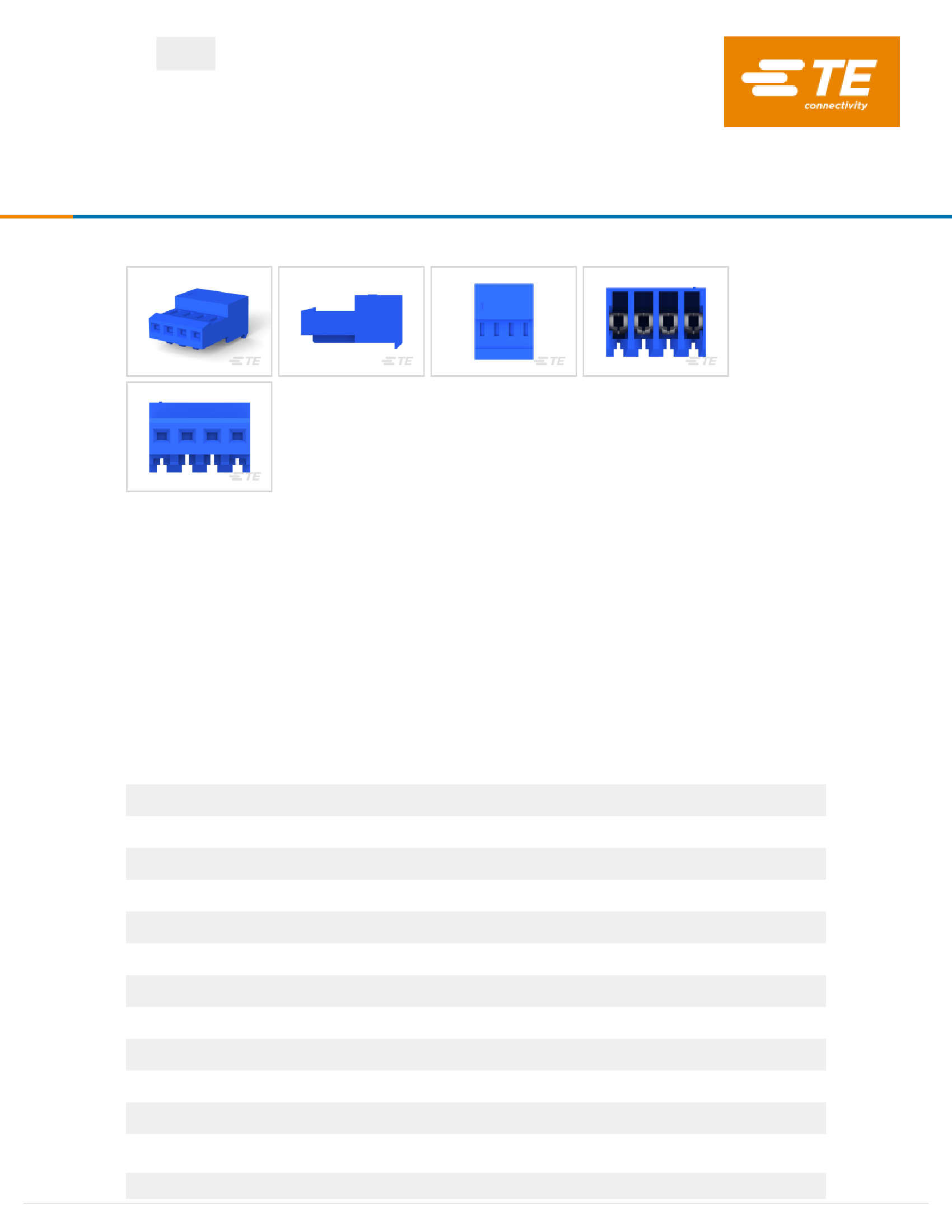

TE Internal #: 3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly,
Receptacle, Mating Retention, Insulation Displacement (IDC), Wire-
to-Board, Tin, Normal
View on TE.com >
Connectors
>
Rectangular Connectors
>
Standard Rectangular Connectors
>
Nylon Tin Plated Receptacle: 2.54mm, No Mating Alignment, MTA 100
Connector Product Type:
Connector Assembly
Connector & Housing Type:
Receptacle
Mating Alignment:
Without
Mating Retention:
With
Mating Retention Type:
Locking Ramp
All Nylon Tin Plated Receptacle: 2.54mm, No Mating Alignment, MTA 100 (481)
Features
Product Type Features
Product Style
Shape
Wire/Cable Type
Connector Type
Housing Type
Connector Product Type
Connector & Housing Type
Connector System
Insertion Force Type
Sealable
Connector & Contact Terminates To
Configuration Features
Number of Cavities
Assembly
Rectangular
Stranded
Connector Assembly
Receptacle
Connector Assembly
Receptacle
Wire-to-Board
Normal
No
Wire & Cable
4
05/26/2022 12:10PM | Page 1
For support call+1 800 522 6752
3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board, Tin, Normal
Number of Cavities
Number of Positions
Number of Rows
Panel Gasket
Electrical Characteristics
Operating Voltage
Contact Features
Contact Layout
Contact Type
Wire Contact Termination Area Plating Material
Contact Underplating Material
Contact Mating Area Plating Material
Contact Retention Within Housing
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Panel Mount
Contact Retention Type Within Housing
Panel Mount Feature
Mating Alignment
Mating Retention
Mating Retention Type
Connector Mounting Type
Housing Features
Housing Color
Housing Material
Centerline (Pitch)
Dimensions
Width
Height
Length
Wire Size
4
4
1
Without
250 VAC
In-line
Female
Tin
Nickel
Tin
With
5A
Insulation Displacement (IDC)
No
Locking Lance
Without
Without
With
Locking Ramp
Cable Mount (Free-Hanging)
Blue
Nylon 6/6
2.54 mm[.1 in]
6.99 mm[.275 in]
13.21 mm[.52 in]
10.16 mm[.4 in]
.12 – .15 mm²
05/26/2022 12:10PM | Page 2
Usage
522 6752
For support call+1 800
Conditions
3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board, Tin, Normal
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Shielded
Circuit Application
Industry Standards
CSA Rating
Agency/Standard
UL Rating
CSA File Number
UL File Number
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Method
.12 – .15 mm²
-55 – 105 °C[-67 – 221 °F]
No
Signal
Certified
CSA, UL
Recognized
LR7189
E28476
UL 94V-2
2200
Box & Carton
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not applicable for solder process capability
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
For support call+1 800 522 6752
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
05/26/2022 12:10PM | Page 3
3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board, Tin, Normal
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

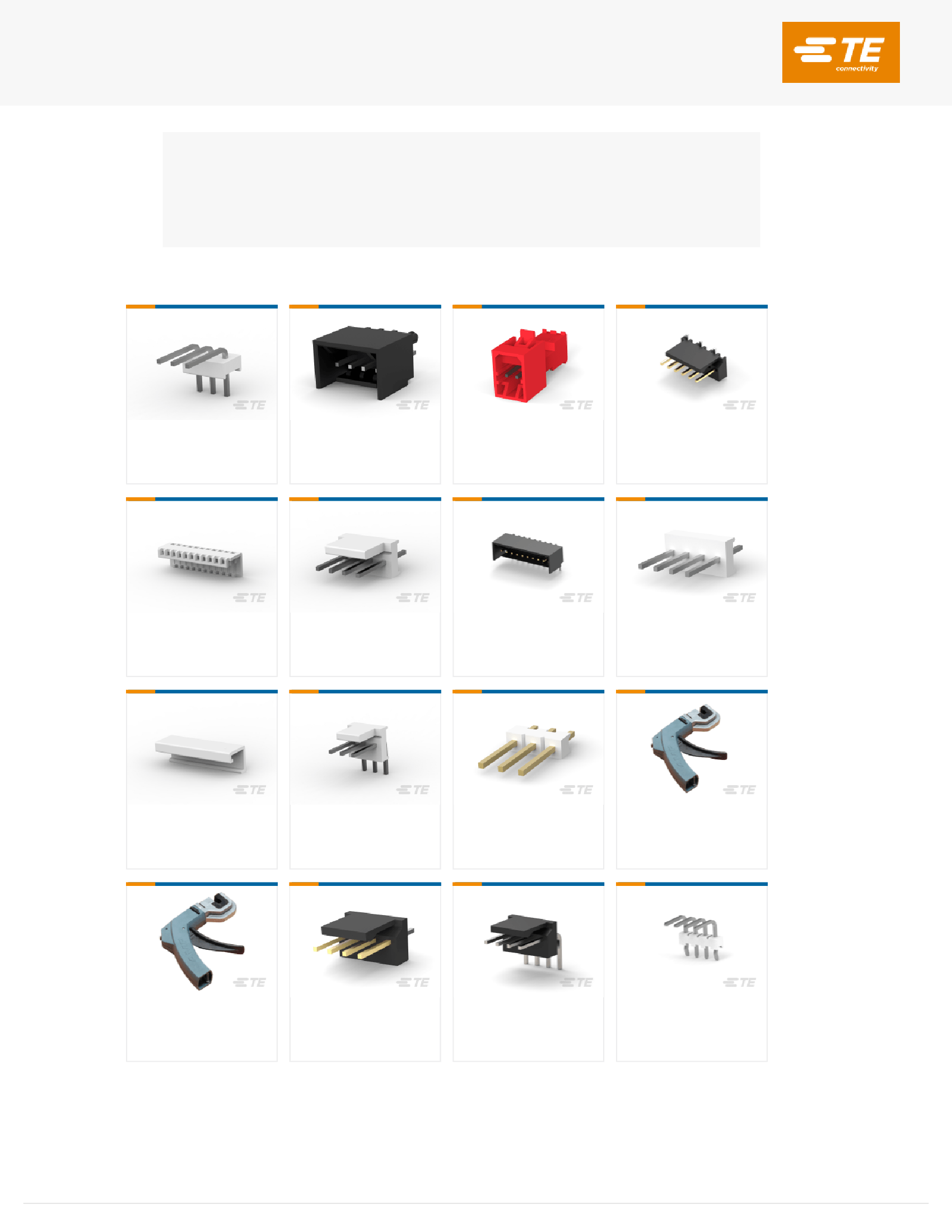

Compatible Parts
TE Part # CAT-104MTA-PRUSH
Polyester Right Angle PCB Header:
2.54mm, Unshrouded, MTA 100
TE Part # CAT-104MTA-PVSHH
Polyester Vertical PCB Header: 2.54
mm, Shrouded, MTA 100
TE Part # CAT-104MTA-NTPMP
Nylon Tin Plated Plug: 2.54mm, With
Mating Alignment, MTA 100
TE Part # CAT-104MTA-NVSMH
Nylon Vertical PCB Header: 2.54mm,
Surface Mount, MTA 100
TE Part # CAT-104MTA-NYLCC
Nylon PCB Connector Covers: 2.54
mm, MTA 100
TE Part # 640454-4
04P MTA100 HDR ASSY SQ STR POL
TE Part # CAT-104MTA-PRSMH
Polyester Right Angle PCB Header:
2.54mm, Shrouded, With Mating
Alignment
TE Part # CAT-104MTA-PVUNH
Polyester Vertical PCB Header: 2.54
mm, Unshrouded, No Mating
Alignment
TE Part # CAT-104MTA-PLSCC
Polyester PCB Connector Covers: 2.54
mm, MTA 100
TE Part # CAT-104MTA-PRUMH
Polyester Right Angle PCB Header:
2.54mm, Wire-to-Board, MTA 100
TE Part # CAT-104MTA-PVBRH
Polyester Vertical PCB Header: 2.54
mm, Breakaway, MTA 100
TE Part # 58074-1
MTA 50/100/156 MANUAL TOOL
FRAME
TE Part # 58579-1
MTA 100 MANUAL TOOL ASSEMBLY
DISCRETE
TE Part # CAT-104MTA-NVTHH
Nylong Vertical PCB Header: 2.54mm,
Through Hole, MTA 100
TE Part # 3-647051-4
04P MTA100 HRD ASSYF/L HT LF
TE Part # 3-644694-4
04P MTA100 R/A HDR RETENTIVE
For support call+1 800 522 6752
05/26/2022 12:10PM | Page 4
3-640470-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board, Tin, Normal
TE Part # 58246-3
MTA 100 CRIMP HEAD PRODUCTION
RBBN CABLE
TE Part # 58039-1
MTA 100 ARBOR FIXTURE DISCRETE
RBN CABLE
TE Part # 58246-2
MTA 100 CRIMP HEAD PRODUCTION
DISCRETE
TE Part # 854175-1
MTA 100 FEED TRACK ASSY FOR
PNEUM BENCH

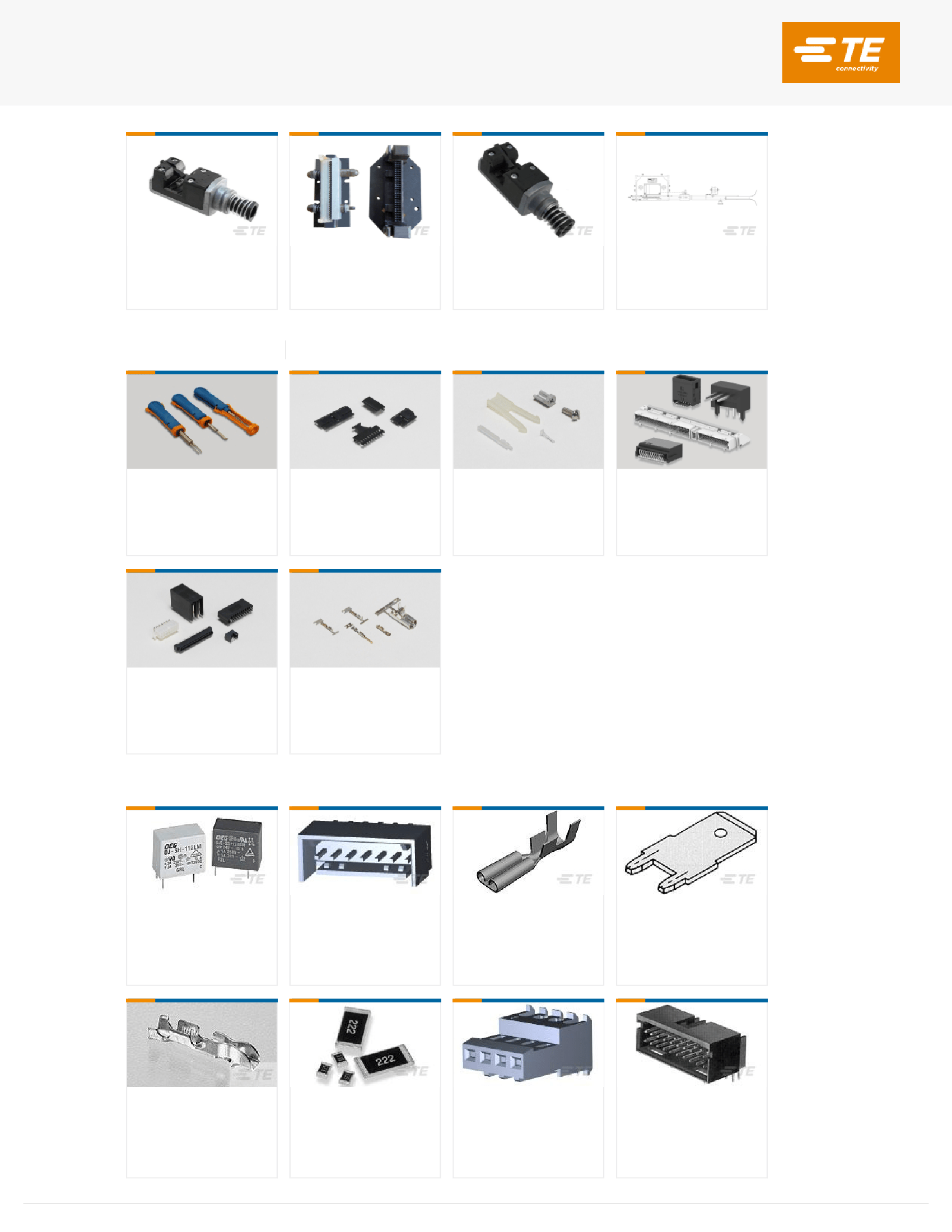

Also in the Series
MTA 100
Insertion & Extraction Tools(2)
PCB Connector Covers(107)
PCB Connector Keying(1)
PCB Headers & Receptacles(1182)
Standard Rectangular Connectors
(1718)
Wire-to-Board Connector Contacts(18)
Customers Also Bought
TE Part #1721538-7
OJ-SS-124HM2,000
TE Part #2-644861-7
07P MTA100 SHRD HDR,W/O PEG SN
TE Part #5-160555-2
110 FASTON REC 20-18 AWG TPBR
TE Part #63650-1
250 FASTON TAB TPBR
TE Part #170263-1
EIS CONTACT
TE Part #6-1879494-7
CRGH0603 5% 560R 0.2W
TE Part #3-640622-4
04P MTA100 CONN ASSY F/T BLU
TE Part #5-102617-8
20 MODII HDR DRRA SHRD LF
For support call+1 800 522 6752
05/26/2022 12:10PM | Page 5
