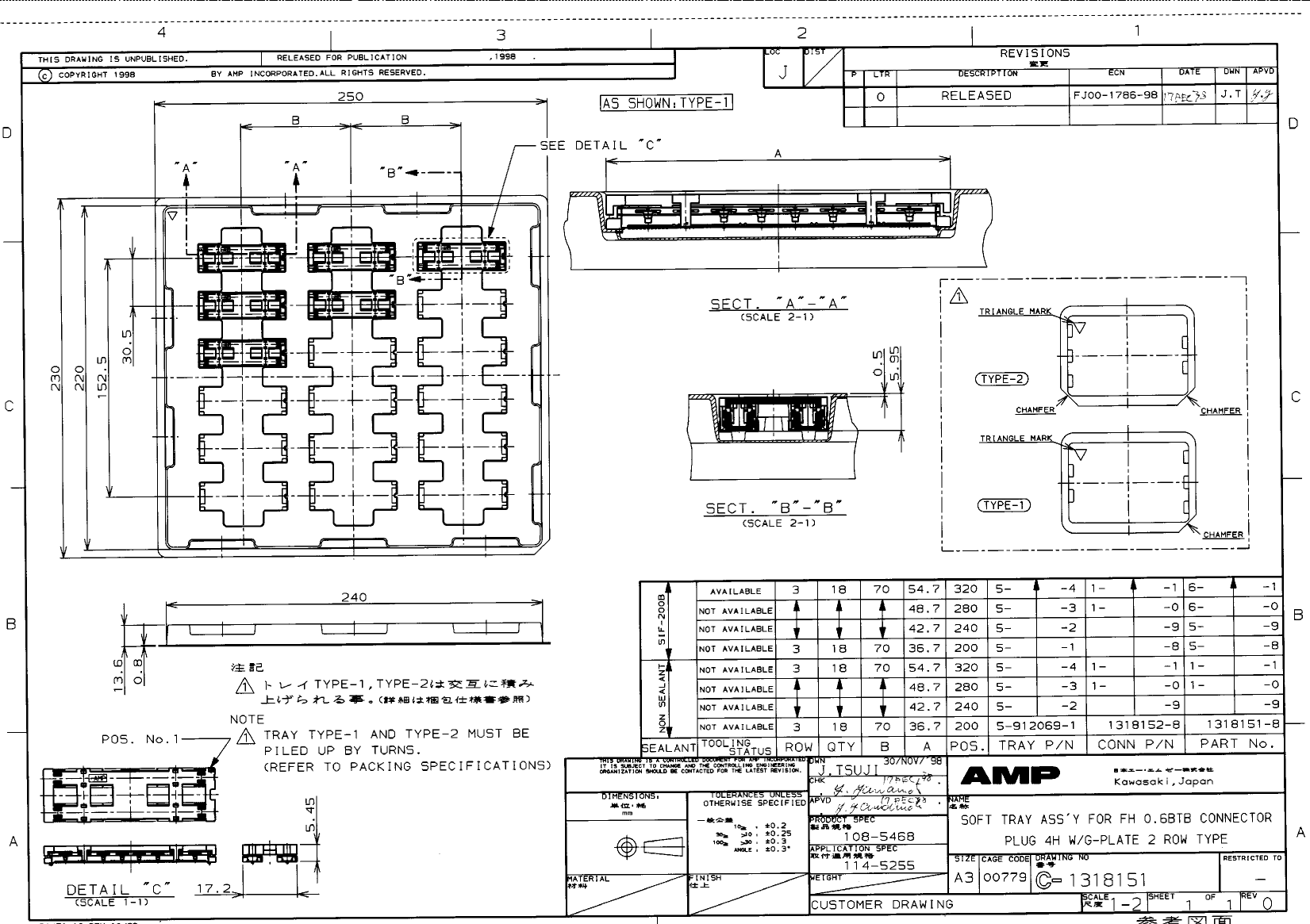

Preview

5-1318151-9: Description240 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1318151-9 Overview

240 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG

5-1318151-9 Parametric

Parameter Name	Attribute value
Objectid	1929367876
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1318151
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	240

Preview

Download Datasheet

View All

5-1318151-9 Related Products

	5-1318151-9	1318151-8	5-1318151-8	1318151-9	1-1318151-0	1-1318151-1	6-1318151-0
Description	240 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,200 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,200 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,280 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,320 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,280 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL
Reach Compliance Code	unknown	compli	compli	compli	compli	compli	unknown
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Manufacturer's serial number	1318151	1318151	1318151	1318151	1318151	1318151	1318151
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	240	200	200	240	280	320	280
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Other features	-	PACKAGING QTY 18, GUIDE PLATE	PACKAGING QTY 18, GUIDE PLATE	PACKAGING QTY 18, GUIDE PLATE	PACKAGING QTY 18, GUIDE PLATE	PACKAGING QTY 18, GUIDE PLATE	PACKAGING QTY 18, GUIDE PLATE
subject depth	-	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch	0.535 inch
Contact to complete cooperation	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	-	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	-	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Durability	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	-	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	-	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	-	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Number of connectors	-	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	-	2	2	2	2	2	2
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	-	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
polarization key	-	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	-	UL	UL	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	-	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm	0.6096 mm
Evacuation force-minimum value	-	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N
Base Number Matches	-	1	1	1	1	1	-
