926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm [.1 in]
Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal
926476-3
ACTIVE
AMPMODU
|
AMPMODU IV/V
TE Internal #: 926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position,
2.54 mm [.1 in] Centerline, Crimp, 2 Row, Black, Wire & Cable,
Signal
View on TE.com >
Connectors
>
PCB Connectors
>
Wire-to-Board Connectors
>
Wire-to-Board Connector Assemblies & Housings
Connector Product Type:
Housing
Connector & Housing Type:
Receptacle
Connector System:
Wire-to-Board
Number of Positions:
6
Centerline (Pitch):
2.54 mm [ .1 in ]
Features
Product Type Features
Connector Product Type
Connector & Housing Type
Connector System
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Electrical Characteristics
Operating Voltage
Contact Features
Contact Type
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Strain Relief
PCB Mount Retention
Mating Retention
Housing
Receptacle
Wire-to-Board
Wire & Cable
6
2
250 VAC
Socket
3A
Crimp
Without
With
Without
05/26/2022 12:09PM | Page 1
For support call+1 800 522 6752
926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm [.1 in]
Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal
Mating Retention
Connector Mounting Type
Housing Features
Housing Entry Configuration
Housing Material
Centerline (Pitch)
Housing Color
Dimensions
Connector Length
Row-to-Row Spacing
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Method
Without
Cable Mount (Free-Hanging)
Both Ends Closed
Crastin SK642FR
2.54 mm[.1 in]
Black
7.62 mm[.29 in]
2.54 mm[.1 in]
-65 – 105 °C[-85 – 221 °F]
Signal
UL 94V-0
1000
Bag
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Not Low Halogen - contains Br or Cl > 900
ppm.
Not applicable for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 2
926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm [.1 in]
Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

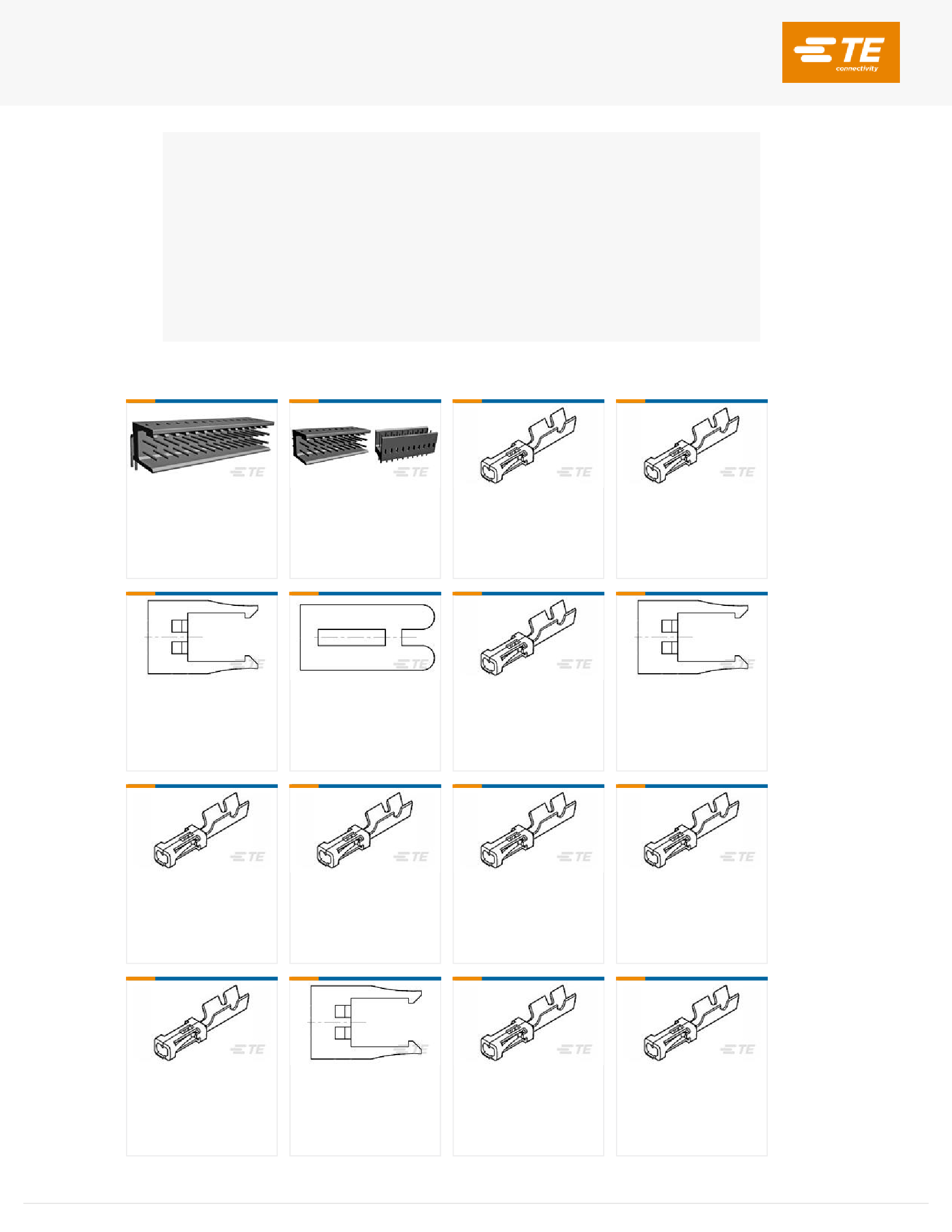

Compatible Parts
TE Part # 826470-3
2X3P MOD II SHROUDED HEADER,
RT ANG.
TE Part # 826469-3
2X3P MOD II SHROUDED HEADER, ST
TE Part # 1-141708-1
MOD IV RECEPTACLE, CRIMP SNAP
IN, LP
TE Part # 141708-1
MOD-4 REC.CONT.SCP.
TE Part # 926477-1
RETENTION FORK
TE Part # 926498-3
MOD2 KODIERSTUECK
TE Part # 167021-2
MOD-4 REC.CONT.SCP.
TE Part # 926477-3
MOD4 RASTHAKEN
TE Part # 167301-4
MOD-4 REC.CONT.SCP
TE Part # 2-167301-4
MOD-4 REC.CONT.SCP
TE Part # 2-167301-2
MOD-4 REC.CONT.SCP
TE Part # 166309-2
MOD-5 REC.CONTACT
TE Part # 167024-1
MOD-4 REC.CONT.SCP.
TE Part # 926478-3
MOD4 RASTHAKEN
TE Part # 167023-1
MOD-4 REC.CONTACT
TE Part # 166310-2
MOD-5 REC.CONTACT
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 3
926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm [.1 in]
Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal
TE Part # 167300-6
MOD-4 REC.CONTACT
TE Part # 167300-8
MOD-4 REC.CONTACT
TE Part # 166309-3
MOD-5 REC.CONTACT
TE Part # 167021-3
MOD-4 REC.CONT.SCP.

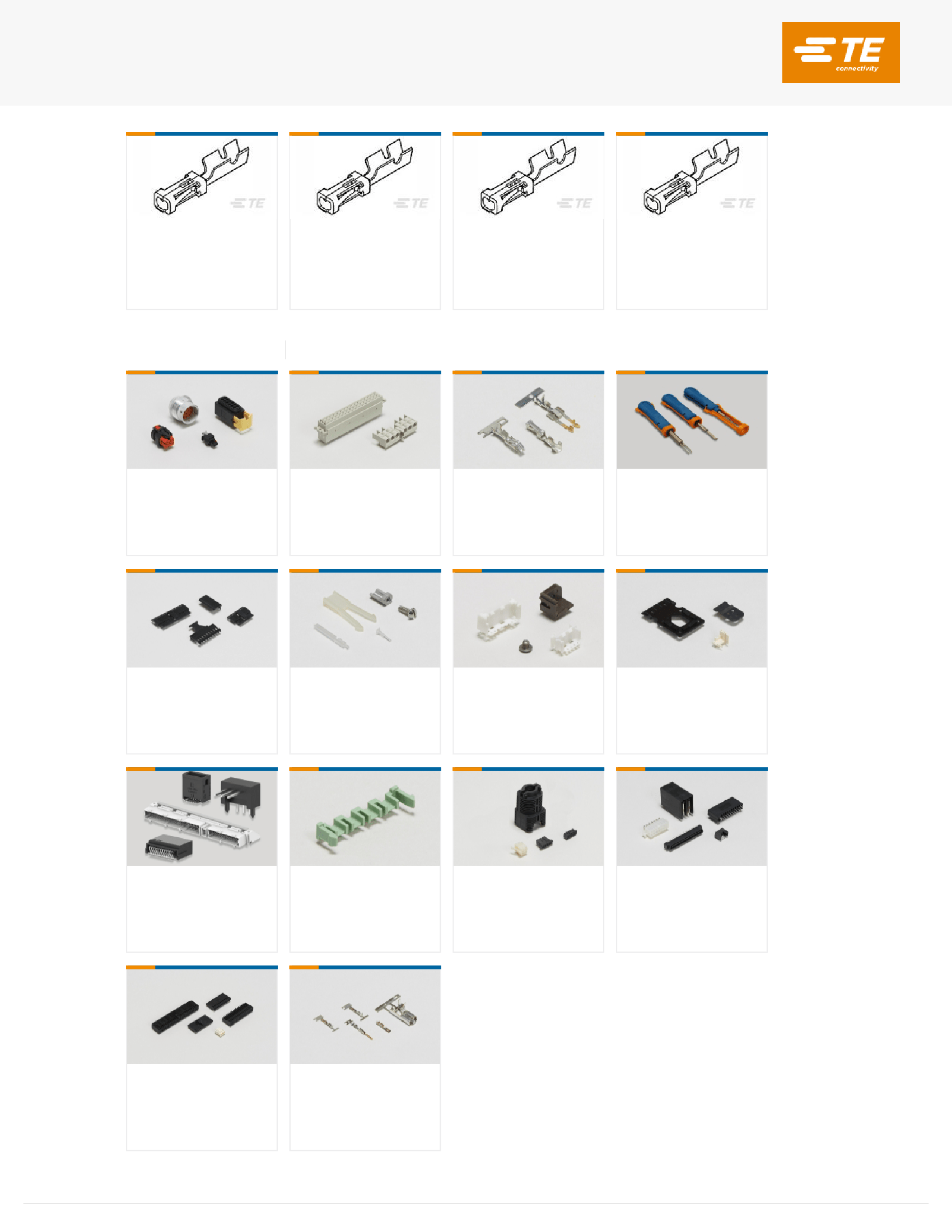

Also in the Series
AMPMODU IV/V
Automotive Housings(2)
Backplane Connector Housings(1)
Board-to-Board Connector Contacts(6)
Insertion & Extraction Tools(4)
PCB Connector Covers(18)
PCB Connector Keying(6)
PCB Connector Mounting(1)
PCB Connector Strain Relief(3)
PCB Headers & Receptacles(939)
PCB Latches, Locks & Retainers(9)
Rectangular Connector Housings(5)
Standard Rectangular Connectors(8)
Wire-to-Board Connector Assemblies
& Housings(473)
Wire-to-Board Connector Contacts
(328)
Customers Also Bought
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 4
926476-3
AMPMODU IV/V, Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm [.1 in]
Centerline, Crimp, 2 Row, Black, Wire & Cable, Signal

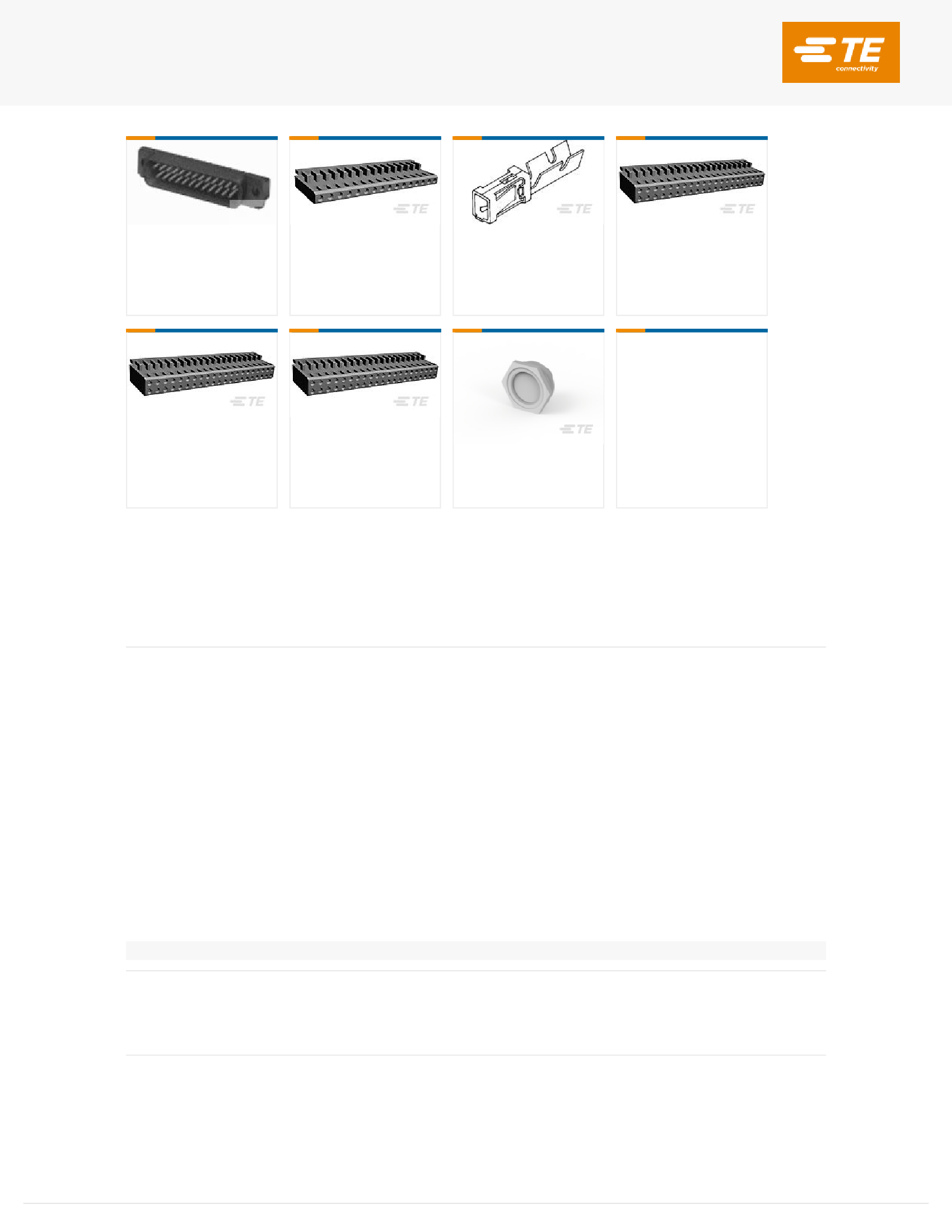

Customers Also Bought
TE Part #5208006-2
HD-20 PLUG 9P VERT
TE Part #926475-3
03P MODU 4 HSG.S.R.
TE Part #280621-2
MOD I CONT STRIP
TE Part #926476-5
MOD 4 HSG
TE Part #926476-4
2X4P MODU 4 HSG.
TE Part #926476-9
MOD 4 HSG
TE Part #K1139243
Bellow compl. FMQ 08-80-666
TE Part #7-1768422-6
LBG-U-03417/ETI3344
Documents
Product Drawings
MOD 4 HSG
English
CAD Files
3D PDF
English
Customer View Model
ENG_CVM_926476-3_O.3d_igs.zip
English
Customer View Model
ENG_CVM_926476-3_O.3d_stp.zip
English
Customer View Model
ENG_CVM_926476-3_O.2d_dxf.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Product Specifications
Product Specification
English
Agency Approvals
UL Report
English
