VHF85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> VHF85

VHF85: Description58 A, 1400 V, SCR; Categoryaccessories; File Size171KB，4 Pages; ManufacturerIXYS ( Littelfuse ); Websitehttp://www.ixys.com/

Download Datasheet Parametric Compare View All

VHF85 Overview

58 A, 1400 V, SCR

VHF85 Parametric

Parameter Name	Attribute value
Number of terminals	6
Maximum DC trigger current	100 mA
Processing package description	Module-6
Lead-free	Yes
EU RoHS regulations	Yes
state	DISCONTINUED
packaging shape	Rectangle
Package Size	Flange mounting
Terminal form	UNSPECIFIED
terminal coating	Gold OVER Nickel
Terminal location	UPPER
Packaging Materials	UNSPECIFIED
structure	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES
Shell connection	isolation
Number of components	2
Effective maximum current	58 A
Off-state repetitive peak voltage	1400 V
Reverse repetitive peak voltage	1400 V
Trigger type	silicon controlled rectifier

Preview

Download Datasheet

View All

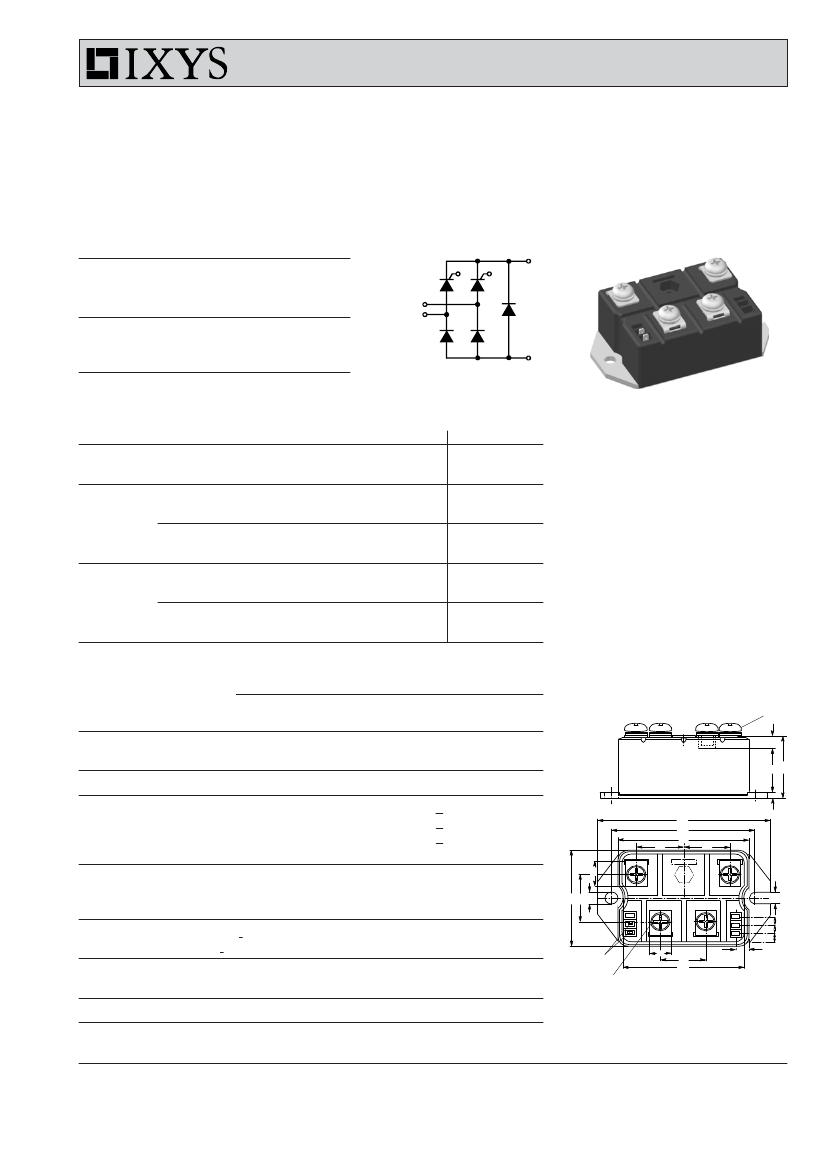

VHF 85

VHF 125

Half Controlled Single Phase

Rectifier Bridge, B2HKF

with Freewheeling Diode

dAV

= 82/123 A

RRM

= 1200-1600 V

RSM

DSM

1300

1500

1700

RRM

DRM

1200

1400

1600

VHF 85-12io7

VHF 85-14io7

VHF 125-12io7

VHF 125-14io7

VHF 125-16io7

Type

B-

A+

Symbol

dAV

FRMS

, I

TRMS

FSM

, I

TSM

Conditions

= 85°C; module

per leg

= 45°C;

= 0 V;

= T

VJM

;

= 0 V;

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

Maximum Ratings

VHF 85

VHF 125

Features

1000

1070

-o

1350

1450

11200

10750

9100

8830

150

500

1000

< 10

< 5

< 1

0.5

1150

1230

1500

1600

A/µs

123

(di/dt)

= T

VJM

;

repetitive; I

= 50 A;

f = 400 Hz; t

= 200 µs;

DRM

;

= T

VJM

;

= 0;

5000

4750

= 45°C;

= 0 V;

6600

6280

= 0.3 A;

non repetitive;

/dt = 0.3 A/µs; I

dAV

(dv/dt)

RGM

V/µs

°C

6.5

• Package with screw terminals

• Isolation voltage 3000 V~

• Planar passivated chips

• UL listing applied for

Applications

• DC motor control

Advantages

• Easy to mount with two screws

• Space and weight savings

• Improved temperature and power cycling

Dimensions in mm (1 mm = 0.0394")

M6x12

= T

VJM

;

= I

TAVM

;

= 30 µs

= 500 µs

= 10ms

GAVM

VJM

stg

ISOL

Weight

50/60 Hz RMS; t = 1 min

ISOL

≤

1 mA;

t=1s

Mounting torque (M6)

Terminal connection torque (M6)

typ.

-40...+125

125

-40...+125

2500

3000

±15%

300

A +

B -

2.8 x 0.8

Data according to IEC 60747 and refer to a single thyristor/diode unless otherwise stated.

IXYS reserves the right to change limits, test conditions and dimensions.

20080227a

1-4

6 5 5

6.5

C ~

E ~

= T

VJM

; V

DRM

;

∞;

method 1 (linear voltage rise)

VHF85 Related Products

	VHF85	VHF125	VHF125-12IO7	VHF125-14IO7	VHF125-16IO7	VHF85-14IO7	VHF85-12IO7
Description	58 A, 1400 V, SCR	58 A, 1400 V, SCR	58 A, 1400 V, SCR	58 A, 1400 V, SCR	58 A, 1400 V, SCR	58 A, 1400 V, SCR	58 A, 1400 V, SCR
Number of terminals	6	6	6	6	6	6	6
Maximum DC trigger current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Processing package description	Module-6	Module-6	Module-6	Module-6	Module-6	Module-6	Module-6
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
packaging shape	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting	Flange mounting
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
terminal coating	Gold OVER Nickel	Gold OVER Nickel	Gold OVER Nickel	Gold OVER Nickel	Gold OVER Nickel	Gold OVER Nickel	Gold OVER Nickel
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Packaging Materials	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
structure	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODES
Shell connection	isolation	isolation	isolation	isolation	isolation	isolation	isolation
Number of components	2	2	2	2	2	2	2
Effective maximum current	58 A	58 A	58 A	58 A	58 A	58 A	58 A
Off-state repetitive peak voltage	1400 V	1400 V	1400 V	1400 V	1400 V	1400 V	1400 V
Reverse repetitive peak voltage	1400 V	1400 V	1400 V	1400 V	1400 V	1400 V	1400 V
Trigger type	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier	silicon controlled rectifier
