SHEET 1 OF 1
3
4
7.62
[.300 in]
2.50
[.098 in]
1
3
12.50
[.492 in]
10.10
[.398 in]
1
3
1
2
2
4

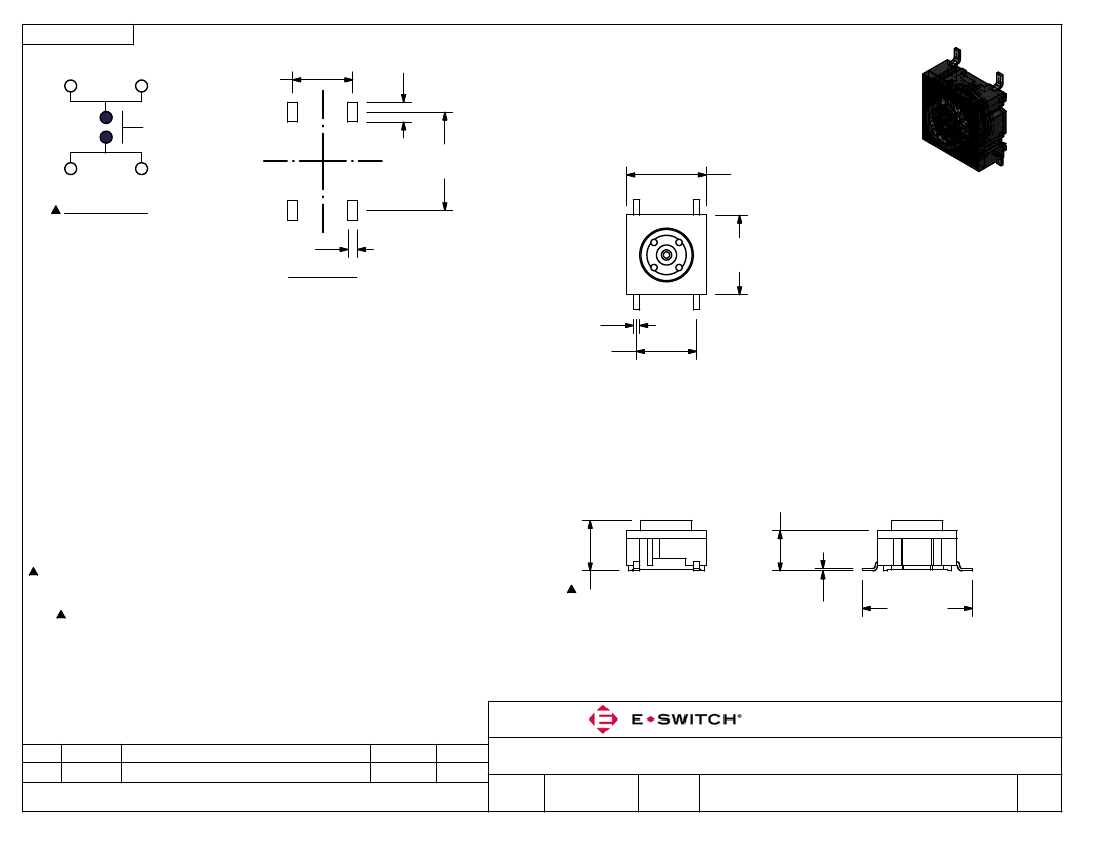

CIRCUIT: SPST
1.20
[.047 in]
PCB LAYOUT
10.10
[.398 in]
.80
[.031 in]
7.62
[.300 in]
2
4
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: x.x=
0.4
x.xx=
0.25
3.
4.
5.
6.
7.
8.
TERM. NOS. FOR REF ONLY
RATING: 50 MILLI-AMPS @24VDC
TRAVEL: 1.0 +/-0.5mm
CONTACT RESISTANCE: 30 MILLIOHMS MAX
INSULATION RESISTANCE: 10M OHMS MIN. AT 100VDC
DIELECTRIC STRENGTH: 250VAC FOR 1 MINUTE
2
6.40
[.252 in]
4
.30
[.012 in]
5.10
[.201 in]
9. OPERATING FORCE: 300
75 GF
10. PACKAGING: TAPE AND REEL, 650 PIECES PER REEL
11. LIFE CYCLES: 10,000,000 ACTUATIONS
12. DENOTES CRITICAL PARAMETER
13. 2002/95/EC (ROHS) COMPLIANT
4
14.00
[.551 in]
3
A
REV
21031
PCR NO
New Release
DESCRIPTION
2/12/13
DATE
rc
BY
TITLE
SCALE
TL6200XBF300QG
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
2:1
1/7/2013
rc
DR
T060100
DWG
REV
A
