1 GHz and 500 MHz High Voltage Differential Probes
TDP1000, TDP0500, P6251 Datasheet
Key features
Outstanding electrical performance
Selectable bandwidth-limiting filters
DC reject
Versatile DUT connectivity
Small compact probe head for probing small geometry circuit
elements
Straight pin, square pin, solder down, variable pitch standard
accessories
Robust design for reliability
Easy to use
Provides automatic units scaling and readout on the oscilloscope
display

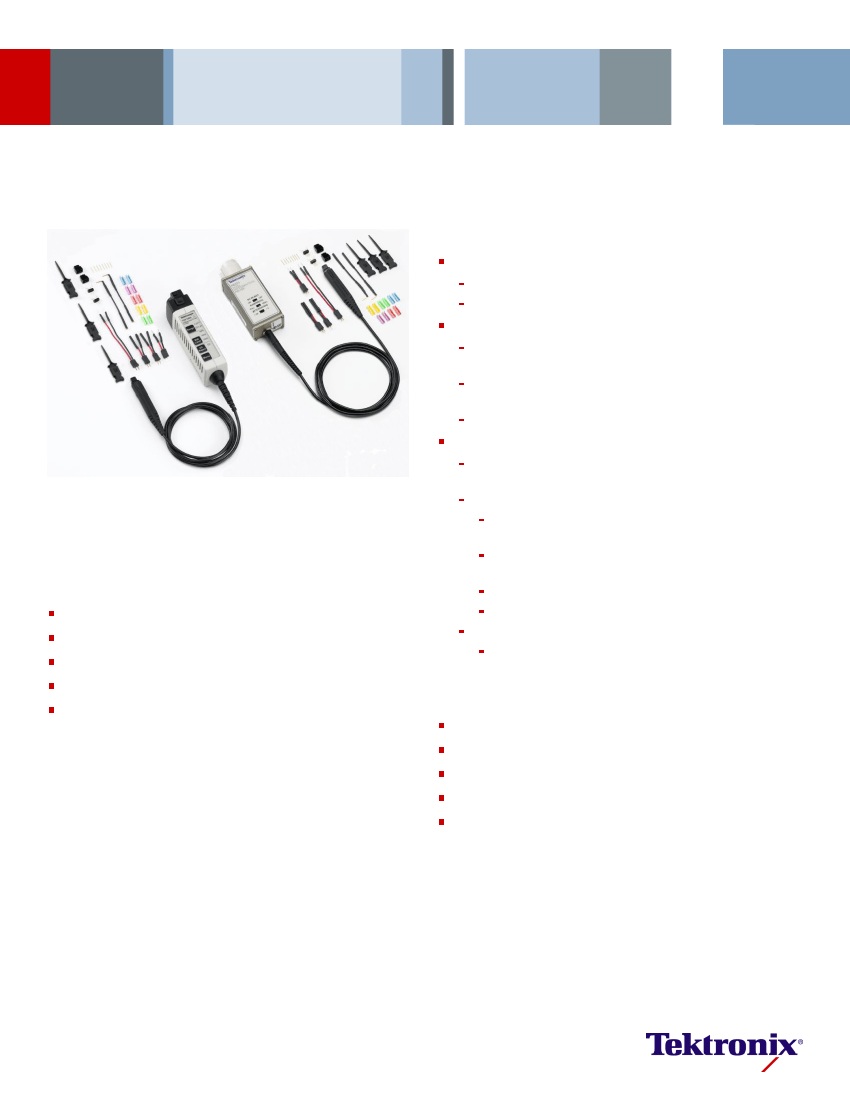

The TDP1000, TDP0500, and P6251 High-voltage Differential Probes
provide excellent high-speed electrical and mechanical performance
required for today's Switch Mode Power Supply (SMPS), CAN/LIN Bus, and
high-speed digital system designs.
TDP1000, TDP0500
Connect directly to oscilloscopes with the TekVPI
™
probe
interface
Easy access to scope-displayed probe menu for probe setup
control and operating status information
Remote GPIB/USB probe control through the oscilloscope
AutoZero – zeros out output offset
P6251
Connect directly to the TekProbe
™
interface oscilloscopes, or
to TekConnect
®
oscilloscopes using TCA-BNC adapter
Key performance specifications
1 GHz and 500 MHz probe bandwidth
<1 pF differential input capacitance
1 MΩ differential input resistance
±42 v (DC + pk AC) differential input voltage
>18 dB CMRR (at 250 MHz 50X attenuation)
Applications
High-speed switch mode power supply design
CAN/LIN bus design
Digital design and characterization
Manufacturing engineering test
Research and development
Datasheet
High-voltage differential probes
The TDP1000, TDP0500, and P6251 High-voltage Differential Probes are
specifically designed for use with and direct connection to Tektronix
oscilloscopes with either the TekVPI
™
probe interface, or TekProbe BNC
Interface. These probes achieve high-speed signal acquisition and
measurement fidelity by solving three traditional measurement challenges:
Outstanding Electrical Performance
Versatile Device-Under-Test Connectivity
Ease of Use
Specifications
All specifications apply to all models unless noted otherwise.
Warranted characteristics
Bandwidth (probe only)
TDP1000, P6251
TDP0500
Attenuation
Differential mode input voltage
Rise time (probe only)
TDP1000, P6251
TDP0500
CMRR
≤350 ps
<700 ps
>55 dB at 30 kHz
>50 dB at 1 MHz
>18 dB at 250 MHz (warranted at 50X attenuation)
Max input voltage (nondestruct)
Gain accuracy at DC
±100 v (DC + pk AC)
±2%
1 GHz
500 MHz
5X, 50X
±42 v (DC + pk AC); 30 V
RMS
Typical characteristics
Differential input capacitance
Differential input resistance
Sensitivity/noise level
5X attenuation
50X attenuation
2 mV
RMS
10 mV
RMS
(referred to the probe output)
1 mV
RMS
50 mV
RMS
(referred to the probe output)
Propogation delay
Common mode input voltage
Differential input offset range
TDP1000, TDP0500
P6251
±42 v (5X or 50X attenuation)
±4.25 v (5X attenuation)
±42 v (50X attenuation)
6.5 ns
±35 v (DC + pk AC); 25 V
RMS
<1 pF
1 MΩ
2 www.tektronix.com
TDP1000, TDP0500, and P6251 1 GHz and 500 MHz High Voltage Differential Probes
DC reject
5X attenuation
50X attenuation
0.4 Hz
4 Hz
Nominal characteristics
Selectable bandwidth filter limits
TDP1000, TDP0500
P6251
Oscilloscope interface
recommendations
TDP1000, TDP0500
P6251
TekVPI
™
Probe
TekProbe BNC Level II
TekConnect
®
(TCA-BNC required)
100 Hz, 10 kHz, 1 MHz, Full
5 MHz, Full
Power requirements
TDP1000, TDP0500
P6251
Powered directly by oscilloscopes with the TekVPI interface
Powered directly by the TekProbe-BNC interface, eliminating the need for additional power supplies and cables when used with
TekProbe-BNC oscilloscopes.
May also be powered through the 1103 TEKPROBE power supply for use with non-TekProbe interface instrumentation.
Physical characteristics
Compensation box dimensions
Dimension
Height
Width
Length
Cable length
Weight
TDP1000, TDP0500
lb
0.320
kg
0.146
TDP1000, TDP0500
in
1.6
1.2
4.2
cm
4.1
3.05
10.7
P6251
in
1.0
1.6
3.2
cm
2.6
4.1
8.13
47.2 (inches), 1.2 (meters)
P6251
lb
0.360
kg
0.163
www.tektronix.com 3
Datasheet
Ordering information
Models
TDP1000
TDP0500
P6251
1 GHz high-voltage differential probe with TekVPI interface.
500 MHz high-voltage differential probe with TekVPI interface.
1 GHz High-voltage Differential Probe with TekProbe-BNC Level II Interface.
Options
Language options
Opt. L5
Opt. L7
Japanese manual
Simplified Chinese manual
Service options
Opt. C3
Opt. C5
Opt. R3
Opt. R5
Opt. SILV600
Opt. SILV900
Calibration Service 3 Years
Calibration Service 5 Years
Repair Service 3 Years (including warranty)
Repair Service 5 Years (including warranty)
Standard warranty extended to 5 years
Standard warranty extended to 5 years
Additional service products for the TDP0500 or TDP1000
The following are available during either warranty (DW) or postwarranty (PW).
TDP0500-CA1 / TDP1000-CA
TDP0500-R1PW / TDP1000-R1PW
TDP0500-R2PW / TDP1000-R2PW
TDP0500-R3DW / TDP1000-R3DW
TDP0500-R5DW / TDP1000-R5DW
A single calibration event or coverage for the designated calibration interval, whichever comes first
Repair service coverage, 1-year post warranty
Repair service coverage, 2-year post warranty
Repair service coverage 3 years (includes product warranty period) 3-year period starts at time of customer instrument purchase
Repair service coverage 5 years (includes product warranty period) 5-year period starts at time of customer instrument purchase
Additional service products for the P6251
The following are available during either warranty (DW) or postwarranty (PW).
P6251-CA1
P6251-R1PW
P6251-R2PW
P6251-R3DW
P6251-R5DW
A single calibration event or coverage for the designated calibration interval, whichever comes first
Repair service coverage, 1-year post warranty
Repair service coverage, 2-year post warranty
Repair service coverage 3 years (includes product warranty period) 3-year period starts at time of customer instrument purchase
Repair service coverage 5 years (includes product warranty period) 5-year period starts at time of customer instrument purchase
4 www.tektronix.com
TDP1000, TDP0500, and P6251 1 GHz and 500 MHz High Voltage Differential Probes
Accessories
Common standard accessories
Description
Y-lead set
Solder-down lead set, 1 inch
Solder-down lead set, 3 inch
Micro CKT test tip
Tip savers
Longhorn adapters
Straight-pin probe tips
3-inch ground leads
Color-coding bands
Nylon carrying case
CD with technical reference manual
and quick start users guides
Quantity included with product
2 each
1 each
1 each
3 each
2 each
2 each
8 each
2 each
2 each of 5 colors
1 each
1 each
Reorder part number (qty in reorder)
196-3434-xx (1)
196-3504-xx (1)
196-3505-xx (1)
206-0569-xx (1)
016-1781-xx (2)
016-1780-xx (5)
016-1891-xx (8)
196-3437-xx (2)
016-1315-xx (2 each of 5 colors)
016-1952-xx (1)
063-4110-xx (1)
Standard accessories for the TDP0500 and TDP1000
Description
Quick start users guide
English
Japanese (with option L5)
Simplified Chinese (with option
L7)
Documentation Kit CD, Includes:
Quick Start Users Guide (English,
Japanese, and Simplified Chinese
versions); Technical Reference
Manual
1 each
Qty included with product
1 each
071-1974-xx (1)
071-1975-xx (1)
071-1976-xx (1)
063-3941-xx (1)
Reorder part number (qty in reorder)
Standard accessories for the P6251
Description
Documentation Kit CD, Includes: Quick Start Users Guide (English, Japanese,
and Simplified Chinese versions); Technical Reference Manual
Qty included with product
1 each
Reorder part number (qty in reorder)
063-4110-xx (1)
Standard warranty
1 year parts and labor.
www.tektronix.com 5
