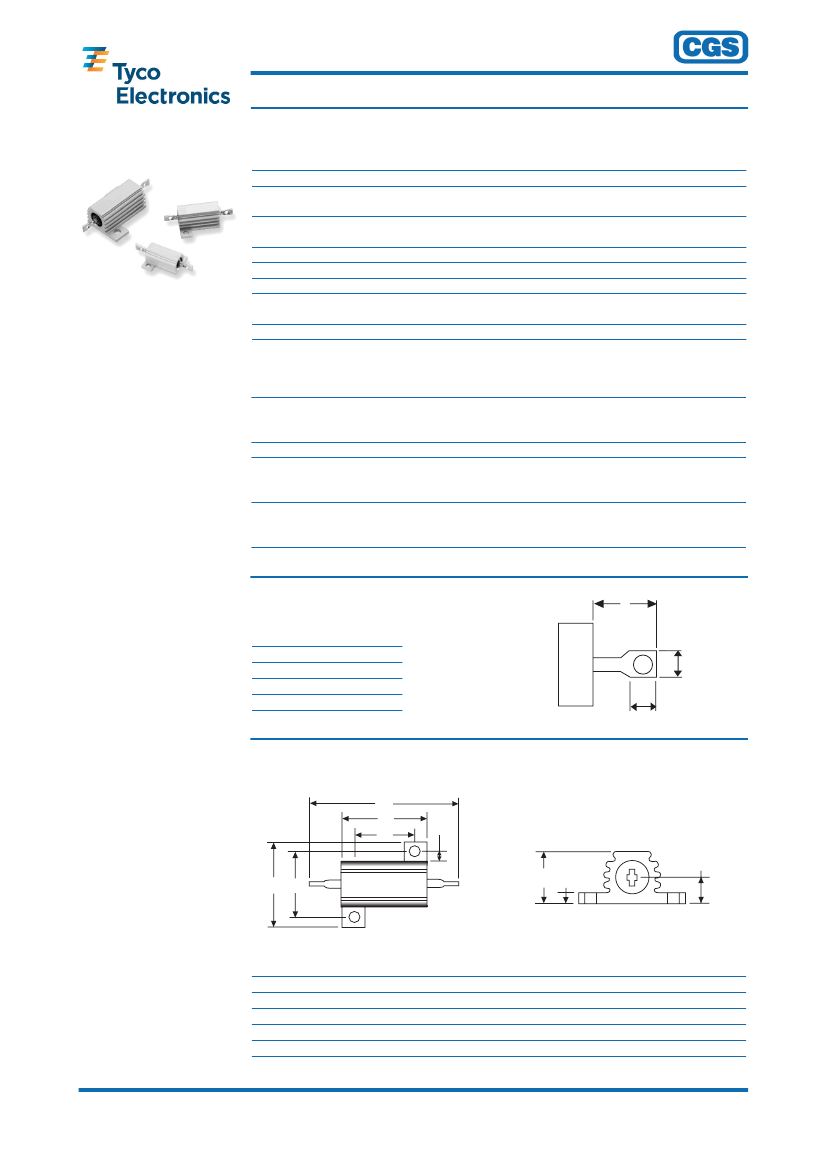

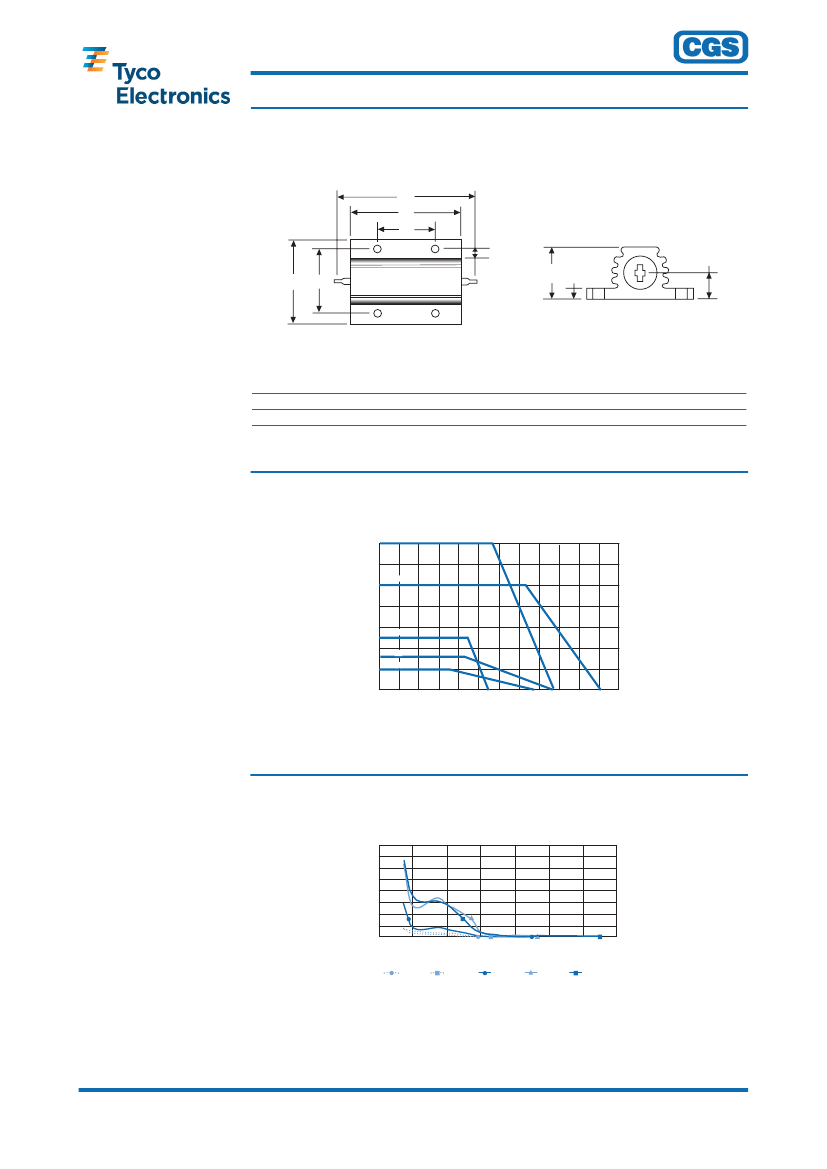

Aluminium Housed Power Resistors
Type THS Series
Type THS Series
Characteristics - Electrical
THS - 10 Watts to 75 Watts
THS10
Dissipation @ 25°C with Heatsink (Watts):
10
Without Heatsink:
5.5
Ohmic Value Min (Ohms):
R01
Max:
10K
Max. Working Voltage (DC or ACrms) Volts:
160
Dielectric Strength (AC Peak) Volts:
1400
Stability (% resistance change, 1000 hours) (%):
1
Standard Heatsink - Area (mm
2
):
41500
Thickness (mm):
1
Number of Mounting Holes:
2 hole
THS15
15
8
R01
15K
265
1400
1
41500
1
2 hole
THS25
25
12.5
R01
36K
550
2500
1
53500
1
2 hole
THS50
50
20
R01
50K
1250
2500
1
53500
1
2 hole
THS75
75
40
R05
50K
1400
5000
2
99500
3
4 hole
Tyco are the leading European
supplier of standard and custom
designed
aluminium
housed
resistors for general-purpose use,
power supplies, power generation
and the traction industry.
The THS is a range of extremely
stable, high quality wire wound
resistors capable of dissipating
high power in a limited space with
relatively low surface temperature.
The power is rapidly dissipated
as heat through the aluminium
housing to a specified heatsink.
The resistors are made from quality
materials for optimum reliability and
stability. Tyco can test resistors to
conform to relevant international,
MIL or customer specifications.
Characteristics -
Electrical
Long Term Stability:
For improvements in long-term stability, resistors must be derated as
follows; for 50% of stated ΔR maximum dissipation must not exceed
70% of rating; for 25% of stated ΔR maximum, dissipation must not
exceed 50% of rating
Dry: 10,000MΩ minimum. After moisture test: 1000MΩ minimum.
Although the use of proprietary heat sinks with lower thermal
resistance is acceptable, up rating is not recommended.
The use of proprietary heat sink compound to improve thermal
conductivity is recommended for optimum performance of all sizes
Temperature coefficient below 100R, 50ppm/°C
Temperature coefficient above 100R, 30ppm/°C
Tolerance, 5% standard
Insulation Resistance:
Heat Dissipation:
Specification:
Key Features
■
■
■
Established product
with proven reliability
•
Leading the way with
over 50 years of
design and
manufacturing
experience
10 Watts to 75 Watts
Versatile product
•
Bench mark in
every industry
Product Specifications -
THS10 - THS75
Type
THS10, 15
THS25, 50
THS75
L
7
10
8
L
5.0
Applications
■
■
■
■
■
■
■
Dimensions -
THS10 - THS50
M
L
H
R
Braking Resistor
Balancing Resistor
Capacitor Charging
& Discharging
Crowbar
Filter
Electrical Machinery
general use
Available through
Distribution
4.0
P
2 x Mounting Hole
THS10 - 2.4mm
THS15 - 2.4mm
THS25 - 3.3mm
THS50 - 3.3mm
N
Type
THS10
THS15
THS25
THS50
J
H±0.3
11.3
14.3
18.3
39.7
J±0.3
12.4
15.9
19.8
21.4
L Max
17.0
21.0
29.0
51.0
M Max
30.0
36.5
51.8
72.5
N Max
17.0
21.0
28.0
30.0
P Max
9.0
11.0
15.0
17.0
U
R Min
1.9
1.9
2.8
2.8
T±0.5
3.4
5.2
7.2
7.9
T
U Max
2.5
3.2
3.2
3.2
Literature No. 1773277
Issued: 03-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
Aluminium Housed Power Resistors
Type THS Series
Power Overload
30
Multiples of Rated Power
25
20
15
10
5
0
0.1 1 2
3
4
5
6 7 8 9 10 11 12 13 14 20 25 30 40 60
Duration of Overload (secs)
This graph indicates the amount that the rated power (at 20°C) of the
standard HS Series resistor may be increased for overloads of 100mS to 60S
Surface Temperature Rise
200
Surface Temp. Rise (°C)
THS50
THS25
100
THS15
THS10
THS75
0
0 20
60
100
150
200
250
300
Power Dissipation (Watts)
For resistor mounted on standard heatsink, related to power dissipation
How to Order
THS
Common Part
THS- Standard
NTHS - Low
Inductance
50
Power Rating
10
15
25
50
75
Watt
Watt
Watt
Watt
Watt
= THS10
= THS15
= THS25
= THS50
= THS75
680R
Resistance Value
0.1ohm
(100 mille ohms)
R10
1ohm
(1000 mille ohms)
1R0
1K
(1000 ohms)
1KO
J
Tolerance
J - 5%
Literature No. 1773277
Issued: 03-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
