TPS2024B Overview

TEKTRONIX - TPS2024B - OSCILLOSCOPE; DIGITAL STORAGE; 4-CHAN; 200MHZ; 2GSPS

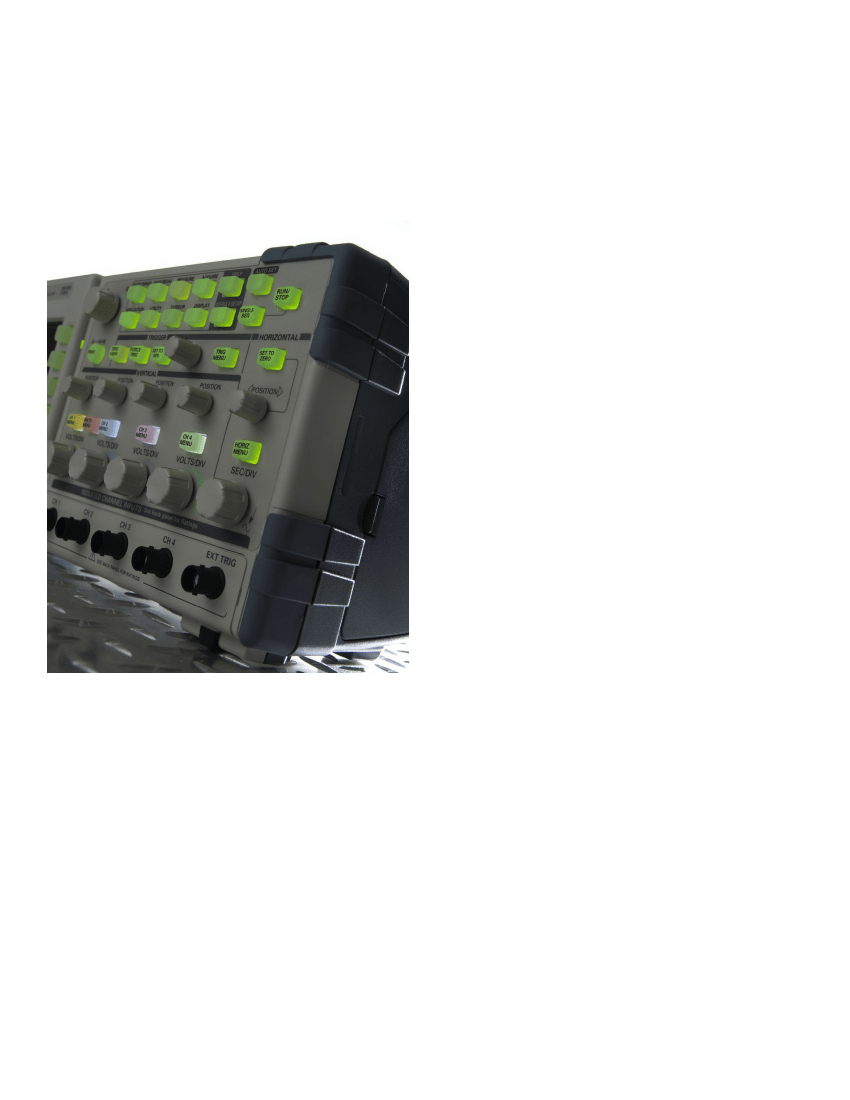

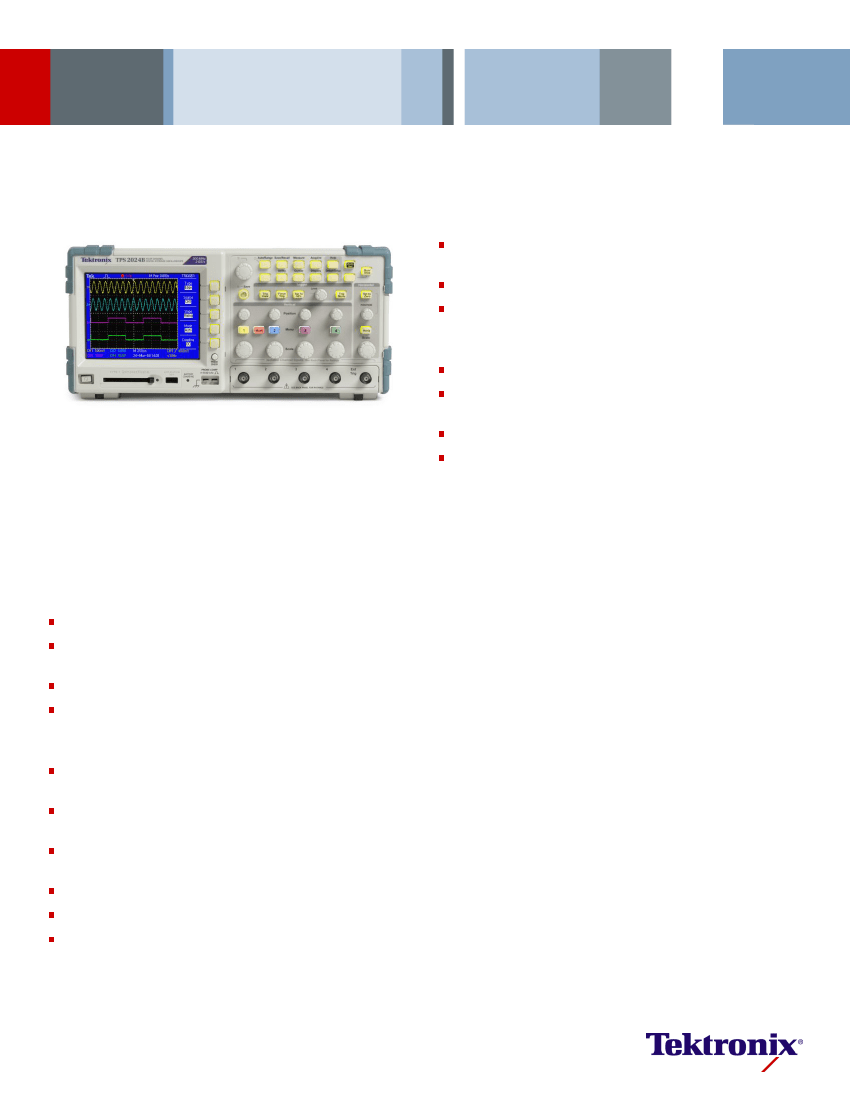

Digital Storage Oscilloscopes
TPS2000B Series Data Sheet
Quick setup and operation with autoset menu, autorange, waveform
and setup memories, and built-in, context-sensitive Help
Backlit menu buttons for high visibility
11 of the most critical automatic waveform measurements
Applications
Industrial power design, troubleshooting, installation, and maintenance
Advanced electronics design, troubleshooting, installation, and
maintenance
The TPS2000B Series offers a distinctive range of capabilities in an
oscilloscope with controls and menus you will find familiar and easy to use.
Available in 2- or 4-channel versions, the TPS2000B Series with
IsolatedChannel
technology provides isolation from ground and isolation
between channels allowing you to take measurements with less worry about
damaging circuitry. Battery power comes standard, making it a natural
choice for field applications. For work on power electronics, optional
software integrates commonly needed power system measurements into
the instrument, speeding up power analysis and troubleshooting.
Automotive design and test
Education
Make floating and differential measurements -
quickly, accurately, affordably
Unintentionally grounding a circuit under test is a common cause of poor
measurement results and circuit damage. Connecting two or more
grounded probes can cause ground loops, and if the current is high enough
can result in ruined components and equipment. Most importantly, taking
floating measurements without the proper instruments and probes can pose
a safety hazard.

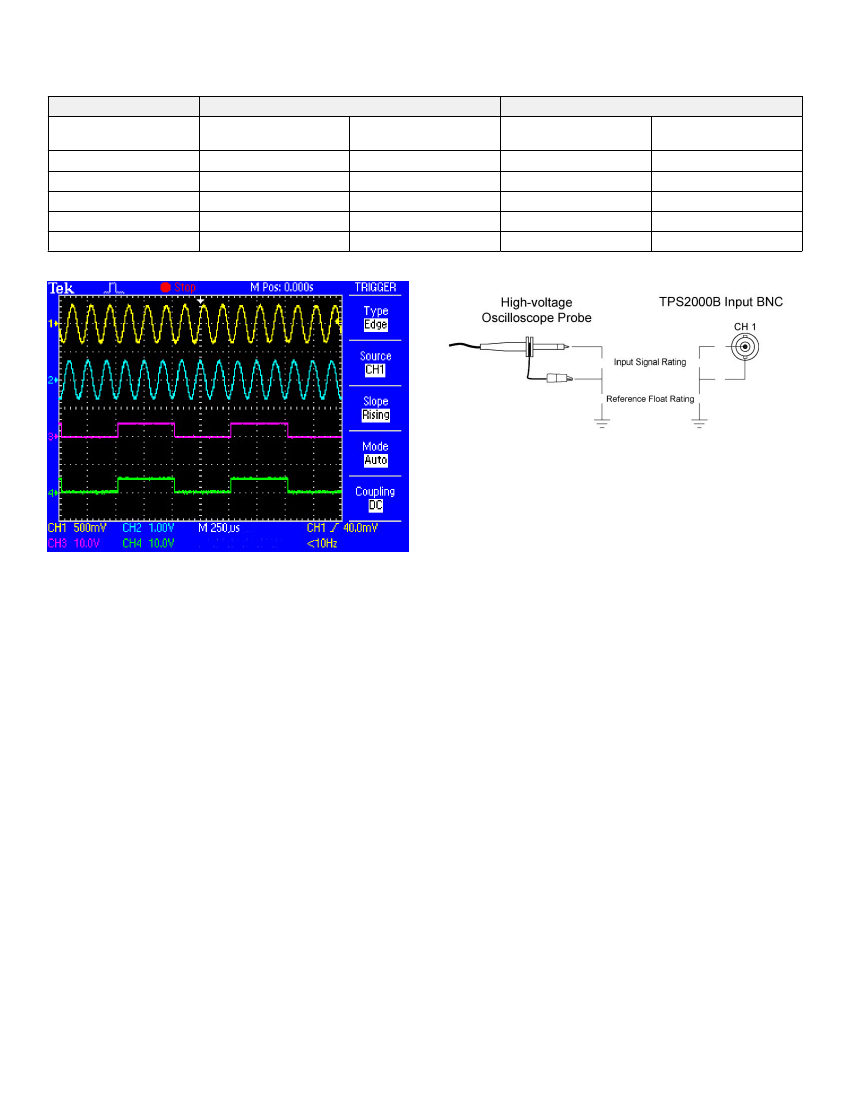

Tektronix IsolatedChannel technology simplifies floating measurements.
Unlike ground-referenced oscilloscopes, the TPS2000B input connector
shells are isolated from each other and from earth ground. Within the
specified 600 V
RMS
maximum float voltage, IsolatedChannel technology
keeps current from flowing between the TPS2000B input BNC shells or from
any BNC shell to earth.
Key performance specifications
100 MHz and 200 MHz bandwidths
2 or 4 fully isolated and floating channels, plus impedance isolated
external trigger input
Sample rates up to 2 GS/s real time on all channels
2.5k point record length on all channels
Key features

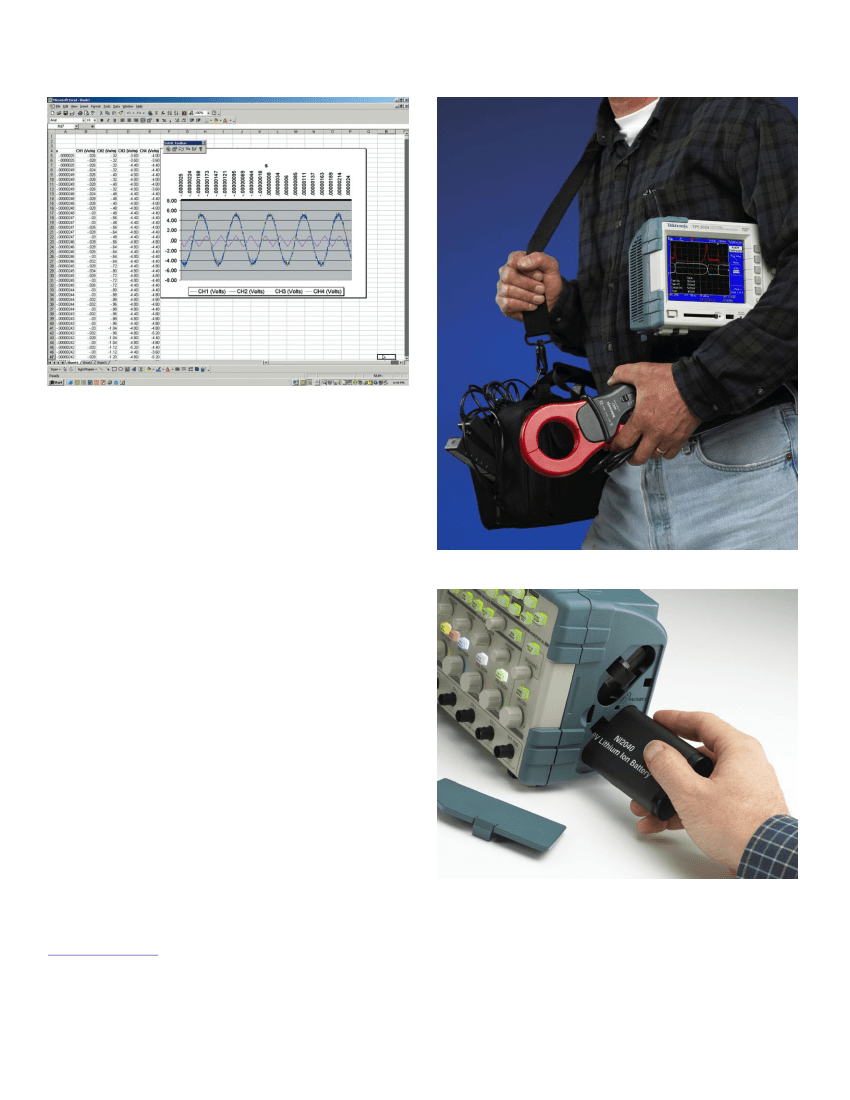

8 hours of continuous battery operation with two batteries installed, hot
swappable for virtually unlimited freedom from AC line power

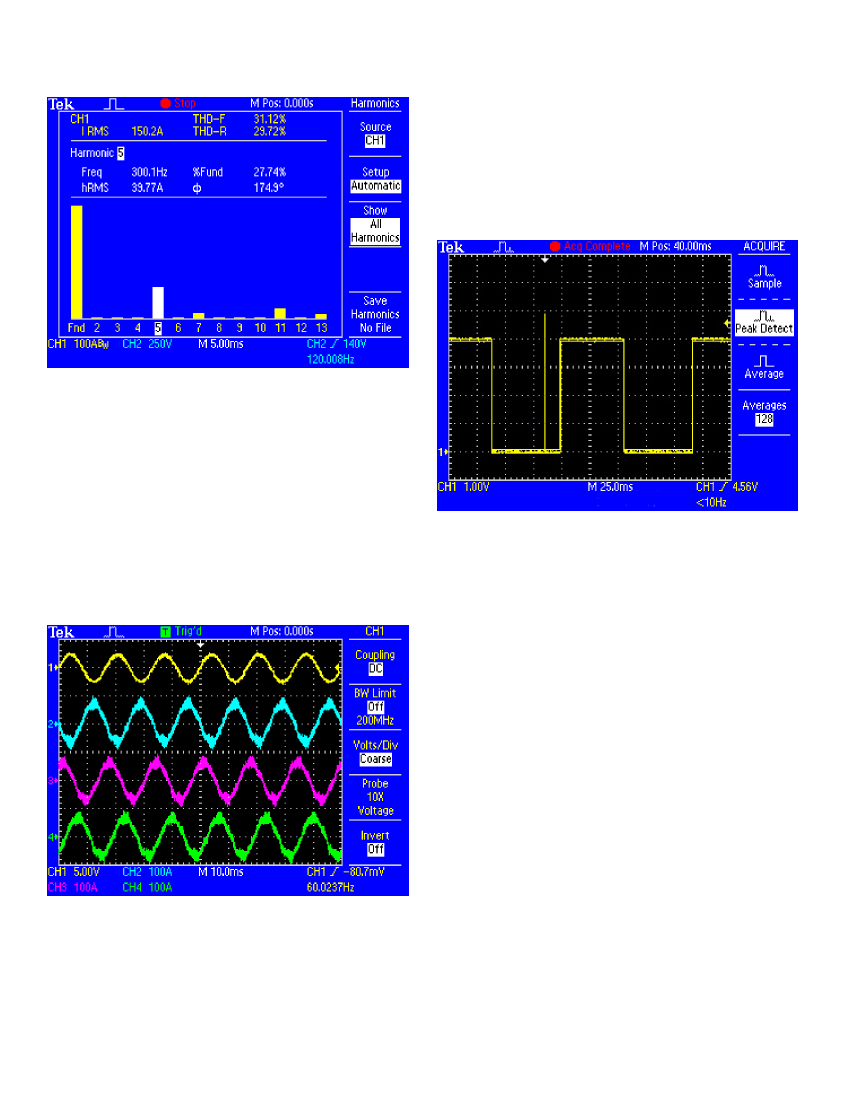

Optional power application software offers the broadest range of power
measurements at its price point
Quickly document and analyze measurement results with OpenChoice
®
software or integrated CompactFlash mass storage
FFT standard on all models
Advanced triggers to quickly capture the event of interest
Traditional, analog-style knobs and multi-language user interface for
easy operation
®
