TR3093 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TR3093

TR3093: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size36KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TR3093 Overview

RF AMPLIFIER MODEL

TR3093 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	T8, TO-8B, 4 PIN
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

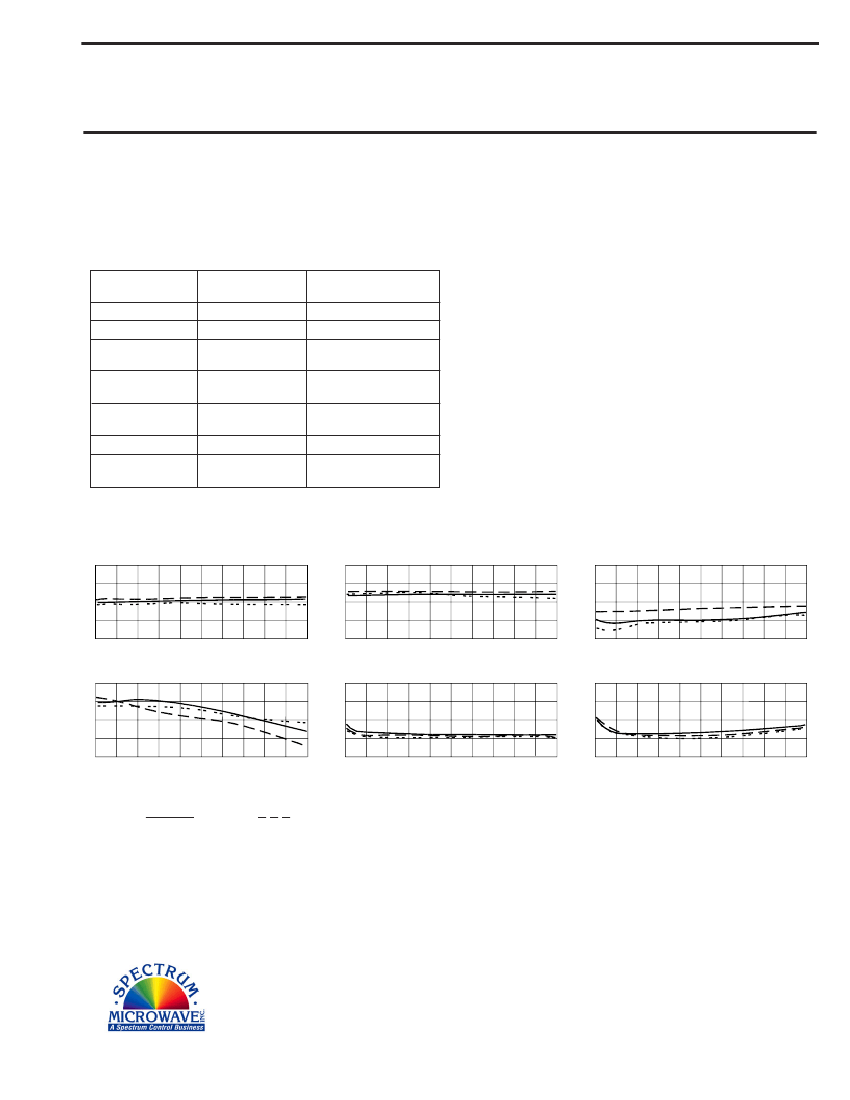

RF AMPLIFIER

MODEL

TR3093

Features

Higher Output Power: 1 Watt Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TR3093, 4 Pin TO-8B (T8)

RN3093, 4 Pin Surface Mount (SM19)

BR3093, Connectorized Housing (H2)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +59 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +42 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 200 MHz

+30

-15

1.3:1

1.4:1

5.5

+15

330

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 200 MHz

10 Min.

+29 Min.

-13 Max.

2.0:1 Max.

7.0 Max.

+15

340 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 200 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 200 MHz

Noise Figure (dB)

7.0

6.5

6.0

5.5

5.0

Start 10 MHz

Stop 200 MHz

1 dB Comp. (dBm)

+32

+31

+30

+29

+28

Start 10 MHz

Stop 200 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 200 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

03/07/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

TR3093 Related Products

	TR3093	BR3093	RN3093
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT
Gain	10 dB	10 dB	10 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2
package instruction	T8, TO-8B, 4 PIN	H2	-
