CWR16FB685MCBA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CWR16FB685MCBA

CWR16FB685MCBA: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 6.8 uF, SURFACE MOUNT, 1505, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size314KB，21 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

CWR16FB685MCBA Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 6.8 uF, SURFACE MOUNT, 1505, CHIP, ROHS COMPLIANT

CWR16FB685MCBA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1741322657
package instruction	, 1505
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ESR IS MEASURED AT 100 KHZ
capacitance	6.8 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	8000 mΩ
high	1.27 mm
JESD-609 code	e4
leakage current	0.001 mA
length	3.81 mm
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TRAY, PLASTIC
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
Guideline	MIL-PRF-55365/13
size code	1505
surface mount	YES
Delta tangent	0.06
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.27 mm

Preview

Download Datasheet

View All

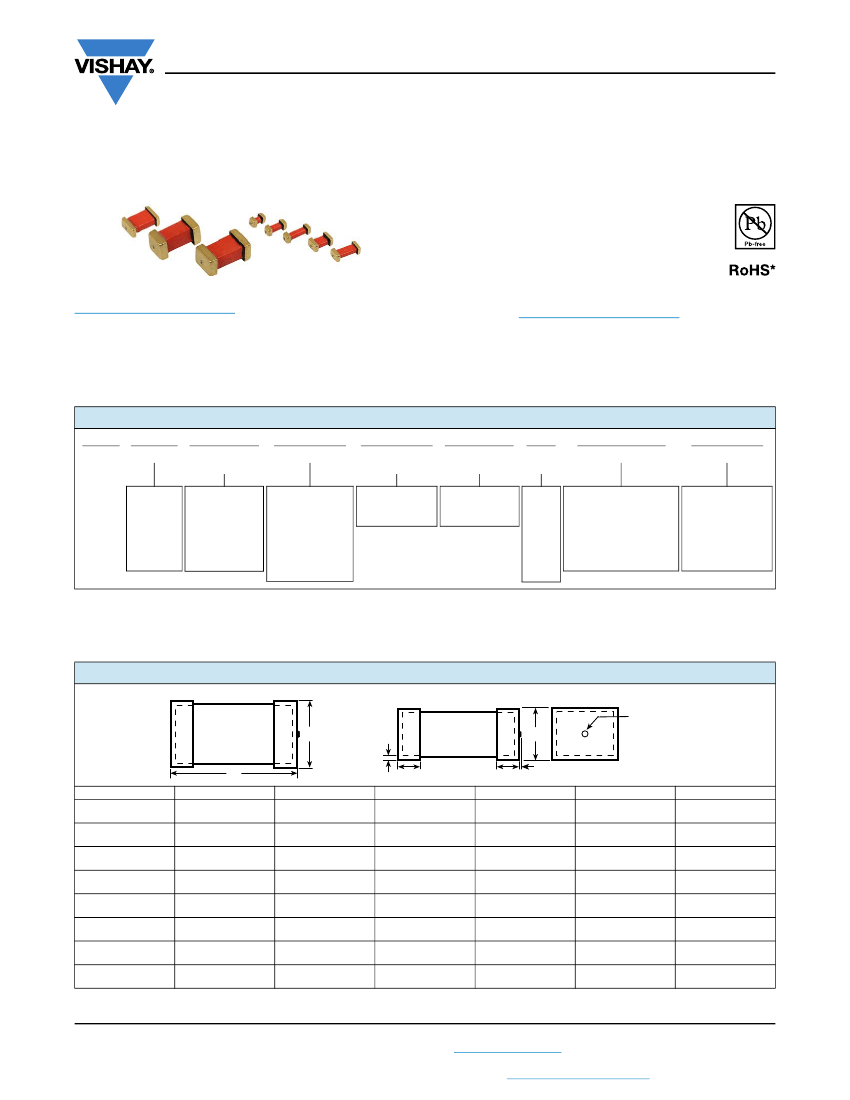

CWR16

www.vishay.com

Vishay Sprague

Solid Tantalum Surface Mount Capacitors

ANTAMOUNT

™ Conformal Coated, Extended Range,

Military, MIL-PRF-55365/13 Qualified

FEATURES

• Weibull failure rates B, C, T

• Tape and reel available per EIA 481

Available

• Termination finishes available: gold plate,

solder plated, solder fused, and hot solder

Available

dipped

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40211

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.33 μF to 330 μF

Capacitance Tolerance:

± 5 %, ± 10 %, ± 20 %

Voltage Rating:

4 V

to 35 V

Moisture Sensitivity Level 1

ORDERING INFORMATION

CWR16

TYPE

VOLTAGE

TERMINATION

FINISH

B = gold

C = hot solder

dipped

H = solder

plated

K = solder

fused

335

CAPACITANCE

TOLERANCE

J=±5%

K = ± 10 %

M = ± 20 %

FAILURE RATE

%/1000 h

B = 0.1

C = 0.01

T = 0.01

(1)

CASE

CODE

SURGE CURRENT

/TR

PACKAGING

(2)

C=4V

D=6V

F = 10 V

H = 15 V

J = 20 V

K = 25 V

M = 35 V

This is expressed

in picofarads.

The first two

digits are the

significant

figures. The third

is the number of

zeros to follow.

A = 10 cycles at +25 °C

B = 10 cycles

at -55 °C and +85 °C

C = 10 cycles

at -55 °C and +85 °C

(before Weibull grading)

Z = no surge current

Blank = bulk,

plastic tray

/FA = waffle pack

/PR = 100 pcs

reel

/HR = half reel

/TR = full reel

Notes

(1)

T level requires surge current option “C”. Capacitors are recommended for “space applications”. Shipped in tape and reel / or waffle

packaging only

(2)

Individual reels may include capacitors of two date codes that will be separated by an empty pocket.

Reel labels will show both date codes. The date code on the top (DC1) is the inner tape layers or first capacitors reeled

DIMENSIONS

in inches [millimeters]

Weld and

dimple

projection

identifies

anode (+)

terminal

(max.)

CASE CODE

0.100 ± 0.015

[2.54 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.220 ± 0.015

[5.59 ± 0.38]

0.265 ± 0.015

[6.73 ± 0.38]

0.285 ± 0.015

[7.24 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.135 ± 0.015

[3.43 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.070 ± 0.015

[1.78 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

(max.)

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

Note

• When solder coated terminations are required, add 0.015" [0.38 mm] to termination dimension tolerance

Revision: 09-Nov-2018

Document Number: 40094

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
