VCS2516
Vishay Foil Resistors
SURFACE MOUNT
Bulk Metal
®
Foil Technology
Surface Mount Current Sensing Chip Resistors
FEATURES
•
•
•
•
•
•
•
•
•
Low Ohmic Values: 0.01Ω to 1.0Ω
Resistance Tolerance: up to 0.1%
Low Temperature Coefficient of Resistance
Power Rating: 1 watt at + 85°C
Current Rating: 5 Amperes maximum
Low Thermal EMF
Low Voltage Coefficient: < 0.1ppm/V
Low Current Noise: < - 40DB
Non Inductive
Product may not
be to scale
INTRODUCTION
Model VCS2516 chip resistors have 4 tin/lead coated
surface mount pads for 4-terminal connection where a
current sensor is required. Utilizing Vishay Bulk Metal
®
Foil
as the resistance element, they provide performance
capabilities far greater than other resistor technologies
can supply in a product of comparable size.
These small devices dissipate the heat almost entirely
through the pads so surface mount users are encouraged to
be generous with the pads and board traces. Some hybrid
users may want to use conductive epoxy for the
interconnection and gold terminations are available on
special order. (Tin/lead oxidizes on the surface and the
conductive epoxy joint eventually fails electrically.)
Lead (Pb)-free terminations (100% Sn) are also availiable.
Our Application Engineering Department is prepared to
advise and recommend for non standard technical
requirements and special applications, Please contact us.
TERMINATIONS
•
Lead (Pb)-free two options available:
Gold Plated Terminations
Tin Plating
•
Tin/Lead (Sn 60% Pb 40%) Coated Terminations Standard
APPLICATIONS
•
•
•
•
•
•
•
•
Automatic test equipment (ATE)
Airborne (in heads-up display systems)
High precision instrumentation
R
2
Electron beam recording equipment
R
1
Electron microscopes
Vin
-
+
Current sensing applications
Forced balance electronic scales
Applications that require superior frequency stability etc.
Vout

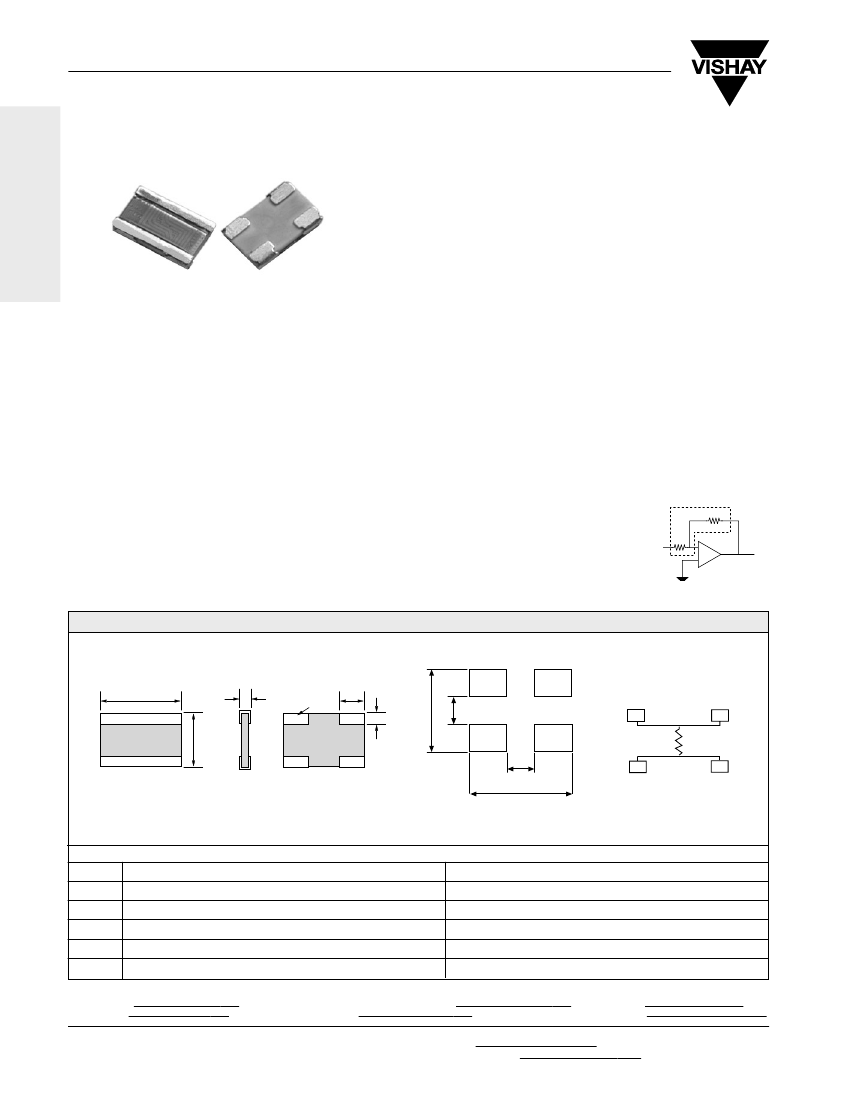

FIGURE 1 - DIMENSIONS
in inches and millimeters
.200
(5.08)
.070
(1.78)
L
W
Mounting
Pads (4)
I1
A
E1
I
1
E
1
B
H
I2
E2
R
.070
(1.78)
.260
(6.60)
I
2
Top View
Bottom View
Solder Pad Layout
Electrical
Schematic
E
2
DIMENSIONS
INCHES
L
H
W
A
B
0.250
±
0.010
0.160
±
0.010
0.040 maximum
0.080
±
0.005
0.040
±
0.010
mm
6.35
±
0.25
4.06
±
0.25
1.02 maximum
2.03
±
0.13
1.02
±
0.25
SALES
• ISRAEL: foilsales.israel@vishay.com
• FRANCE/SWITZERLAND/SOUTHERN EUROPE: foilsales.eusouth@vishay.com
• AMERICAS: foilsales.usa@vishay.com
• ASIA/JAPAN: foilsales.asia@vishay.com • UK/HOLLAND/SCANDINAVIA: foilsales.eunorth@vishay.com • GERMANY/CZECH REPUBLIC/AUSTRIA: foilsales.eucentral@vishay.com
www.vishay.com
32
For technical questions in the Americas, contact foilsupport1@vishay.com
Document Number: 63023
For technical questions in Asia/Japan/Europe/Africa/Israel, contact foilsupport2@vishay.com
Revision 05-Oct-04
VCS2516
Vishay Foil Resistors
SURFACE MOUNT
TABLE 1 - TEMPERATURE COEFFICIENT OF RESISTANCE – 55°C TO + 125°C, + 25°C REF.
VALUE (
Ω
)
> 0R500 to 1R0
> 0R100 to 0R500
> 0R050 to 0R100
> 0R030 to 0R050
> 0R020 to 0R030
0R01 to 0R020
TCR (ppm/
°
C)
±
10
±
15
±
20
±
35
±
50
±
80
TABLE 2 - PERFORMANCE SPECIFICATIONS
TEST
Thermal Shock 5x (-65˚C to + 150˚C)
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Resistance to Bonding Exposure
Moisture Resistance
Life 2000 @ 70˚C: Rated Power On Ceramic PCB
*Error at low values as shown + 0.001 for measurement.
MIL-PRF-55342
∆
R LIMITS
±
0.10%
±
0.10%
±
0.10%
±
0.10%
±
0.2%
±
0.2%
±
0.5%
MAXIMUM
∆
R LIMITS*
±
0.02%
±
0.02%
±
0.02%
±
0.02%
±
0.05%
±
0.03%
±
0.05%
TABLE 3 - CHARACTERISTICS
MODEL
NUMBER
VCS2516
RESISTANCE
RANGE
0.1Ω to 1.0Ω
0.01Ω to < 0.1Ω
RESISTANCE
TOLERANCE
to
±
1.0%
to
±
5.0%
±
0.5% and
±
0.1% available
POWER RATING
@ + 85
°
C
1 watt
on ceramic
substrate
(0.5 W on FR4
PC Board)
MAXIMUM
CURRENT
5 Ampere
Note: Tighter Tolerances are available. Please contact Application Engineering.
TABLE 4 - ORDERING INFORMATION
MODEL
VCS
CHIP SIZE
2516
RESISTANCE VALUE
RESISTANCE
RANGE
0.01Ω to 1.0Ω
LETTER
DESIGNATOR
R
MULTIPLIER
FACTOR
x 1.0
TOLERANCE
A
±
0.05%
B
±
0.1%
C
±
0.25%
D
±
0.5%
F
±
1.0%
G
±
2.0%
J
±
5.0%
TERMINATION
S
- Lead (Pb)-free
B
- Tin/Lead
G
- Gold Plated
PACKAGING
T = Tape and
Reel
W = Waffle
PacK
