ZVN4106F
60V N-CHANNEL ENHANCEMENT MODE VERTICAL DMOSFET IN SOT23
Features
•
•
•
•
•
•
BV
DSS
> 60V
R
DS(on)
≤
2.5Ω @ V
GS
= 10V
Maximum continuous drain current I
D
= 200mA
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish. Solderable per MIL-STD-202, Method
208
e3
Weight: 0.008 grams (approximate)
SOT23
D
G
S
Top View
Device symbol
Pin-Out
Top View
Ordering Information
(Note 4)
Part Number
ZVN4106FTA
Notes:
Marking
MZ
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
MZ = Product Type Marking Code
ZVN4106F
Document number: DS33360 Rev. 3 - 2
1 of 6
www.diodes.com
July 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN4106F
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain Current (Note 5)
Symbol
V
DSS
V
GSS
I
D
I
DM
Value
60
±20
200
3
Unit
V
V
mA
A
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
Notes:
(Note 6)
(Note 6)
Symbol
P
D
R
θJA
T
J
,
T
STG
Value
350
357
-55 to +150
Unit
mW
°C/W
°C
5. Device mounted on minimum recommended pad layout test board, 10 s pulse duty cycle = 1%.
6. For a device mounted on 25mm X 25mm X 1.6mm FR-4 PCV with high coverage of single sided 1oz copper, in still air condition.

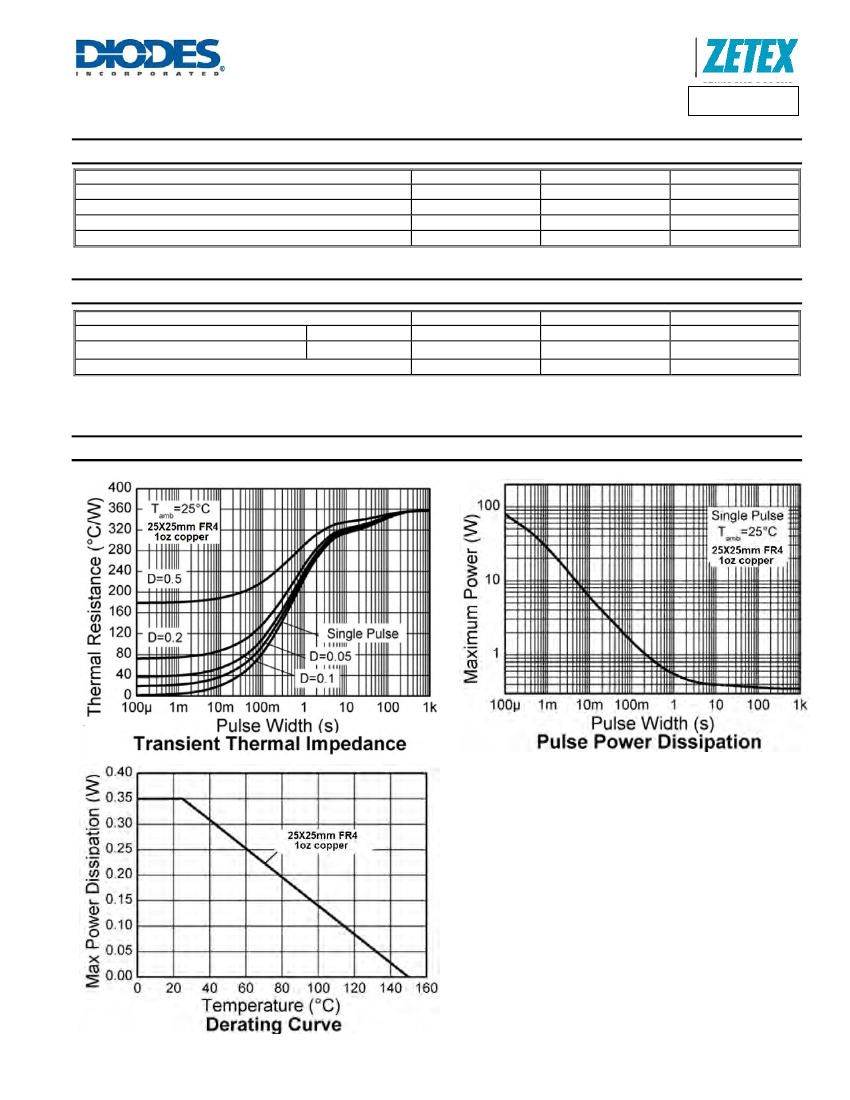

Thermal Characteristics
ZVN4106F
Document number: DS33360 Rev. 3 - 2
2 of 6
www.diodes.com
July 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN4106F
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS (Note 7)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current T
J
= +25°C
Gate-Source Leakage
On-State Drain Current
ON CHARACTERISTICS (Note 7)
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transconductance
DYNAMIC CHARACTERISTICS (Note 7)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Notes:
Symbol
BV
DSS
I
DSS
I
GSS
I
D(on)
V
GS(th)
R
DS (on)
g
fs
C
iss
C
oss
C
rss
t
D(on)
t
r
t
D(off)
t
f
Min
60
—
—
1
1.3
—
150
—
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Max
—
10
50
100
-
3
2.5
5
-
35
25
8
5
7
6
8
Unit
V
µA
nA
A
V
Ω
mS
pF
pF
pF
ns
ns
ns
ns
Test Condition
V
GS
= 0V, I
D
= 10mA
V
DS
= 60V, V
GS
= 0V
V
DS
= 48V, V
GS
= 0V, T
A
= +125°C
V
GS
= ±20V, V
DS
= 0V
V
GS
= 10V, V
DS
= 15V
V
DS
= V
GS
, I
D
= 1mA
V
GS
= 10V, I
D
= 500mA
V
GS
= 5V, I
D
= 200mA
V
DS
= 25V, I
D
= 250mA
V
DS
= 25V, V
GS
= 0V,
f = 1.0MHz
V
DS
= 25V, I
D
= 150mA
7. Short duration pulse test used to minimize self-heating effect.
ZVN4106F
Document number: DS33360 Rev. 3 - 2
3 of 6
www.diodes.com
July 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN4106F

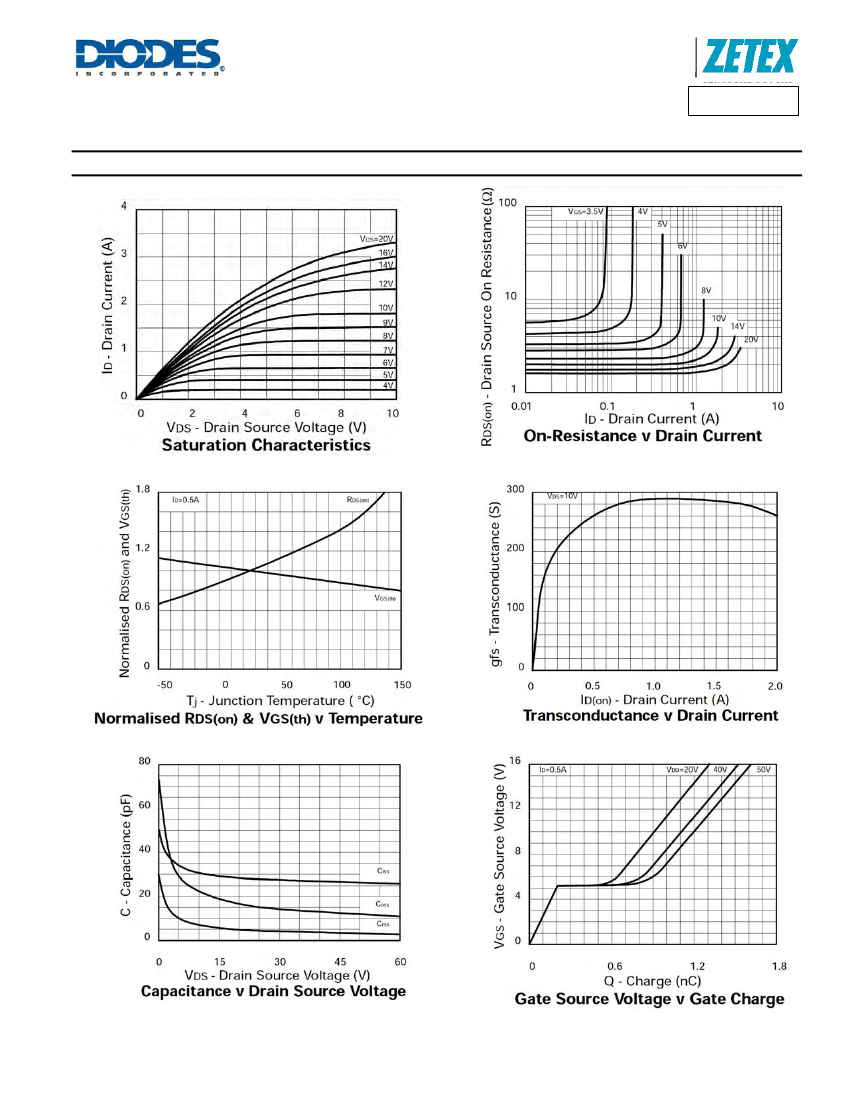

Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
ZVN4106F
Document number: DS33360 Rev. 3 - 2
4 of 6
www.diodes.com
July 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN4106F

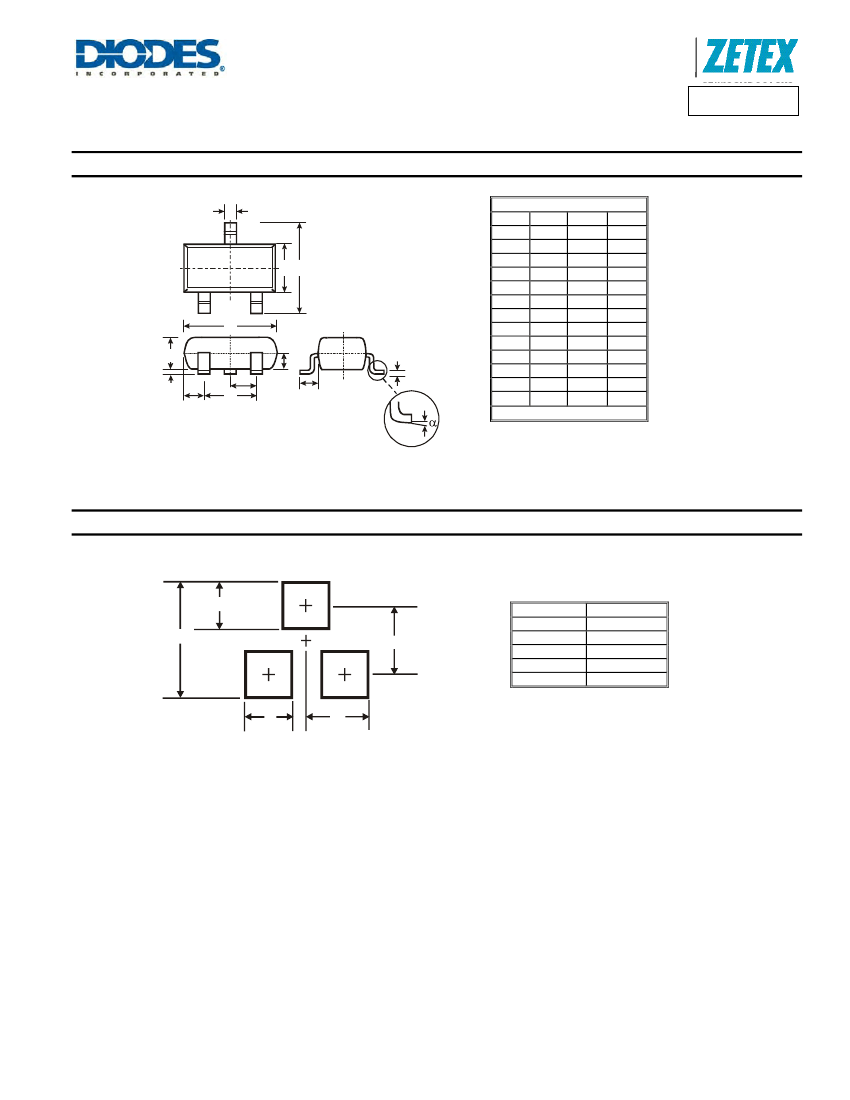

Package Outline Dimensions
A
B C
H
K
D
J
F
G
L
M
K1
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.903 1.10
1.00
K1
-
-
0.400
L
0.45
0.61
0.55
M
0.085 0.18
0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
2.0
C
1.35
E
X
E
ZVN4106F
Document number: DS33360 Rev. 3 - 2
5 of 6
www.diodes.com
July 2012
© Diodes Incorporated
