ZXMP10A17E6Q

Description
POWER, FET
Categorysemiconductor    Discrete semiconductor
File Size631KB,8 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

ZXMP10A17E6Q Overview

POWER, FET

ZXMP10A17E6Q Parametric

Parameter NameAttribute value
stateACTIVE
Transistor typeGENERAL PURPOSE POWER
ZXMP10A17E6Q
100V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
ADVANCE INFORMATION
V
(BR)DSS
-100V
R
DS(ON)
350mΩ @ V
GS
= -10V
450mΩ @ V
GS
= -6.0V
I
D
T
A
= +25°C
-1.6A
-1.4A
Features and Benefits
Fast Switching Speed
Low Gate Drive
Low Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description
This MOSFET is designed to minimize the on-state resistance and yet
maintain superior switching performance, making it ideal for high
efficiency power management applications.
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
e3
Solderable per MIL-STD-202, Method 208
Weight: 0.018 grams (Approximate)
Applications
Motor Control
DC-DC Converters
Power Management Functions
Uninterrupted Power Supply

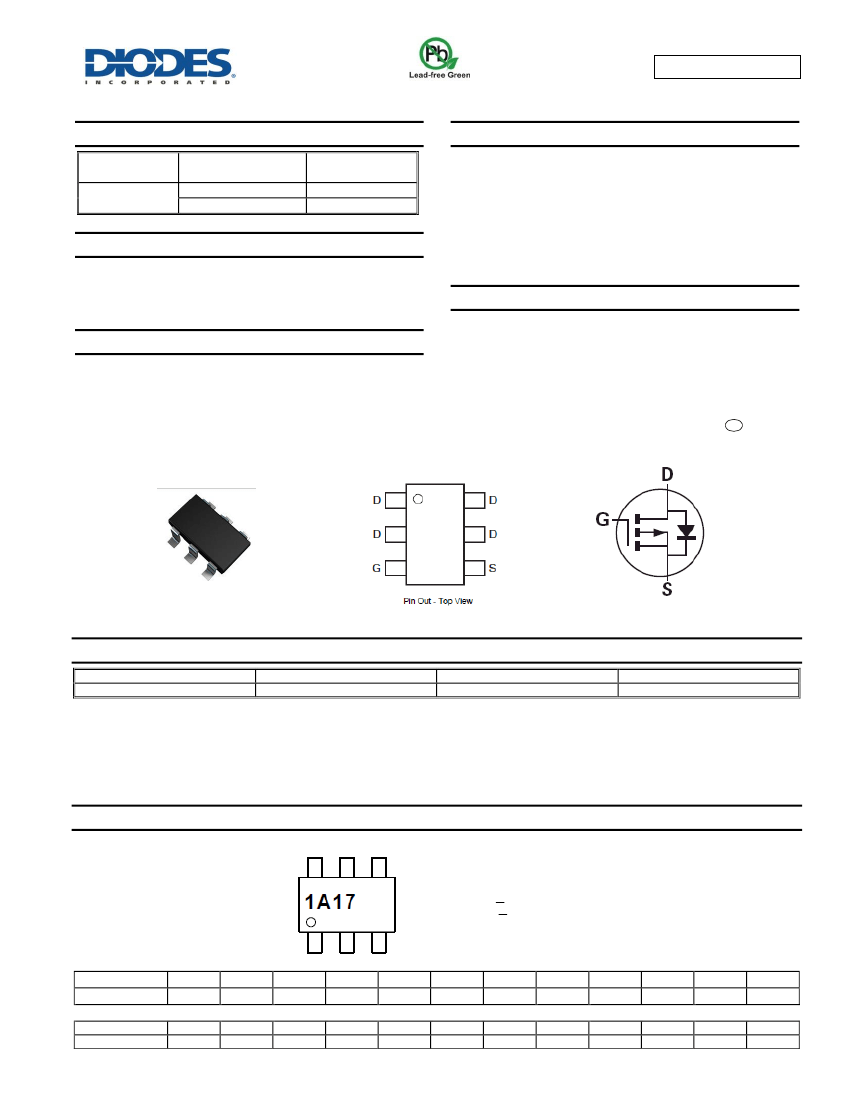

SOT26
Top View
Equivalent Circuit
Ordering Information
(Notes 4 & 5)
Part Number
ZXMP10A17E6QTA
Notes:
Qualification
Automotive
Case
SOT26
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT26
1A17 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: C = 2015)
M or M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2015
C
Jan
1
2016
D
Feb
2
2017
E
Mar
3
2018
F
Apr
4
2019
G
May
5
2020
H
Jun
6
2021
I
Jul
7
2022
J
Aug
8
2023
K
Sep
9
2024
L
Oct
O
2025
M
Nov
N
2026
N
Dec
D
March 2015
© Diodes Incorporated
YM
ZXMP10A17E6Q
Document Number DS36689 Rev. 3 - 2
1 of 7
www.diodes.com
