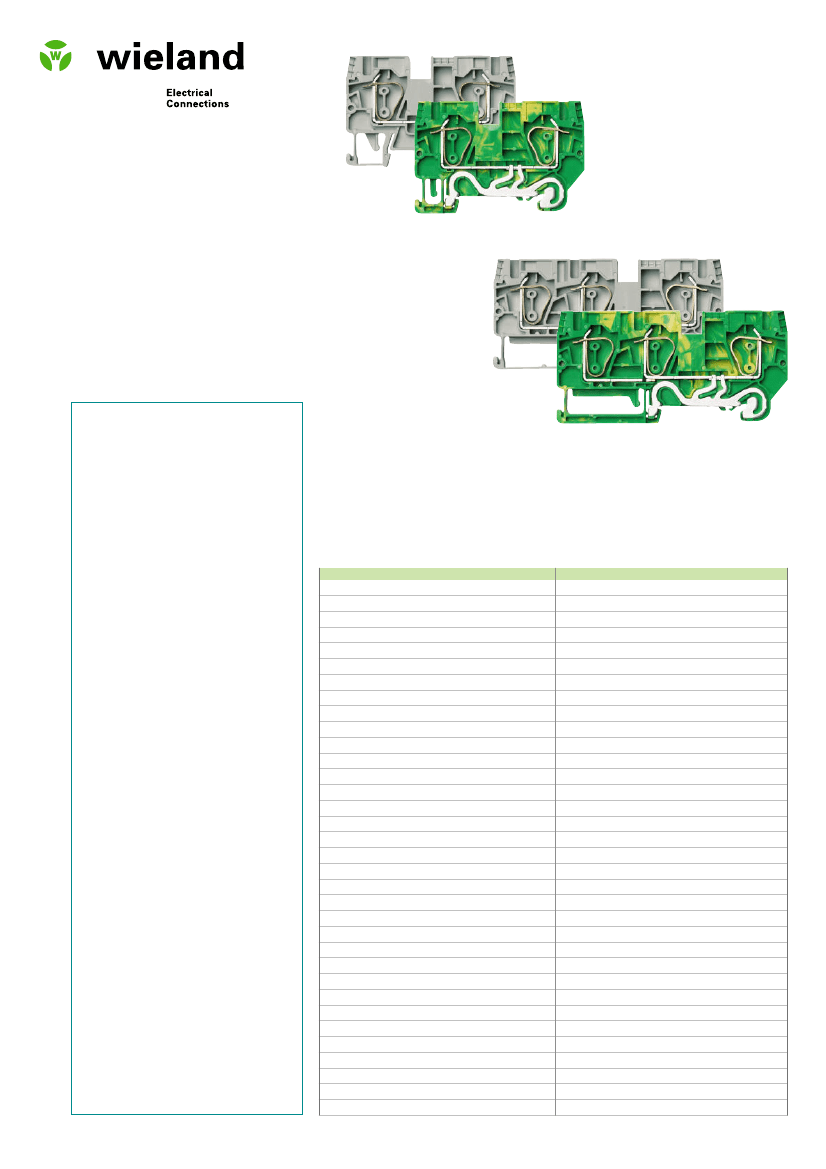

Description
The
fasis
WKFN
terminals can be used in a single-
tier design with 2, 3 and 4 clamping points per
potential or double-deck terminals in two and three
tier designs for switching tasks where installation
space is restricted, also available with diode circuits
if required. Potential can be distributed quickly and
flexibly using the jumper bars. Further modificati-
ons can be easily implented.
All variants are available as through terminals and
earth terminals while the double-deck terminals are
available for a variety of potentials combinations.
DIN Rail Terminals with
Spring Clamp Connection, TypeWKFN
CUSTOMER INFORMATION
Technical data according to EN 60947-7:
Rated cross section:
1.5 mm
2
– 35 mm
2
Rated current:
17 A – 125 A
.5
Rated voltage:
800 / 500 V
Wire range:
0.08 – 35mm
2
mark
Clearly mark all clamping positions
Benefits:
• Clear view of marking tag, even after termination.
• Error free identification improves installation.
• Simplified fault location when carrying out maintenance
tasks.
• Customised labelling with the marking system
wiemarc.
clamp
Flexible and universal connections
Benefits:
• Terminal compartment in accordance with gauge plug
EN 60947-7
.
• Connection of solid, stranded and finely stranded conductors
for example WKFN 4: 0.13 up to 6 mm
2
• Connection of finely stranded conductors with insulated
ferrules from 0.5 mm
2
up to the rated cross-section.

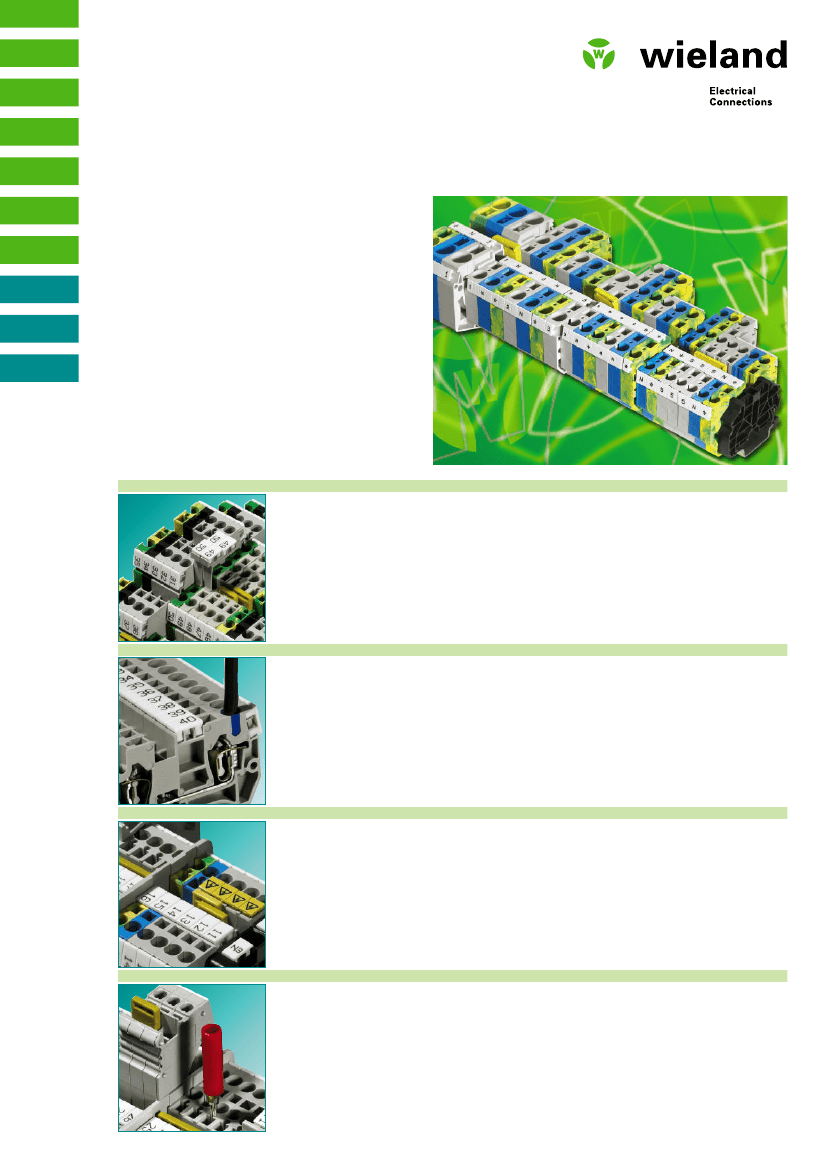

jump
Facilitate jumpering with dual row cross
connections
Benefits:
• Flexibility in the equipotential distribution with staggered and
daisy chain arrangement of the jumper bars.
• Reduced costs from use of standardised products.
• Distribution of primary power supply up to 76 A using standard
jumper bars and modular terminals.
test
Measuring the voltage via the integrated test
points
Benefits:
• Testing even when fully wired (including jumper bars).
• Test point directly on the current carrying bar.
• Functional test with modular test adapter using the test
sensor in the bridging channel.
Headquarters:
Wieland Electric GmbH
Brennerstraße 10 – 14
D-96052 Bamberg
Sales and Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax
+49 (951) 93 24-198
www.wieland-electric.com
WKFN 6 (SL)
WKFN 10 (SL)
WKFN 16 (SL)
WKFN 6 D1/2 (SL)
WKFN 10D1/2 (SL)
WKFN 16 D1/2 (SL)
AT Wieland
Components and system components
for the control cabinet
• DIN rail terminal blocks
– with screw connection
– with spring clamp connection
– with IDC connection
• Safety
– Safety relays
– Modular safety systems
• Fieldbus components
• Interface
– Power supplies
– Overvoltage protection
– Measuring and monitoring relays
– Time and switching relays
– Coupling relays/solid state relays
– Analog modules
– Passive interfaces
Components and system components
for field applications
• Remote automation
– Remote power distribution
– Remote fieldbus interface
• Industrial multipole connectors
– Modular multipole connectors
– High-density multipole connectors
– High-current multipole connectors
– Multipole connectors for
hazardous areas
– Bushings for control cabinets
– D-Sub connectors
• Round connectors
Empty housings and appliance
connectors/terminal strips
AT Schleicher
• PLC systems and CNC based control
systems
• Operator panels
• Application engineering &
system solutions
• Customized products
BIT Wieland
• Building installation systems
– Mains connectors IP20/IP65...IP68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Flexible flat cable systems
– Distribution systems
– Switching devices for EIB/KNX, LON,
Ethernet, radio control
– DIN rail terminal blocks for
electrical installations
– Overvoltage protection
PCB connectors Wieland
• PC board terminals/PC board connectors
– with screw connection
– with spring clamp connection
– with TOP connection
EN 60947-7-1 / DIN VDE 0611 T1
WKFN 6 ...
WKFN 10 …
WKFN 16 …
WKFN 6 ...
WKFN 10 …
WKFN 16 …
fine-stranded
0,2 - 6 mm
2
0,2 - 10 mm
2
0,2 - 16 mm
2
With
8 mm
10 mm
12 mm
Type
solid
0,2 - 10 mm
2
0,2 - 16 mm
2
0,2 - 25 mm
2
Wire strip length
12 mm
15 mm
16 mm
Part No.
V
800/8kV/3
800/8kV/3
800/8kV/3
A
41
57
76
Discription
Std. Pack
Modular terminal
Modular terminal
Duo-Modular terminal
Duo-Modular terminal
Earth terminal
Duo-Earth terminal
End plate
End plate
Jumper bar
Colour: gray
Colour: blue
Colour: gray
Colour: blue
Colour: green/yellow
Colour: green/yellow
Colour: gray
Colour: gray
2 pole
up to 5 pole
WKFN 6 /35
WKFN 6 /35 BLAU
WKFN 6 D1/2/35
WKFN 6 D1/2/35 BLAU
WKFN 6 SL/35
WKFN 6 D1/2/SL/35
APFN 6
APFN 6 D1/2
IVB WKFN 6-2
IVB WKFN 6-5
WKFN 10 /35
WKFN 10 /35 BLAU
WKFN 10 D1/2/35
WKFN 10 D1/2/35 BLAU
WKFN 10 SL/35
WKFN 10 D1/2/SL/35
APFN 10
APFN 10 D1/2
IVB WKF10-2
WKFN 16 /35
WKFN 16 /35 BLAU
WKFN 16 D1/2/35
WKFN 16 D1/2/35 BLAU
WKFN 16 SL/35
WKFN 16 D1/2/SL/35
APFN 16
APFN 16 D1/2
IVB WKF16-2
IVB WKFN 35R10
IVB WKFN 35R16
IVB WKFN 16R10
56.706.0055.0
56.706.0055.6
56.706.5055.0
56.706.5055.6
56.706.9055.0
56.706.9355.0
07.313.0455.0
07.313.0655.0
Z7.282.5227.0
Z7.282.5527.0
56.710.0055.0
56.710.0055.6
56.710.5055.0
56.710.5055.6
56.710.9055.0
56.710.9355.0
07.313.0855.0
07.313.1055.0
Z7.283.8227.0
56.716.0055.0
56.716.0055.6
56.716.5055.0
56.716.5055.6
56.716.9055.0
56.716.9355.0
07.313.1255.0
07.313.1455.0
Z7.284.4227.0
Z7.285.6427.0
Z7.285.6527.0
Z7.284.4327.0
50
50
50
50
50
50
10
10
10
10
50
50
50
50
50
50
10
10
10
50
50
25
25
50
25
10
10
10
10
10
10
Modular terminal
Modular terminal
Duo-Modular terminal
Duo-Modular terminal
Earth terminal
Duo-Earth terminal
End plate
End plate
Jumper bar
Modular terminal
Modular terminal
Duo-Modular terminal
Duo-Modular terminal
Earth terminal
Duo-Earth terminal
End plate
End plate
Jumper bar
Colour: gray
Colour: blue
Colour: gray
Colour: blue
Colour: green/yellow
Colour: green/yellow
Colour: gray
Colour: gray
2 pole
Colour: gray
Colour: blue
Colour: gray
Colour: blue
Colour: green/yellow
Colour: green/yellow
Colour: gray
Colour: gray
2 pole
Reducing jumper, WKF 35 to WKFN 10
Reducing jumper, WKF 35 to WKFN 16
Reducing jumper, WKFN 16 to WKFN 10
