LFSPXO022819CUTT datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO022819CUTT

LFSPXO022819CUTT: DescriptionHCMOS Output Clock Oscillator, 3.6864MHz Nom; CategoryPassive components oscillator; File Size1005KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO022819CUTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO022819CUTT	-	-	View	Buy Now

LFSPXO022819CUTT Overview

HCMOS Output Clock Oscillator, 3.6864MHz Nom

LFSPXO022819CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339771163
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	3.6864 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	50 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

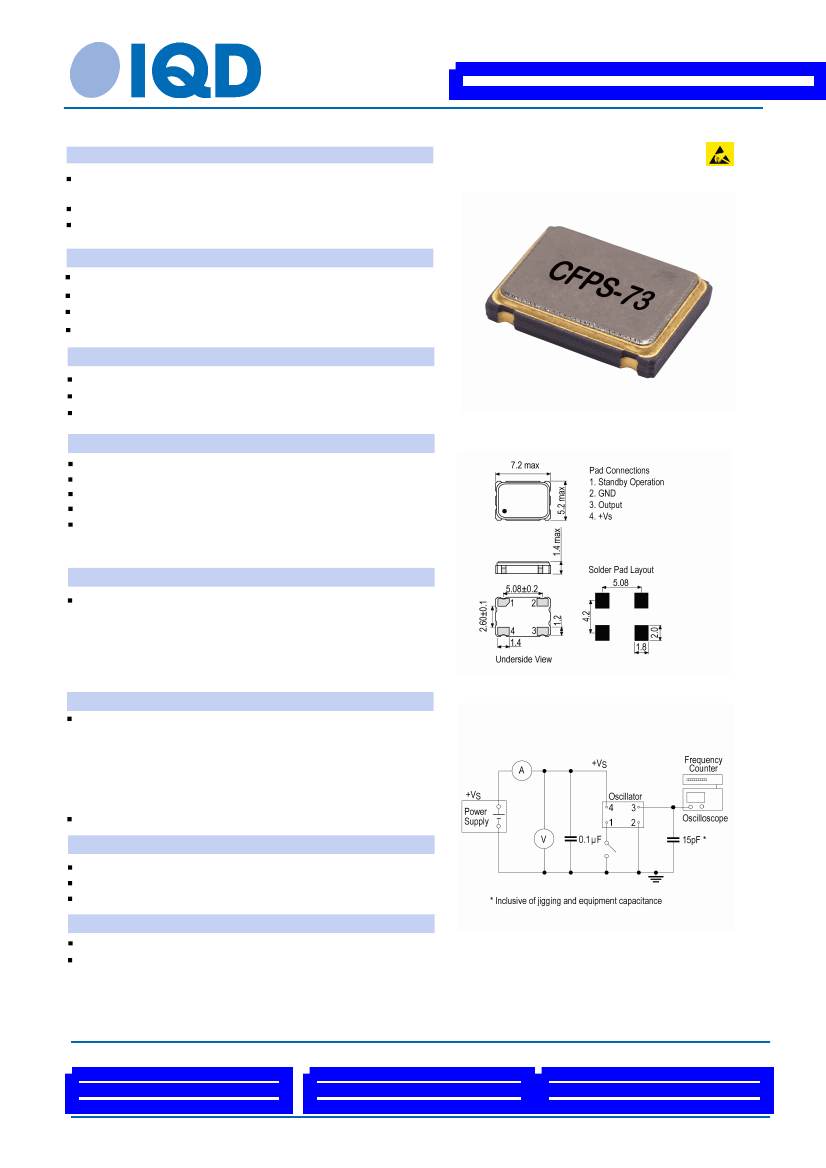

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO022819Cutt

Customer Part:

Description

Standard 7 x 5mm crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPS-73

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

3.68640MHz

±25.00ppm

0.00 to 70.00°C

±3ppm per year max

3.3V ±10%

Supply Voltage

Current Draw

7.000mA

Note: parameters are referenced to 15pF load

Output Details

Outline (mm)

HCMOS

Output Compatibility

Drive Capability

15pF std, 50pF max

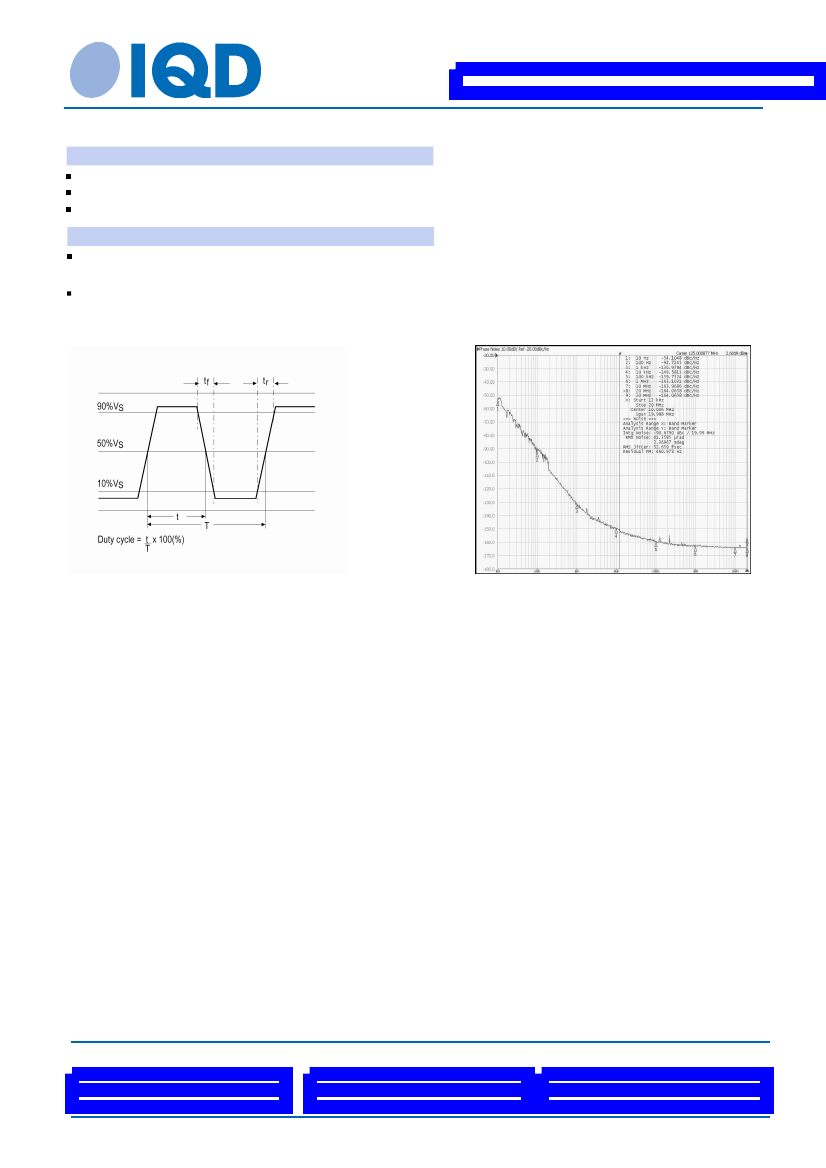

Rise and Fall Time

10.0ns max

45/55

Duty Cycle

Start up time: 10ms max.

0.9ms typ to 90% of final amplitude ( under ideal conditions @

25°C)

Output Control

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max, 0.9µA typ @ 25°C

Noise Parameters

Test Circuit

Phase Noise @125MHz (typical):

10Hz

-54dBc

100Hz -92dBc

1kHz

-130dBc

10kHz -149dBc

100kHz -159dBc

1MHz -163dBc

RMS Phase Jitter @125MHz: 52fs typical

Environmental Parameters

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

NiAu

260degC 10s

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 12 Jan 22 16:05 using Part Data Sheet V1.0018
