REM3.5E-1212D/R8/A (51001625) datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> REM3.5E-1212D/R8/A (51001625)

REM3.5E-1212D/R8/A (51001625): DescriptionRegulated DC/DC Converter; In-V: 9-18; Out-V: 12; In V MIN: 9; In V MAX: 18; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube; CategoryPower/power management The power supply circuit; File Size3MB，8 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric Compare View All

REM3.5E-1212D/R8/A (51001625) Overview

Regulated DC/DC Converter; In-V: 9-18; Out-V: 12; In V MIN: 9; In V MAX: 18; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube

REM3.5E-1212D/R8/A (51001625) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7247240035
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE

Preview

Download Datasheet

View All

Features

Regulated

Converter

Description

•

2MOPP, 250VAC working voltage isolation

Clearance and creepage distance >8mm

Up to 10kVDC reinforced insulation

IEC/EN/UL 60601 certified with CB Report

(3rd Ed. Safety, 4th Ed. EMC)

-40°C to +85°C operation, no derating

2:1 wide input range

DC/DC Converter

REM3.5E

3.5 Watt

2:1 Input

DIP24 or SMD

Single & Dual

Output

YEA R

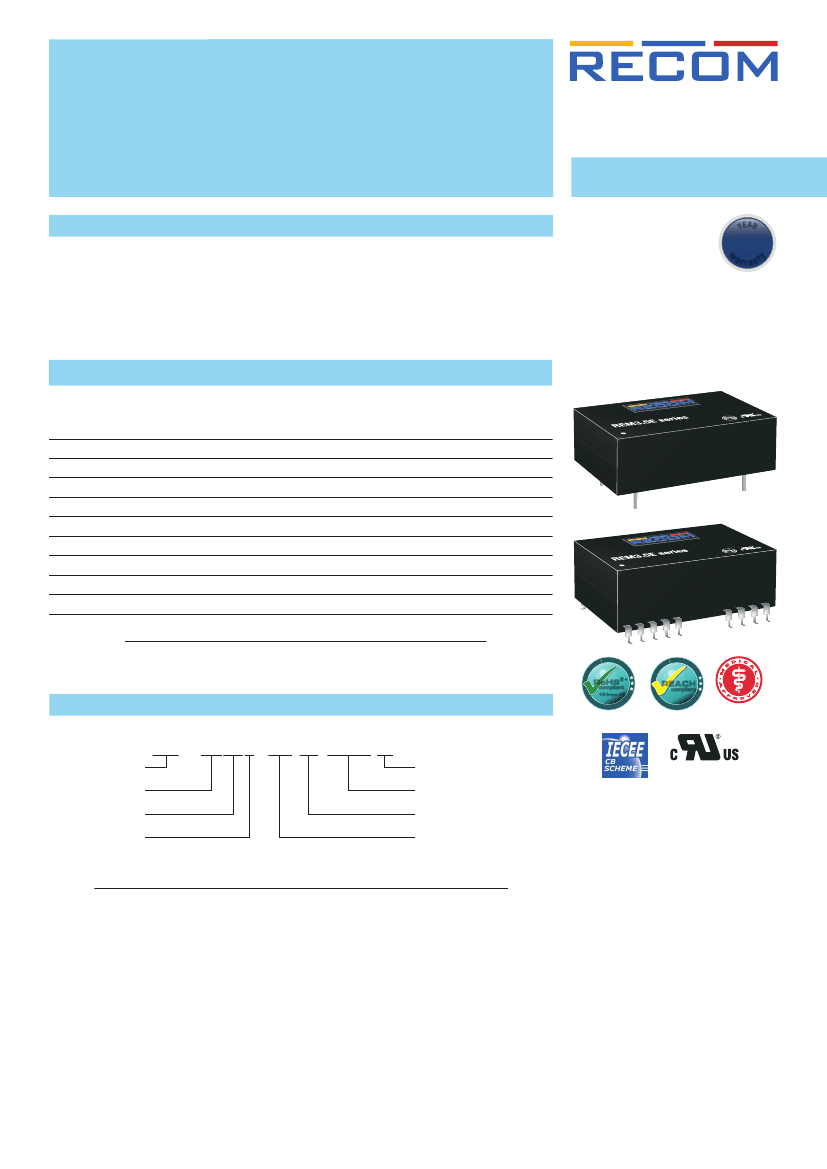

The REM3.5E series of medical grade regulated DC/DC converters feature reinforced 250VAC

continuous working isolation with >8mm creepage/clearance. The compact DIP24/SMD package offers

industry standard pinouts with tightly regulated single/dual outputs and UVLO, SCP and OCP.

The operating ambient temperature range is from -40°C to +85°C without derating. The converters

are UL marked and certified to CB, IEC, EN and ANSI/AAMI 60601 3rd. Ed. Safety and 4th Ed. EMC

medical standards. The low 1μA leakage current complies with medical applied part B, BF and CF limits

as defined by IEC60601-1.

arrant

Selection Guide

Part

Number

Input

Voltage Range

[VDC]

Output

Voltage

[VDC]

±5

±9

±12

±15

Output

Current

[mA]

700

388

290

233

145

±350

±194

±145

±117

Efficiency

typ.

(1)

[%]

76 / 80 / 81 / 82

80 / 81 / 82 / 82

82 / 82 / 83 / 82

83 / 82 / 84 / 83

82 / 82 / 84 / 83

76 / 80 / 81 / 82

80 / 81 / 82 / 82

82 / 82 / 83 / 82

83 / 82 / 84 / 83

Max. Capacitive

Load

(2)

[µF]

4700

3300

2200

1000

±2200

±1600

±1000

REM3.5E-xx05S

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx09S

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx12S

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx15S

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx24S

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx05D

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx09D

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx12D

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

REM3.5E-xx15D

(3,4,5)

4.5-9 / 9-18 / 18-36 / 36-75

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient

Note2: Max Cap Load is tested at nominal input and full resisitive load

CONVER

RoHS

compliant

REACH

compliant

PRO

Model Numbering

PRO

10 from 10

REM3.5E-

Output Power

nom. Input Voltage

Output Voltage

Single

Dual

/R /A /

UVLO Option

(5)

Case style or CTRL Option

(4)

Pinning

Isolation

(3)

2MOPP

250VAC

E314885

CAN/CSA-C22.2 No. 60601-1:14 certified

ANSI/AAMI ES60601-1 certified

EN60601-1 certified

IEC60601-1 certified

IEC60601-1-2 compliant

EN55032 compliant

Notes:

Note3: add suffix „/R8“ for 8kVDC or „/R10“ for 10kVDC isolation (DIP24 only)

if SMD package is used, always add suffix „/R6“ for 6kVDC isolation

Note4: add suffix „/CTRL“ for fitted CTRL pin (DIP24 only)

if SMD package is used do not add suffix „/CTRL“, CTRL pin is always mounted

Note5: add suffix „/X1“ for Under Voltage Lockout Option

Ordering Examples

REM3.5E-0505S/R8/A

REM3.5E-1205D/R10/A/ CTRL

REM3.5E-0505S/R6/A/SMD

REM3.5E-2405D/R10/A/CTRL/X1

= 5Vin, 5Vout, Single, 8kVDC Isolation and „A“ pinning, DIP24

= 12Vin, 5Vout, Dual, 10kVDC Isolation, „A“ pinning, with CTRL pin

= 5Vin, 5Vout, Single, 6kVDC Isolation, „A“ pinning, SMD with CTRL pin

= 24Vin, 5Vout, Dual, 10kVDC Isolation, „A“ pinning, DIP24, CTRL pin and UVLO Option

www.recom-power.com

REV.: 3/2020

MED-1

REM3.5E-1212D/R8/A (51001625) Related Products

	REM3.5E-1212D/R8/A (51001625)	REM3.5E-0512D/R8/A/CTRL/X1 (51001616)	REM3.5E-2412D/R8/A (51001637)	REM3.5E-2412D/R8/A/CTRL (51001638)	REM3.5E-4812D/R8/A/CTRL (51001650)	REM3.5E-4812D/R8/A/CTRL/X1 (51001652)	REM3.5E-1212D/R8/A/CTRL (51001626)	REM3.5E-1212D/R8/A/CTRL/X1 (51001628)	REM3.5E-1215S/R8/A/CTRL/X1 (51001436)
Description	Regulated DC/DC Converter; In-V: 9-18; Out-V: 12; In V MIN: 9; In V MAX: 18; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 4.5-9; Out-V: 12; In V MIN: 4.5; In V MAX: 9; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 5; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 18-36; Out-V: 12; In V MIN: 18; In V MAX: 36; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 24; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 18-36; Out-V: 12; In V MIN: 18; In V MAX: 36; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 24; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 36-75; Out-V: 12; In V MIN: 36; In V MAX: 75; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 48; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 36-75; Out-V: 12; In V MIN: 36; In V MAX: 75; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 48; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 9-18; Out-V: 12; In V MIN: 9; In V MAX: 18; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 9-18; Out-V: 12; In V MIN: 9; In V MAX: 18; Out V MIN: 12; Out V MAX: 12; Out-mA: +/-145; Isolation: 8kV; Output: dual; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 12; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube	Regulated DC/DC Converter; In-V: 9-18; Out-V: 15; In V MIN: 9; In V MAX: 18; Out V MIN: 15; Out V MAX: 15; Out-mA: 233; Isolation: 8kV; Output: single; Power Watts or Amps: 3.5W; Package: DIP24; Short Circuit Protec: Yes; MC INPUT-V: 12; MC OUTPUT-V: 15; Length: 31.8 mm; Width: 20.3 mm; Height: 10.2 mm; Packaging Type: Tube
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	7247240035	7247239960	7247240107	7247240105	7247240177	7247240176	7247240033	7247240032	7247240056
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
