34707-2030

Description
20 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size49KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

34707-2030 Online Shopping

Suppliers Part Number Price MOQ In stock
34707-2030 - - View Buy Now

34707-2030 Overview

20 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

34707-2030 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSHROUDED
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts20
Base Number Matches1

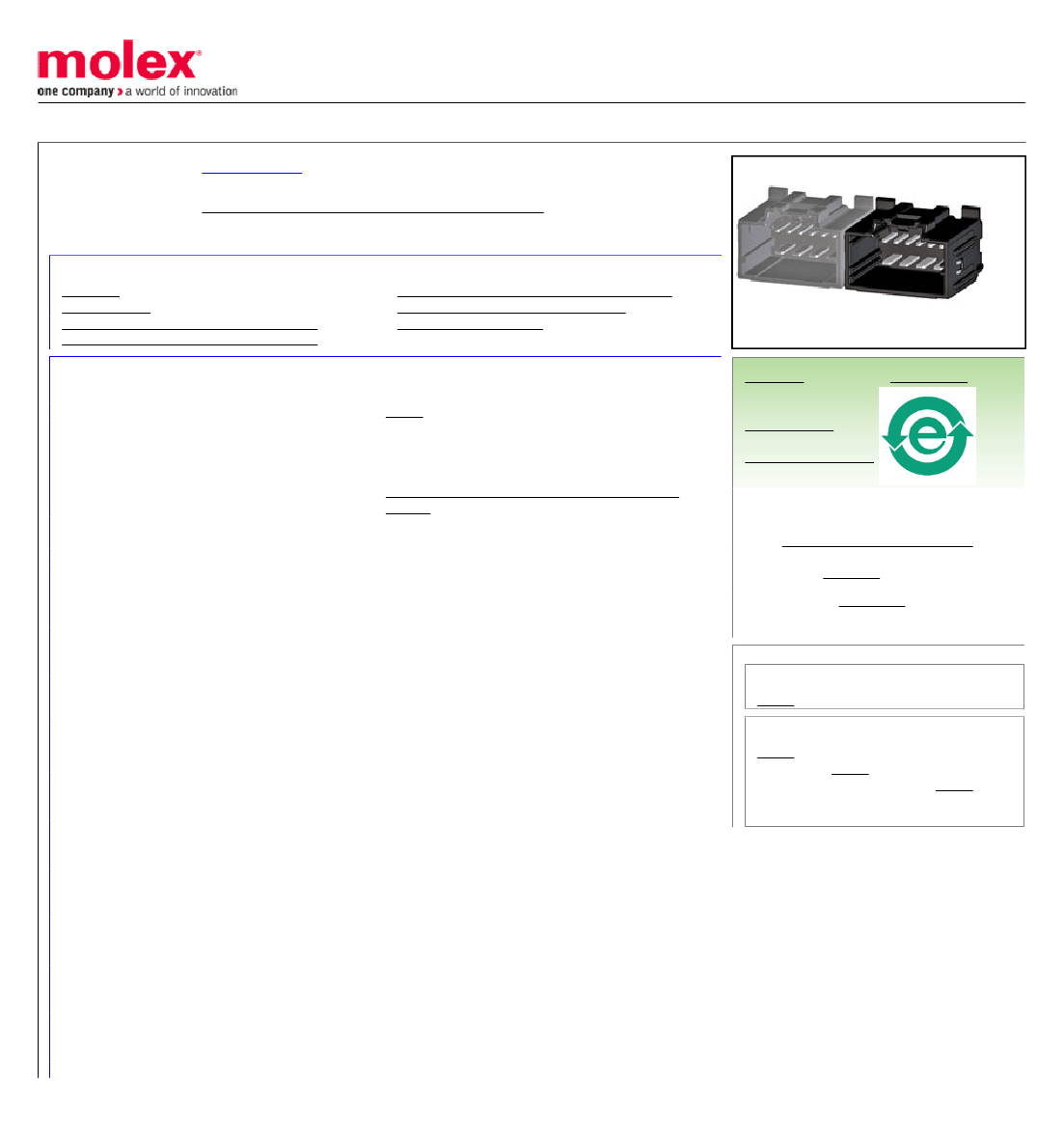

This document was generated on 09/16/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
34707-2030
Active
Stac64™ Single, Multi-Pocket and Hybrid Header System
Stac64™ 2 Bay Vertical Headers, 20 Circuits, Bay A 10 Circuit Power Header,
Polarization B, Gray; Bay B 10 Circuit Signal Header, Polarization A, Black, Tray
Documents:
3D Model
Drawing (PDF)
Product Specification PS-31372-100 (PDF)
Product Specification PS-34729-020 (PDF)
Application Specification AS-34729-020 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
General
Product Family
Series
Application
Comments
PCB Headers
34707
Power, Wire-to-Board
Bay A 10 Circuits Stac64™ Vertical Power Header,
Polarization B. Bay B 10 Circuits Stac64™ Vertical
Power Header, Polarization A
Stac64™ Single, Multi-Pocket and Hybrid Header
System
987650-4561
Stac64™
883906551407
Overview
Product Literature Order No
Product Name
UPC
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
No
20
20
Black, Gray
10
No
No
No
None
Yes
Copper Alloy
Nickel
Tin
High Temperature Thermoplastic
17.104/g
2
Vertical
3.36mm
Yes
None
1.57mm
Tray
2.30mm, 3.50mm, 5.25mm
2.30mm, 3.50mm, 5.25mm
Yes
Yes
Yes
No
N/A
-40°C to +100°C
Search Parts in this Series
34707Series
Mates With
31408 USCAR 2.54mm (.100”) Pitch
Receptacle, 31372 5.25mm (.206") Pitch
Hybrid Receptacle Assembly, 34729
2.54mm (.100") Pitch Stac64™ Right Angle
Receptacle
