34830-0804

Description
MX150 2x4 Dual Row Right Angle Header, 8 Circuits, Polarization D, Black, Solder Tail
File Size52KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

34830-0804 Overview

MX150 2x4 Dual Row Right Angle Header, 8 Circuits, Polarization D, Black, Solder Tail

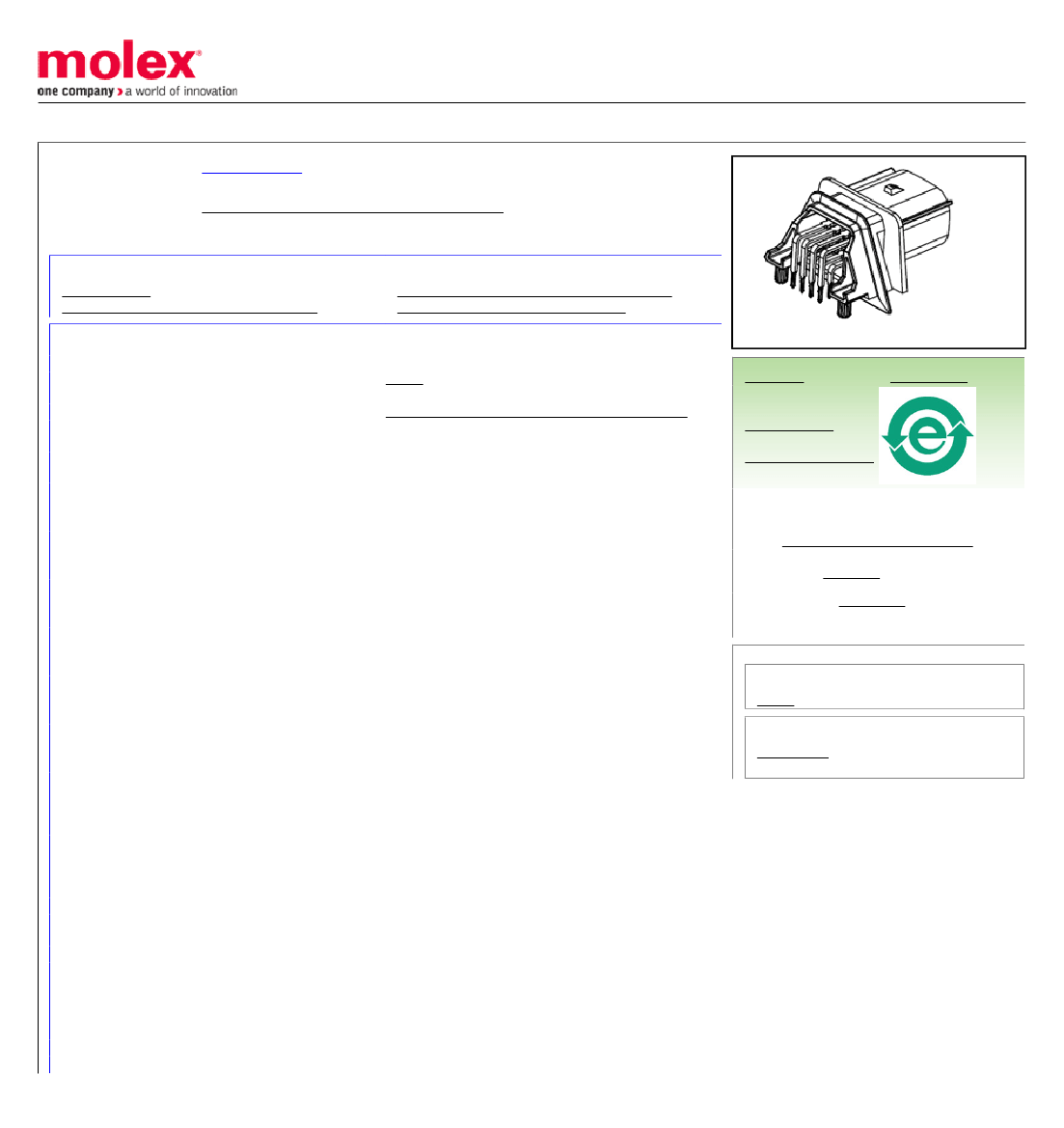

This document was generated on 07/09/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
34830-0804
Active
MX150™ Sealed and Unsealed Connector System
MX150™ 2x4 Dual Row Right Angle Header, 8 Circuits, Polarization D, Black, Solder
Tail
Documents:
Drawing (PDF)
Product Specification PS-34829-001 (PDF)
Application Specification AS-34829-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
34830
Wire-to-Board
MX150™ Sealed and Unsealed Connector System
MX150™
884982700307
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Temperature Range - Operating
Termination Interface: Style
No
8
8
Black
10
No
No
No
None
Copper Alloy
Nickel, Tin
PBT
12.622/g
2
Right Angle
1.60mm
Tray
3.50mm
-40°C to +125°C
Through Hole - Compliant Pin
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
34830Series
Use With
33472-0804 MX150™ Sealed Female
Connector
Electrical
Current - Maximum per Contact
Voltage - Maximum
22A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
25
Wave Capable (TH only)
1
260
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-34829-001
PS-34829-001
SD-34829-081
