2136-2191

Description
Card Edge Connector, 19 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size94KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

2136-2191 Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Locking

2136-2191 Parametric

Parameter NameAttribute value
Objectid304384485
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.102 inch
subject depth0.217 inch
body length0.866 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationSN-PB
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
insulator materialGLASS FILLED NYLON
Plug contact pitch0.039 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded1
PCB contact patternSTAGGERED
PCB contact row spacing2.0066 mm
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts19

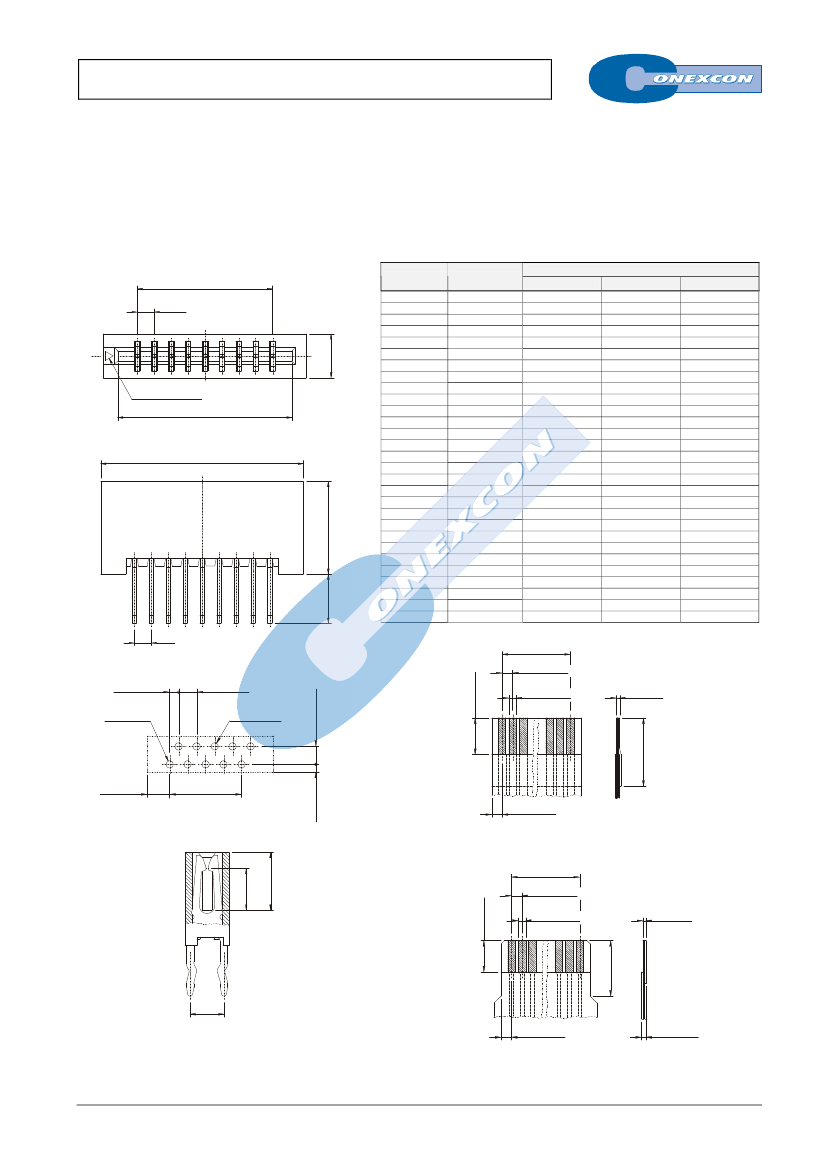

1.00mm VERTICAL DIP LIF CONNECTOR
2136 SERIES.
1.00mm(0.039”). For PCB Solder
Features
Available in 4 through 32 circuits
Insulator Material: Glass filled nylon 6-T UL 94V-0
Contact Material: Dual contact in phosphor bronze
Tin-lead plated contact with kink tail
Low insertion force
Accommodated 0.30mm FFC/FPC thickness
Ordering and Dimensional Information
Dimensions
A
3,00(0,118)
4,00(0,157)
5,00(0,197)
6,00(0,236)
7,00(0,276)
8,00(0,315)
9,00(0,354)
10,00(0,394)
11,00(0,433)
12,00(0,472)
13,00(0,512)
14,00(0,551)
15,00(0,591)
16,00(0,630)
17,00(0,669)
18,00(0,709)
19,00(0,748)
20,00(0,787)
21,00(0,827)
22,00(0,866)
23,00(0,906)
24,00(0,945)
25,00(0,984)
26,00(1,024)
27,00(1,063)
28,00(1,102)
29,00(1,142)
30.00(1.181)
31.00(1.220)
B
7,00(0,276)
8,00(0,315)
9,00(0,354)
10,00(0,394)
11,00(0,433)
12,00(0,472)
13,00(0,512)
14,00(0,551)
15,00(0,591)
16,00(0,630)
17,00(0,669)
18,00(0,709)
19,00(0,748)
20,00(0,787)
21,00(0,827)
22,00(0,866)
23,00(0,906)
24,00(0,945)
25,00(0,984)
26,00(1,024)
27,00(1,063)
28,00(1,102)
29,00(1,142)
30.00(1.181)
31.00(1.220)
32.00(1.260)
33.00(1.300)
34.00(1.338)
35.00(1.378)
C
5,30(0,209)
6,30(0,248)
7,30(0,287)
8,30(0,327)
9,30(0,366)
10,30(0,406)
11,30(0,445)
12,30(0,484)
13,30(0,524)
14,30(0,563)
15,30(0,602)
16,30(0,642)
17,30(0,681)
18,30(0,720)
19,30(0,760)
20,30(0,799)
21,30(0,839)
22,30(0,878)
23,30(0,917)
24,30(0,957)
25,30(0,996)
26,30(1,035)
27,30(1,075)
28,30(1,114)
29,30(1,154)
30,30(1,193)
31,30(1,232)
32,30(1,272)
33,30(1,311)
Dimensional Information
A±0.1
1.00
.039
Circuit Size
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Part Number
2136-2041
2136-2051
2136-2061
2136-2071
2136-2081
2136-2091
2136-2101
2136-2111
2136-2121
2136-2131
2136-2141
2136-2151
2136-2161
2136-2171
2136-2181
2136-2191
2136-2201
2136-2211
2136-2221
2136-2231
2136-2241
2136-2251
2136-2261
2136-2271
2136-2281
2136-2291
2136-2301
2136-2311
2136-2321
TYP.
Base Pin Mark
C±0.1
B±0.15
1.0
.039
TYP.
.118
3.0
.217
5.5
.102
2.60
A±0.05
1.0±0.05
.039±.002
2.0±0.05
.079±.002
TYP.
TYP.
0.3±0.05
.012±.002
1.0±0.05
.039±.002
Base Pin
2.00±0.05
TYP.
.079±.002
ø0.7±0.05
.028±.002
TYP.
3.0 Min.
.118
0.6±0.03
.024±.001
0.3 Ref.
2.0 Ref.
.079
A±0.1
.012
RECOMMENDED HOLE PATTERN
1.0±0.1
.039±.004
TYP.2
Accommodated FFC
A±0.05
2.4 Ref.
.095
3.4
.134
3.0 Min.
.118
1.0±0.05
.039±.002
0.6±0.03
.024±.001
TYP.
TYP.
0.3±0.05
.012±.002
2.0
.079
1.0±0.1
.039±.004
5.5 Min.
.217
6.0 Min.
.236
TYP.2
0.45 Max.
.018
Accommodated FPC
