Part Number

Search

88514-2841

Description
Card Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator
CategoryThe connector    The connector

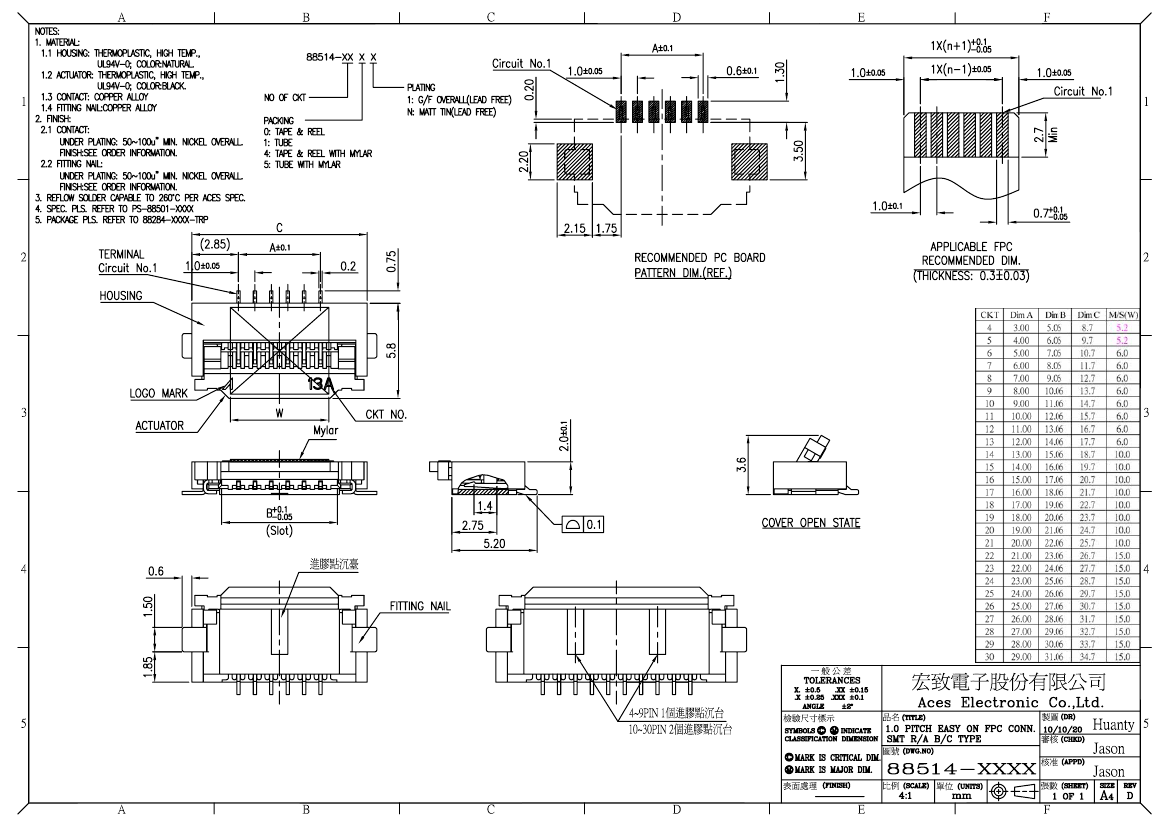

File Size186KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

88514-2841 Overview

Card Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

88514-2841 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid305613334
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsFITTING NAIL
body width0.079 inch
subject depth0.205 inch
body length1.287 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance55 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability30 Cycles
Insulation resistance500000000 Ω
Insulator colorNATURAL
insulator materialTHERMOPLASTIC
JESD-609 codee4
Plug contact pitch0.039 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts28
