300AWSP1J1BLKM2RE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 300AWSP1J1BLKM2RE

300AWSP1J1BLKM2RE: DescriptionRocker Switch, SPDT, On-on, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size149KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

300AWSP1J1BLKM2RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	300AWSP1J1BLKM2RE	-	-	View	Buy Now

300AWSP1J1BLKM2RE Overview

Rocker Switch, SPDT, On-on, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight

300AWSP1J1BLKM2RE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8088123318
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	BLACK
Actuator length	0.31 inch
Actuator material	NYLON
Actuator type	ROCKER
body width	6.604 mm
Body color	BLACK
body height	10.414 mm
Body length or diameter	12.7 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-ON
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1000VRMS V
Electrical life	30000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY
surface mount	NO
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.213 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

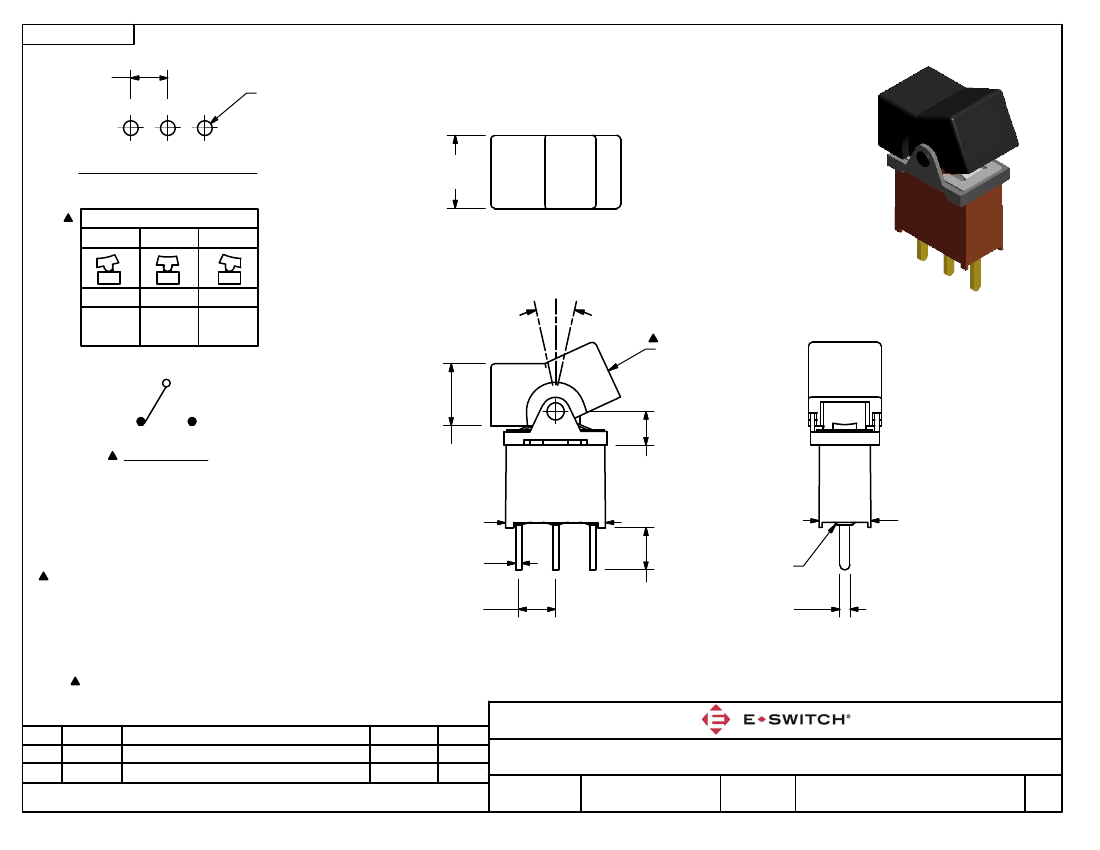

SHEET 1 OF 1

4.70

[.185 in]

1.85

[.073 in]

9.27

[.365 in]

RECOMMENDED P.C. MOUNTING

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

2-3

NONE

OPEN

2-1

POS. 1

POS. 2

POS. 3

ACTUATOR COLOR:

BLACK

7.87

[.310 in]

4.32

[.170 in]

6.60

[.260 in]

EPOXY

SEAL

5.40

[.213 in]

1.27

[.050 in]

CIRCUIT: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = 0.4

X.XX = 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4 VOLT-AMPS MAX. @20V MAX. AC OR DC

6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30 C to 85 C

10.

DENOTES CRITICAL PARAMETER.

11. 2011/65/EU (ROHS) COMPLIANT

REV

22680

19236

PCR NO

UPDATED LAYOUT AND TERMINALS

REVISE 2 DIMENSIONS

DESCRIPTION

1/20/17

8/5/10

DATE

12.70

[.500 in]

.76

[.030 in]

4.70

[.185 in]

MJR

BLR

SCALE

DATE

DWG

REV

TITLE

300AWSP1J1BLKM2RE

2:1

1/12/2005

BLR

T301014

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
