PLCC2 1-in-1 SMD LED
CLM1B-BKW/GKW
Data Sheet
SMD LEDs are packaged in the industry-standard package. These LEDs
have high-reliability performance and are designed to work under a wide
range of environmental conditions. This high-reliability feature makes
them ideally suited to be used under architectural lighting application
conditions.
Their wide viewing angle makes these LEDs ideally suited for channel letter
or architectural lighting applications. The flat-top emitting surface makes
it easy for these LEDs to mate with light pipes.
FEATURES
•
•
Size (mm): 3.2 x 2.7
Color and Typical Dominant Wavelength (nm):
»
Blue (470)
»
Green (527)
Luminous Intensity (mcd)
»
CLM1B-BKW (280 - 710)
»
CLM1B-GKW (710 - 2240)
Viewing Angle: 120 degree
Lead-Free
RoHS-Compliant
APPLICATIONS
•
•
•
Light Strips
Architectural Lighting
Channel Letters
•
•
•
•
LD-CT994.000
Data Sheet: C
Subject to change without notice.
www.cree.com/ledlamps
1
Absolute Maximum Ratings (T
A
= 25°C)
Items
Symbol
Absolute Maximum Rating
BKW/GKW
Forward Current
Peak Forward Current
Reverse Voltage
Power Dissipation
Operation Temperature
Storage Temperature
Junction Temperature
Junction/Ambient
Junction/Solder Point
Note
Unit
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
J
R
THJA
R
THJS
25
100
5
100
-40 ~ +100
-40 ~ +100
110
450
300
mA
mA
V
mW
°C
°C
°C
°C/W
°C/W
Note:
Pulse width ≤10 msec, duty cycle ≤10%.
Typical Electrical & Optical Characteristics (T
A
= 25°C)
Characteristics
Forward Voltage
Reverse Current
Dominant Wavelength
Color
BKW/GKW
BKW/GKW
BKW
GKW
BKW
GKW
BKW/GKW
Symbol
V
F
I
R
λ
D
λ
D
I
V
I
V
2θ½
Condition
I
F
= 20 mA
V
R
= 5 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
Unit
V
μA
nm
nm
mcd
mcd
deg
460
520
280
710
470
527
450
1300
120
Minimum
Typical
3.2
Maximum
4.0
10
480
540
Luminous Intensity
50% Power Angle
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
2
CLD-CT994.000
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
Intensity
Bin Limit (I
F
= 20 mA)
Blue(CLM1B-BKW)
Bin Code
Ta
Tb
Ua
Ub
Min.
(mcd)
280
355
450
560
Max.
(mcd)
355
450
560
710
Green (CLM1B-GKW)
Bin Code
Va
Vb
Wa
Wb
Xa
Min.
(mcd)
710
900
1120
1400
1800
Max.
(mcd)
900
1120
1400
1800
2240
Tolerance of measurement of luminous intensity
is ±10%
Color Bin Limit (I
F
= 20 mA)
Blue (CLM1B-BKW)
Bin Code
B3
B4
B5
B6
Min.
(nm)
460
465
470
475
Max.
(nm)
465
470
475
480
Green (CLM1B-GKW)
Bin Code
G7
G8
G9
Ga
Min.
(nm)
520
525
530
535
Max.
(nm)
525
530
535
540
•
Tolerance of measurement of dominant wavelength is ±1 nm
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
3
CLD-CT994.000
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
Order Code Table*
Luminous Intensity (mcd)
Color
Blue
Blue
Kit Number
CLM1B-BKW-CTaUb363
CLM1B-BKW-CTbUb453
Viewing Angle
120
120
Min.
280
355
Max.
710
710
Color
Bin
B3
B4
Dominant Wavelength
Min.
(nm)
460
465
Color
Bin
B6
B5
Max.
(nm)
480
475
Luminous Intensity (mcd)
Color
Green
Green
Green
Kit Number
CLM1B-GKW-CVaXa7a3
CLM1B-GKW-CVbXa793
CLM1B-GKW-CWaXa793
Viewing Angle
120
120
120
Min.
710
900
1120
Max.
2240
2240
2240
Color
Bin
G7
G7
G7
Dominant Wavelength
Min.
(nm)
520
520
520
Color
Bin
Ga
G9
G9
Max.
(nm)
540
535
535
Notes:
1. The above kit numbers represent order codes that include multiple intensity-bin and color-bin codes. Only one
intensity-bin code and one color-bin code will be shipped on each reel. Single intensity-bin code and single color-bin
codes will not be orderable.
2. Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.
3. Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED
product safely.
Important Bins Notes:
•
Packaging methods are available for selection; please refer to the “Cree LED Lamp Packaging Standard” docu-
ment.
•
Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.
•
Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED
product safely.
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
4
CLD-CT994.000
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps

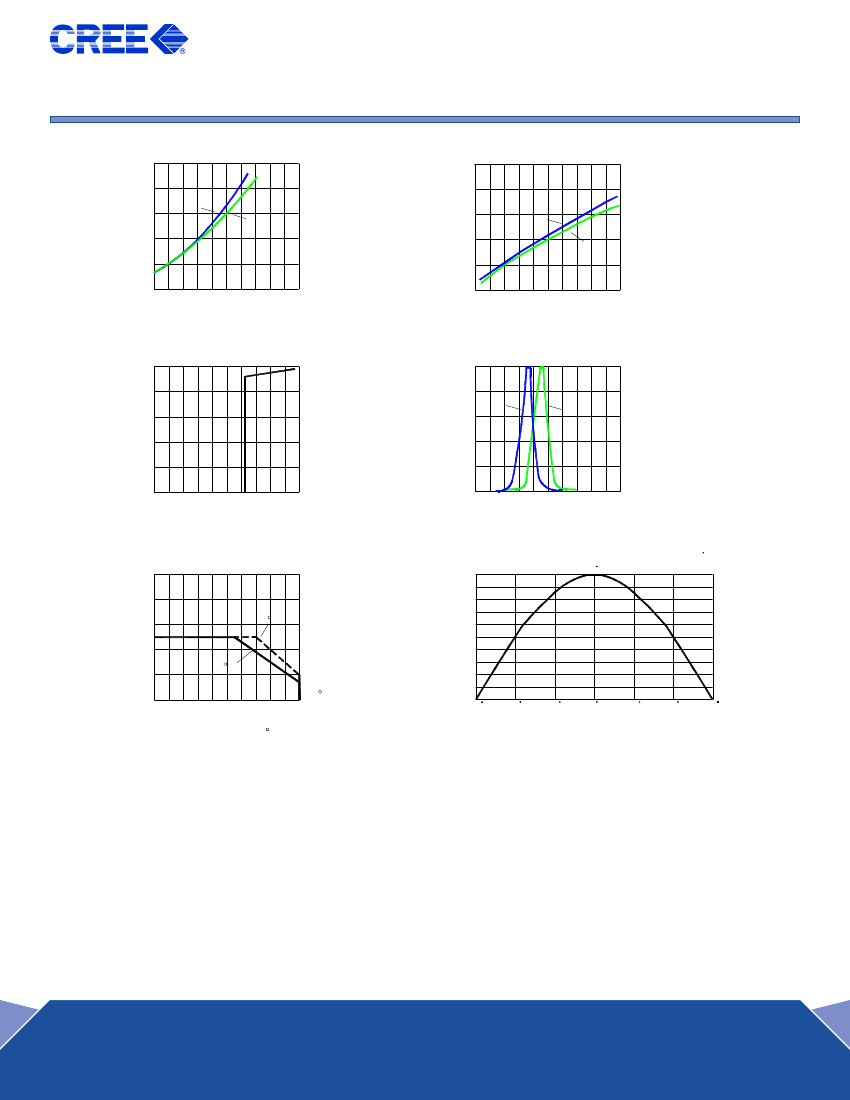

Graphs
IF (mA)
IV
100.0
80.0
60.0
40.0
20.0
0.0
5.0
4.0
Blue
Green
3.0
2.0
1.0
Blue
Green
3.0
3.4
3.8
4.2
4.6
5.0
VF(V)
0.0
0
20
40
60
80
IF(mA)
100
FIG.1 FORWARD CURRENT VS.
FORWARD VOLTAGE.
Vr(V)
-50
-40
-30
-20
-10
0
FIG.2 RELATIVE LUMINOUS INTENSITY VS.
FORWARD CURRENT
(RELATIVE LUMINOUS INTENSITY)
0
-10
-20
-30
-40
100%
80%
Blue
60%
40%
20%
0%
300
400
500
Green
-50
Ir(uA)
FIG.3 BLUE&GREEN REVERSE CURRENT
VS. REVERSE VOLTAGE.
600
700
WL(nm)
800
FIG.4 RELATIVE LUMINOUS INTENSITY VS.
WAVELENGTH.
IV
CLM1B-BKW&GKW
0
50% Power Angle : 120
IF(mA)
50
40
30
20
10
0
0
Rth j-a=450 C/W
Ta( C)
100
Rth j-s=300 C/W
1.0
0.5
20
40
60
80
0
-90
-60
-30
0
30
60
90
Angle
FIG.5 BLUE&GREEN MAXIMUM FORWARD DCCURRENT VS AMBIENT
TEMPERATURE (Tjmax=110 C)
FIG.6 FAR FIELD PATTERN
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and
the Cree logo are registered trademarks of Cree, Inc.
5
CLD-CT994.000
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Fax: +1.919.313.5778
www.cree.com/ledlamps
