BL118-21R-TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BL118-21R-TA

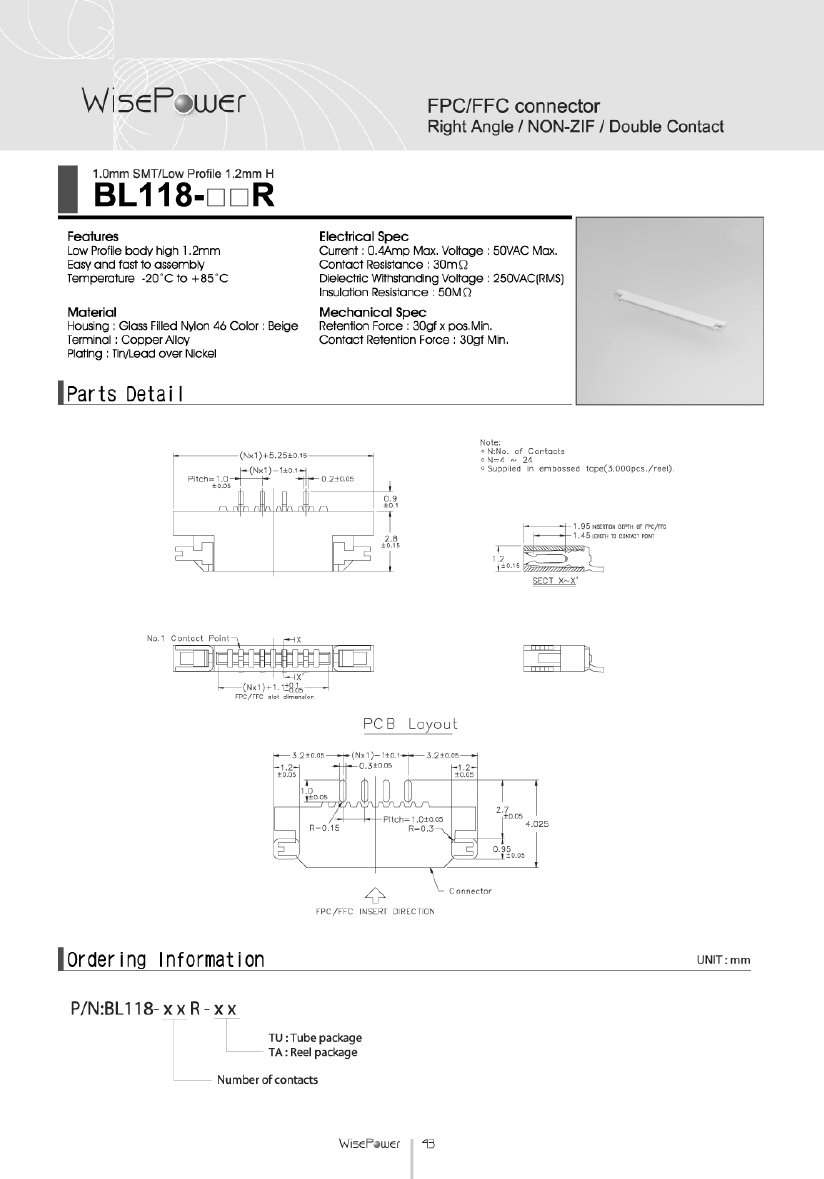

BL118-21R-TA: DescriptionCard Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator; CategoryThe connector The connector; File Size432KB，1 Pages; ManufacturerWise Power Tech Co., Ltd.

Download Datasheet Parametric Compare View All

BL118-21R-TA Overview

Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator

BL118-21R-TA Parametric

Parameter Name	Attribute value
Objectid	303951008
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL PACKAGE
body width	0.047 inch
subject depth	0.11 inch
body length	1.033 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	21

Preview

Download Datasheet

View All

BL118-21R-TA Related Products

	BL118-21R-TA	BL118-21R-TU	BL118-22R-TA	BL118-22R-TU	BL118-23R-TA	BL118-23R-TU
Description	Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator	Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator	Card Edge Connector, 22 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator	Card Edge Connector, 22 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator	Card Edge Connector, 23 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator	Card Edge Connector, 23 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Beige Insulator
Objectid	303951008	303951007	303951010	303951009	303951012	303951011
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	REEL PACKAGE	TUBE PACKAGE	REEL PACKAGE	TUBE PACKAGE	REEL PACKAGE	TUBE PACKAGE
body width	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch
subject depth	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
body length	1.033 inch	1.033 inch	1.072 inch	1.072 inch	1.112 inch	1.112 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	21	21	22	22	23	23
