THE REVISION STATUS OF ALL SHEETS OF THIS DRAWING IS THE SAME AS SHEET 1
LTR
-
Released
DESCRIPTION
DATE
3/22/04
BY
JCL
I.
MATERIALS & FINISHES
center contact: Gold Plated Brass
outer contact: Nickel Plated Brass
coupling nut: Nickel Plated Brass
body: Nickel Plated Brass
crimp sleeve: Nickel Plated Copper
dielectric: Teflon
PTFE
gasket: Silicone Rubber
shrink sleeve: Adhesive Lined Polyolefin
attachment: braid crimp (.429”hex)
II.
ELECTRICAL PROPERTIES
impedance: 75 ohms
working voltage: 1000 vrms (max)
vswr: 1.35:1 (max) up to 2.0 GHz
insertion loss: 0.10 x
√Fghz
Unless otherwise spec-
ified, dimensions are in
inches. Tolerances are
applicable when spec-
ified.
These drawings and
specifications contain
proprietary information
which is the property of
Times Microwave
Systems.
Approvals
Drawn
JCL
3/22/04
TIMES MICROWAVE SYSTEMS
Wallingford, CT 06492
(203) 949-8400; (203) 949-8423.Fax
www.timesmicrowave.com

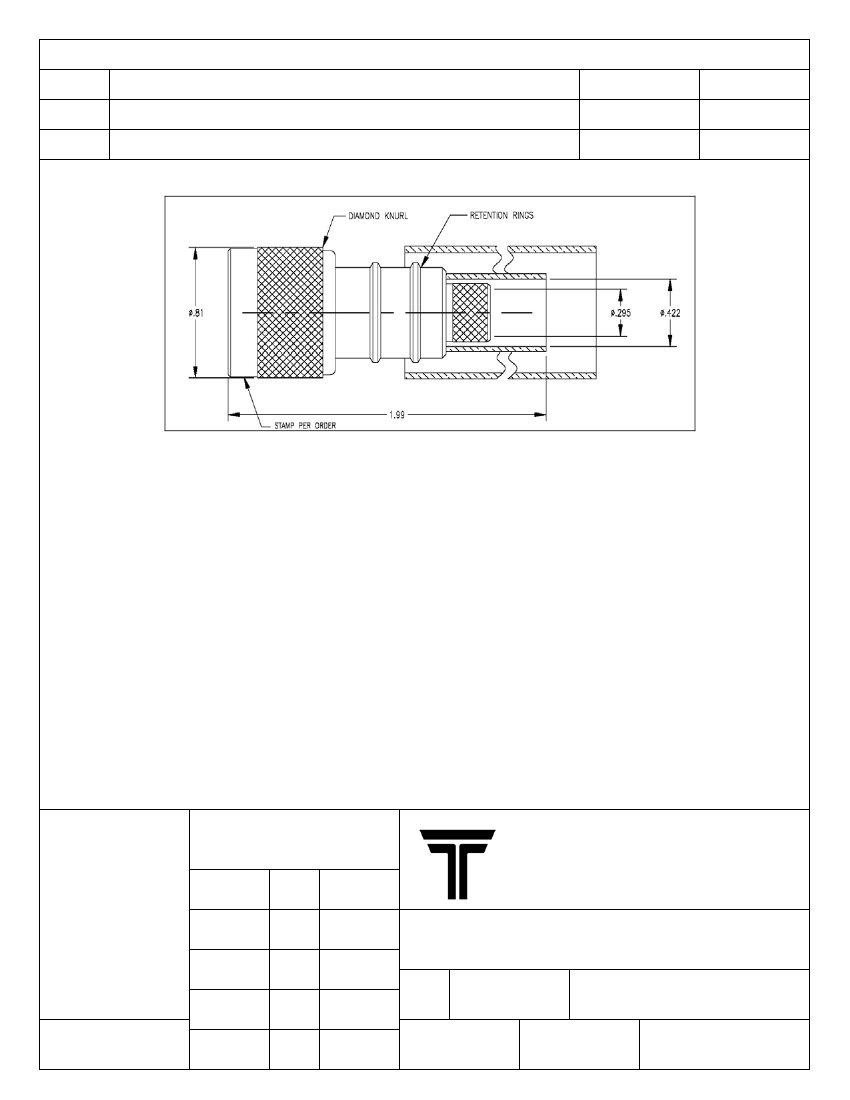

EZ-400-NM-75
Type-N male Straight Plug
for LMR-400-75 Cable
Size
A
CAGE CODE
68999
Drawing No.:
3190-1618
Sheet: 1 of 1
Scale: NA
Rev. (-)
TIMES
MICROWAVE SYSTEMS
EZ-400-NM-75 (stock code: 3190-1618)
Type N PLUG
Non-solder center contact
Crimp-on (.429" hex. die) outer contact

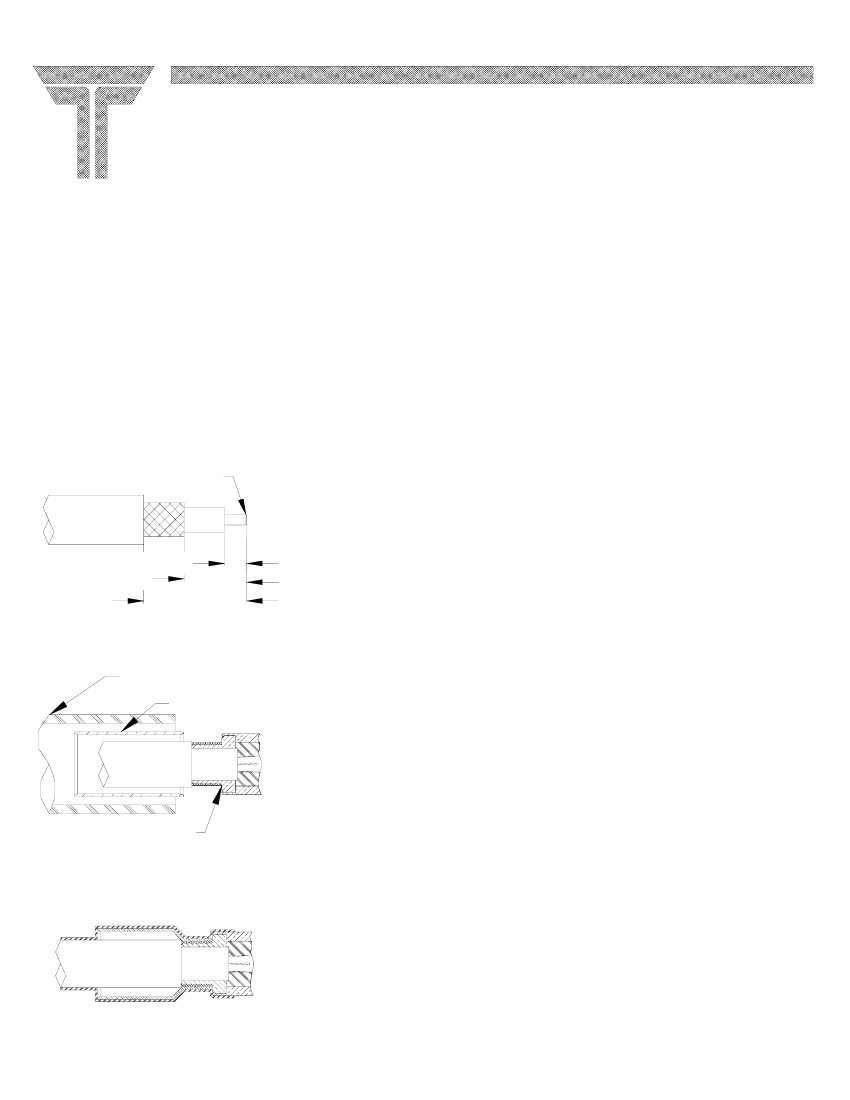

INSTALLATION INSTRUCTIONS
(Cable Types: LMR-400-75)
SLIGHT CHAMFER
3/16” (.180)
9/32”
5/8”(.590)
( 280)
STEP 1
WEATHER SEAL
1. (A) Trim cable to dimensions shown.
(B) Remove any residual plastic from center
conductor.
(C) Deburr center conductor using a fine file or Times
DBT-01 tool.
(D) Avoid nicking aluminum tape.
2. (A) Slide weather seal and crimp ferrule over cable.
CRIMP FERRULE
(B) Flare braid and insert cable into connector body
until dielectric is seated with all braid wires on
outside of connector body and aluminum tape
inside connector body.
(C) Braid should assemble flush to within 1/16” (.06)
TRIM BRAID
of
connector shoulder. Trim excess if necessary.
STEP 2
3.
(A) Slide crimp ferrule over braid and crimp as
close to
body as possible using hex. die indicated in a
Times
HX-4 crimp tool or equivalent. Do not crimp rear
of
crimp ferrule.
STEP 3
