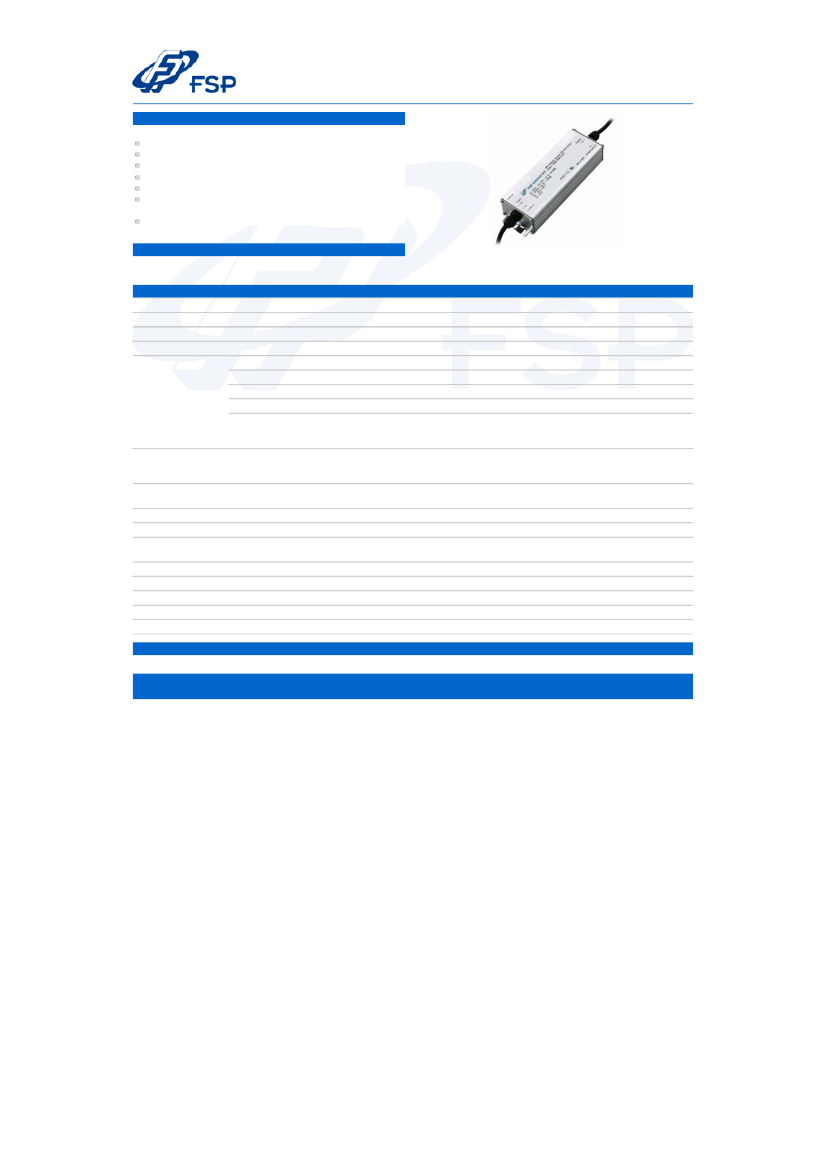

FSP60-ZZAE125U: DescriptionHigh Efficiency & Long Life; File Size88KB，2 Pages; ManufacturerFSP [FSP TECHNOLOGY INC.]

Download Datasheet View All

FSP60-ZZAE125U Overview

High Efficiency & Long Life

Preview

Download Datasheet

View All

LED Lighting

FSP60-ZZAE(125)U

FEATURES

High Efficiency & Long Life

Wide Input Range for Worldwide use (up to 305Vac)

Compact Size

Optimized Performance

Fully Isolated & SELV

Protections: Short Circuit/ Over Voltage/ Over

Temperature

Class 2 power unit

PRODUCT HIGHLIGHT

Output Voltage/Current

60W/1250mA

SPECIFICATION

Model Name

Wattage

Case

IP Level

Input Electrical

Specification

FSP60-ZZAE(125)U

60W

Aluminum

IP65

Input Voltage

Input Frequency

PFC

Inrush C urrent

Constant Current

/ Constant

Voltage

Output1

120~277 Vac

47~63 Hz

≧

0.95

60A at 230Vac, 25°C cold start

C onstant C urrent

Output Voltage

36-48 V , 1250 mA

and Current

Rating

Output Electrical

Efficiency

≧

87 %

Specification

Life

50,000 hours at Tcase of ≤ 75°C

Protection Function

OVP,OTP,SC P

Environmental

TEMP. Range

Operating : -40

℃

to +70

℃

Requirement

Storage : -40

℃

to +85

℃

Insulation

Primary to Secondary: 500Vdc,25M ohms min.

EMC performance

EN55015

C lass B C onducted, C lass B radiated

EN61000-3-2

C lass C

EN61000-4-5

Differential Mode≥ 4KV; C ommon Mode≥ 4KV

Dimension

195mm(L) x 60.5mm(W)x 38mm(H)

PROTECTION FUNCTIONS

OVP,OTP,SC P

This content is subject to change, please refer to specification for m ore detail.

FSP reserve the right to change the content without prior notice
