Part Number

Search

503148-2291

Description
Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
CategoryThe connector    The connector
File Size459KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

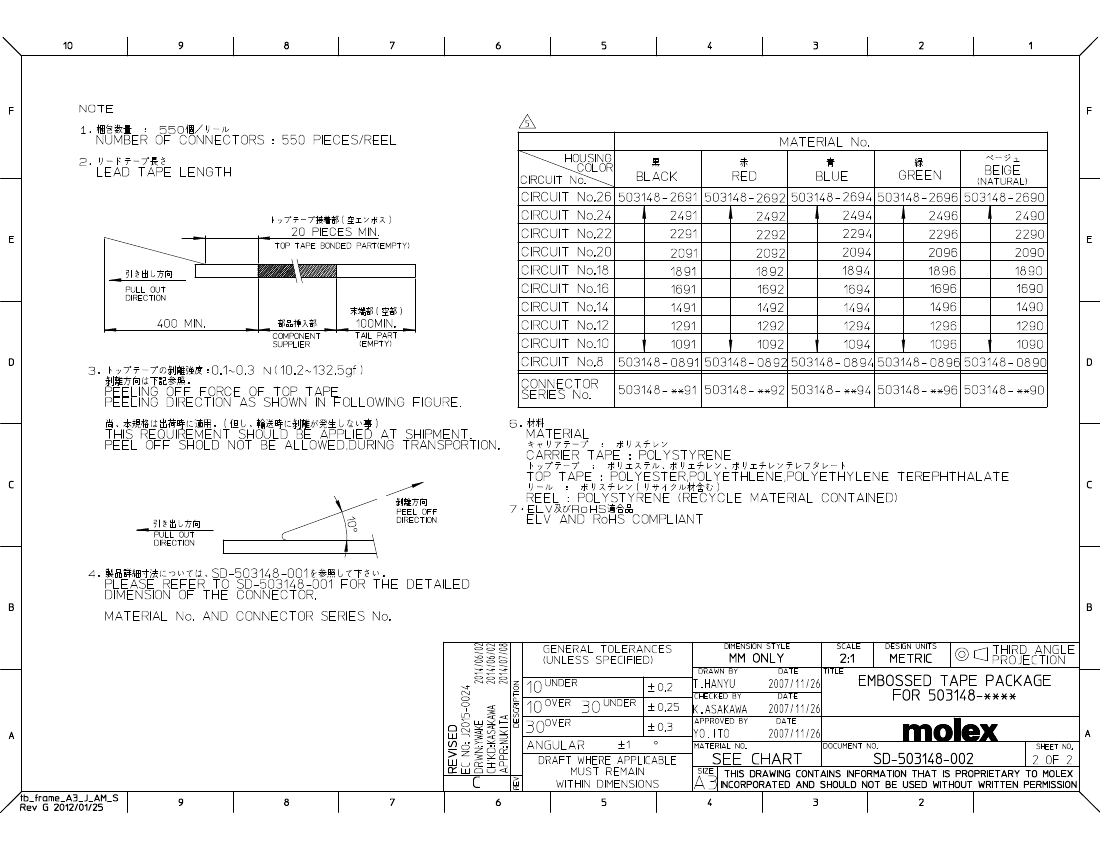

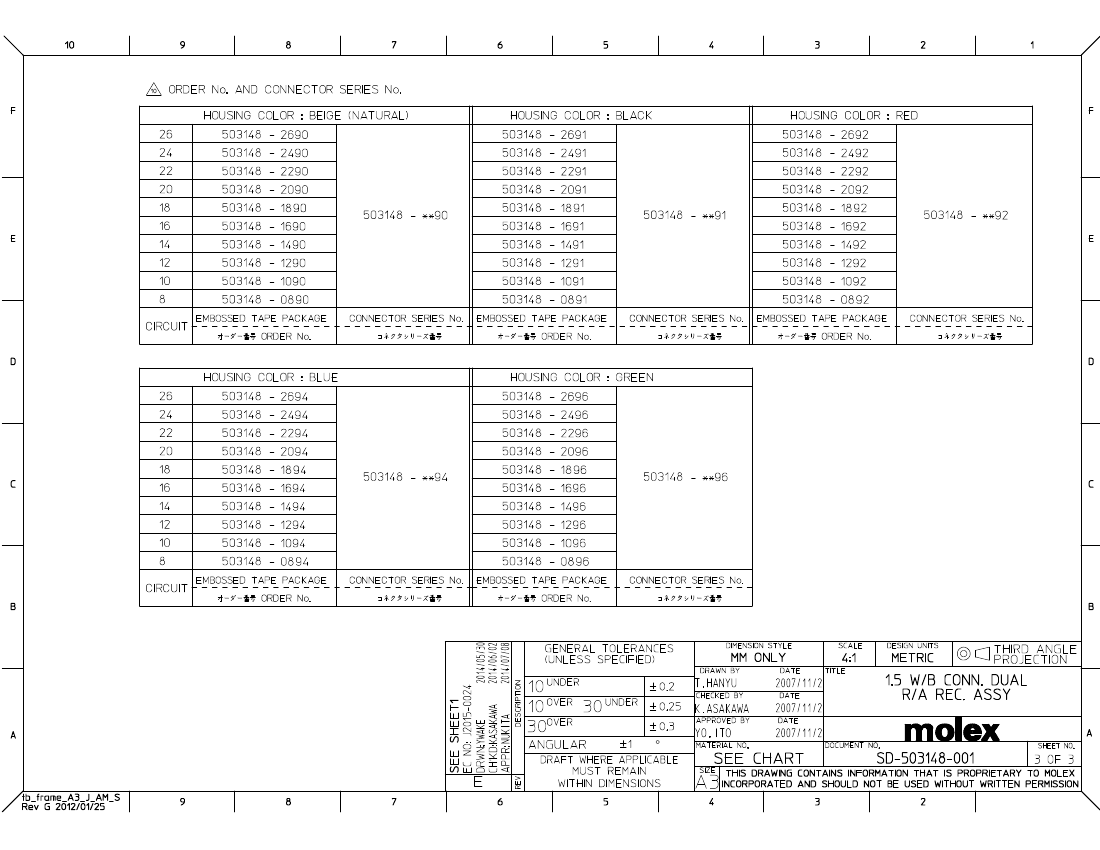

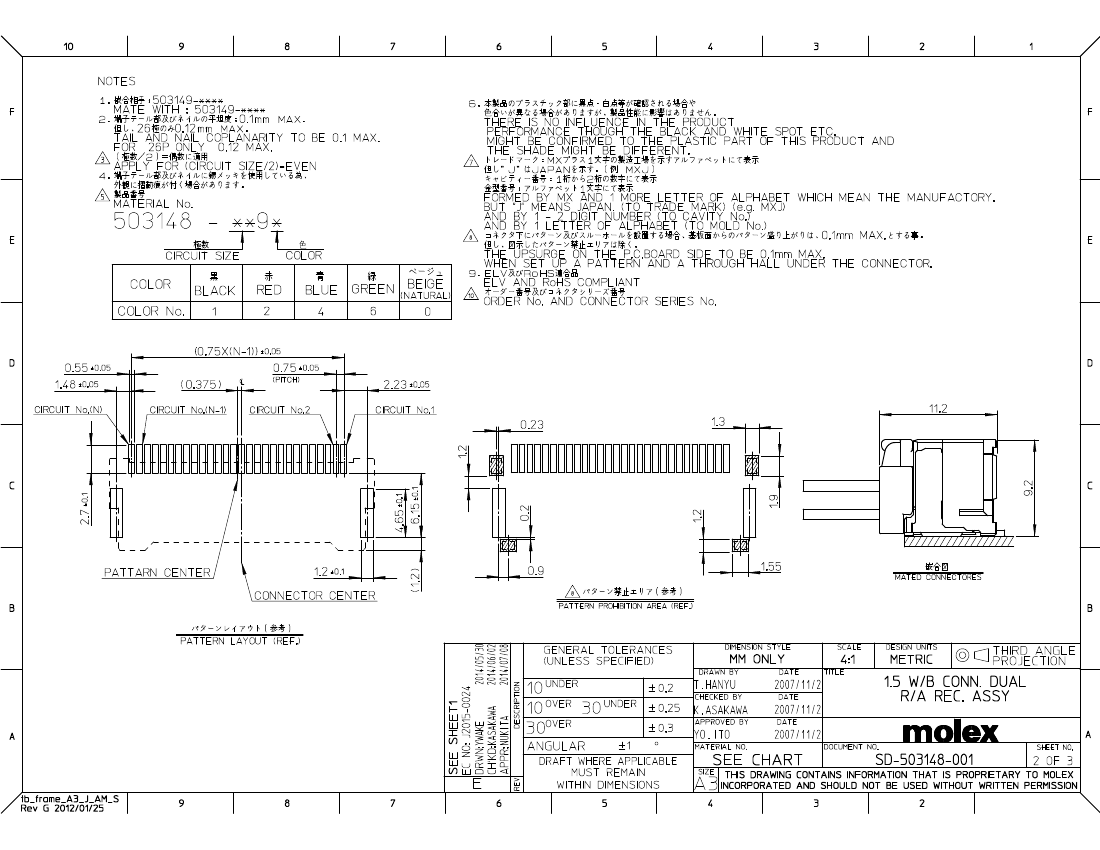

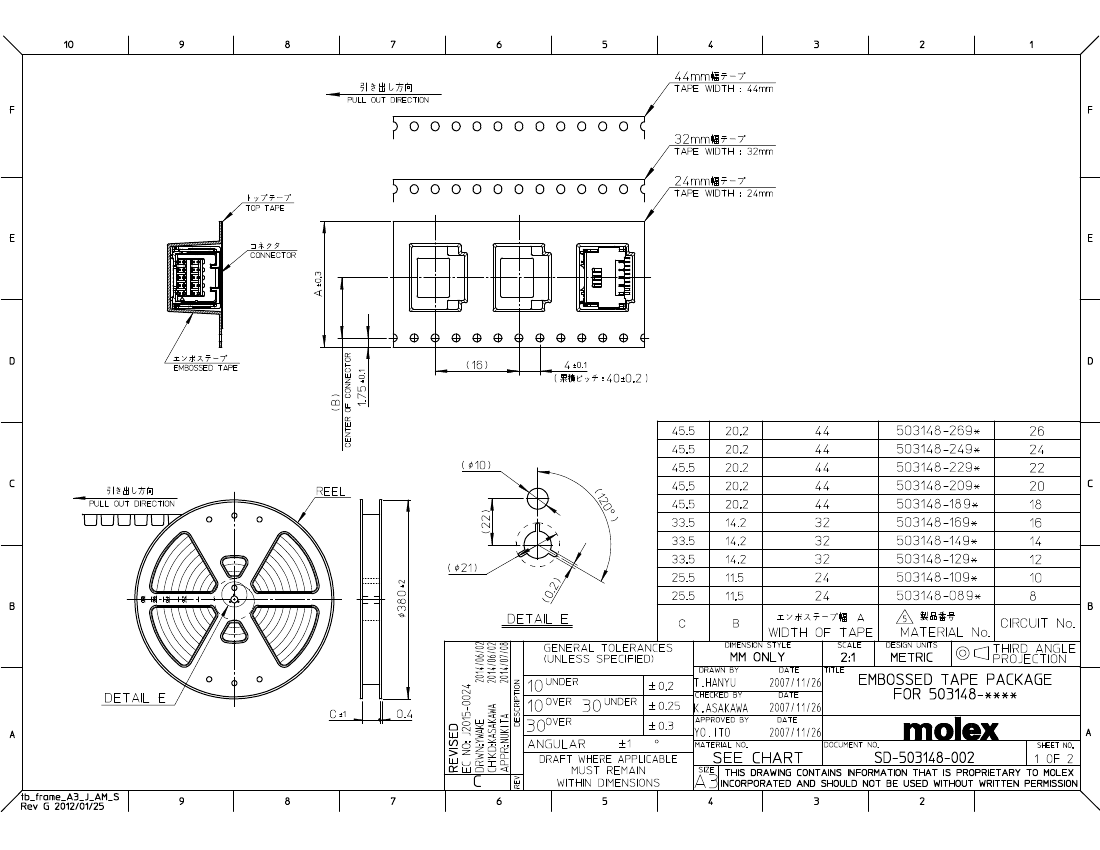

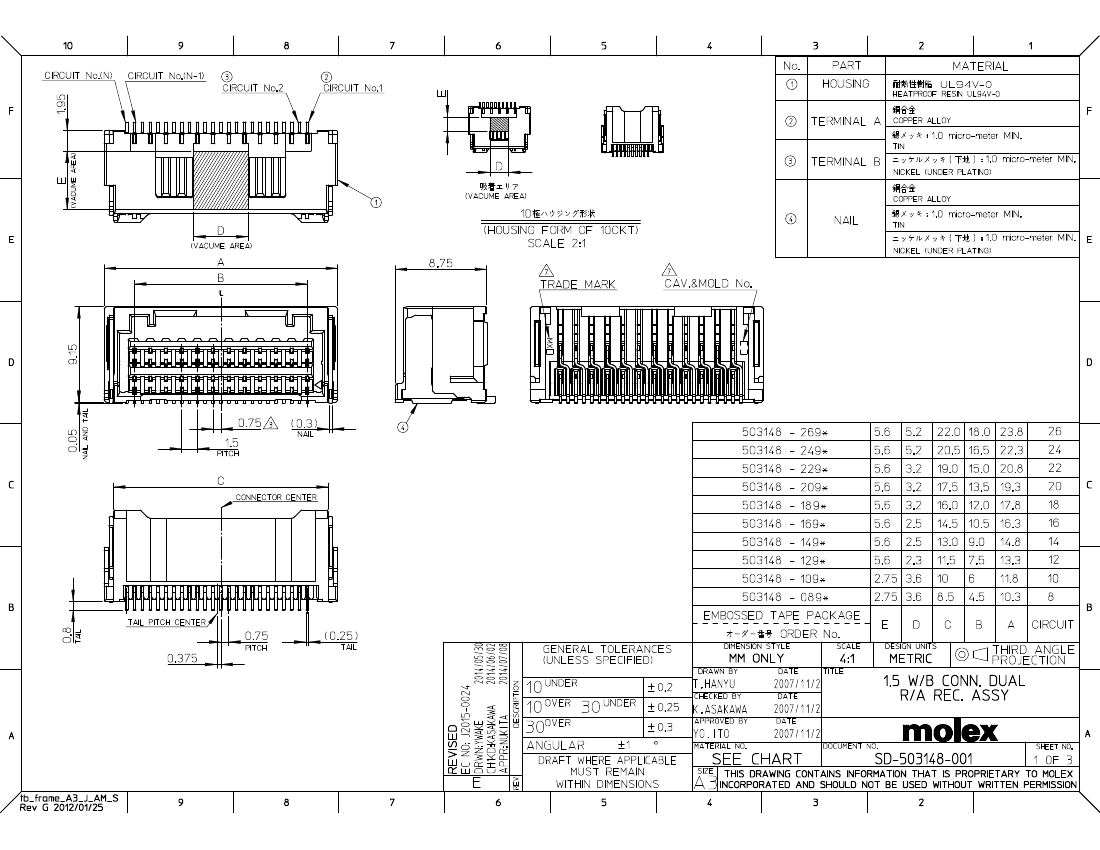

503148-2291 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

503148-2291 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid316154851
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Board mount optionsFITTING NAIL
body width0.36 inch
subject depth0.344 inch
body length0.819 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Insulation resistance500000000 Ω
Insulator colorBLACK
Manufacturer's serial number503148
Plug contact pitch0.059 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.7112 mm
Termination typeSURFACE MOUNT
Total number of contacts22
