LSQ0807A Series – SMD AIR WOUND COIL

A. Electrical Specifications:

P/N

LSQ0807A-6N9_

LSQ0807A-10N_

LSQ0807A-11N_

LSQ0807A-14N_

LSQ0807A-17N_

LSQ0807A-22N_

Rev. A

Turns

(nH)

6.9

10.2

11.2

13.7

17.0

22.0

Tol.

J, K

Min.

100

Test Freq. DCR Max. SRF Typ.

MHz

(GHz)

(mΩ)

400

6.0

7.0

6.3

8.0

9.0

10.0

4.6

4.0

3.6

4.3

4.0

3.5

I DC Max.

(A)

2.7

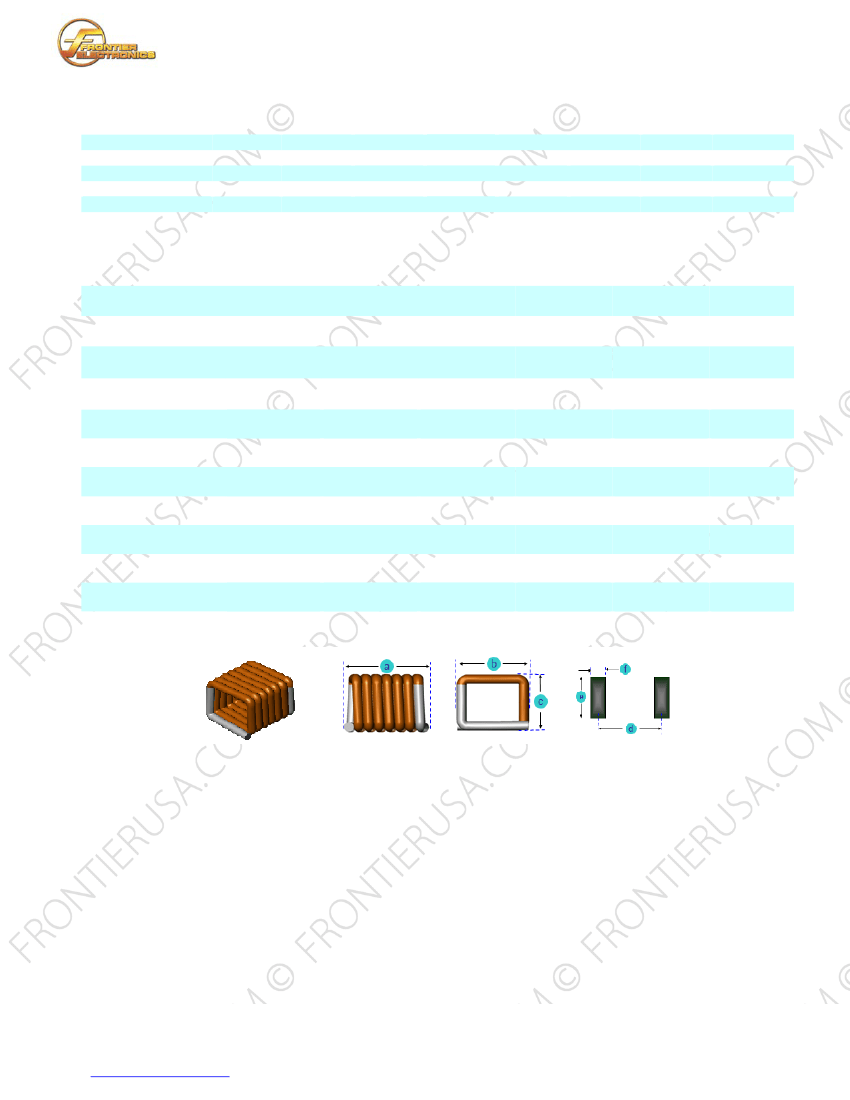

B. Dimensions: mm (Inch)

Series

LSQ0807A-6N9

Tol.

LSQ0807A-10N

Tol.

LSQ0807A-11N

Tol.

LSQ0807A-14N

Tol.

LSQ0807A-17N

Tol.

LSQ0807A-22N

Tol.

1.295

(0.051)

±0.102

(0.004)

1.626

(0.064)

±0.152

(0.006)

1.549

(0.061)

±0.152

(0.006)

1.930

(0.076)

±0.152

(0.006)

2.286

(0.090)

±0.152

(0.006)

2.591

(0.102)

±0.152

(0.006)

1.829

(0.072)

±0.254

(0.010)

1.829

(0.072)

±0.254

(0.010)

1.829

(0.072)

±0.254

(0.010)

1.829

(0.072)

±0.254

(0.010)

1.829

(0.072)

±0.254

(0.010)

1.829

(0.072)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.524

(0.060)

±0.254

(0.010)

1.02

(0.040)

Typ.

1.32

(0.052)

Typ.

1.24

(0.049)

Typ.

1.63

(0.064)

Typ.

1.96

(0.077)

Typ.

2.29

(0.090)

Typ.

2.600

(0.102)

Typ.

2.600

(0.102)

Typ.

2.600

(0.102)

Typ.

2.600

(0.102)

Typ.

2.600

(0.102)

Typ.

2.600

(0.102)

Typ.

0.510

(0.02)

Typ.

0.510

(0.02)

Typ.

0.510

(0.02)

Typ.

0.510

(0.02)

Typ.

0.510

(0.02)

Typ.

0.510

(0.02)

Typ.

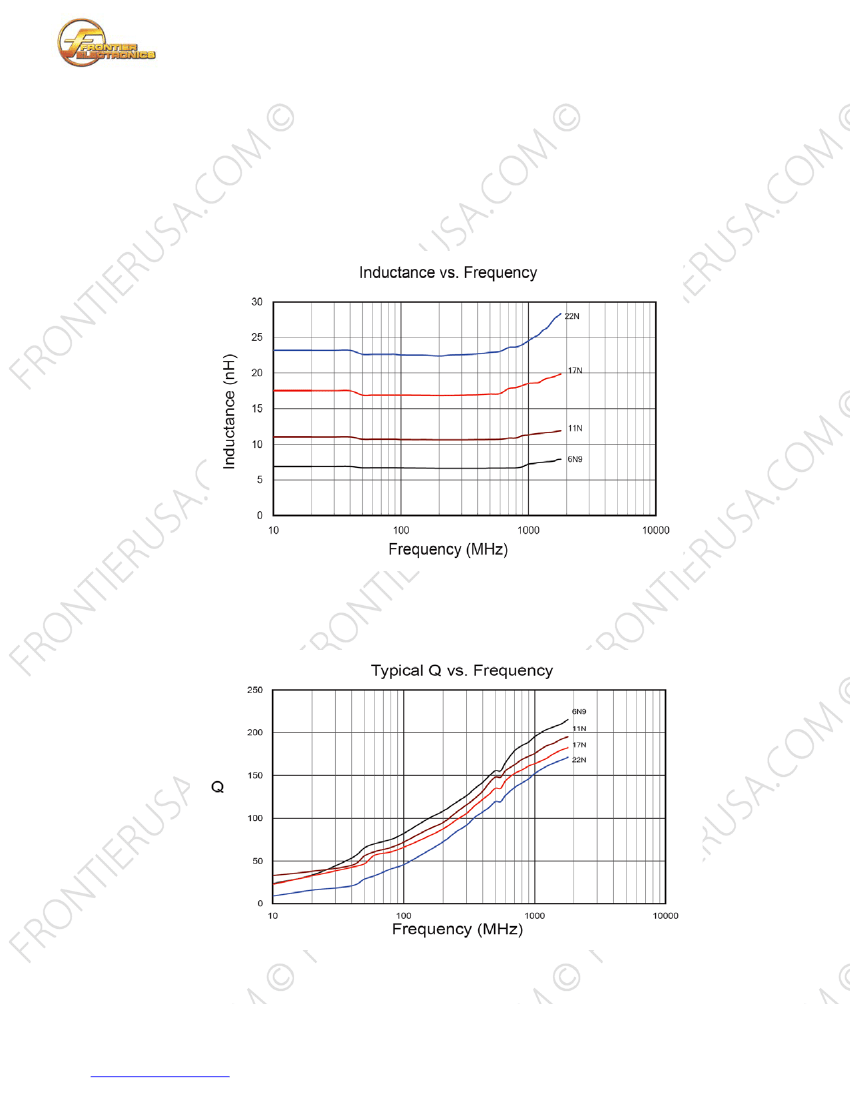

C. General Information:

1. LSQ0807A-xxx_, “LSQ0807A” = P/N, “xxx” = Inductance, “_” = Tolerance.

2. Tolerance “_”: K: ± 10%, J: ± 5%

3. Test Frequency: 400MHz, 0.1Vrms.

4. Small and lightweight surface mounting type

5. High Q at high frequency

6. High self-resonance frequency

7. Maximum Temperature Rise: 15°C (when measured at 25°C ambient).

8. Inductance & Q measured with HP4291B Impedance Analyzer with HP16193 test fixture

9. SRF measured using the HP8753E Network Analyzer or equivalent.

10. DCR measured using the Chroma 16502 or equivalent.

11. Operating temperature: -40°C to +125ºC

12. Storage temp. : -40ºC to +85ºC.

13. Inductance and Current Range: From 6.9 nH (2700 mA) to 22.0 nH (2700 mA)

14. SRF: From 3500 MHz to 4600 MHz

15. MSL: Level 1.

Frontier Electronics Corp.

http://www.frontierusa.com

Page

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
