1. Features
CONTENTS
-
2. Package Outline Dimensions and Materials
3. Absolute Maximum Ratings
4. Electro-Optical Characteristics
5. Materials
6. Taping
7. Packing
8. Reliability
9. Cautions
10. Warranty
11. Others
12. Characteristic Diagrams
(Tentative 3.0)
1/13
1. Features
•
Package : SMD type (1 Chip in 1 PKG )
•
1.6 × 0.8 × 0.6 [mm] (L×W×H) size surface mount type
•
Viewing angle : extremely wide(160˚)
•
Soldering methods : IR reflow soldering

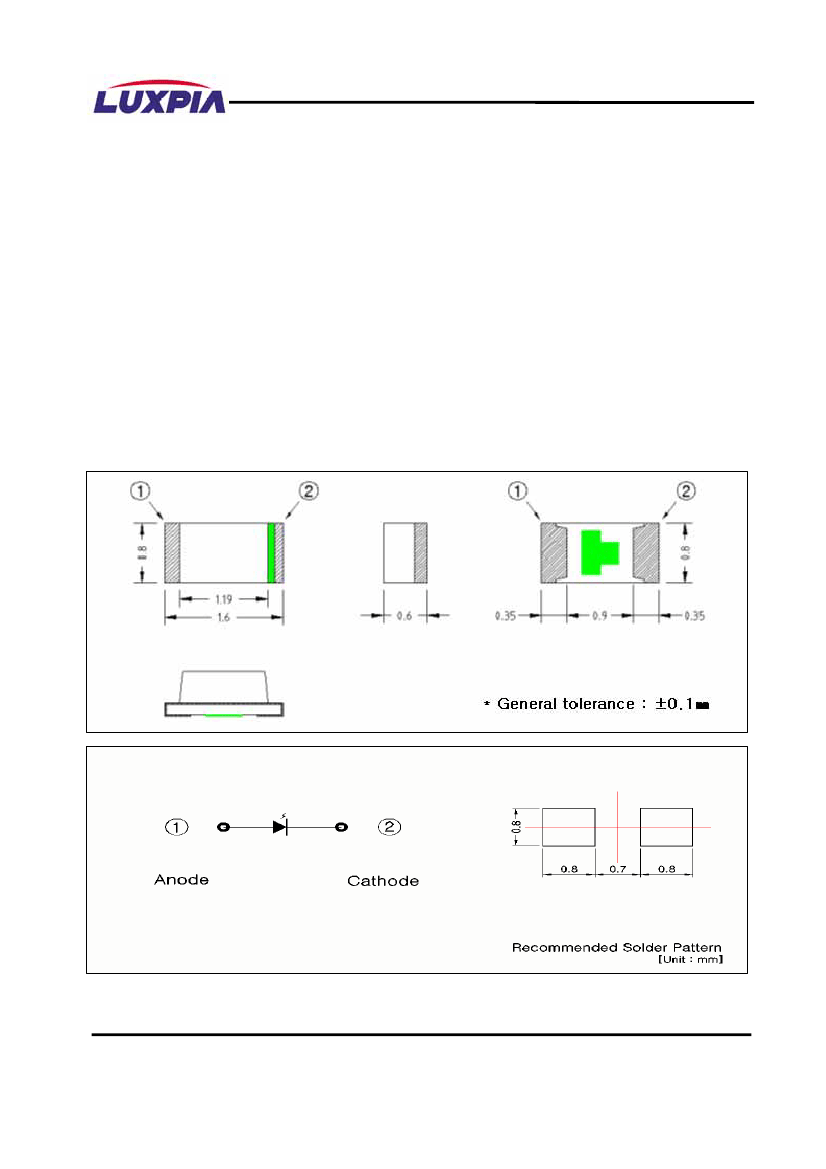

2. Package Outline Dimensions and Recommended Solder Patterns
(Tentative 3.0)
2/13
3. Absolute Maximum Ratings
(T
a
=25℃)
item
forward current
pulse forward current
reverse voltage
power dissipation
operating temperature
storage temperature
1)
symbol
I
F
1)
value
20
100
5
70
-30 to+85
-40 to +100
unit
mA
mA
V
mW
℃
℃
I
FP
V
R
P
D
T
opr
T
stg
I
FP
conditions : pulse width
≤
10msec & duty ratio
≤
1/10
*Absolute Maximum ratings is not normal operating condition.
4. Electro-Optical Characteristics
(T
a
=25℃)
item
forward
voltage
2)
rank
V18
V20
V22
YG0
YG1
YG2
C
symbol
V
F
condition
I
F
= 5mA
min
1.8
2.0
2.2
568
typ
-
-
-
-
-
-
-
-
-
-
max
2.0
2.2
2.4
570
572
574
10
14
20
50
unit
V
Dominant
Wavelength
3)
λ
D
I
F
= 5mA
570
572
6
nm
luminous intensity
4)
D
E
I
V
I
F
= 5mA
10
14
mcd
reverse
current
2)
3)
4)
-
I
R
V
R
=5V
-
㎂
Forward voltages are tested at a current pulse duration of 10 ms and an accuracy within ±0.1V.
The allowance of Dominant Wavelength measurement is within ±1nm%.
The allowance of luminous intensity measurement is within ±11%.
* To avoid optical difference, please do not mix differently ranked product
* All measurements were made under the standardized environment of LUXPIA.
(Tentative 3.0)
3/13
5. Materials
item
LED chip
Wire
PCB
encapsulation
material
AlGaInP
gold
C3965 (Cu/Ni/Au plating)
Epoxy + Silicone resin

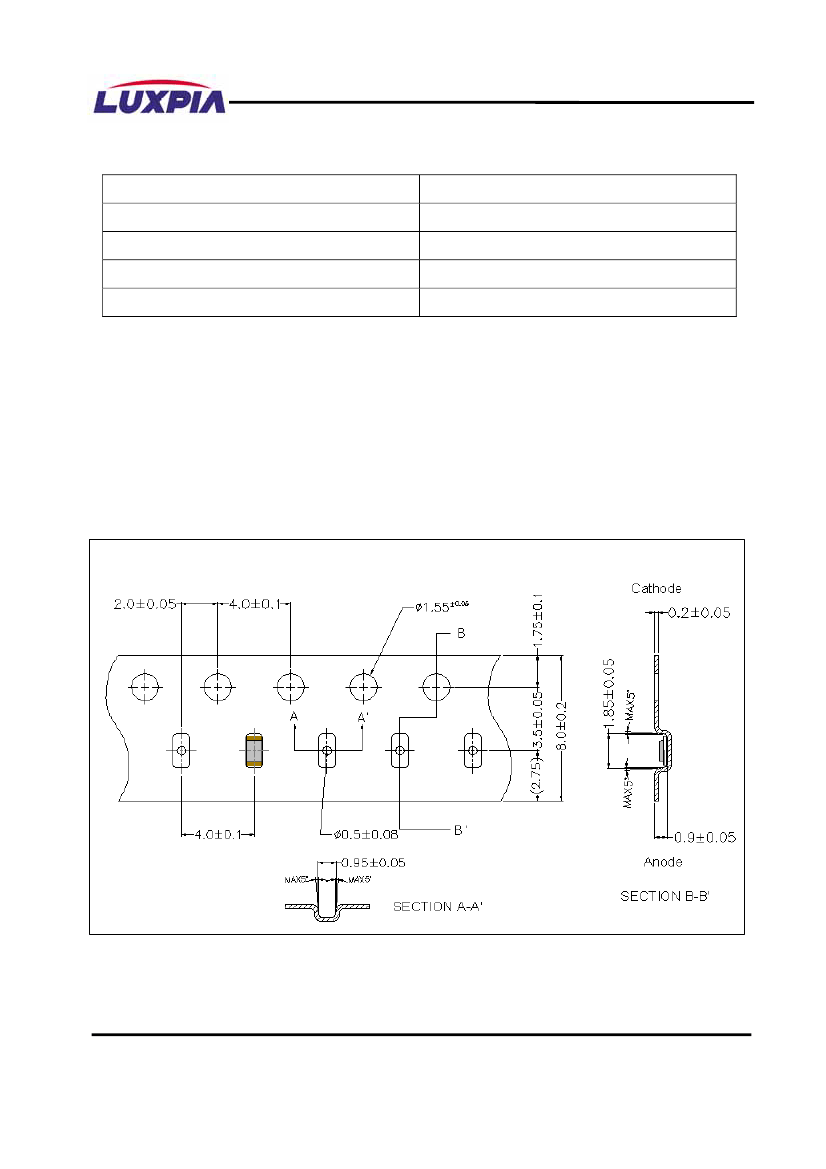

6. Taping
6.1. tape (material : PS, conductive: >10
6
Ω)
(units : mm)
