ECQE2275JB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ECQE2275JB

ECQE2275JB: DescriptionFilm Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 2.7uF, Through Hole Mount, 8237, RADIAL LEADED; CategoryPassive components capacitor; File Size623KB，16 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ECQE2275JB Overview

Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 2.7uF, Through Hole Mount, 8237, RADIAL LEADED

ECQE2275JB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1936715304
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	43 weeks 1 day
Samacsys Description	Cap Film 2.7uF 250V PET 5% (20.8 X 9.3 X 16.7mm) Radial 17.5mm 105°C Bulk
Samacsys Manufacturer	Panasonic
Other features	FLAME PROOF, NON-INDUCTIVE
capacitance	2.7 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	16.7 mm
JESD-609 code	e3
length	20.8 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	17.5 mm
Terminal shape	WIRE
width	9.3 mm

Preview

Download Datasheet

View All

Plastic Film Capacitors

Metallized Polyester

Film Capacitor

ECQE(B)

series

Non-inductive construction using metallized polyester

film with flame retardant epoxy resin coating

Features

Self-healing property

Small size

Excellent electrical characteristics

Flame retardant epoxy resin coating

RoHS compliant

●

Recommended applications

● General purpose usage

※Please contact us when applications are CDI , ignitor etc.

Explanation of part number

Rated voltage

Capacitance

Cap. Tol.

Suffix 1

Suffix 2

Product code

Dielectric &

construction

Code

R.voltage

250 V [DC]

125 V [AC]

Code

Cap. Tol.

Code

Blank

Lead form

Straight

Crimped lead

Cut lead

Straight taping (Ammo)

Crimped taping (Ammo)

±5 ％

±10 ％

● Odd size taping

Rated voltage

Capacitance

Odd taping

Cap. Tol.

Suffix

Product code

Dielectric &

construction

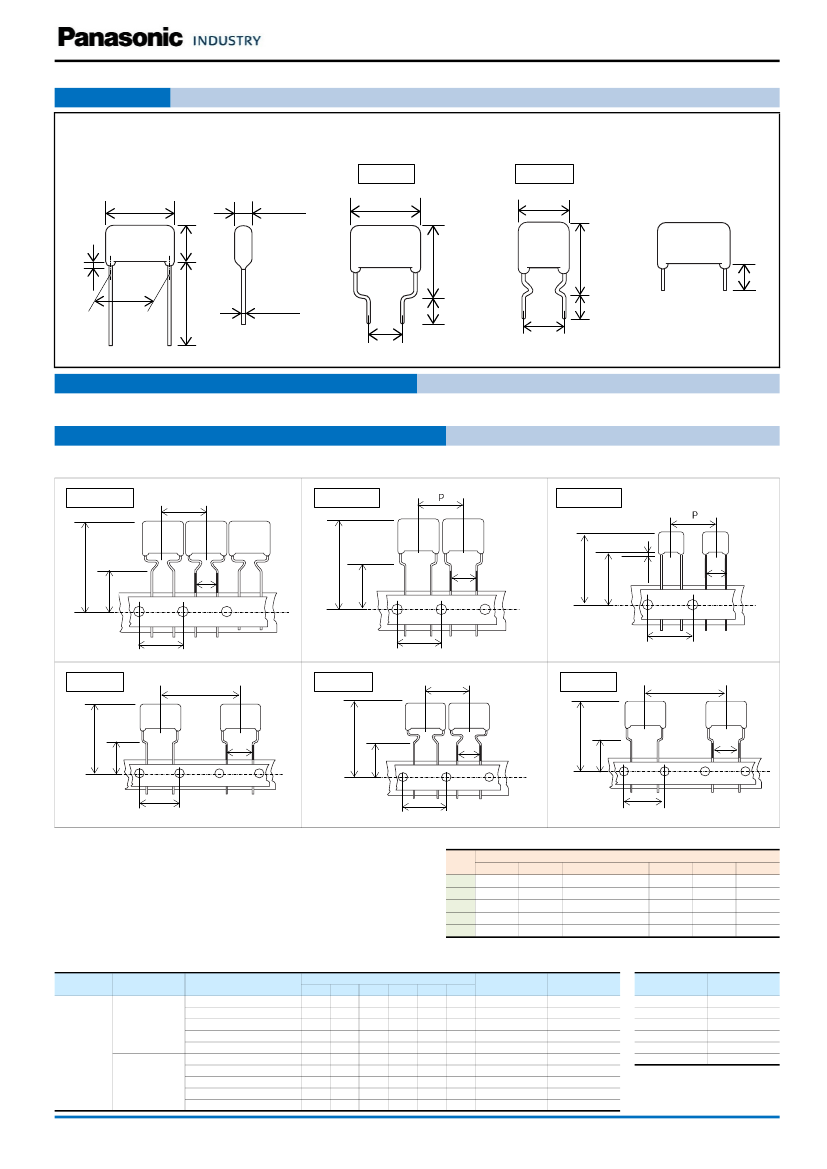

Specifications

(Including temperature-rise on unit surface)

Category temp. range

Rated voltage

Capacitance range

Capacitance tolerance

Dissipation factor (tan δ)

Withstand voltage

Insulation resistance (IR)

250 V [DC], 125 V [AC]

(250 V [DC] : Derating of rated voltage by 1.25 % / ℃ at more than 85 ℃)

250 V [DC]

0.010 μF to 4.7 μF (E12)

125 V [AC]

0.010 μF to 4.7 μF (E12)

±5 % (J), ±10 % (K)

tan δ ≦ 1.0 % (20 ℃, 1 kHz)

250 V [DC] 　Between terminals：Rated voltage (V) × 150 %, 60 s

　Between terminals：Rated voltage (V) × 230 %, 60 s

125 V [AC]

　Between terminals to enclosure：1500 V [AC], 60 s

C ≦ 0.33 μF : IR ≧ 9000 MΩ　(20 ℃, 100 V [DC], 60 s)

250 V [DC]

C > 0.33 μF : IR ≧ 3000 MΩ ∙ μF　(20 ℃, 100 V [DC], 60 s)

C ≦ 0.47 μF : IR ≧ 2000 MΩ　(20 ℃, 500 V [DC], 60 s)

125 V [AC]

C > 0.47 μF : IR ≧ 3000 MΩ ∙ μF　(20 ℃, 100 V [DC], 60 s)

250 V [DC]

125 V [AC]

−40 ℃ to +105 ℃

＊ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

＊ Voltage to be applied to ECQE1A (B) is only sine wave (50 Hz or 60 Hz).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

11-Oct-17

ECQE2275JB Related Products

	ECQE2275JB	ECQE2274JBZ	ECQE2274KB	ECQE2275KBB	ECQE2395JB	ECQE2395JBZ	ECQE2395KB	ECQE2395KBZ	ECQE2274KBB
Description	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 2.7uF, Through Hole Mount, 8237, RADIAL LEADED	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 0.27uF, Through Hole Mount, 4123, RADIAL LEADED	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 0.27uF, Through Hole Mount, 4123, RADIAL LEADED	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 2.7uF, Through Hole Mount, 8237, RADIAL LEADED	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 3.9uF, Through Hole Mount, 8243, RADIAL LEADED	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 3.9uF, Through Hole Mount, 8243, RADIAL LEADED	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 3.9uF, Through Hole Mount, 8243, RADIAL LEADED	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 3.9uF, Through Hole Mount, 8243, RADIAL LEADED	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 0.27uF, Through Hole Mount, 4123, RADIAL LEADED
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1936715304	2126981189	1936715301	1936715306	1936715340	2126981216	1936715343	2126981218	1936715300
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE	FLAME PROOF, NON-INDUCTIVE
capacitance	2.7 µF	0.27 µF	0.27 µF	2.7 µF	3.9 µF	3.9 µF	3.9 µF	3.9 µF	0.27 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
high	16.7 mm	10.8 mm	10.8 mm	21.7 mm	19.8 mm	19.8 mm	19.8 mm	19.8 mm	15.8 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
length	20.8 mm	10.3 mm	10.3 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm	20.8 mm	10.3 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	5%	5%	10%	10%	5%	5%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
positive tolerance	5%	5%	10%	10%	5%	5%	10%	10%	10%
Rated (DC) voltage (URdc)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	17.5 mm	7.5 mm	7.5 mm	10 mm	17.5 mm	17.5 mm	17.5 mm	17.5 mm	5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
width	9.3 mm	5.9 mm	5.9 mm	9.3 mm	10.8 mm	10.8 mm	10.8 mm	10.8 mm	5.9 mm
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	-	Lead free	-	Lead free
Factory Lead Time	43 weeks 1 day	-	39 weeks	39 weeks	43 weeks 1 day	-	39 weeks	-	39 weeks
