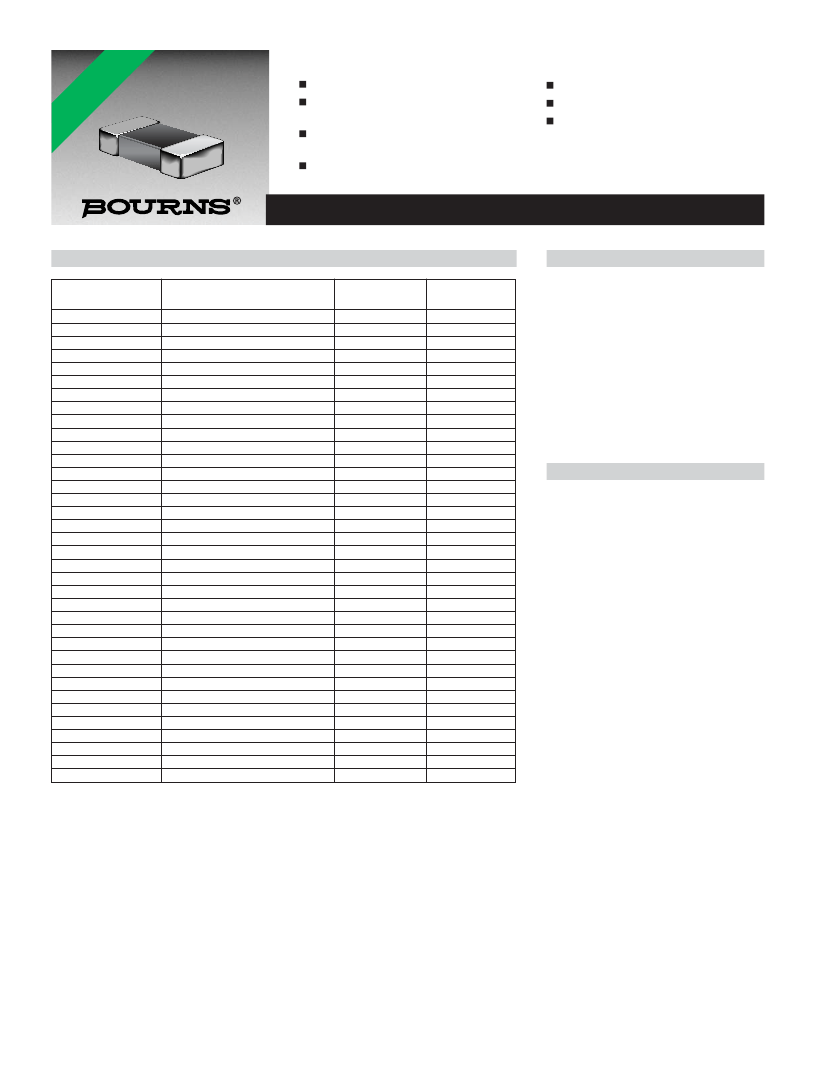

CO
M
PL
IA
NT
Features
High resistance to heat and humidity
Resistance to mechanical shock and
pressure
Accurate dimensions for automatic
surface mounting
Wide impedance range
Applications
Power supply lines
IC power lines
Signal lines
*R
oH
S
MG, MU, MZ Series High Impedance Chip Ferrite Beads
Electrical Specifications
Model Number
MG2029-100Y
MG2029-300Y
MG2029-400Y
MU2029-600Y
MG2029-800Y
MG2029-101Y
MG2029-121Y
MU2029-151Y
MU2029-221Y
MU2029-301Y
MU2029-471Y
MZ2029-601Y
MZ2029-601T
MG1608-300Y
MG1608-400Y
MU1608-600Y
MG1608-800Y
MG1608-101Y
MG1608-121Y
MU1608-151Y
MU1608-221Y
MU1608-301Y
MU1608-471Y
MZ1608-601Y
MZ1608-102Y
MU1005-100Y
MU1005-300Y
MU1005-600Y
MU1005-121Y
MU1005-151Y
MU1005-221Y
MU1005-241Y
MU1005-301Y
MU1005-471Y
MU1005-601Y
MU1005-102Y
Impedance
(Ω) at 100 MHz
10 ±25 %
30 ±25 %
40 ±25 %
60 ±25 %
80 ±25%
100 ±25 %
120 ±25 %
150 ±25 %
220 ±25 %
300 ±25 %
470 ±25 %
600 ±25 %
600 ±25 %
30 ±25 %
40 ±25 %
60 ±25 %
80 ±25 %
100 ±25 %
120 ±25 %
150 ±25 %
220 ±25 %
300 ±25 %
470 ±25 %
600 ±25 %
1000 ±25 %
10 ±25 %
30 ±25 %
60 ±25 %
120 ±25 %
150 ±25 %
220 ±25 %
240 ±25 %
300 ±25 %
470 ±25 %
600 ±25 %
1000 ±25 %
RDC
(Ω) Max.
0.20
0.10
0.20
0.10
0.20
0.20
0.25
0.20
0.30
0.30
0.35
0.40
0.40
0.20
0.30
0.20
0.30
0.25
0.30
0.25
0.30
0.35
0.45
0.45
0.60
0.10
0.20
0.25
0.30
0.30
0.40
0.60
0.50
0.65
0.80
1.20
IDC
(mA) Max.
400
400
300
900
300
400
300
800
500
500
700
100
200
200
300
700
300
200
200
600
200
150
350
100
100
500
300
300
100
100
100
100
100
100
80
80
General Specifications
Operating Temperature
...................................-55 °C to +125 °C
Storage Temperature ..-55 °C to +125 °C
Storage Condition
......................+40 °C max. at 70 % RH
Reflow Soldering
......................230 ˚C, 50 seconds max.
Resistance to Soldering Heat
.................................260 ˚C, 5 seconds
Rated Current ..................Based on max.
temperature rise of +40 °C
Terminal Strength
(Force “F” applied for 30 seconds)
2029 Series ............................0.6 F (Kg)
1608 Series ............................0.5 F (Kg)
Materials
Core Material .................................Ferrite
Internal Conductor ...............Ag or Ag/Pd
Terminal .....................................Ag/Ni/Sn
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
MG, MU, MZ Series High Impedance Chip Ferrite Beads

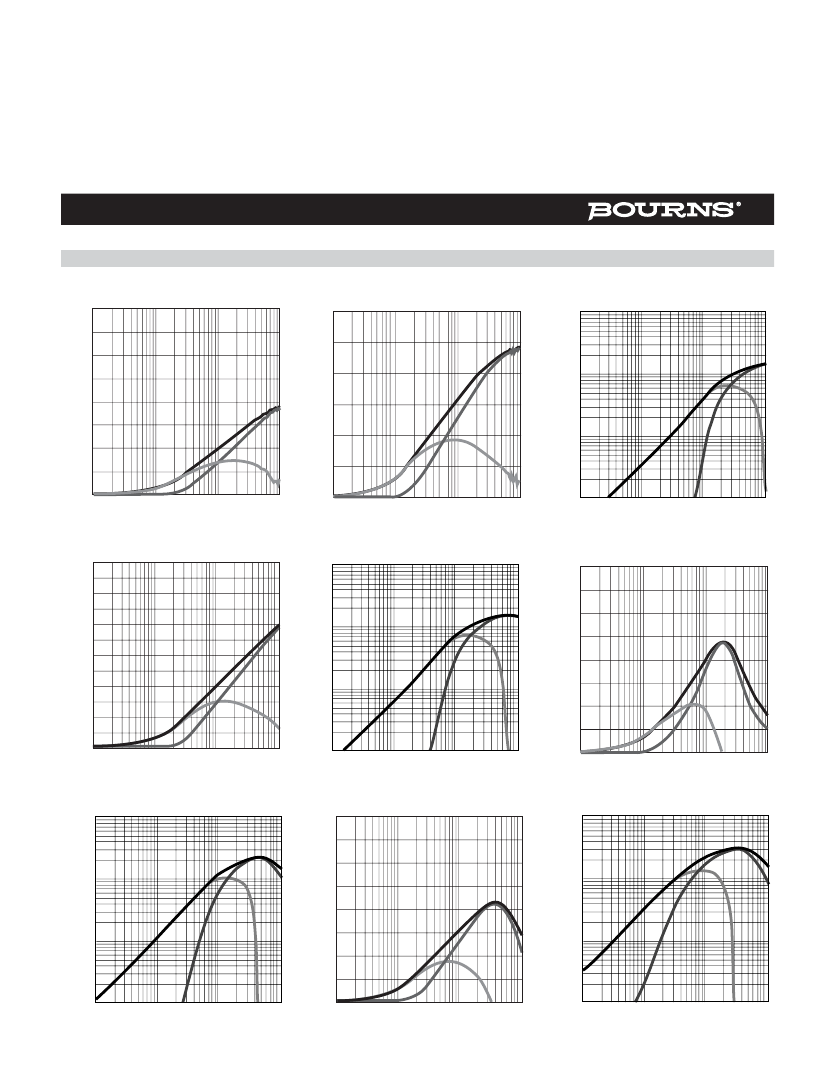

Electrical Specifications (continued)
MG 2029- 100Y
40
60
MG 2029- 300Y
1000
MG 2029- 400Y
30
Z
40
IMPEDANCE(Ω)
IMPEDANCE (Ω)
100
IZI
X
20
Z
X
R
1
10
100
1000
IMPEDANCE(Ω)
20
10
X
10
R
1
1
R
1
10
100
1000
1
FREQUENCY(MHz)
1
10
100
1000
FREQUENCY(MHz)
FREQUENCY (MHz)
MU 2029- 600Y
180
1000
MG 2029- 800Y
200
MG 2029- 101Y
150
120
IMPEDANCE(Ω)
IMPEDANCE (Ω)
100
IZI
X
150
IMPEDANCE(Ω)
Z
90
Z
R
X
100
60
30
0
10
R
50
X
R
1
10
100
1000
1
FREQUENCY (MHz)
1
10
100
1000
1
FREQUENCY (MHz)
1
10
100
1000
FREQUENCY(MHz)
MG 2029- 121Y
1000
400
MU 2029- 151Y
1000
MU 2029- 221Y
IZI
300
IMPEDANCE (Ω)
X
R
200
Z
IMPEDANCE (Ω)
100
100
IZI
X
IMPEDANCE(Ω)
10
10
R
100
R
1
1
10
100
1000
0
X
100
1000
1
1
10
100
1000
FREQUENCY (MHz)
1
10
FREQUENCY (MHz)
FREQUENCY (MHz)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
MG, MU, MZ Series High Impedance Chip Ferrite Beads

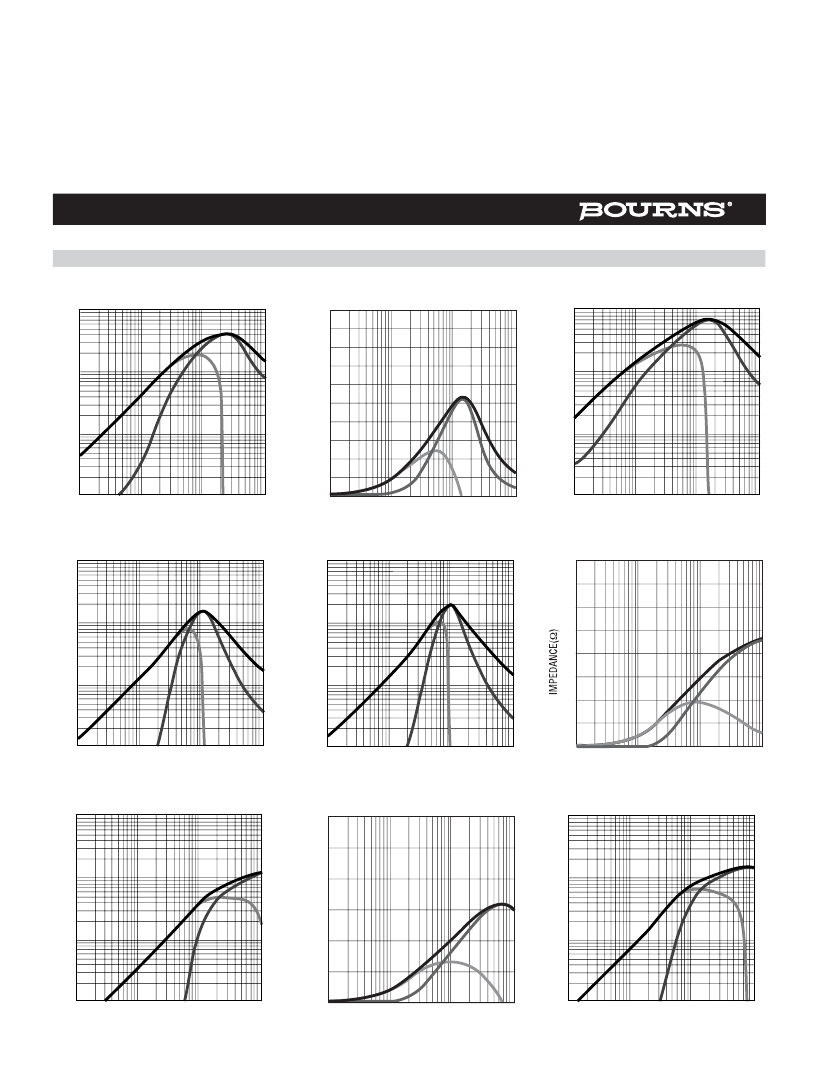

Electrical Specifications (continued)
MU 2029- 301Y
1000
1000
MU 2029- 471Y
1000
MZ 2029- 601Y
IZI
800
100
IZI
X
IMPEDANCE (Ω)
IMPEDANCE(Ω)
600
Z
IMPEDANCE (Ω)
100
X
10
10
R
400
R
200
1
1
10
100
1000
0
R
1
10
100
X
1000
1
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MG 2029- 152Y
10000
10000
MG 2029- 202Y
80
MU 1608- 300Y
60
IMPEDANCE (Ω)
1000
IZI
X
R
IMPEDANCE (Ω)
1000
IZI
X
R
40
Z
100
100
20
X
10
1
10
100
1000
10
1
10
100
1000
0
R
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MG 1608- 400Y
1000
180
MU 1608- 600Y
1000
MG 1608- 800Y
IMPEDANCE (Ω)
100
IZI
X
IMPEDANCE(Ω)
IMPEDANCE (Ω)
120
100
IZI
Z
60
X
10
10
R
R
X
R
1
10
100
1000
1
1
10
100
1000
0
1
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
MG, MU, MZ Series High Impedance Chip Ferrite Beads

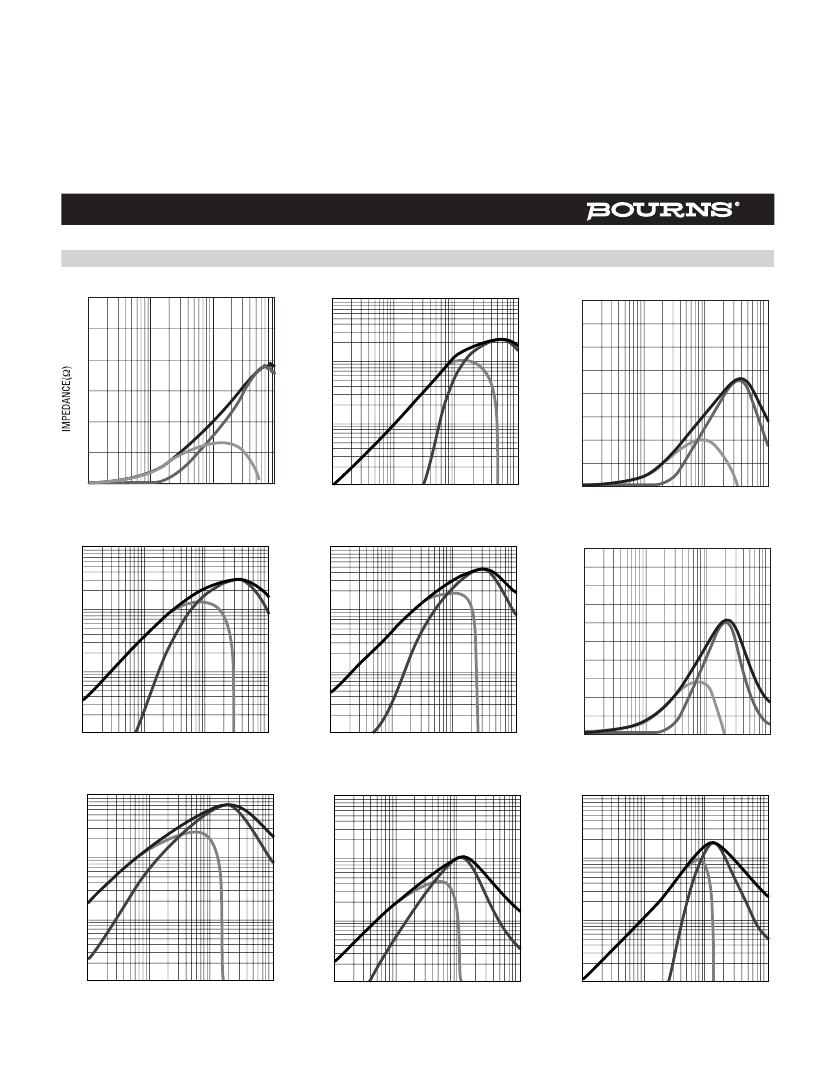

Electrical Specifications (continued)
MU 1608- 101Y
300
1000
MG 1608- 121Y
400
MU 1608- 151Y
IZI
200
100
300
IMPEDANCE (Ω)
Z
X
IMPEDANCE(Ω)
200
Z
100
10
R
X
100
X
0
R
1
10
100
1000
R
1
1
10
100
1000
0
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MU 1608- 221Y
1000
1000
MU 1608- 301Y
1000
MU 1608- 471Y
800
100
IZI
X
100
IZI
X
IMPEDANCE (Ω)
IMPEDANCE (Ω)
IMPEDANCE(Ω)
600
Z
10
R
10
R
400
200
X
R
1
10
100
1000
1
1
10
100
1000
1
1
10
100
1000
0
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MZ 1608- 601Y
1000
10000
MZ 1608- 102Y
10000
MG 1608- 152Y
IZI
100
X
IMPEDANCE (Ω)
IMPEDANCE (Ω)
IMPEDANCE (Ω)
1000
IZI
IZI
1000
X
100
10
R
100
R
X
R
1
1
10
100
1000
10
1
10
100
1000
10
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
MG, MU, MZ Series High Impedance Chip Ferrite Beads

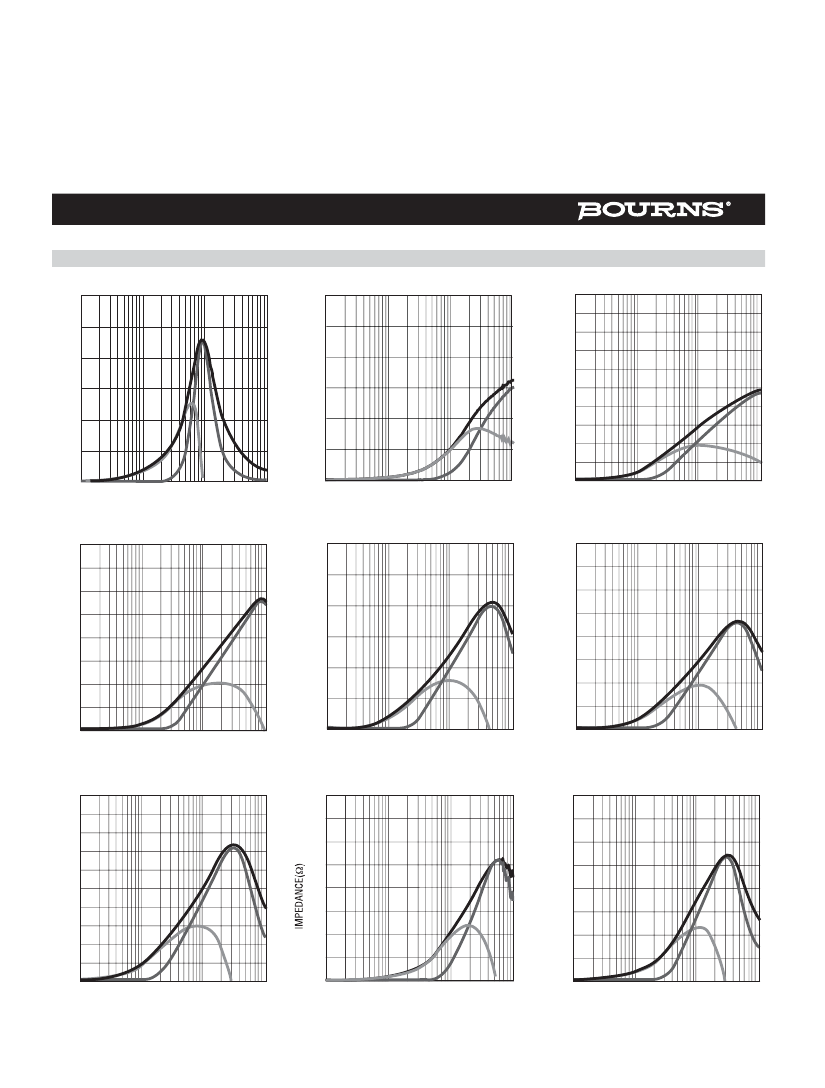

Electrical Specifications (continued)
MZ 1608- 222Y
3000
60
MU 1005- 100Y
100
MU 1005- 300Y
50
IZI
IMPEDANCE(Ω)
2000
40
80
IMPEDANCE(Ω)
IMPEDANCE(Ω)
60
30
Z
20
40
1000
Z
R
X
R
1
10
100
1000
10
X
R
1
10
100
1000
20
X
0
1
10
100
1000
0
0
FREQUENCY(MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MU 1005- 600Y
160
300
MU 1005- 121Y
400
MU 1005- 151Y
120
200
300
IMPEDANCE(Ω)
IMPEDANCE(Ω)
Z
IMPEDANCE(Ω)
80
200
Z
40
Z
R
100
R
X
100
X
R
0
1
10
100
1000
0
1
10
100
1000
0
1
10
100
X
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
MU 1005- 221Y
500
MU 1005- 241Y
800
800
MU 1005- 301Y
400
600
600
IMPEDANCE(Ω)
300
IMPEDANCE(Ω)
Z
400
Z
400
Z
200
R
200
200
100
X
X
R
1
10
100
1000
X
R
0
1
10
100
1000
0
1
10
100
1000
0
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
