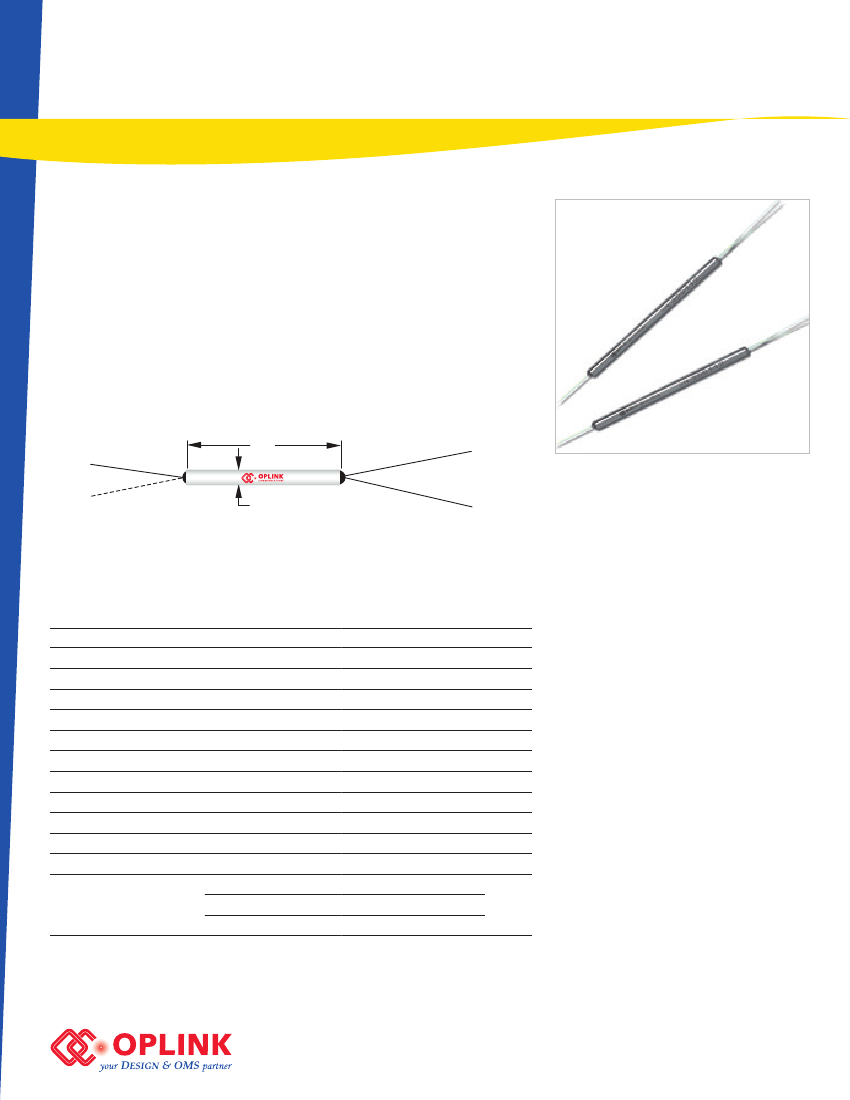

Multi-Mode Single Window Wideband
Fused Fiber Coupler
(1x2, 2x2)
MMFC Series
Product Description
Oplink’s multi-mode single window wideband fused fiber couplers are highly
stable for multi-port optical signal splitting. They have very good uniformity,
low excess loss and very low polarization sensitivity. All devices are tested ac-
cording to industry standard test procedures and are supplied with all perti-
nent measurement data.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other components
to form a full function module.
Port 1 In
L
Port 2 (50%)
Port 4 (terminated for
1x2 configuration)
Ø
Port 3 (50%)
Performance Specificationns
MMFC Series
Premium
Grade A
Unit
Features
Configuration
Operating Wavelength
Insertion Loss
[1]
Uniformity (50/50)
Typical Excess Loss
[2]
Temperature Sensitivity
Directivity
Maximum Power Handling
Operating Temperature
[3]
Storage Temperature
Fiber Type
Package Dimension
[1]
[2]
[3]
1x2 or 2x2
850, 1310 or 850 & 1310
< 4.0
< 0.4
< 1.0
< 0.002
> 40
500
-40 to +70
-40 to +85
50/125μm or 62.5/125μm core multi-mode fiber
P1: 250μm multi-mode bare fiber
P2: 900μm loose tube
P3: 3mm cable
(ø)3.0 x (L)47
(ø)3.0 x (L)60
(L)96.0 x (W)12.0 x (H)6.4
mm
< 4.5
< 0.8
< 1.0
< 0.002
nm
dB
dB
dB
dB/ °C
dB
mW
°C
°C
Low Excess Loss
Good Uniformity
Excellent Environmental Stability
Applications
Data Link
LAN
Sensors
Values are referenced without connector loss.
measured under the stable mode condition with LED light source.
Operating temperature range changes to -5 to 70°C in P2, P3 package and all package with connectors.
S0161 - R04. (web) 20120718
Multi-Mode Single Window Wideband
Fused Fiber Coupler
(1x2, 2x2)
MMFC Series
Testing Method
LED
DUT
81618A Power Meter
FOS-120A Light Source
Wrap 15 revolutions around Ø8mm rod
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
MMFC
Grade
P Grade = P
A Grade = A
0
0
Wavelength
850/1310nm = 1
1310nm = 3
850nm = 8
Type
1x2 = 1
2x2 = 2
Split Ratio
50/50 = 50
Fiber Length* Connetor Type
0.5 meter = H
1.0 meter = 1
1.5 meters = 5
2.0 meters = 2
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC/PC = 9
MU = A
LC/APC = B
Package & Fiber Type
P1+62.5/125μm fiber = 11
P1+50/125μm fiber =12
P2+62.5/125μm fiber = 21
P2+50/125μm fiber =22
P3+62.5/125μm fiber = 31
P3+50/125μm fiber =32
* The tolerance of fiber length is +/-0.1m. 1 meter is standard. The lead time for special fiber length will be longer.
S0161 - R04. (web) 20120718
