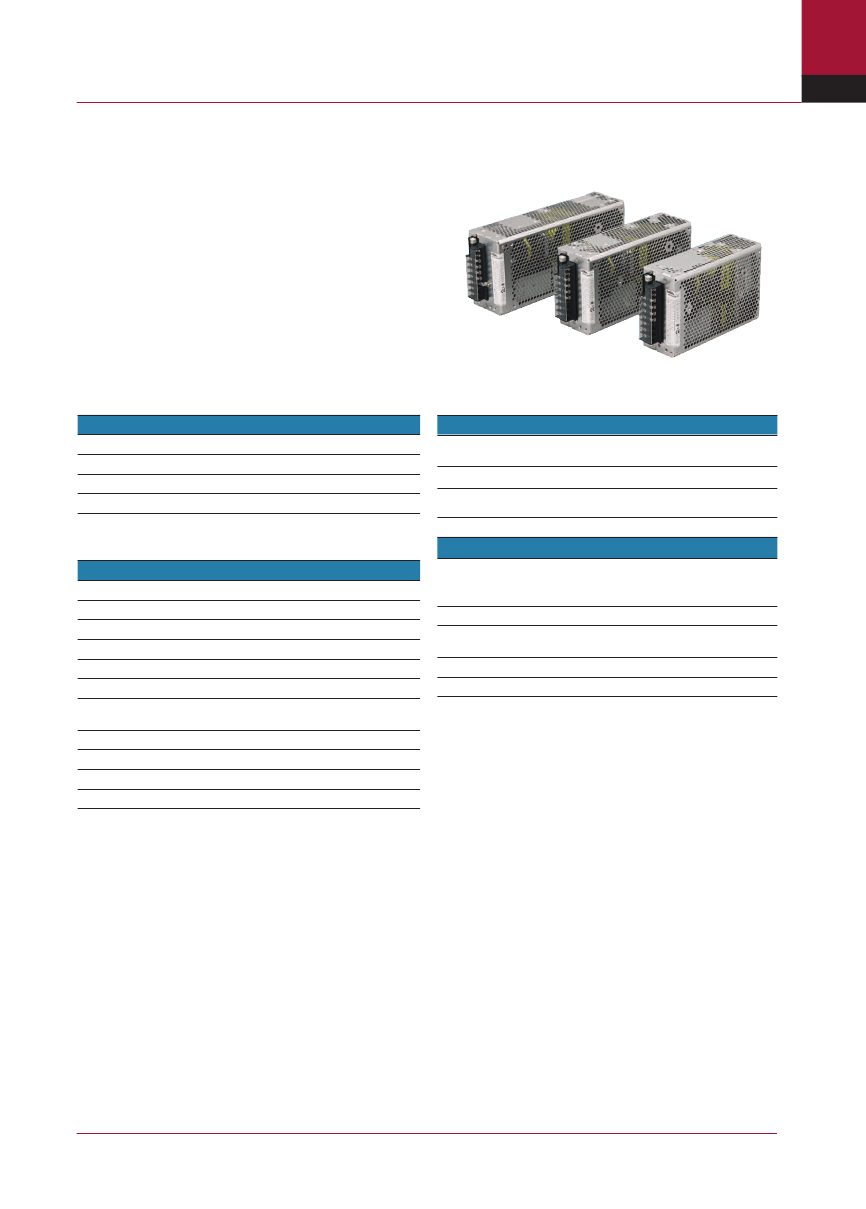

PBB10C Series

6 0 0 - 1 0 0 0 W AT T S -

FEATURES

•

High power & peak power

10 seconds peak current, 35% duty cycle.

Natural convection cooling

Increased power with forced air cooling

Parallel, master-slave, and N+1 redundant

operation

Harmonic attenuator IEC 61000-3-2

Universal input (85-264Vac)

AC/DC SINGLE OUTPUT

OPEN FRAME & ENCLOSED

SPECIFICATIONS

INPUT

ENVIRONMENTAL

Voltage

Frequency

Inrush current

Efficiency

Isolation

85-264Vac or 120-350Vdc

50/60Hz (47-63Hz) or DC.

40A typical.

84%-89% typical

In/Out 3kVac, 1min / R>50MΟηµ @ 500Vdc

In/Gnd 2kVac, 1min / R>50MΟηµ @ 500Vdc

Out/Gnd 500Vac, 1min / R>750MΟηµ @ 500Vdc

See table

±10% of rated voltage.

See table.

150mVp-p – 250mVp-p max.

96mV – 192mV max.

150mV – 300mV max.

Various, between 130% - 170% of rated voltage

Over 101% of peak current

500ms max.

20ms typical

10 sec, 35% duty cycle

Operating temperature

Humidity

Vibration

Impact

STANDARDS

-10°C to 70°C (Refer to derating curve, consult

Powerbox sales).

20 – 90% RH Non-Condensing

10Hz-55Hz 19.6m/s

(2G) 3 mins x, y and z

axes

196.1m/s2 (20G), once along x, y and z axes

OUTPUT

Safety standards

Voltage

Voltage adjustment

Output current

Ripple & noise

Line regulation

Load regulation

Over voltage protection

Over current protection

Startup time

Holdup time

Peak load

EN60950-1, EN50178, UL60950-1 and C-UL

Complies with DEN-AN and IEC60950-1

(AC input only)

AS/NZS CISPR11 Group 1 Class A.

EN61204-3, EN61000-6-2, EN61000-3-2,

EN61000-4-2,-3,-4,-5,-6,-8,-11

FCC-B, CISPR22-B, EN55022-B, VCCI-B

Complies with LVD and EMC Directives

C-Tick

EMC standards

EMI standards

CE marking

Doc. No. PBC9 Rev.C 28-4-11

Powering Progress – www.powerbox.com.au
