ERF8-060-05.0-L-DV datasheet, PDF

Datasheet> All Categories > The connector> The connector> ERF8-060-05.0-L-DV

ERF8-060-05.0-L-DV: DescriptionBoard Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size866KB，6 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ERF8-060-05.0-L-DV Overview

Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

ERF8-060-05.0-L-DV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1665172657
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	120 Position, 0.80 mm Edge Rate® Rugged High Speed Socket
Samacsys Manufacturer	SAMTEC
Other features	EDGE RATE CONTACT, E.L.P.
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ERF8
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	120

Preview

Download Datasheet

View All

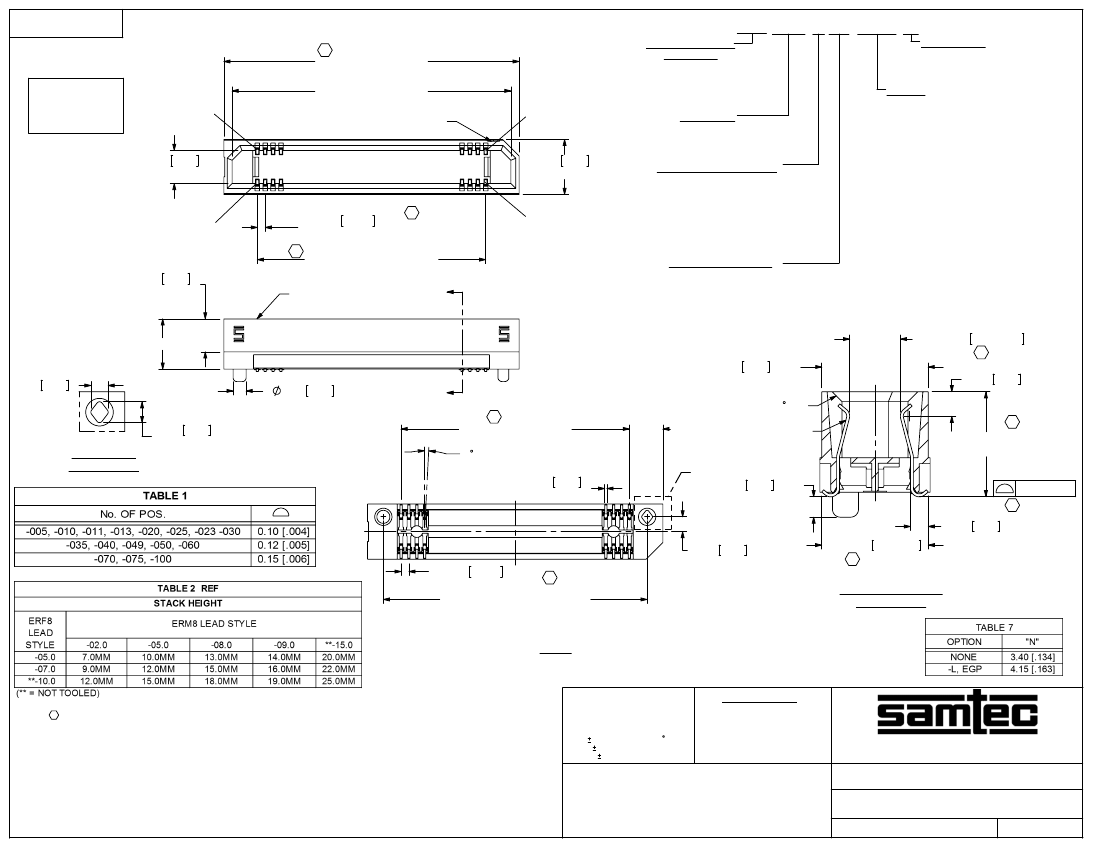

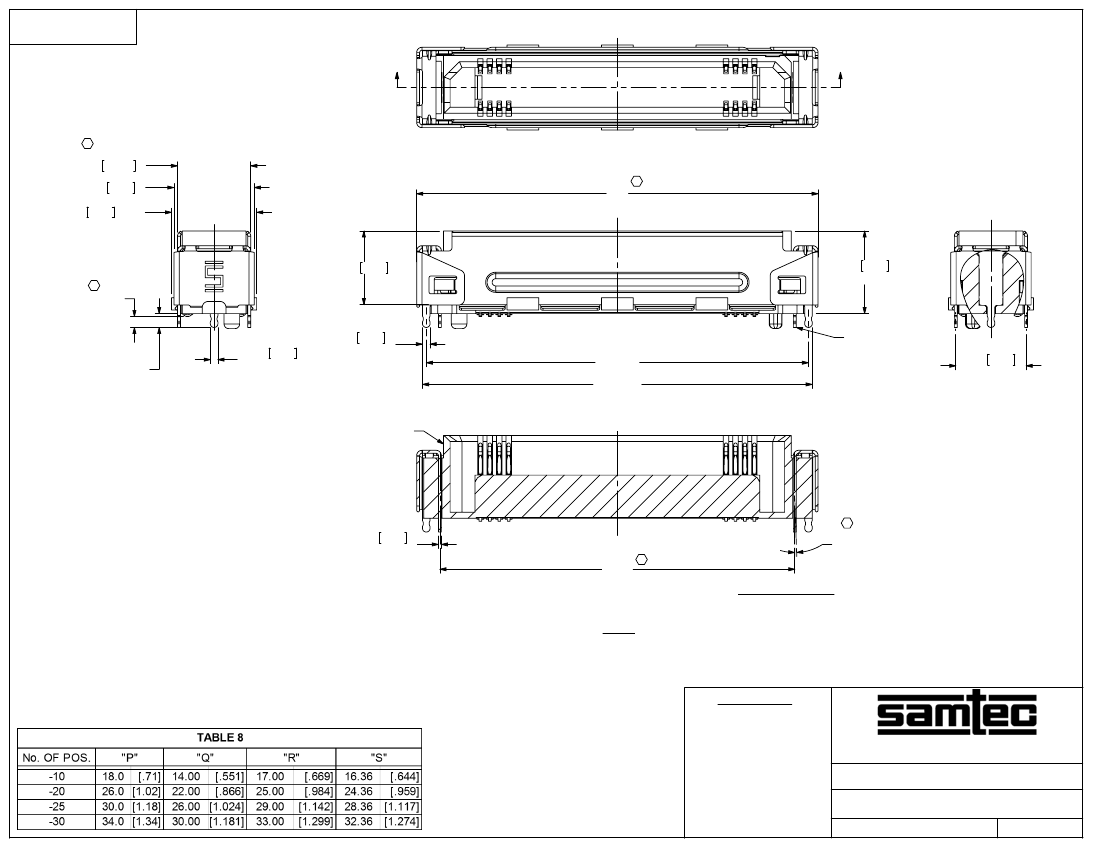

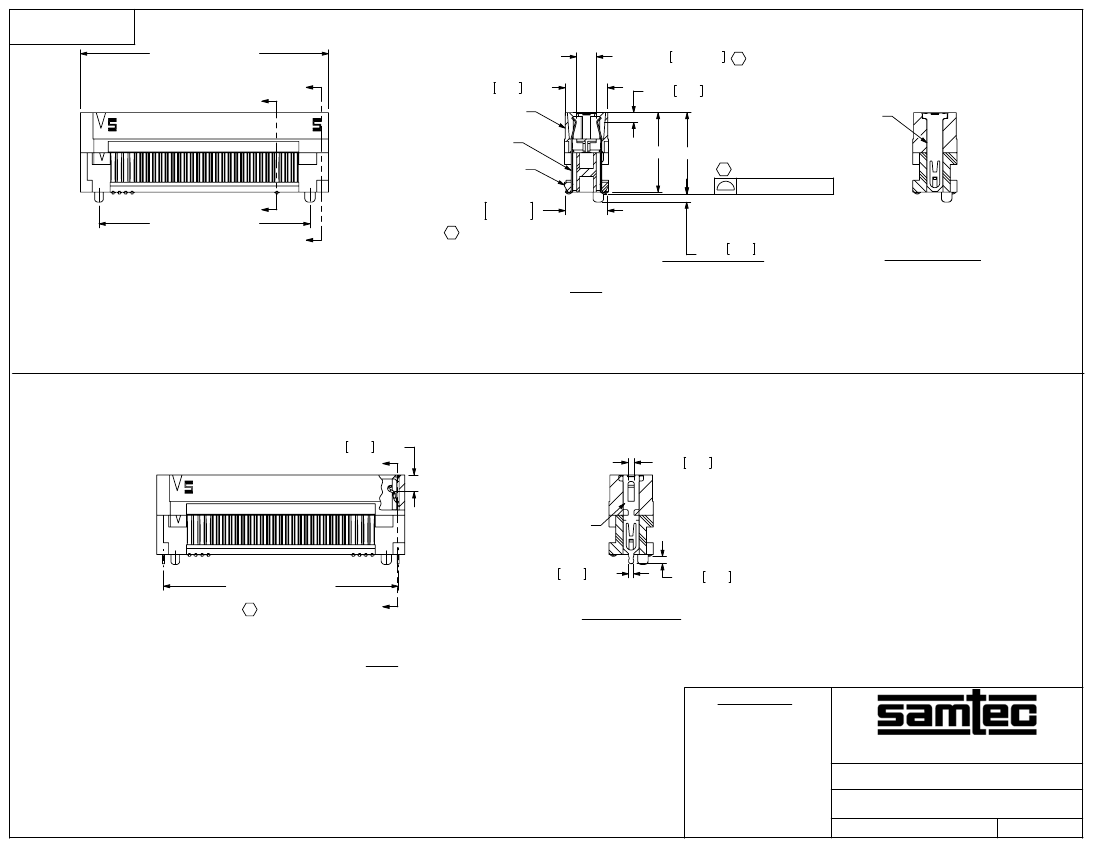

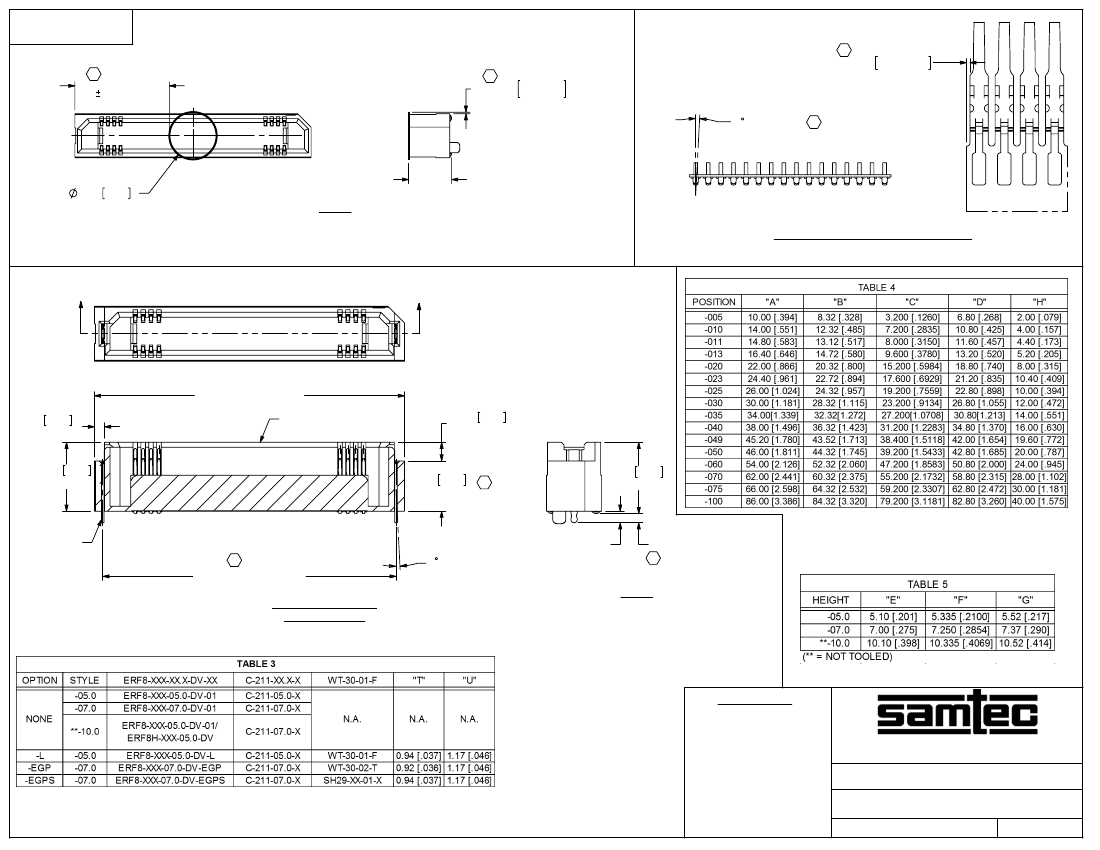

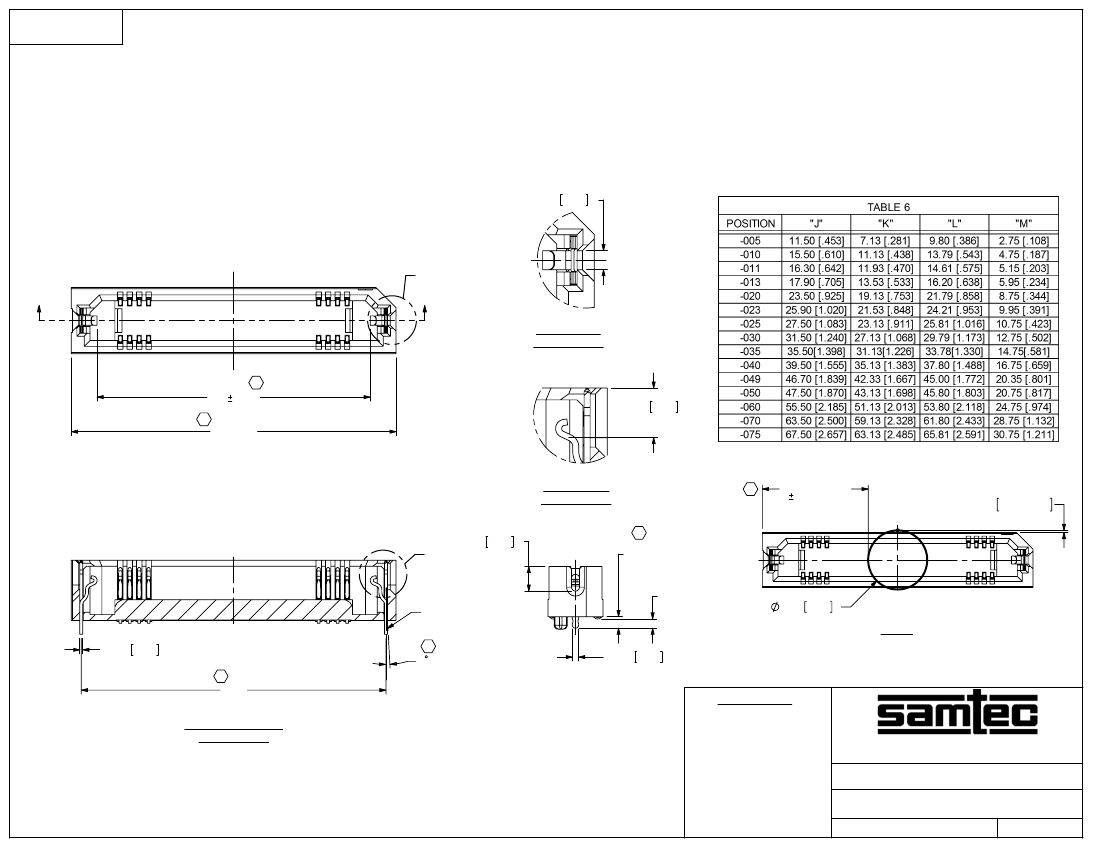

REVISION AI

"A" REF

(SEE SHT 2, TABLE 4)

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

DO NOT

SCALE FROM

THIS PRINT

"B" REF

(SEE SHT 2, TABLE 4)

POSITION #1

INDICATOR

3.36 .132

REF

0.800 .0315 (TYP)

(TOL. NON-ACCUM)

3.35 .132

REF

"C" (SEE SHT 2, TABLE 4)

"A"

No OF POSITIONS

(PER ROW)

-005, -010, -011, -013, -020, -023, -025,

-030, -035, -040, -049, -050, -060,

-070, -075,-100

(-100 POSITION AVAILABLE IN -05.0 ONLY

SEE NOTE 9)

LEAD STYLE

-05.0 = 5mm

-07.0 = 7mm

**-10.0 = 10mm

5.60 .220

PLATING SPECIFICATION

REF

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

ERF8-XXX-XX.X-X-DV-XXXX-XX

PACKAGING

-TR: TAPE & REEL (SEE NOTE 4 & 7)

-TY: TRAY (SEE NOTE 4)

OPTION

-K: POLYIMIDE FILM PAD (SEE FIG 2)

-L: LATCHES (-05.0 LEAD STYLE ONLY,

SEE NOTE 5,

SEE FIG 5)

-EGP: EXTENDED GUIDE POST

(SEE NOTE 6, SEE FIG 3)

-EGPS: EXTENDED GUIDE POST SHIELD

(ONLY AVAILABLE IN -07.0

LEAD STYLE AND ONLY -010, -020,

-025 & -030 POSITIONS (SEE NOTE 6

& FIG 6)

ROW SPECIFICATION

-DV: DOUBLE VERTICAL

** = NOT TOOLED

ERF8-XXX-XX.X-DV-01

(SEE SHT 2, TABLE 3)

"E" REF

5.40 .213 REF

1.10 .043

REF

1.32 .052

REF

1.32 .052 REF

"A"

"C"

(SEE SHT 2, TABLE 4)

3 MAX SWAY

(TYP)

0.23 .009

REF

0.50 [.020] x 45 REF

"N"

(REF)

'D'

C-211-XX.X-X

(SEE SHT 2,

TABLE 3)

1.04 .041 REF

(2 PLCS)

2.58±0.12 .101±.005

1.24 .049 REF

"F"(TYP)

(SEE SHT 2, TABLE 5)

SEE TABLE 1

5.41±0.25 .213±.010

DETAIL 'D'

SCALE 4 : 1

1.50 .059

REF

0.90 .036 REF

0.800 .0315 (TYP)

(TOL NON-ACCUM)

"D" REF (SEE SHT 2, TABLE 4)

SECTION "A"-"A"

SCALE 5 : 1

(ERF8-030-05.0-X-DV-XX SHOWN)

(CENTER FEATURES REMOVED FOR CLARITY)

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LB.]

4. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR EIA-481-D

REEL WILL BE SUPPLIED. FOR QUANTITIES OF 50-124 PIECES, NO LEADER,

TRAILOR WILL BE SUPPLIED.

5. NOT AVAILABLE WITH -EGP OR -EGPS OPTIONS.

6. OPTION ONLY AVAILABLE ON -07.0 LEAD STYLE; NOT AVAILABLE WITH -L OPTION.

7. -TR PACKAGING NOT AVAILABLE ON 100 POSITION ONLY AVAILABLE IN TRAYS;

-TY AVAILABLE ON -100 POSITION ONLY.

8. NOTE DELETED.

9. NOT AVAILABLE WITH -EGP OR -EGPS OPTIONS.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN

MILLIMETERS [INCHES].

TOLERANCES ARE:

DECIMALS

FIG 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.050 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, COLOR: BLACK

CONTACT & LATCHES: BeCu

SHIELD: PHOS BRONZE

0.8MM EDGE RATE SOCKET ASSEMBLY

ERF8-XXX-XX.X-X-DV-XXXX-XX

9/26/2005

SHEET

BY:

KNOWLDEN

F:\DWG\MISC\MKTG\ERF8-XXX-XX.X-X-DV-XXXX-XX-MKT.SLDDRW

ERF8-060-05.0-L-DV Related Products

	ERF8-060-05.0-L-DV	ERF8-013-05.0-S-DV	ERF8-060-10.0-L-DV	ERF8-070-05.0-L-DV	ERF8-070-07.0-L-DV	ERF8-070-07.0-S-DV
Description	Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Stacking Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,	Board Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT
Objectid	1665172657	1579709452	1029999941	1665172659	1579709477	1579709478
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Samacsys Description	120 Position, 0.80 mm Edge Rate® Rugged High Speed Socket	26 Position, 0.80 mm Edge Rate® Rugged High Speed Socket	120 Position, 0.80 mm Edge Rate® Rugged High Speed Socket	140 Position, 0.80 mm Edge Rate® Rugged High Speed Socket	140 Position, 0.80 mm Edge Rate® Rugged High Speed Socket	140 Position, 0.80 mm Edge Rate® Rugged High Speed Socket
Samacsys Manufacturer	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Other features	EDGE RATE CONTACT, E.L.P.	EDGE RATE CONTACT, E.L.P.	LATCHED	EDGE RATE CONTACT, E.L.P.	EDGE RATE CONTACT, E.L.P.	EDGE RATE CONTACT, E.L.P.
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	MATTE TIN OVER NICKEL	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)	Matte Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	120	26	120	140	140	140
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
