PRL0602DN Overview

AC-DC Active PFC SWITCHING POWER SUPPLY

Preview

Download Datasheet

View All

ULTRA LEVEL TECH CO., LTD.

www.ultralevel.com.tw

Tel:+886-2-29180118

Fax:+886-2-29181465

We Supply the Power Customers Need

ISO9001

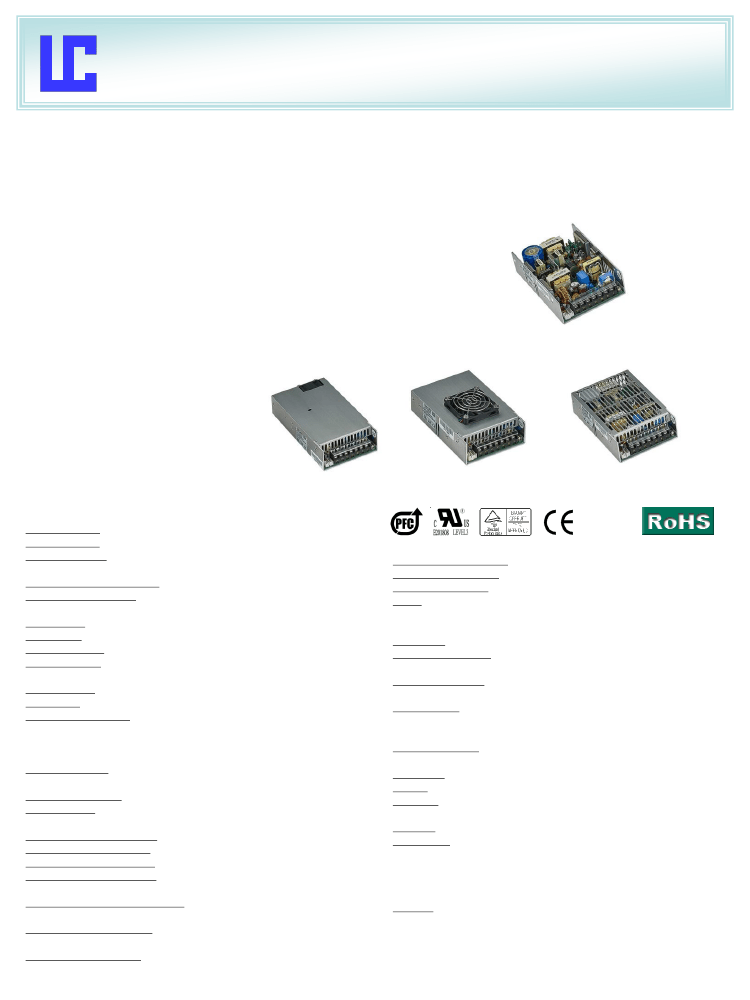

220W ~ 400W AC-DC Active PFC SWITCHING POWER SUPPLY

PRL0602DN DUAL OUTPUT SERIES

FEATURES:

◆

Compact 400W with 1U height Power Density: 11.11 watts/cu in

◆

Built-in Remote On-Off, Power Good, Fan Fail Alarm

◆

5/ 12/ 24/ 48V Dual Output Optional Combinations

◆

Power Factor Corrected to EN61000-3-2 class D

◆

Variable Fan Speed & Low Acoustical Noise

◆

High Quality & Reliable Component Usage

◆

Approved to UL CUL TUV CB and CE

◆

4 - Mechanical Options

◆

Full Range AC Input

U Type:

6(L) x 4(W) x 1.5(H)”

E Type:

7(L) x 4(W) x 1.6(H)”

F Type:

6(L) x 4(W) x 2(H)”

C Type :

6(L) x 4(W) x 1.57(H)”

PRODUCT SPECIFICATIONS:

Input Voltage:

90 ~ 264Vac full range, 47 ~ 63Hz.

Input Current:

8A at 90Vac.

Inrush Current:

Max. 70A@230Vac & 35A@115Vac; both under

cold start conditions.

Power Factor Correction:

>0.9 @ Vin: 230Vac full load.

Transient Response:

Returns to within 1% in less than 2.5mS for a

50% load change and the peak transient does not excess 5%.

Overshoot:

Turn-on & off overshoot < 5% over nominal voltage.

Efficiency:

75% minimum (Measuring at 230V and full load).

Turn On Delay:

1.5 second maximum at 120 Vac.

Hold Up Time:

16 Msec minimum at 120 VAC and 75% of rated

maximum load.

Adjustability:

Output user adjustable +/-5% minimum.

Fan Drive:

12VDC/300mA offering to drive an external fan.

Fan Fail (FF) Alarm:

Designated as FF on pin 3 of CN1 to monitor

the status of fan. This signal is an open collector output rated for

15VDC/5mA sink current maximum, it will go high when a fan failure

is detected.

Remote On-Off:

Designated as

INH

on pin4 of CN1, requires a low

signal to inhibit output.

Power Supply On:

Green LED designated as

LED1

on the PCB.

Power Good:

Designated as

on CN1 and TTL high 100-500mS

after DC regulation. It goes low at least 1mS before loss of regulation.

Input Fusing Protection:

One T8A/250V fuse inserted in primary.

Over-Power Protection:

110~140% of I-Max; Auto-recovery.

Short Circuit Protection:

Trip without damage and auto-recovery.

Over Voltage Protection:

Unit latching down when output exceed

130% and recycle AC input to reset.

Over-Temperature Protection:

Unit protected of excessive

operating ambient 110

℃±5 ℃,

and automatic recovery.

Operating Temperature:

0℃ to 70℃ ambient, de-rating at 2.5%

per degree from 50℃ to 70℃.

Switching Frequency:

PFC 68 kHz, PWM 55 kHz for D1224 &

50 kHz for other models.

Storage Temperature:

-20 to 85

℃.

Operating Humidity:

5% to 90% RH, Non-condensing.

Storage Humidity:

5% to 95% RH, Non-condensing.

EMC:

EN55022 class B conducted / radiated, EN61000-3-2,

EN61000-3-3; EN55024 (IEC61000-4-2, IEC61000-4-3, IEC61000-

4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11).

Vibration:

5 ~ 50 Hz, acceleration 7.35 m/s*s on X,Y and Z Axis.

Safety Regulation:

UL60950-1, CSA C22.2 No. 60950-1 and CB

certificate.

Leakage Current:

< 3.5mA @ 264Vac.

(optional for 500uA max. at 240Vac / 300uA max. at 120Vac input)

HI-POT Test:

1500 VAC input line to chassis (10mA DC cut off

current); Isolating 3000VAC primary to secondary windings;

Primary to core 1500VAC. All for 3 sec.

Grounding Test:

Apply 25 A from ground pin of the three prong

plug to the far most earth. Max allowable resistance 0.1 ohm.

Warranty:

2 years.

MTBF:

100000 Hrs (according to MIL-HBK-217F) at 30

℃

Cooling:

Internal fan is provided.

Burn in:

45 +/- 5 degree C for 1 hour @230Vac with full load.

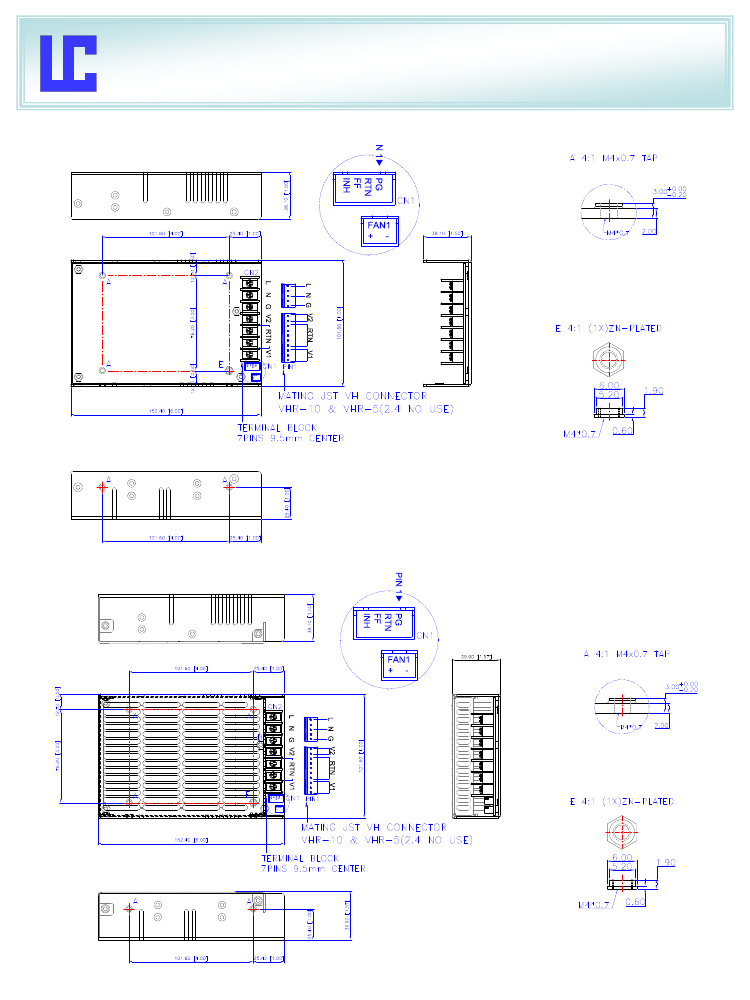

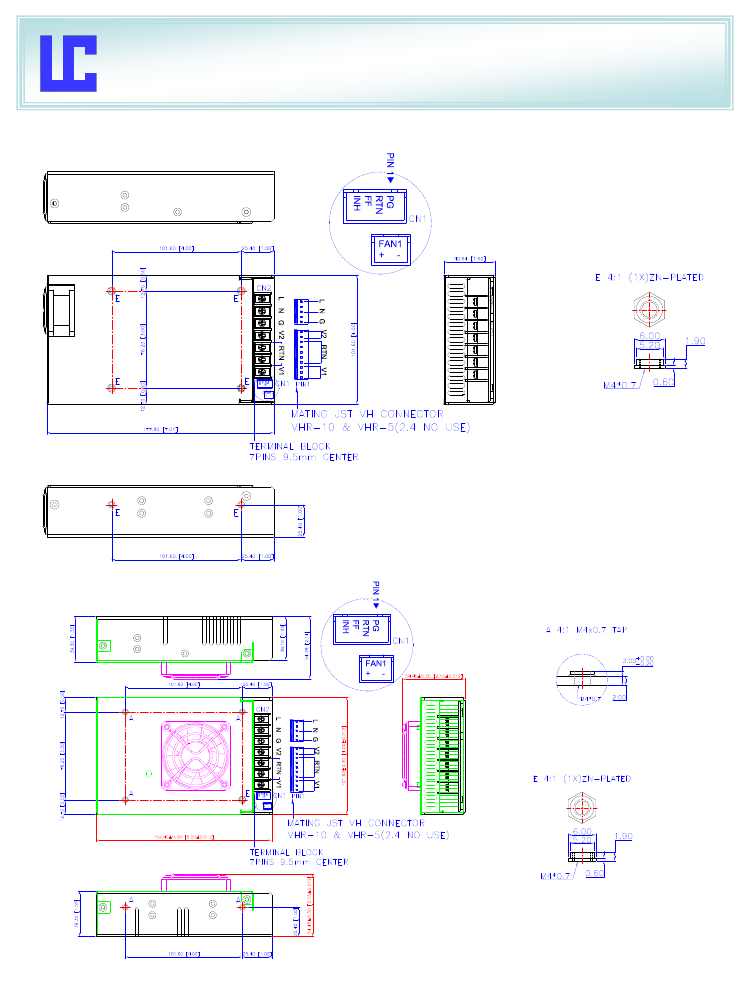

Enclosure:

U Type: 6(L) x 4(W) x 1.5(H) inches.

U Type with top cover option: 6(L) x 4(W) x 1.57(H) inches.

E Type: 7(L) x 4(W) x 1.6(H) inches.

F Type: 6(L) x 4(W) x 2(H)inches.

Weight:

Maximum weight is 800g.
