Film Capacitors
MKP 2/4 pins
Switching – DC link
Series/Type:
Date:
Version:
B32674, B32676, B32678
June 2006
1
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white" (or invisible). This ensures that the table disappears for the customer
PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or
footer when copying the content.
Identification/Classification 1:
(header 1 + top left header bar)
Identification/Classification 2:
(header 2 + bottom left header bar)
Ordering code:
(top right header bar)
Series/Type:
(top right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
2006-06-07
Film capacitors
MKP 2/4 pins
B32674, B32676, B32678
Switching – DC link
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.

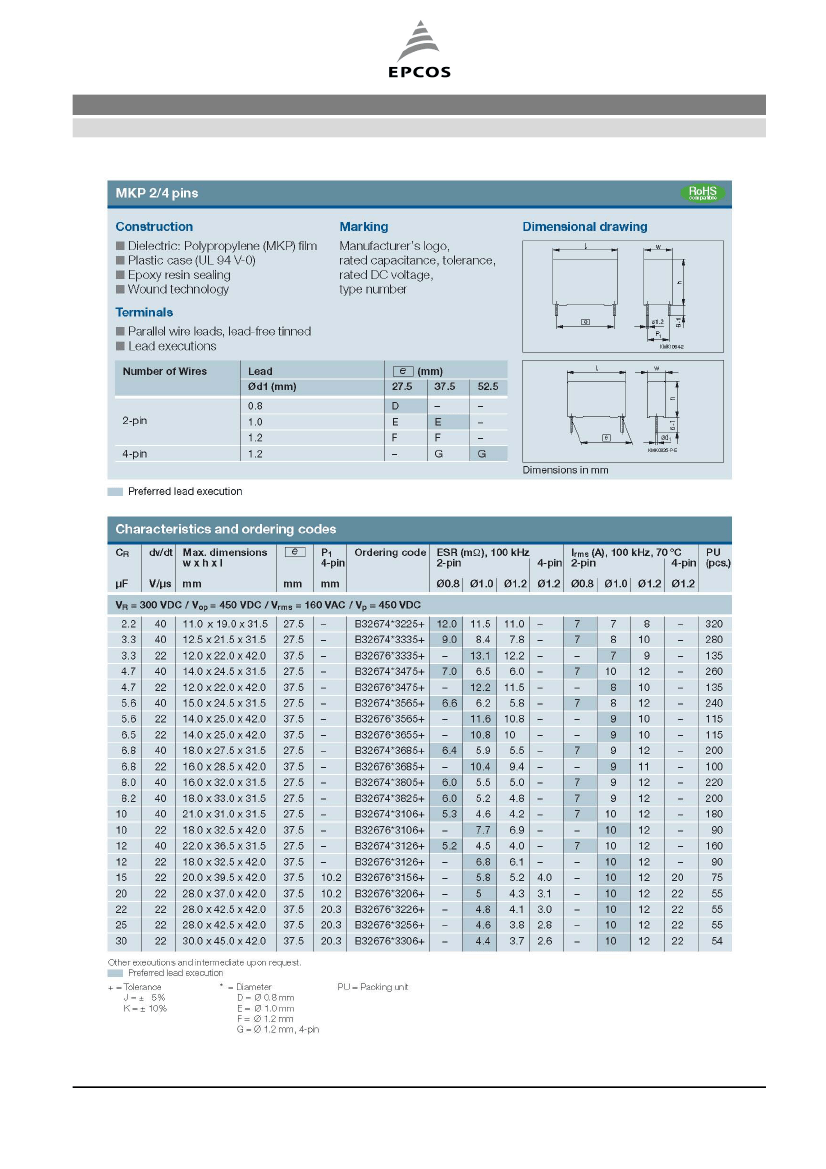

Film capacitors
MKP 2/4 pins
B32674, B32676, B32678
Switching – DC link
Please refer to typical waveforms on page 5.
Note:
Not for across the line applications!
Only unidirectional AC voltage!
2006-06-07
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 7

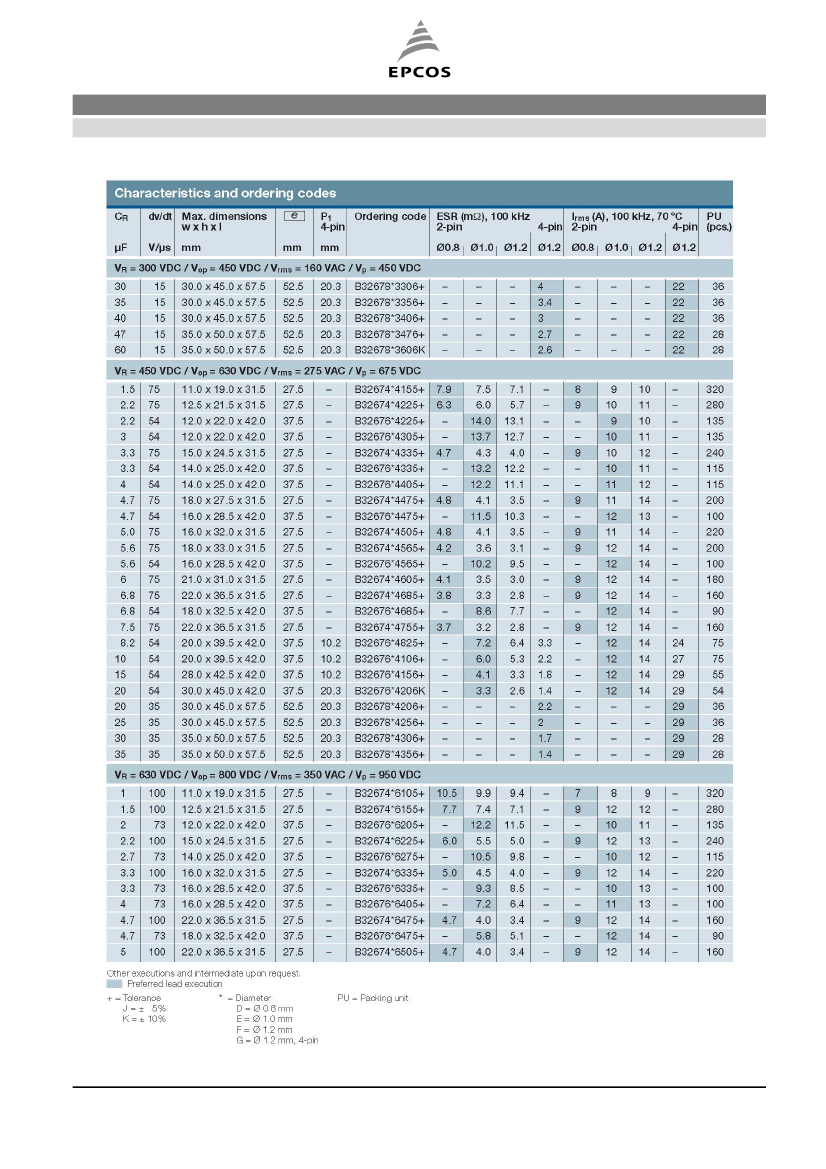

Film capacitors
MKP 2/4 pins
B32674, B32676, B32678
Switching – DC link
Please refer to typical waveforms on page 5.
Note:
Not for across the line applications!
Only unidirectional AC voltage!
2006-06-07
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 7

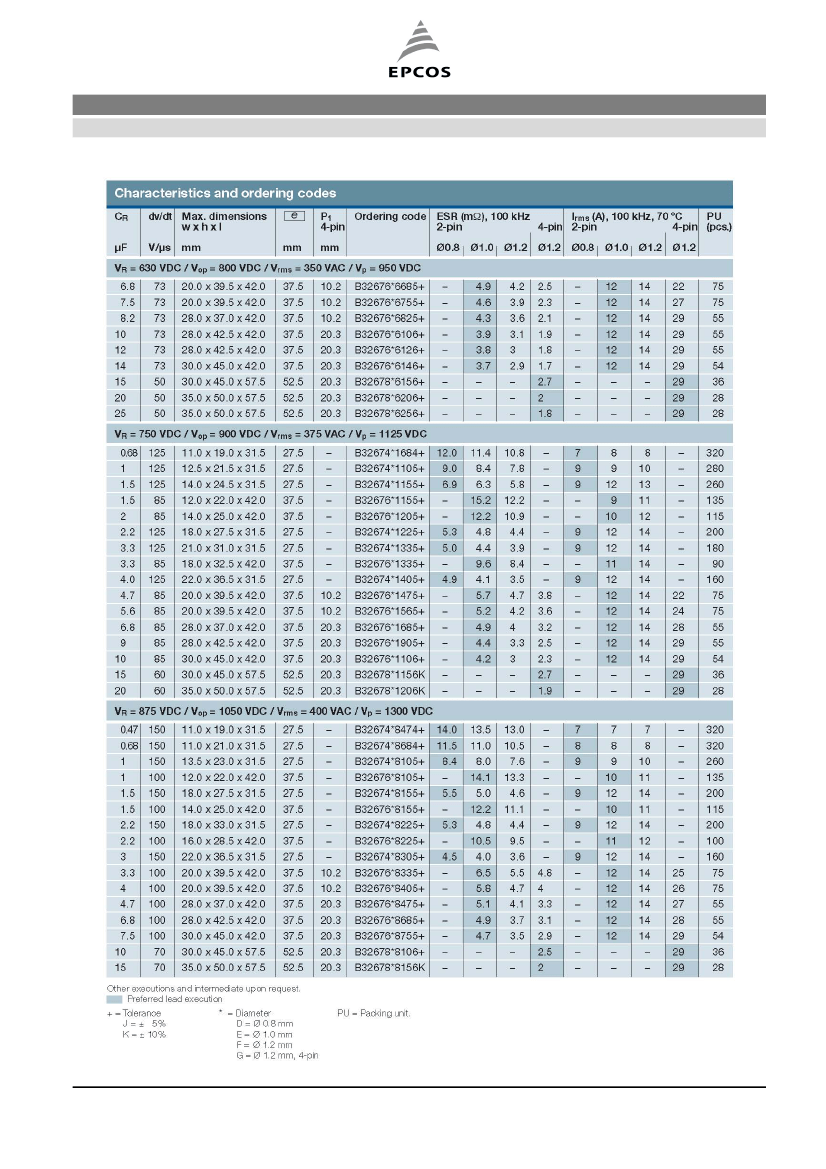

Film capacitors
MKP 2/4 pins
B32674, B32676, B32678
Switching – DC link
Please refer to typical waveforms on page 5.
Note:
Not for across the line applications!
Only unidirectional AC voltage!
2006-06-07
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 7
Film capacitors
MKP 2/4 pins
B32674, B32676, B32678
Switching – DC link

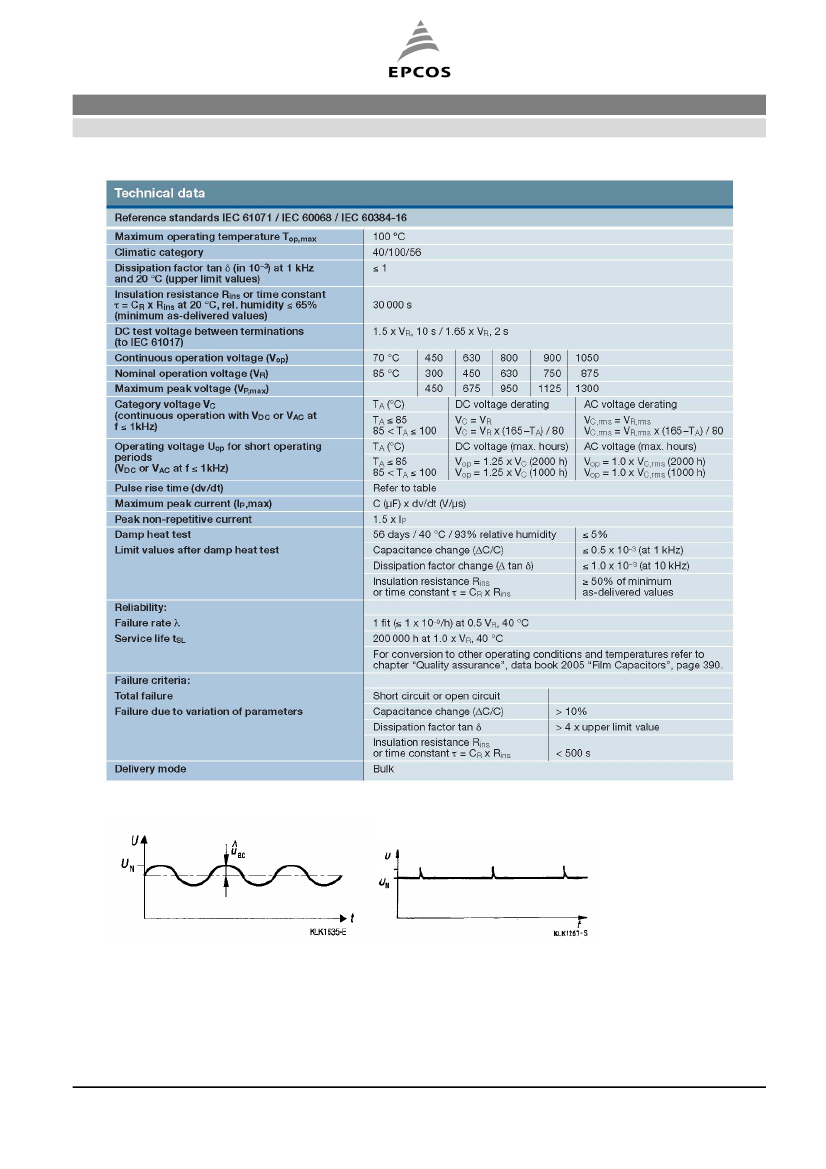

Typical waveforms:
U
PK
U
N
(V) = maximum operating peak of voltage of either polarity but of a non-reversing waveform, for which the capacitor
has been designed, for continuous operation.
û
ac
= 0.1 · U
N
(DC)
U
PK
(V) = this is the maximum permissible recurrent voltage that may appear for max. 1% of the period.
2006-06-07
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 7
