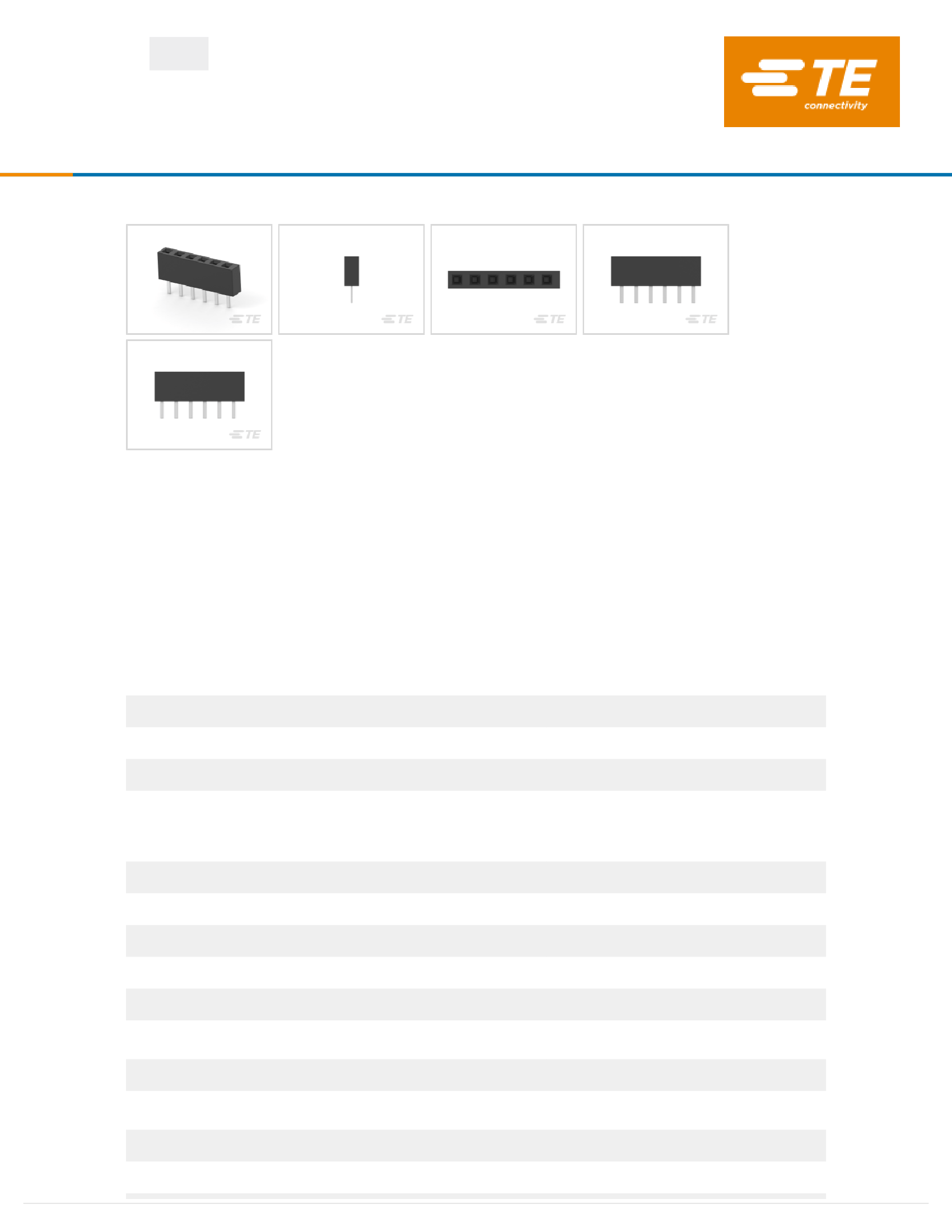

1834039-6
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, .079 in [2 mm]
Centerline, Gold Flash, Through Hole - Solder, Signal, Black
1834039-6
ACTIVE
TE Internal #: 1834039-6
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, .079 in
[2 mm] Centerline, Gold Flash, Through Hole - Solder, Signal, Black
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
PCB Connector Assembly Type:
PCB Mount Receptacle
PCB Mount Orientation:
Vertical
Connector System:
Board-to-Board
Number of Positions:
6
Number of Rows:
1
Features
Product Type Features
PCB Connector Assembly Type
Connector System
Sealable
Connector & Contact Terminates To
Configuration Features
Connector Contact Load Condition
PCB Mount Orientation
Number of Positions
Number of Rows
Board-to-Board Configuration
Body Features
Primary Product Color
Contact Features
Contact Mating Area Plating Material
Contact Mating Area Plating Material Thickness
PCB Mount Receptacle
Board-to-Board
No
Printed Circuit Board
Fully Loaded
Vertical
6
1
Parallel
Black
Gold Flash
.08 µm[3 µin]
Socket
06/09/2022 12:34AM | Page 1
For support call+1 800 522 6752
Contact Type
1834039-6
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, .079 in [2 mm]
Centerline, Gold Flash, Through Hole - Solder, Signal, Black
Contact Type
Contact Current Rating (Max)
Termination Features
Rectangular Termination Post & Tail Thickness
Rectangular Termination Post & Tail Width
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
PCB Mount Retention Type
Mating Alignment
PCB Mount Retention
PCB Mount Alignment
Connector Mounting Type
Housing Features
Centerline (Pitch)
Housing Material
Dimensions
PCB Thickness (Recommended)
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Type
Socket
1A
.2 mm[.008 in]
.5 mm[.02 in]
2.4 mm[.094 in]
Through Hole - Solder
Hold-Down Post
Without
With
Without
Board Mount
2 mm[.079 in]
Thermoplastic
2.4 mm[.094 in]
-40 – 105 °C[-40 – 221 °F]
Signal
UL 94V-0
Box, Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
Compliant
Compliant
No Restricted Materials Above Threshold
06/09/2022 12:34AM | Page 2
For support call+1 800 522 6752
1834039-6
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, .079 in [2 mm]
Centerline, Gold Flash, Through Hole - Solder, Signal, Black
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2021
(211)
SVHC > Threshold:
Not Yet Reviewed
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability
Wave solder capable to 265°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
TE Part # 1834039-4
Header Recp., 2mm, 4 POS, GOLD
FLASH
Customers Also Bought
TE Part #3-1393480-7
V23529B1123B215=SUB D FL
TE Part #7-1377174-7
SMP 0-0165619-2
TE Part #2-106506-2
15P.HDP20 REC.ASSY.
TE Part #100108-4
32P.IEC-F FEM.CONN.
For support call+1 800 522 6752
06/09/2022 12:34AM | Page 3
1834039-6
PCB Mount Receptacle, Vertical, Board-to-Board, 6 Position, .079 in [2 mm]
Centerline, Gold Flash, Through Hole - Solder, Signal, Black
TE Part #1825290-6
MHS233GRA04=DP3T SL SW R/A AU
TE Part #1834040-6
HEADER, 2.0MM PITCH, HEADER, 6P,
GF
TE Part #2-828296-0
20P MOD 2 STIFT LEI
TE Part #3-100318-2
DUAL LOADED
TE Part #5338048-6
6P. DIP SWITCH WITH ACTION PIN
POSTS
TE Part #5338048-8
8P. DIP SWITCH WITH ACTION PIN
POSTS
Documents
Product Drawings
Header Recp., 2mm, 6 POS, GOLD FLASH
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_1834039-6_B.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_1834039-6_B.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_1834039-6_B.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Product Specifications
BOX HEADER, 2.00MM PITCH SERIES.
English
Product Specification
English
