COMMODORE CLASS
- CHASSIS MOUNT WITH QUICK-CONNECT TERMINALS POWER TRANSFORMER
1.
Electrical Specifications
A. Maximum Power: 12VA
B. Input Voltage and Frequency: 115V, 115/230V or 230V
50/60Hz
C. Voltage Regulation: 18% TYP @ full load to no load
D.
E.
F.
Temperature Rise: 30 C TYP
Insulation Resistance: < 1 MEG ohm
2.
3.
Hi-Pot: 2500Vrms 1 minute @ Pri to Sec
2500Vrms 1 minute @ Pri to Core
1500Vrms 1 minute @ Sec to Core
Marking: Ensign Corp, part number (see table), date code,
country, terminal number
Safety:
UL/cUL 5085-2 Recognized (File 47299)
UL 1446 Recognized Insulation System (File 95662)
Part Number
115V
T012-1-510X

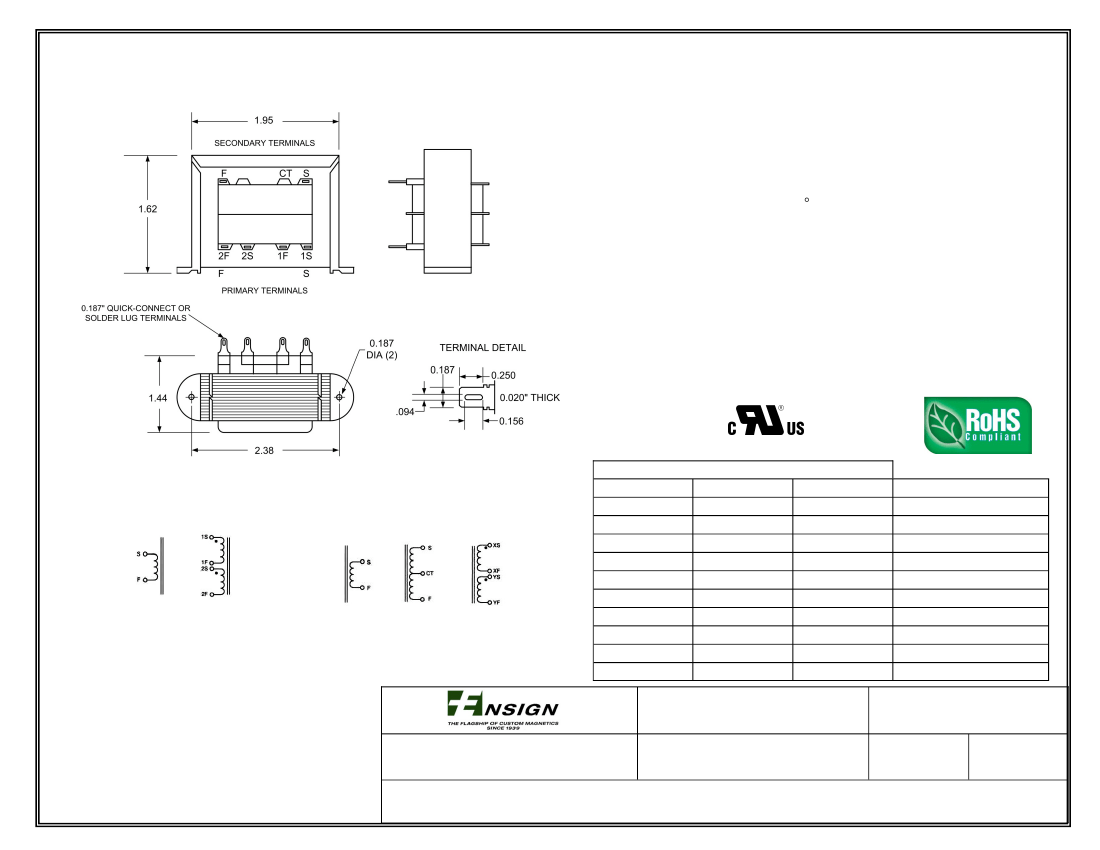

Primary Schematics
Secondary Schematics
115/230V
T012-2-510X
T012-2-512X
T012-2-516X
T012-2-520X
T012-2-524X
T012-2-528X
T012-2-536X
T012-2-548X
T012-2-556X
T012-2-620X
230V
T012-3-510X
T012-3-512X
T012-3-516X
T012-3-520X
T012-3-524X
T012-3-528X
T012-3-536X
T012-3-548X
T012-3-556X
T012-3-620X
Secondary
10VCT @ 1.2A
12.6VCT @ 1.0A
16VCT @ 800mA
20VCT @ 600mA
24VCT @ 500mA
28VCT @ 420mA
36VCT @ 350mA
48VCT @ 250mA
56VCT @ 220mA
120VCT @ 100mA
T012-1-XXXX
T012-2-XXXX
T012-3-XXXX
Dim: Inches
Sheet 1 of 1
T012-1-512X
T012-1-516X
T012-1-520X
T012-1-524X
T012-1-528X
Single Input
(Specify 115V,
120V, 230V or
240V)
Dual Input
(Specify
115/230V or
120/240V)
Single
Output
Center-Tapped
Output
Dual
Output
T012-1-536X
T012-1-548X
T012-1-556X
T012-1-620X
POWER TRANSFORMER
COMMODORE CLASS
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
Ensign Corporation
201 ENSIGN RD., BELLEVUE, IA 52031
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS
THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION
BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
