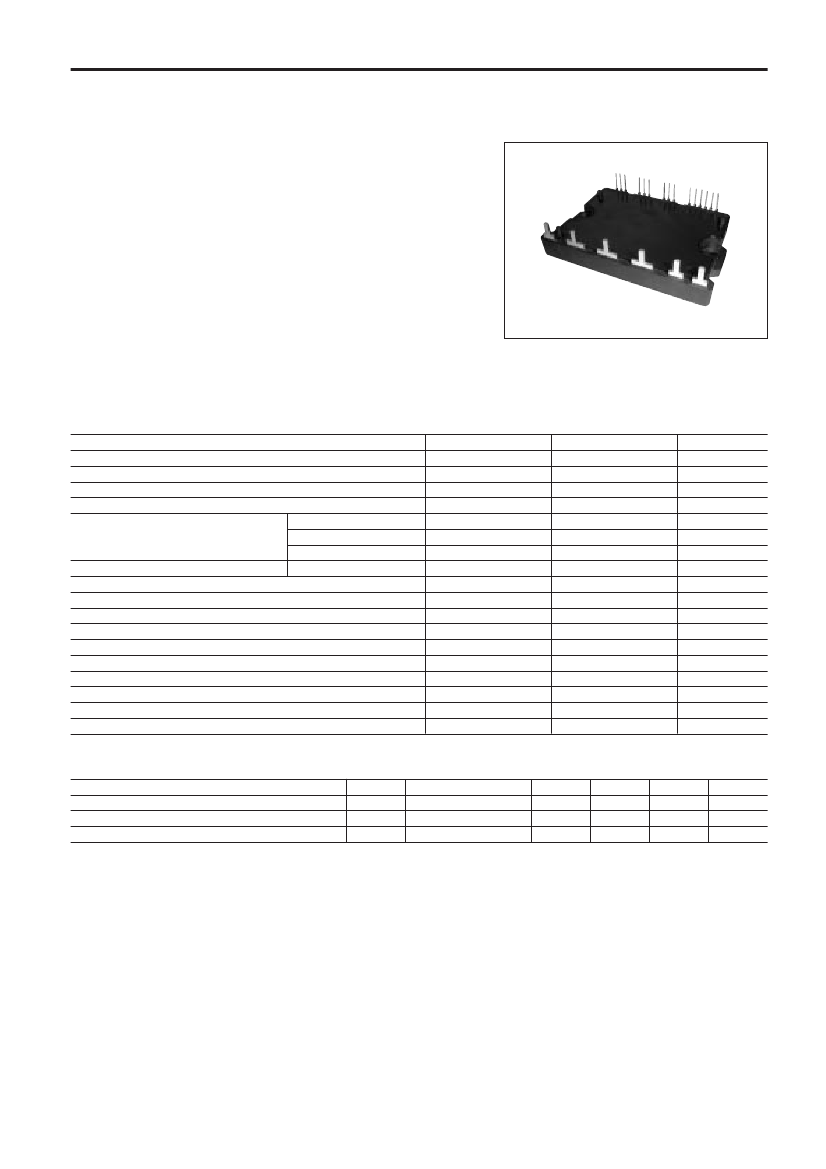

6MBP15RH060
IGBT-IPM R series
s
Features
• Low power loss and soft switching
• High performance and high reliability IGBT with overheating
protection
• Higher reliability because of a big decrease in number of parts in
built-in control circuit
IGBT Modules
600V / 15A / 6 in one-package
s
Applications
• Inverter for motor drive
• AC and DC servo drive amplifier
• UPS (Uninterruptible power supply)
s
Maximum ratings and characteristics
q
Absolute maximum ratings
(Tc=25˚C unless otherwise specified)
Item
DC bus voltage
DC bus voltage (Surge)
DC bus voltage (Short operating)
Collector-Emitter voltage
Collector current
Symbol
V
DC
V
DC (surge)
V
SC
V
CES
I
C
I
CP
–I
C
P
C
T
j
V
CC
V
in
I
in
V
ALM
I
ALM
T
stg
T
cop
V
iso
Mounting (M4)
Rating
450
500
400
600
15
30
15
40
150
–0.3 to 20
Vz
1
Vcc
15
–40 to 125
–20 to 100
AC 2500
2.0
Unit
V
V
V
V
A
A
A
W
˚C
V
V
mA
V
mA
˚C
˚C
V
N•m
Collector power dissipation
Junction temperature
Input voltage of power supply for pre-driver
Input signal voltage
Input singal current
Alarm signal voltage
Alarm signal current
Storage temperature
Operating case temperature
Isolating voltage (Terminal to base, 50/60Hz sine wave 1min.)
Screw torque
DC
1ms
Duty=44.1%
One transistor
q
Electrical characteristics of power circuit
(Tc=Tj=25˚C, Vcc=15V)
Item
Symbol
Condition
Collector current at off signal input
I
CES
V
CE
=600V, Vin open
Collector-Emitter saturation voltage
V
CE (sat)
Ic=15A
Forward voltage of FWD
V
F
–Ic=15A
Min.
–
–
–
Typ.
–
–
–
Max.
1.0
2.7
3.5
Unit
mA
V
V
6MBP15RH060
q
Electrical characteristics of control circuit
(Tc=Tj=25˚C, Vcc=15V)
Item
Power supply current of P-line pre-driver (one unit)
Power supply current of N-line pre-driver
Input signal threshold voltage
Input zener voltage
IGBT chips overheat protection temperature level
Hysteresis
Collector current protection level
OC detecting resistance value
Protection delay time
Undervoltage protection level
Hysteresis
Alarm signal hold time
Symbol
I
CCP
I
CCN
V
In (th)
V
Z
T
joH
T
jH
I
OC
V
OC
R
OC
t
DOC
V
UV
V
H
t
ALM
Condition
V
in
=H
V
in
=H
T
urn-on
T
urn-off
R
in
=20k
Surface of IGBT
N-side, (N1-N2 open)
Between N1 and N2
Tj=25˚C Fig. 1, Fig. 2
Min.
–
–
1.00
1.25
–
150
–
21
190
–
–
11.0
0.2
1.0
Typ.
IGBT Modules
Max.
5.0
10.0
1.70
1.95
–
–
–
33
210
–
7.0
12.5
0.8
–
Unit
mA
mA
V
V
V
˚C
˚C
A
mV
m
µs
V
V
ms
2.0
4.0
1.35
1.60
8.0
–
20
27
200
7.5
5.0
–
–
2.0
q
Switching characteristics
(Tc=Tj=25˚C, Vcc=15V)
Item
Switching time (IGBT) See Fig. 3
Switching time (FWD)
Symbol
t
on
t
off
t
rr
Condition
Ic=15A, V
DC
=300V
Inductive-Load
Min.
0.5
–
–
Typ.
–
–
–
Max.
–
3.5
0.5
Unit
µs
µs
µs
Fig.2 Definition of tsc
Fig.1 Definition of OC delay time
Fig.3 Definition of switching time
q
Thermal characteristics
(Tc=Tj=25˚C, Vcc=15V)
Item
Junction to case thermal resistance
IGBT
FWD
Case to fin thermal resistance with compound
q
Recommendable value
Item
DC bus voltage
Operating power supply voltage range of pre-drive
Switching frequency
Flatness of heat sink
Mounting screw torque (M4)
Symbol
Rth (j-c)
Rth (j-c)
Rth (c-f)
Min.
–
–
–
Typ.
–
–
0.05
Max.
3.1
5.4
–
Unit
˚C/W
˚C/W
˚C/W
Symbol
V
DC
V
CC
f
sw
–
–
Min.
200
13.5
1
–100
1.3
Typ.
–
15
–
–
–
Max.
400
16.5
20
100
1.7
Unit
V
V
kHz
µm
N•m
6MBP15RH060
s

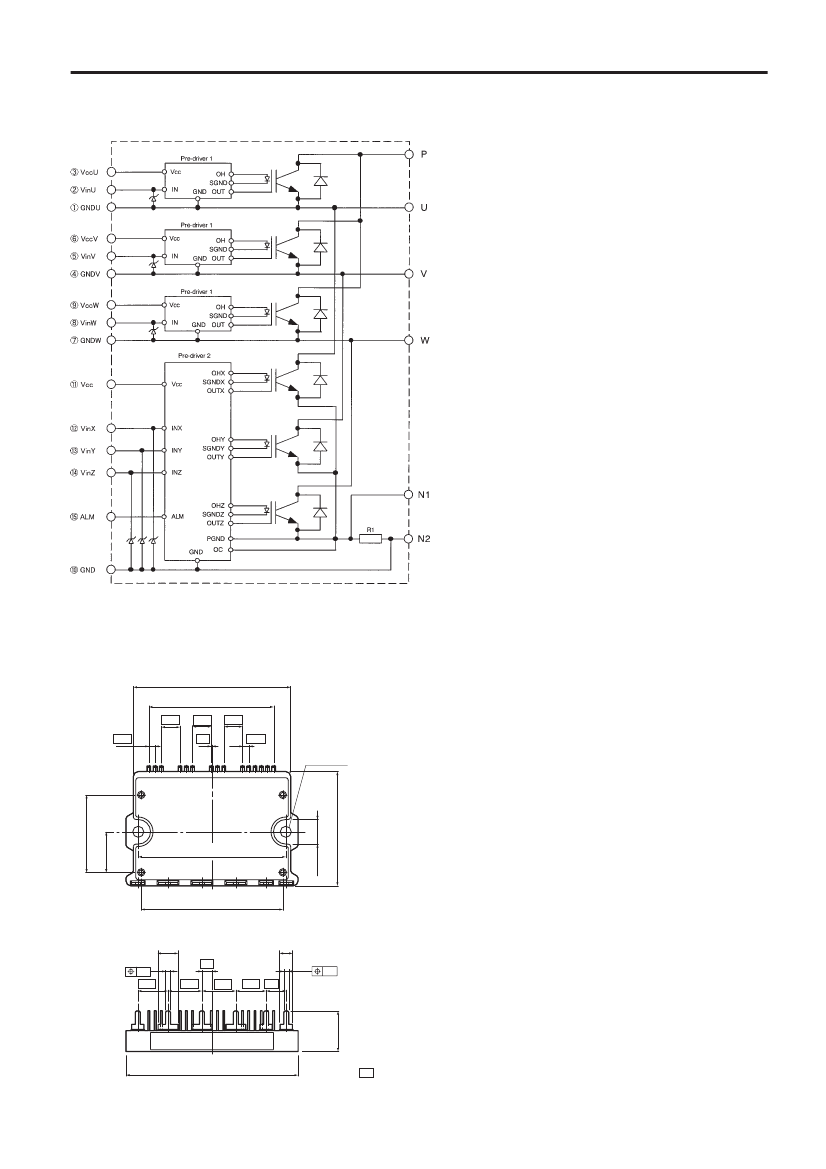

Block diagram
IGBT Modules
Pre-driver 1 includes following functions. (P-side)
• Amplifier for drive
• Power supply undervoltage protection
• IGBT chip overheating protection
Pre-driver 2 includes following functions. (N-side)
• Amplifier for drive
• Power supply undervoltage protection
• IGBT chip overheating protection
• Overcurrent protection
• Alarm signal output
s
Outline drawings, mm
64
±1
50.8
±0.8
7.62
2.54
7.62
0.3
7.62
2.54
2-ø4.5
±0.3
1
4
7
10
15
31.5
±0.8
16.5
±0.8
P
U
V
W
N1
N2
57.6
±0.8
8
0.6
12.3
2
±0.1
13.8
4.1
13.8
12.3 8.2
5
2
±0.1
0.6
10
±0.5
16.5
±0.5
60
±0.3
70
±1
46.5
±1
Shows theory dimensions
Mass : 50g
6MBP15RH060
s
Characteristics (Representative)
IGBT Modules

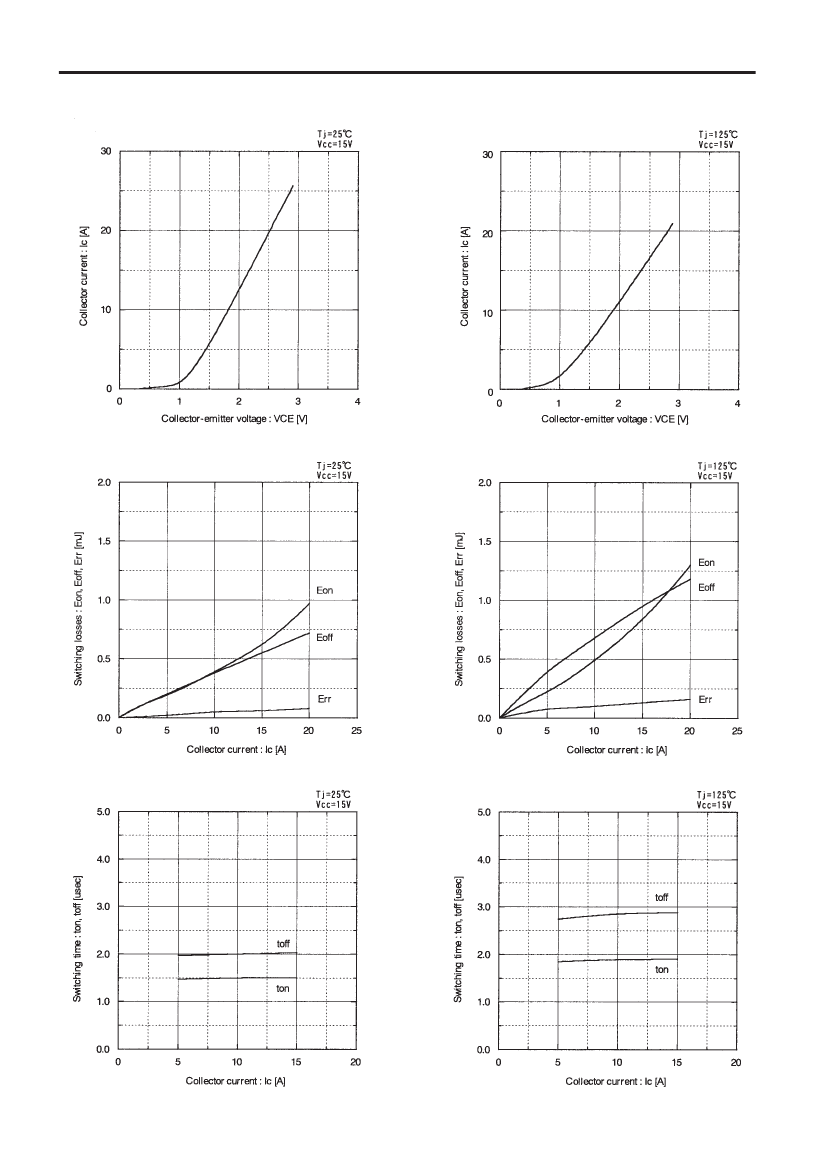

Collector current vs. Collector-emitter voltage
Collector current vs. Collector-emitter voltage
Switching losses vs. Collector current
Switching losses vs. Collector current
Switching time vs. Collector current
Switching time vs. Collector current
6MBP15RH060
IGBT Modules

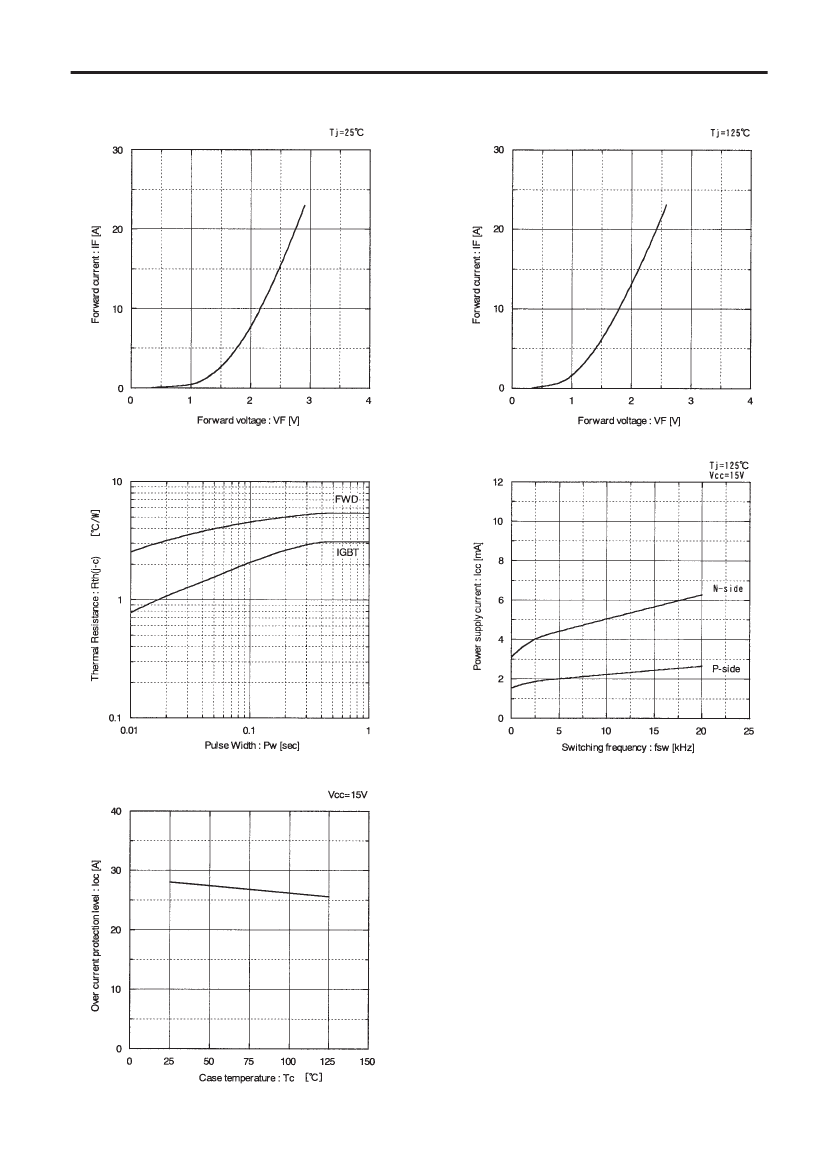

Forward voltage vs. Forward current
Forward voltage vs. Forward current
Transient thermal resistance
Power supply current vs. Switching frequency
Overcurrent protection vs. Case temperature
