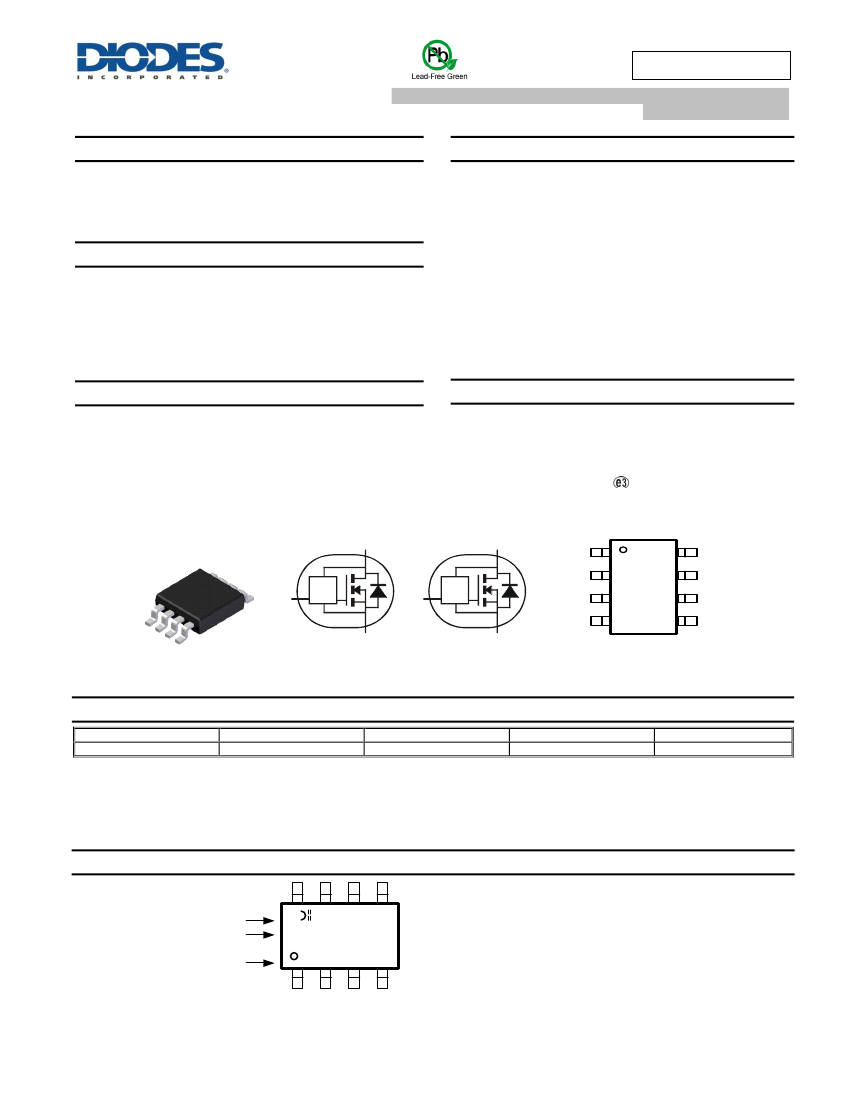

Halogen and Antimony Free. “Green” Device (Note 3)
Description

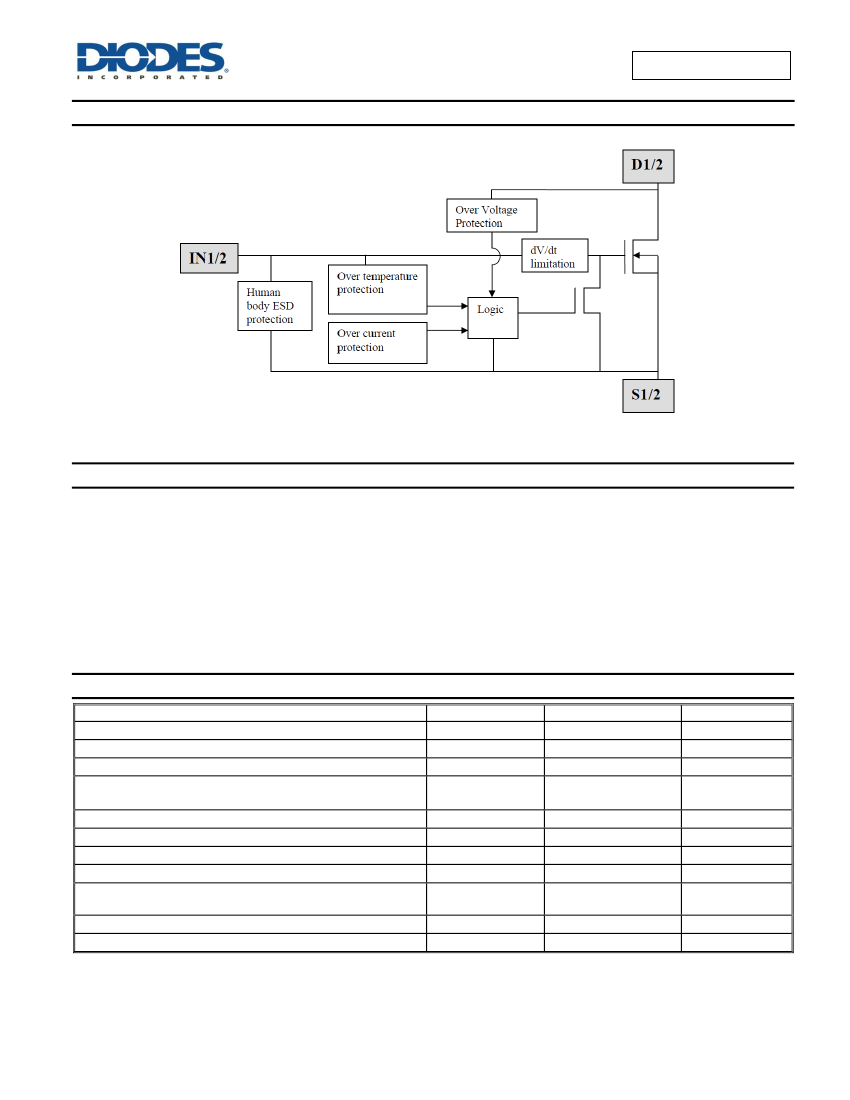

The ZXMS6004DN8 is a dual self-protected low side MOSFET with
logic level input. It integrates over-temperature, overcurrent,
overvoltage (active clamp) and ESD protected logic level functionality.
The ZXMS6004DN8 is ideal as a general purpose switch driven from
3.3V or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
Lamp Driver
Motor Driver
Relay Driver
Solenoid Driver
Mechanical Data
SO-8
D1
D2
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 79.1 mg (Approximate)
S1
IN1
IN1
IN2
D1
D1
D2
D2
Top View
Pin-Out
S2
IN2
S1
S2
Top View
Device Symbol
Ordering Information
(Note 4)
Product
ZXMS6004DN8-13
Notes:
Marking
6004DN8
Reel size (inches)
13
Tape width (mm)
12
Quantity per reel
2,500 units
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
6004DN8 = Product name
Logo
Part No.
Pin 1.
6004DN8
YY WW
YY: Year
WW: Week: 01~52;
52 represents 52 and 53 week
Top View
IntelliFET is a registered trademark of Diodes Incorporated.

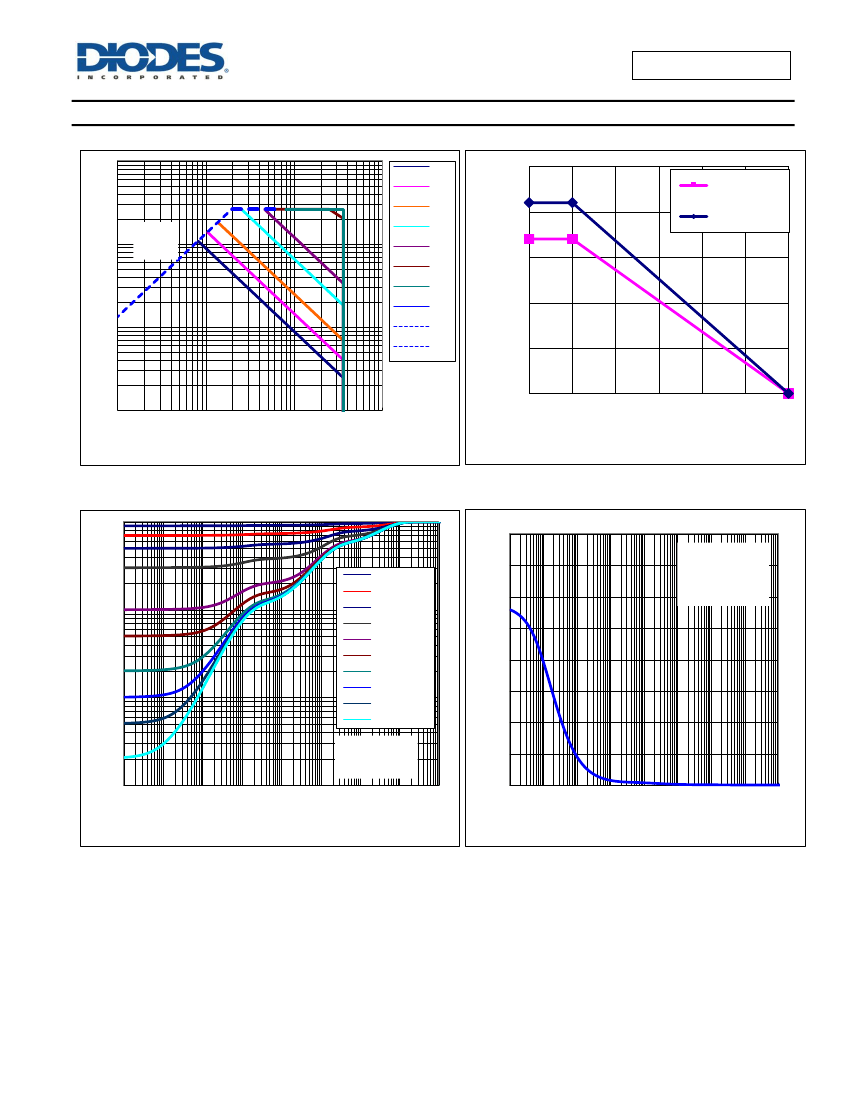

8. The drain current is restricted only when the device is in saturation (see graph ”Typical Output Characteristic”). This allows the device to be used in the
on state without interference from the current limit. The device is fully protected at all drain currents, as the low power dissipation generated outside
saturation makes current limit unnecessary.
9. Over-temperature protection is designed to prevent device destruction under fault conditions. Fault conditions are considered as “outside” normal
operating range, so this part is not designed to withstand over-temperature for extended periods.
