Series AMSRW-78-NZ
Up to 12 Watt | DC-DC Switching Regulator
FEATURES:
3 Pin SIP Package
Pin-out compatible with LM78XX Linear Regulators
Short Circuit Protection
Non-Isolated Regulated Outputs
Soft Start
Operating temperature -40°C to +85°C
Wide input range up to 8:1
Very High Efficiency Up To 91%
Low ripple and noise
Models
Single output
Model
Input Voltage
(V)
Output Voltage
(V)
3.3
5
6.5
12
24
3.3
5
12
15
24
Output Current
max (mA)
500
500
500
500
500
500
500
500
500
500
Efficiency
Vin Min
(%)
82
87
91
93
95
82
87
93
94
95
Efficiency
Vin Max
(%)
75
81
84
89
91
75
81
89
90
91
AMSRW-783.3-NZ
9 ~ 72
AMSRW-7805-NZ
9 ~ 72
AMSRW-786.5-NZ
9 ~ 72
AMSRW-7812-NZ
17 ~ 72
AMSRW-7824-NZ
36 ~ 72
90 Degree Angle Pins Version (L)
AMSRW-783.3L-NZ
9 ~ 72
AMSRW-7805L-NZ
9 ~ 72
AMSRW-7812L-NZ
17 ~ 72
AMSRW-7815L-NZ
20 ~ 72
AMSRW-7824L-NZ
36 ~ 72
Input Specifications
Input Specifications
Voltage range
Quiescent Current
Short Circuit consumption
Nominal
Vin= Nom, min load
Vin = Nominal
Typical
See the table above
1
0.72
Maximum
5
1.2
Units
VDC
mA
W
Output Specifications
Output Specifications
Voltage accuracy
Short Circuit protection
Short circuit restart
Output current limit
Dynamic load stability
Line voltage regulation
Load voltage regulation
Temperature coefficient
Ripple & Noise
Maximum Capacitive Load
Conditions
100% load
Typical
±2
Continuous.
Auto recovery
Maximum
±3
Units
%
10-100% load, 1 / 1.5ms
Vin=(LL-HL) at full load
10-100% load
-40°C to +85°C ambient
20MHz Bandwidth
(10-100% load)
±0.4
±0.3
60
1.2
±100
±1
±0.6
±0.015
A
mV
%
%
%/
o
C
mV p-p
100
µF
General Specifications
Input Specifications
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
Humidity
Conditions
100% load
With derating above 71°C
Minimum
120
-40 to +85
-55 to +125
Maximum
800
Units
KHz
o
C
o
C
o
C
%
100
Free air convection
95
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AMSRW-78-NZ
Up to 12 Watt | DC-DC Switching Regulator
General Specifications (continued)
Input Specifications
Conditions
Minimum
Maximum
Units
Case material
Non-conductive black plastic (UL94V-0 rated)
Weight
4
g
Dimensions
(L x W x H)
0.45 X 0.35 X 0.69 inch
11.50 X 9.00 X 17.50 mm
MTBF
> 3 500 000hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
o
Soldering Temperature
1.5 mm from case for 10 sec
300
C
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Pin Out Specifications
Pin
1
2
3
Single
+Vin
GND
+Vout

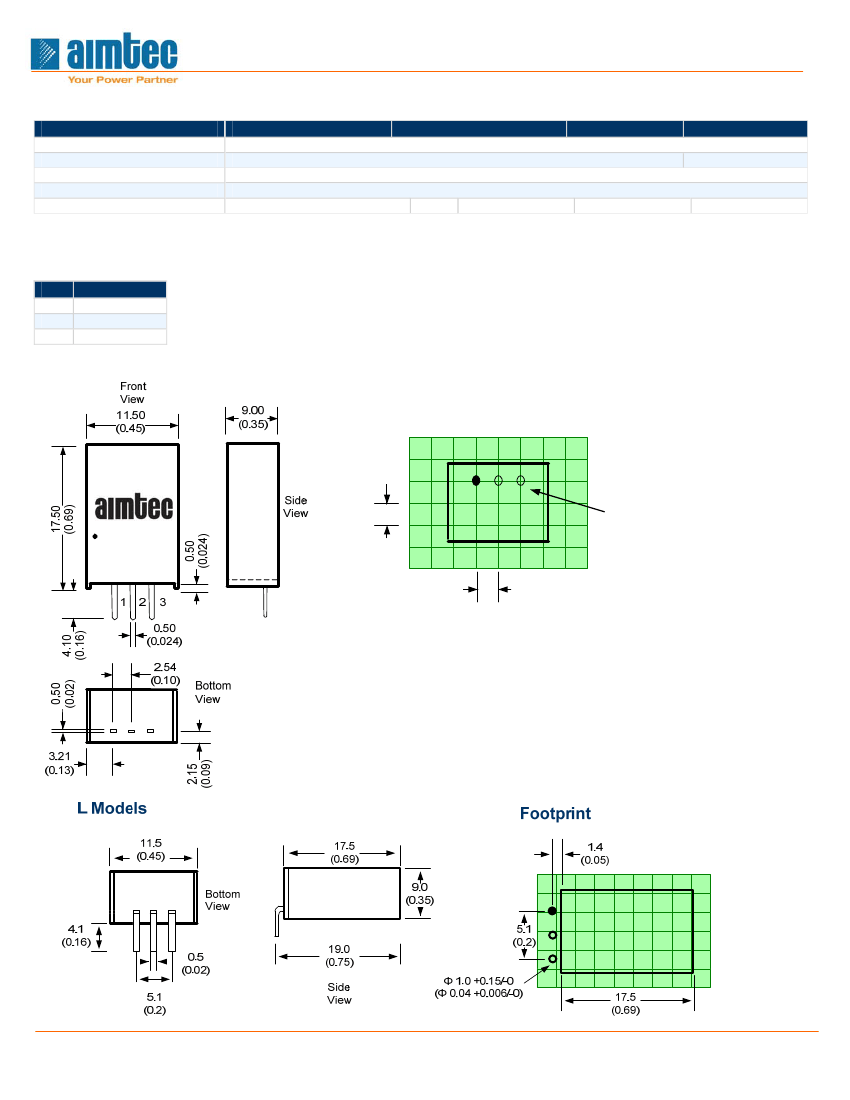

Dimensions
Footprint
2.54
(0.10)
Ø 1.0 +0.15/-0
(Ø 0.04 + 0.006/-0
2.54
(0.10)
DIV: 2.54 (0.1)
Dimensions are typical values: mm (inch)
General Tolerance: ± 0.25 (± 0.01)
Pin Tolerance: ± 0.1 (± 0.004)
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AMSRW-78-NZ
Up to 12 Watt | DC-DC Switching Regulator

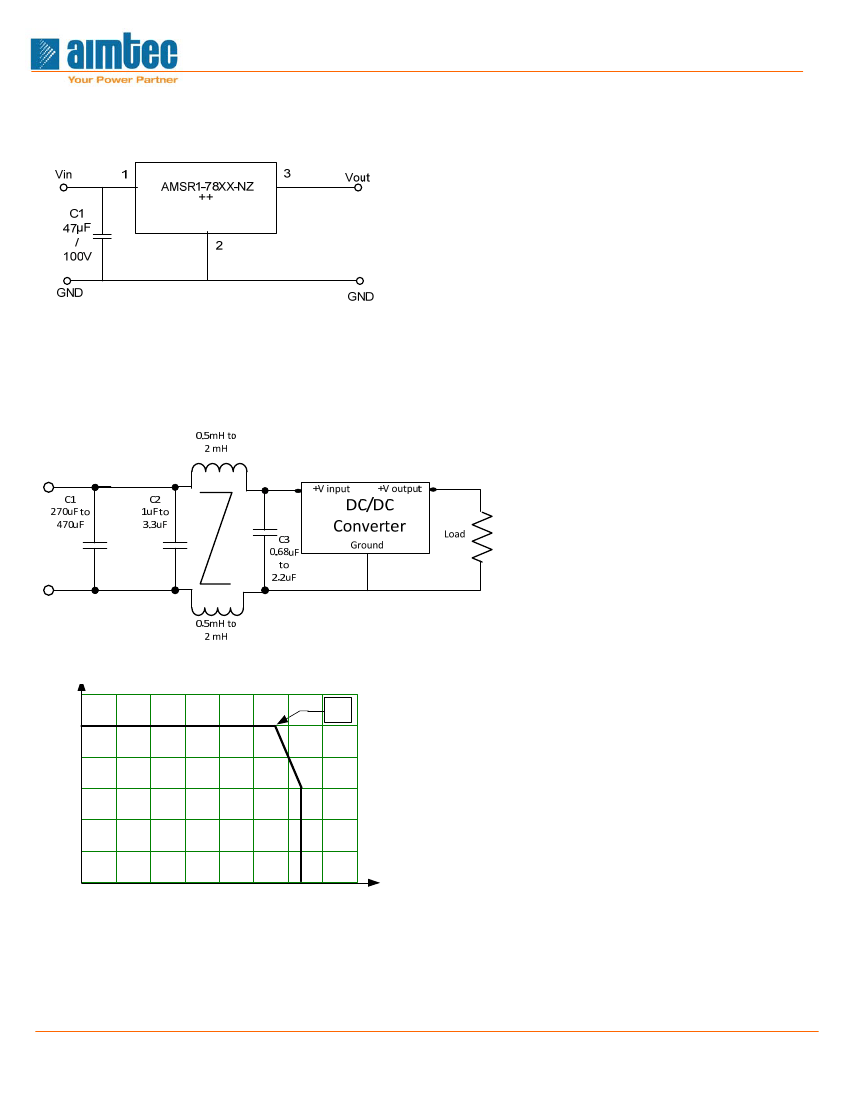

Typical Application Circuit
Abrupt low to high inputs may damage the regulator. C1 capacitor is required to filter potentially damaging voltage spikes if high voltage is
applied. Typical value is (47µF / 100V).
NOTE: This part is not designed for parallel operation.
Recommended Circuits
Conducted and Radiated Emissions
Derating
Free Air Convection
71º C
100
Output Power (%)
80
Safe Operating Area
60
40
20
0
- 40
- 20
0
20
40
60
80
85
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
