793DE156X9010C2TE3

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 15 uF, SURFACE MOUNT, 2312, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size102KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

793DE156X9010C2TE3 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 15 uF, SURFACE MOUNT, 2312, CHIP, ROHS COMPLIANT

793DE156X9010C2TE3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1744635287
package instruction, 2312
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance15 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR1800 mΩ
high2.5 mm
JESD-609 codee3
leakage current0.0015 mA
length6 mm
Manufacturer's serial number793DE
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 7 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)10 V
ripple current250 mA
series793DE
size code2312
surface mountYES
Delta tangent0.06
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeJ BEND
width3.2 mm

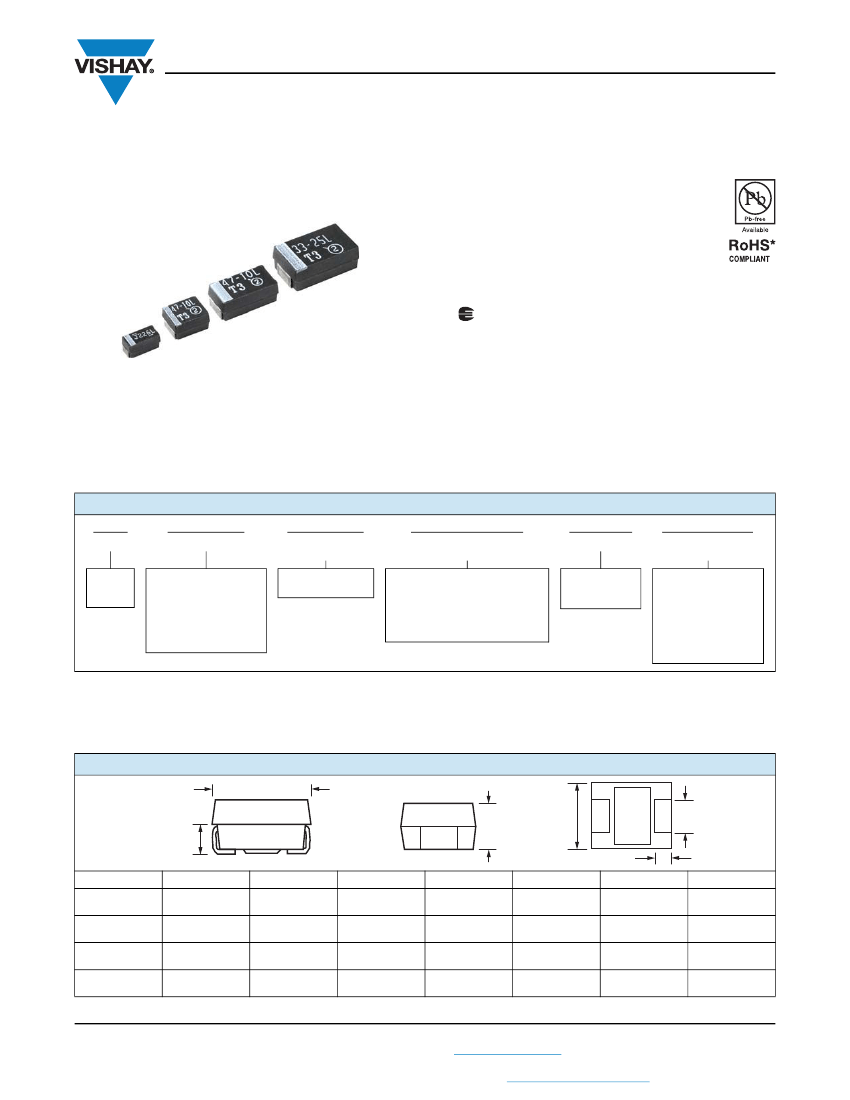

793DX-793DE-CTC3-CTC4
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
T
ANTAMOUNT®
Molded Case, CECC Approved
FEATURES
• Terminations: 100 % matte tin, standard,
tin/lead available
• Compliant terminations
• Molded case available in four case codes
• Compatible with “High Volume” automatic pick
and place equipment
• Optical character recognition qualified
CECC
30801/005 - 793DX
30801/009 - CTC3
30801/011 - CTC4
30801/801 - 793DE
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
0.10 μF to 100 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
793DX
TYPE
793DE
CTC3
CTC4
106
CAPACITANCE
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros
to follow.
X0
CAPACITANCE
TOLERANCE
X9 = ± 10 %
X0 = ± 20 %
010
DC VOLTAGE RATING
AT + 85 °C
This is expressed in V. To
complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
B
CASE CODE
See Ratings
and Case
Codes table.
2WE3
TERMINATION
AND PACKAGING
2TE3: Matte tin,
7" (178 mm) reel
2WE3: Matte tin,
13" (330 mm) reel
8T: Tin/lead,
7" (178 mm) reel
8W: Tin/lead,
13" (330 mm) reel
Note
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
Effective July 15, 2008, part numbers with solderable termination codes “2T” and “2W” may have either matte tin or tin/lead terminations.
Codes 2TE3 and 2WE3 specify only matte tin terminations. Codes 8T and 8W specify only tin/lead terminations.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
(MIN.)
P
T
W
CASE CODE
A
B
C
D
EIA SIZE
3216-18
3528-21
6032-28
7343-31
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
Revision: 14-May-08
Document Number: 40112
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
