Printed Circuit Board Mount Power Film Capacitors
C4AE, Radial, 2 or 4 Leads, 450 – 1,100 VDC
for DC Link
Overview

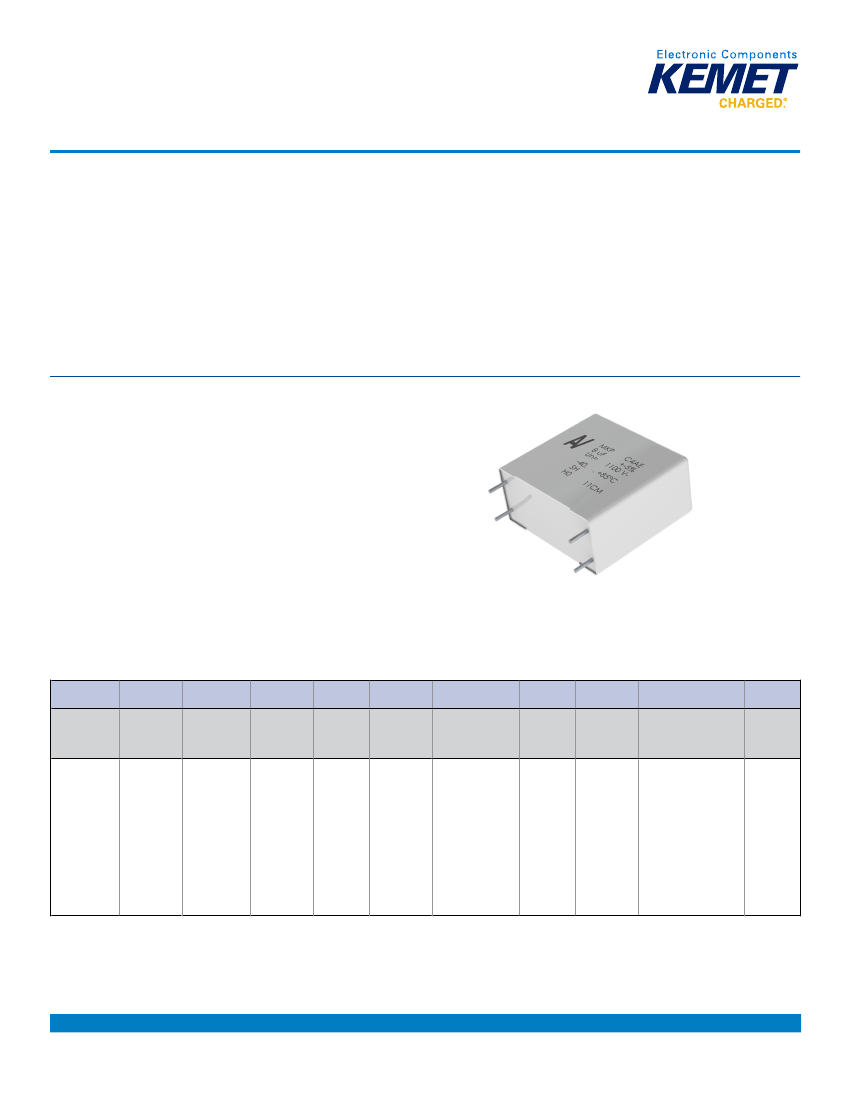

The C4AE capacitors are polypropylene metallized film, with
rectangular plastic box type filled with resin (white and grey
color) and 2 or 4 tinned copper wires.
Applications
Typical applications include DC filtering and energy storage.
Benefits
•
•
•
•
•
•
Self-healing
Low losses
High ripple current
High capacitance density
High contact reliability
Suitable for high frequency applications
Click image above for interactive 3D content
Part Number System
C4
Series
C4 =
MKP
Power
Capacitors
Open PDF in Adobe Reader for full functionality
A
Type
A=
Box,
wire
terminals
E
Application
E=
DC link
Q
Rated
Voltage
(VDC)
G = 450
H = 600
J = 700
O = 900
Q = 1,100
B
Case
B=
Box,
plastic
case
W
Terminals
Code
U = 2 pins
W = 4 pins
5270
Capacitance
Code (pF)
Digits two –
four indicate
the first three
digits of the
capacitance
value. First
digit indicates
the number
of zeros to be
added.
A
C-Spec
A=
Standard
grade
3
Lead
Diameter
(mm)
1 = 0.8
2 = 1.0
3 = 1.2
N
Size Code:
B x H x L (mm)
W = 11 x 20 x 31.5
X = 13 x 25 x 31.5
Y = 14 x 28 x 31.5
1 = 19 x 29 x 31.5
2 = 22 x 37 x 31.5
F = 20 x 40 x 42
J = 28 x 37 x 42
L = 30 x 45 x 42
M = 30 x 45 x 57.5
N = 35 x 50 x 57.5
J
Tolerance
J = 5%
K = 10%
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3046_C4AE_RADIAL • 10/25/2018
1
Power and AC Film Capacitors – Printed Circuit Board Mount Power Film Capacitors
C4AE, Radial, 2 or 4 Leads, 450 – 1,100 VDC, for DC Link
Dimensions – Millimeters
L
H
d
p
LL
B
0.5
B
0.5
p1
p
p
1
4pin
2pin
p
Size
Code
W
X
Y
1
2
F
J
L
M
N
p
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
52.5
52.5
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
p1
11
13
14
19
22
5.1/10.2
10.2
20.3
20.3
20.3
±0.4
±0.4
±0.4
±0.4
±0.4
20
28
30
30
35
B
+0.3
+0.3
+0.3
+0.3
+0.3
+0.4
+0.4
+0.4
+0.5
+0.5
20
25
28
29
37
40
37
45
45
50
H
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.3
+0.3
31.5
31.5
31.5
31.5
31.5
42.0
42.0
42.0
57.5
57.5
L
+0.5
+0.5
+0.5
+0.5
+0.5
+0.6
+0.6
+0.6
+0.8
+0.8
6
6
6
6
6
6
6
6
6
6
LL
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
+0/−2
0.8
0.8
0.8
0.8
0.8
1.2
1.2
1.2
1.2
1.2
d
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Qualifications
Reference Standards
Climatic Category
IEC 61071, EN61071, VDE0560
40/85/56 according to IEC
60068–1
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3046_C4AE_RADIAL • 10/25/2018
2
Power and AC Film Capacitors – Printed Circuit Board Mount Power Film Capacitors
C4AE, Radial, 2 or 4 Leads, 450 – 1,100 VDC, for DC Link
General Technical Data
Dielectric
Application
Climatic Category
Maximum Operating Temperature
Endurance Test
Standard
Protection
Installation
Leads
Packaging
RoHS Compliant
Polypropylene metallized film - non inductive self-healing property
DC filtering/DC-Link
40/85/56 IEC 60068–1
+105°C
500 hours + 500 hours at 1.3 x V
NDC
at 85°C
IEC 61071 – EN61071 – VDE0560
Solvent resistant plastic case UL94 V–0
Thermosetting resin sealing UL94 V–0 compliant
Any position
Tinned copper wires – standard lead wire length 6 (+0/−2) mm
Packed in cardboard trays with protection for the terminals
'Compliant with Directive 2002/95/EC and Directive 2011/65/
EU of the European Parliament and of the Council of 8 June 2011,
including Commission Delegated Directive (EU) 2015/863 amending
Annex II to Directive 2011/65/EU.
Electrical Characteristics
Rated Capacitance range
Rated Voltage (VNDC) range
Capacitance Tolerance
Dissipation Factor PP typical
(tgδ0)
Surge Voltage
Overvoltage (IEC 61071)
Peak non Repetitive Current
Insulation Resistance
Capacitance deviation in operation
Temperature Storage
Storage time
Permissible Relative Humidity -
Storage
1 to 130 µF
450 to 1,100 VDC
±5% (J) or ±10% (K) measured at T = +25°C
≤ 0.0002 at 10 kHz with T = 25°C (±5°C)
1.5 * V
NDC
for maximum 10 times in life time at 25°C
1.15 * V
NDC
for maximum 30 minute - once per day
1.3 * V
NDC
for maximum 1 minute - once per day
1.5 * I
PKR
- maximum 1,000 times in life time
IR x C ≥ 30.000 seconds at 100 Vdc 1 minute (+25°C)
±1.5% maximum on capacitance value measured at T = +25°C
−40 to +80°C
≤ 36 months from the date marked on the label glued to the package
Annual average ≤ 70%; 85% on 30 days/year randomly distributed
throughout the year. Dewing not admissible
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3046_C4AE_RADIAL • 10/25/2018
3
Power and AC Film Capacitors – Printed Circuit Board Mount Power Film Capacitors
C4AE, Radial, 2 or 4 Leads, 450 – 1,100 VDC, for DC Link
Life Expectancy
Life expectancy
Capacitance drop at end of life
Failure rate IEC 61709
100.000 hours at V
NDC
at Hot spot temperature T
HS
= +85°C
−5% (typical)
≤ 300 FIT at V
NDC
at Hot spot temperature T
HS
= +85°C
Test Method
Test voltage between terminals
Test voltage between terminals
and case
Damp Heat
Change of temperature
1.5 * V
NDC
for 10 seconds or 1.65 * V
NDC
for 2 seconds, at +25°C
3.2 kVac 50 Hz for 2 seconds
IEC 60068–2–78
IEC 60068–2–14
Operative Voltage Derating
Voltage (VDC)
Operative Voltage at 70°C (T
HS
)
Rated Voltage at 85°C (T
HS
)
Operative Voltage at 105°C (T
HS
)
500
450
350
650
600
450
800
700
550
1,100
900
700
1,300
1,100
850
Life Expectancy (hrs)
100,000
100,000
2,000
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3046_C4AE_RADIAL • 10/25/2018
4
Power and AC Film Capacitors – Printed Circuit Board Mount Power Film Capacitors
C4AE, Radial, 2 or 4 Leads, 450 – 1,100 VDC, for DC Link

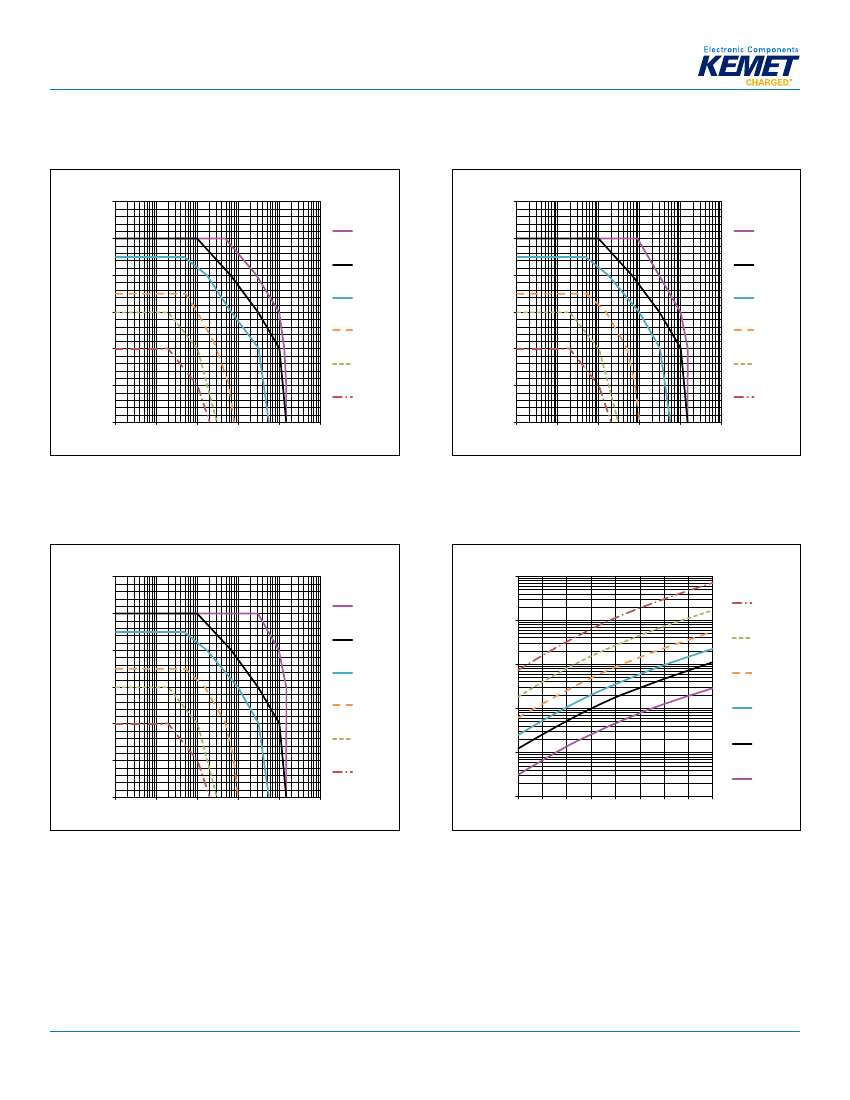

Lifetime Expectancy/Failure Quota Graphs
Lifetime Curve V
NDC
= 450 V-
1.40
Hot Spot
Temperature
[°C]
Lifetime Curve V
NDC
= 600 V- and V
NDC
= 700 V-
1.40
Hot Spot
Temperature
[°C]
1.30
70
1.30
70
90
1.10
95
1.00
100
0.90
105
0.80
Voltage Ratio [V/V
NDC
]
Voltage Ratio [V/V
NDC
]
1.20
85
1.20
85
90
1.10
95
1.00
100
0.90
105
0.80
10
100
1,000
10,000
100,000
1,000,000
10
100
1,000
10,000
100,000
1,000,000
Lifetime Expectancy [h]
Lifetime Expectancy [h]
Lifetime Curve V
NDC
= 900 V- and V
NDC
= 1,100 V-
1.40
Hot Spot
Temperature
[°C]
100,000
FIT at Hot Spot Temperatures
Hot Spot
Temperature
[°C]
105
10,000
1.30
70
Voltage Ratio [V/V
NDC
]
1.20
85
1,000
FIT
100
90
1.10
95
1.00
100
0.90
105
0.80
95
100
90
10
85
70
1
0.5
0.6
0.7
0.8
0.9
V/V
NDC
1.0
1.1
1.2
1.3
10
100
1,000
10,000
100,000
1,000,000
Lifetime Expectancy [h]
Notes:
T
HS
= T
AMB
+ ΔT
ΔT = ESR * I
rms
2
* Rth
I
rms
should be limited to values granting ΔT ≤ 30°C
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3046_C4AE_RADIAL • 10/25/2018
5
