Metal Line Switches
www.schurter.com/PG70

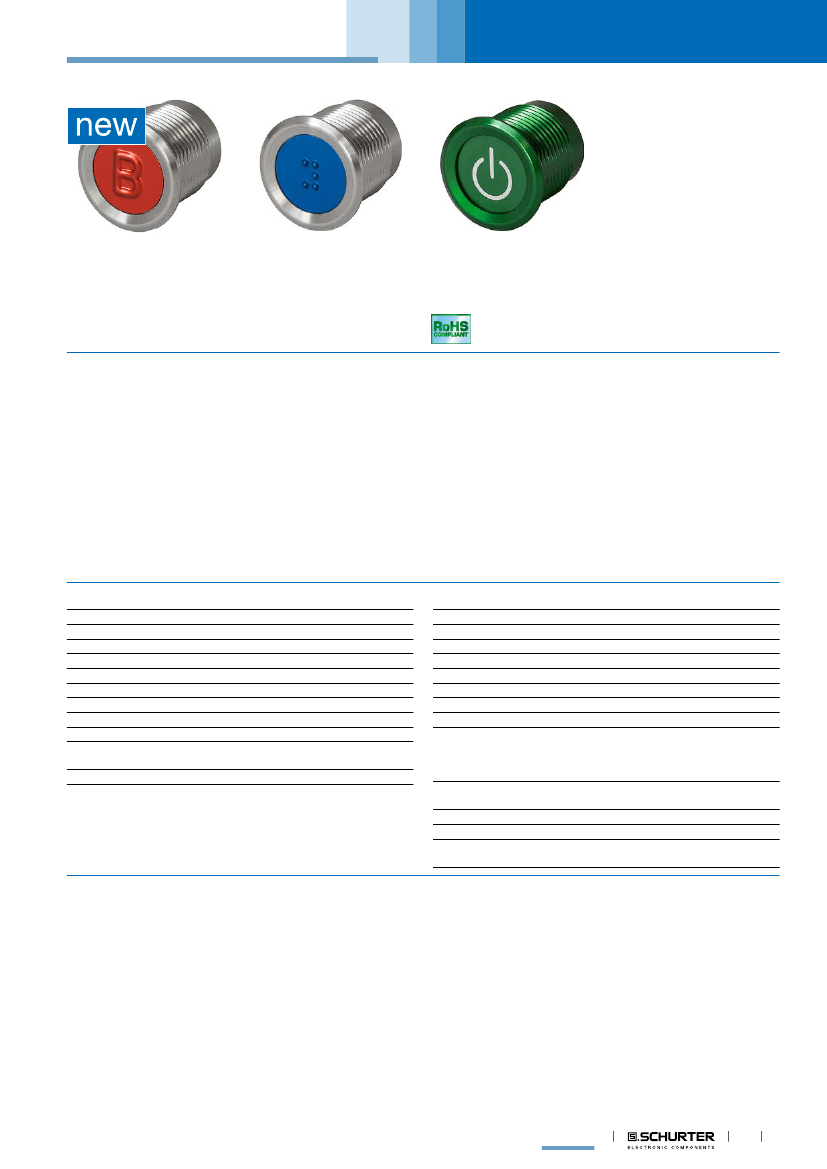

Piezo Switch with Extended Protection against Vandalism
PSE HI 22
PSE M22 HI Embossed
PSE M22 HI Braille
PSE M22 HI VS
Description
- Momentary switch available in version Standard or with Lettering/Sym-
bols
- Assembly by mounting with nut
- Quick connect terminals or wires
Characteristics
Approvals
- Fire Test according to DIN EN 81-71: stress class 1 + 2 (Elevators)
- MIL-STD Certificate Number: 416D Method RS103
- VDE Certificate Number: DIN EN 61000-4-2, DIN EN 61000-4-4
- Housing and actuating area material: high-quality stainless steel, optio-
nal aluminium anodized in various colours
- Laser lettering, embossed symbols, Braille, standard or customized
characters and symbols
- High reliability, long lifetime with more than 20 mill. actuations
- piezo switch with enhanced vandal proof protection to IK 06 impact
resistance rating
- For use in harsh environments, both indoors and outdoors
References
Weblinks
Alternative: Standard version
PSE NO 22
Alternative: switch with prolonged signal:
PSE IV 22
html-datasheet, General Product Information, CE declaration of
conformity, RoHS, CHINA-RoHS, e-Shop, CAD-Drawings, Product
News, Detailed request for product
Technical Data
Electrical Data
Switching Function
Switching Voltage
Switching Current
Rated Breaking Capacity
Lifetime
Switch Resistance OFF
Switch Resistance ON
Capacity
N.O. Closing Impulse Duration
Contact Configuration
N.O.
max. 42 / 60 VAC/DC
max. 100 mA
1W
20 million at Rated Switching Capacity
> 10 MΩ
< 20
Ω
30 pF
20- 1000 ms depending on actuating
force, time and speed
free polarity
Mechanical Data
Actuating Force
Actuating Travel
Shock Protection
Tightening Torque
Climatical Data
Operating Temperature
Storage Temperature
IP-Protection
2-5N
0.002 mm
IK 06
2.5 Nm
-20 to +60 °C
-20 to +60 °C
IP 67 Front Side submerged (1m water
column), , front side / rear side DIN EN
60068-2-30 Db (Moist heat - air test
with 55°C / 93% humidity)
24 h / 48 h / 96 h Residence Time
Salt Spray Test (acc. to DIN
50021-SS)
Material
Housing
Actuating Area
Stainless Steel
Stainless Steel, Aluminium anodized for
embossed symbols and Braille
Switches
1
PSE HI 22

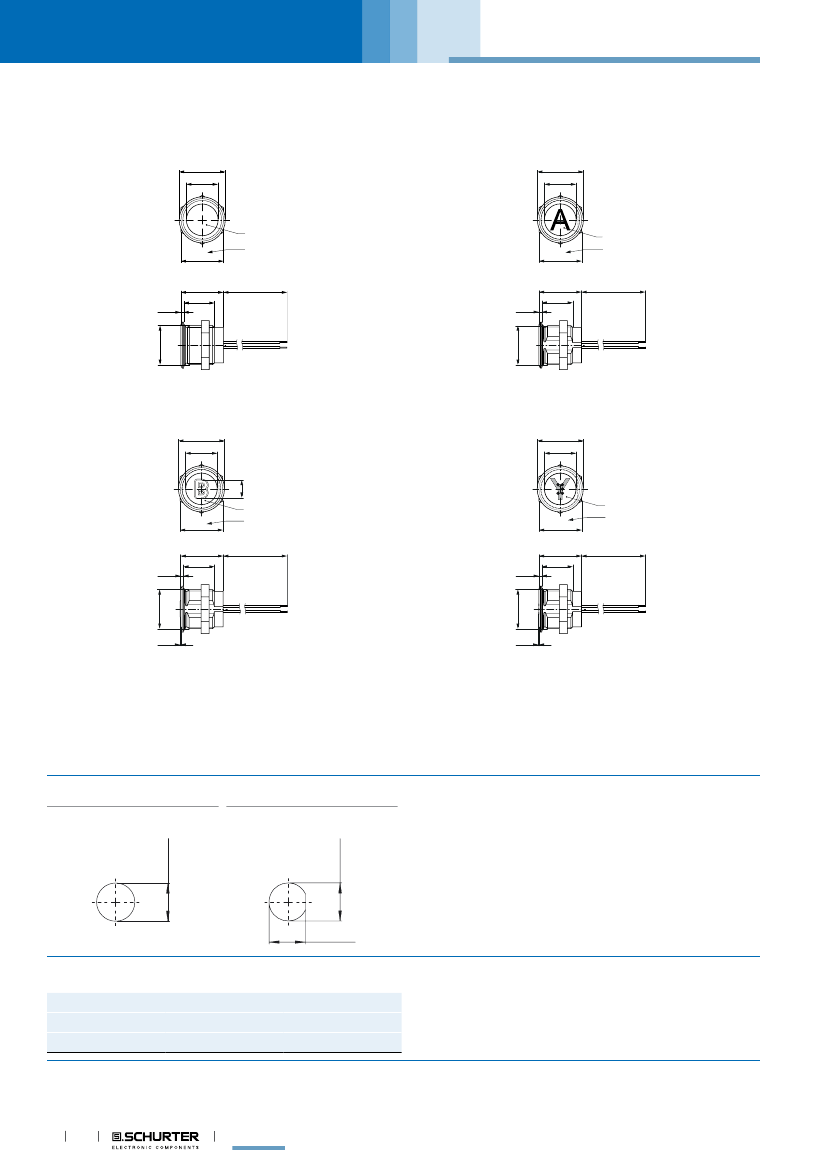

Dimension
PSE M22 HI Standard with stranded wire (without anti-rotation)
Ø
26
Ø
17.9
Metal Line Switches
www.schurter.com/PG70
PSE M22 HI Laser marking with stranded wire (with anti-rotation)
Ø
26
Ø
17.9
A
B
24
24
A
B
24
17.4
1.6
M22x1.5
~200 mm
1.6
M22x1.5
24
17.4
~200 mm
PSE M22 HI Embossed marking with stranded wire (with anti-rotation)
Ø
26
Ø
17.9
PSE M22 HI Braille marking with stranded wire (with anti-rotation)
Ø
26
Ø
17.9
10
24
24
17.4
1.6
M22x1.5
A
B
A
B
24
24
17.4
1.6
M22x1.5
~200 mm
~200 mm
0.3
0.2
Either with/without embossed characters or smbols in various colors
Legend:
A = Actuating area
B = Width across flats
- Wire (Standard: 0.14 mm² / 200 mm wire-length)
Lettering:
- Either with/without lettering
- Position of the connections with respect to the position of the lettering is not defined
With Braille and Laser marking in various colors
Dimension
PSE M22 without anti-rotation
+0.1
PSE M22 with anti-rotation
Ø
22.1
0
+0.5
0
+0.1
Ø
22.1
0
21.15
Lettering Colour of Laser Lettering
Material
Stainless Steel
Aluminium
Lettering Colour
black
white
Filled letters
Filled letters
2
Switches
Metal Line Switches
www.schurter.com/PG70
PSE HI 22
Ordering Example for Lettering
Laser marking
The last three digits in the order number define the lettering:
001-076
Standard Lettering
101-
Example for ordering with laser marking:
Customized Lettering
Basic Version
1241.29XX.XXX
Lettering
Indices 001-076
Embossed lettering
The last three digits in the order number define the lettering:
001-043
Standard Lettering
101-
Example for ordering with embossed lettering:
Customized Lettering
Basic Version
1241.290X.XXX
Lettering
Indices 001-043
Braille lettering
The last three digits in the order number define the lettering:
001-061
Standard Lettering
101-
Example for ordering with Braille lettering
Customized Lettering
Basic Version
1241.291X.XXX
Lettering
Indices 001-061
Switches
3
